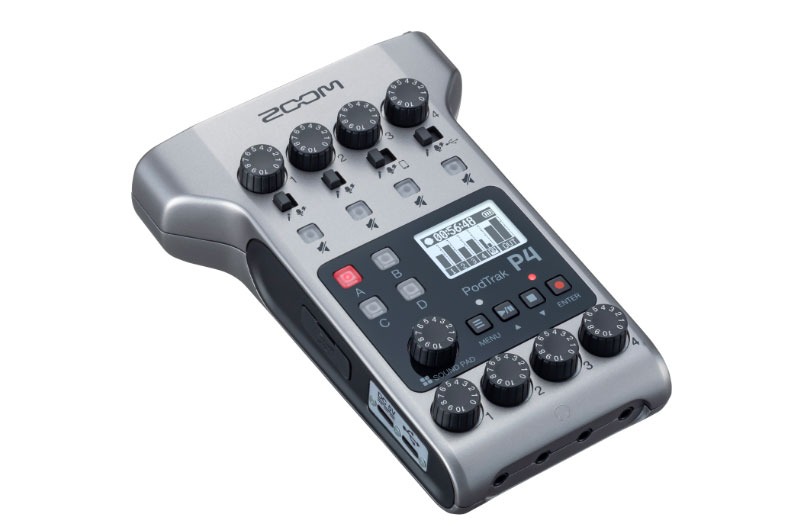

Zoom PodTrak P4 Podcast Recorder
- Four XLR mic inputs and four headphone outputs
- Phone input with Mix-Minus and four Sound Pads
- Records each mic to its own track
$149.99 USD
In Stock
Zoom PodTrak P4 Podcast Recorder

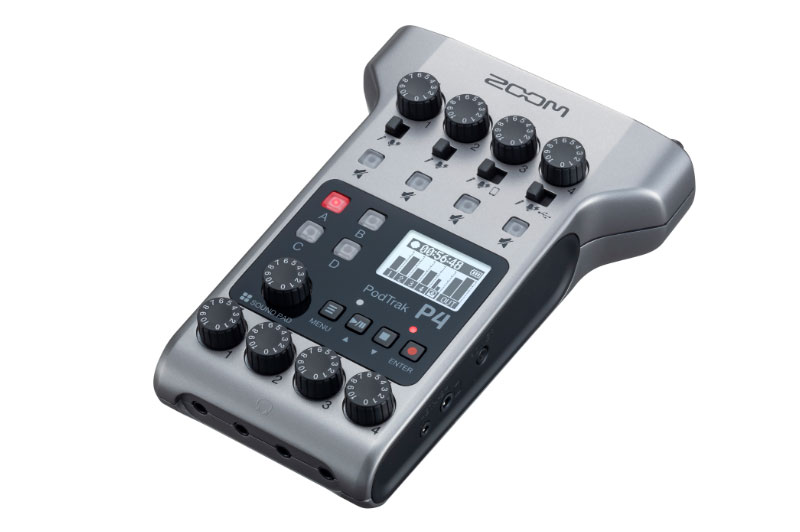

The Zoom PodTrak P4 records each of four XLR mics to its own track on an SD card, with four headphone outputs and Sound Pads for podcast music and jingles.

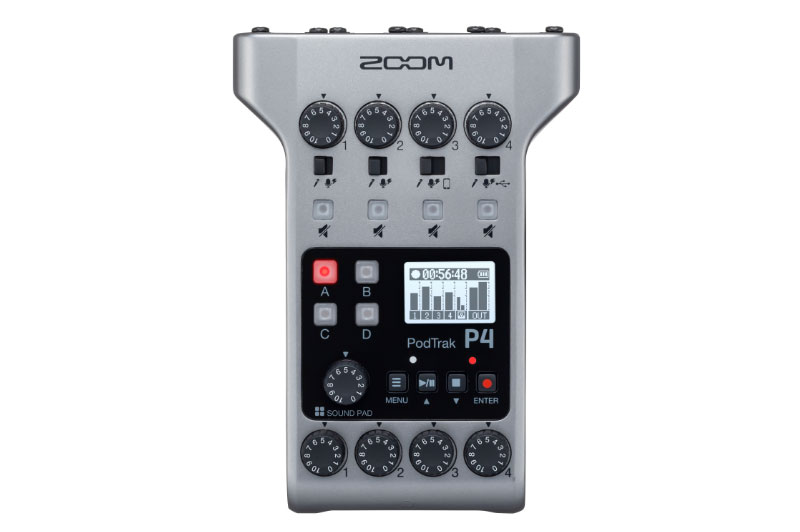

Each mic input has its own gain knob, mute button, and up to +70 dB of gain, with +48 V phantom power for condenser mics and an equivalent input noise of -124 dBu. Every one of the four headphone outputs has its own volume control, so each host and guest hears the show.

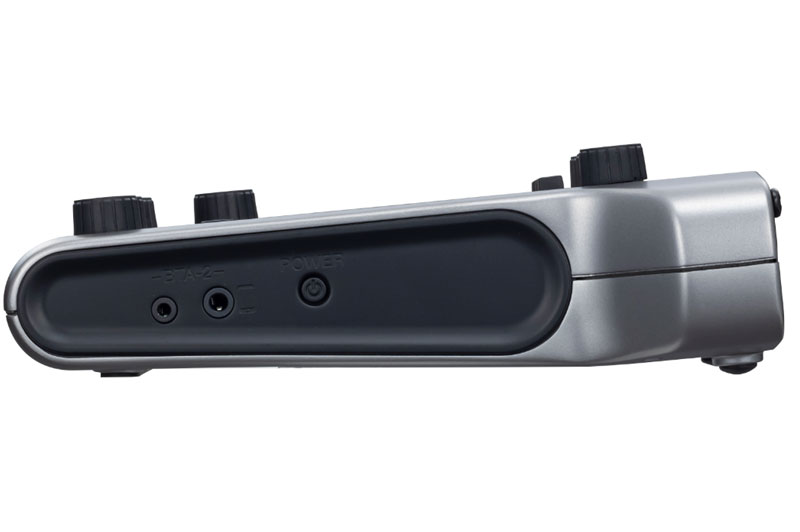

Remote guests join by phone through the TRRS jack, or from a computer over USB with conferencing software, and the Mix-Minus function keeps echo and feedback out of the caller’s audio. The optional BTA-2 adapter connects a phone over Bluetooth instead of a cable. Four Sound Pads play music, ads, jingles, or recorded interviews at the press of a button, from 11 preset sounds or files loaded from the SD card.

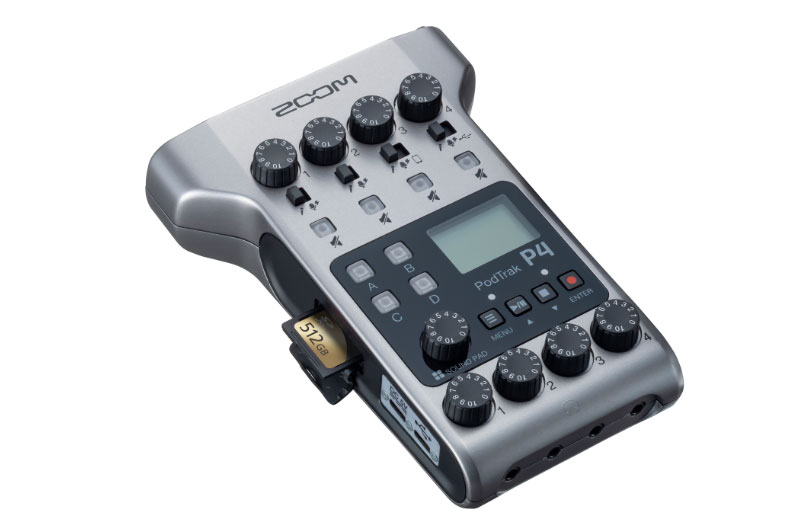

The P4 records 16-bit/44.1 kHz WAV files to SDHC and SDXC cards: a stereo mix ready to publish, plus a separate file for each channel and the Sound Pads for editing later. Over USB-C it is a 2-in/2-out audio interface for a computer, Android, or iOS device (iOS needs Apple’s Lightning to USB Camera Adapter), for recording or live streaming. It runs on a USB mobile battery, Zoom’s AD-17 AC adapter, or two AA batteries, which last about 3 hours on alkalines.
Features

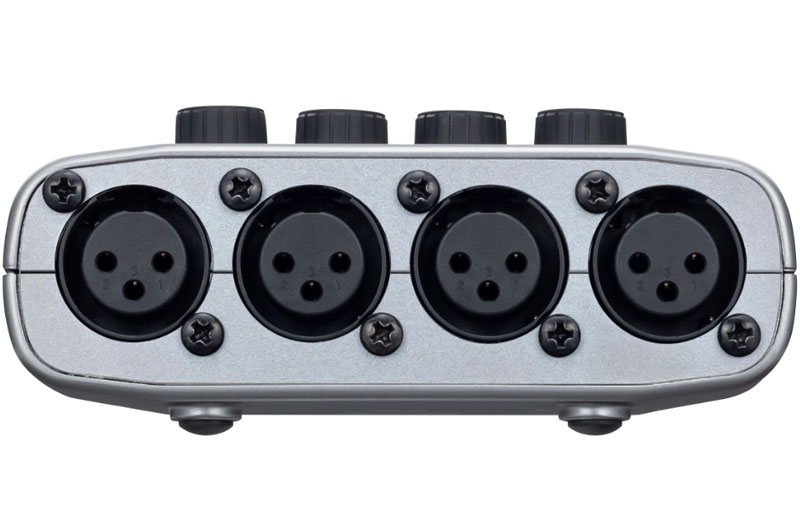

- Four XLR mic inputs with +48 V phantom power
- Up to +70 dB of gain and -124 dBu EIN
- Four headphone outputs with their own volume controls
- TRRS phone input with Mix-Minus
- Bluetooth phone connection with the optional BTA-2
- Four Sound Pads with 11 preset sounds
- Separate tracks for each channel plus a stereo mix
- 16-bit/44.1 kHz WAV to SDHC and SDXC cards
- 2-in/2-out USB audio interface
- Runs on two AA batteries, USB power, or the AD-17 AC adapter
What's Included
- PodTrak P4
- Quick Start Guide
Specifications
| Inputs | 4 XLR mic inputs (pin 2 hot), gain -∞ to +70 dB, 3 kΩ, 0 dBu maximum; smartphone TRRS mini jack (tip L, ring 1 R, ring 2 ground, sleeve mic), 3 kΩ, +3 dBu maximum |
|---|---|
| Equivalent Input Noise | −124 dBu or less (IHF-A) at +70 dB, 150 Ω input |
| Phantom Power | +48 V |

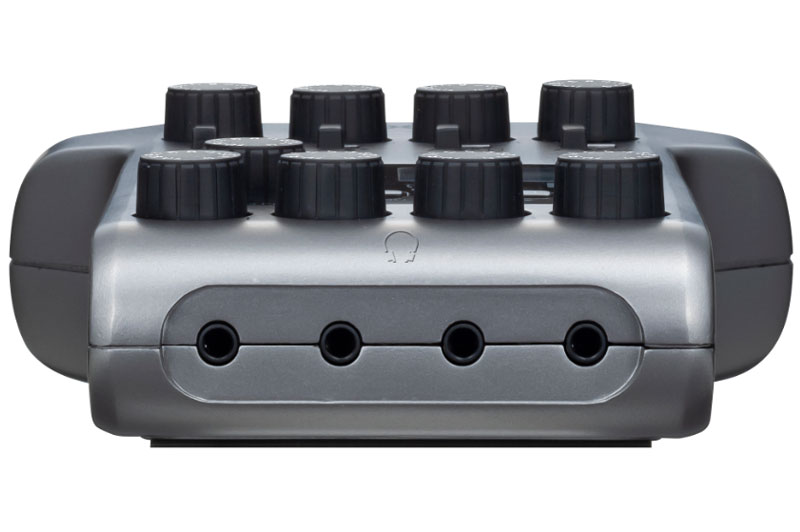

| Outputs | 4 headphone outputs, 3.5 mm stereo mini jacks, 20 mW + 20 mW into 32 Ω, 10 Ω output impedance |
| Maximum Tracks | 4 channels plus a stereo mix and the Sound Pads |
| Recording Formats | WAV: 44.1 kHz, 16-bit, mono or stereo |
| Recording Media | SDHC and SDXC cards, Class 10 or higher |
| Audio Interface | 2-in/2-out, 44.1 kHz, 16-bit |

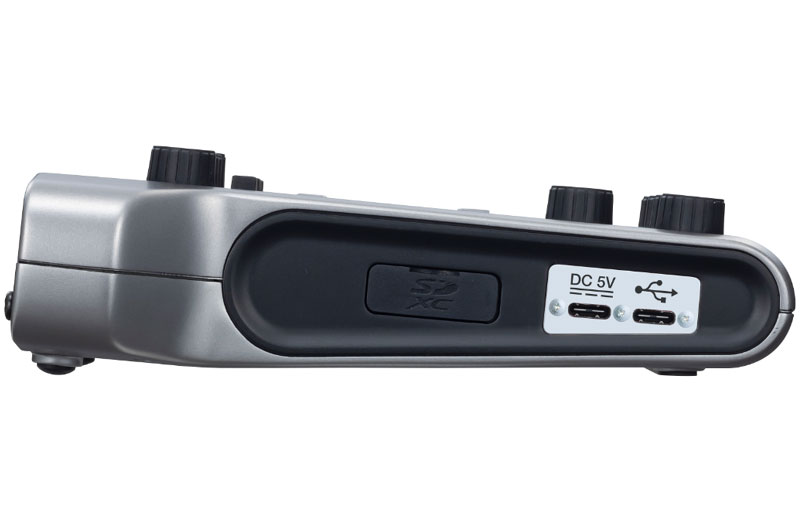

| USB | USB-C (audio interface and mass storage; bus power supported); USB-C DC 5 V power input |
| Frequency Response | 20 Hz to 20 kHz, −1.0 dB (44.1 kHz) |
| Display | Backlit LCD (96 × 64) |

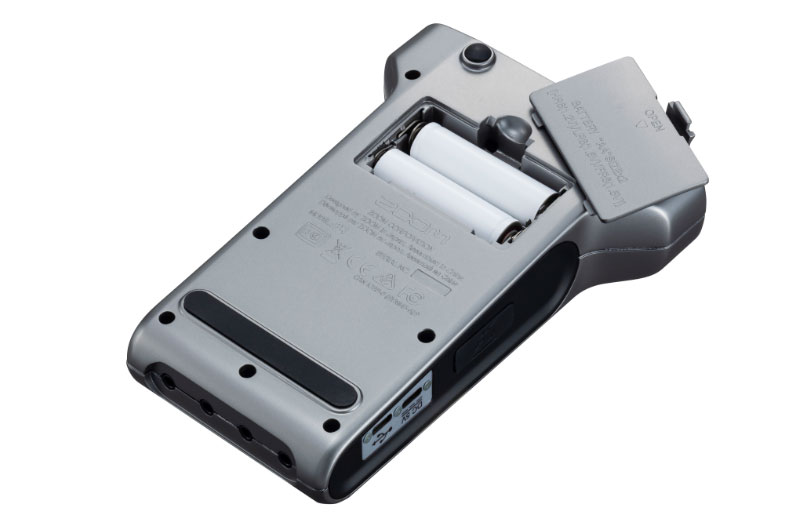

| Power | 2 AA batteries (alkaline, NiMH, or lithium); Zoom AD-17 AC adapter (DC 5 V/1 A); USB bus power |
| Battery Life | About 3 hours (alkaline), 3.5 hours (1900 mAh NiMH), 8 hours (lithium); 44.1 kHz/16-bit, 4 channels, phantom power off, headphones into 63 Ω |
| Power Consumption | 5 W |
| Dimensions | 112 mm (W) × 155 mm (D) × 47 mm (H) |
| Weight | 290 g (unit only) |
