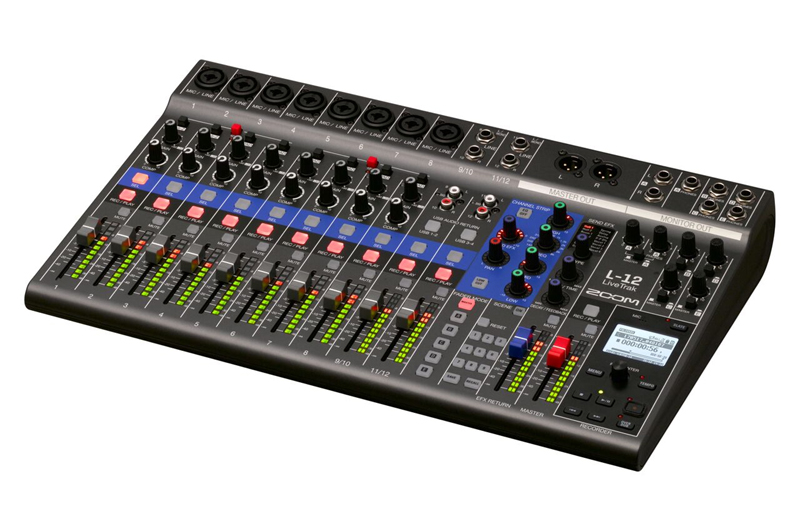

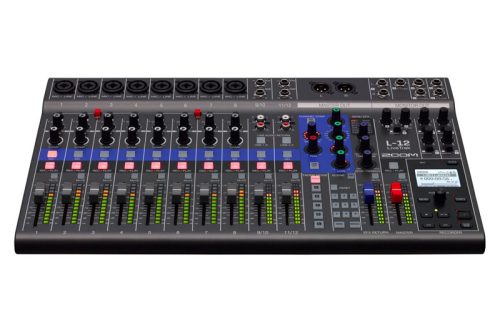

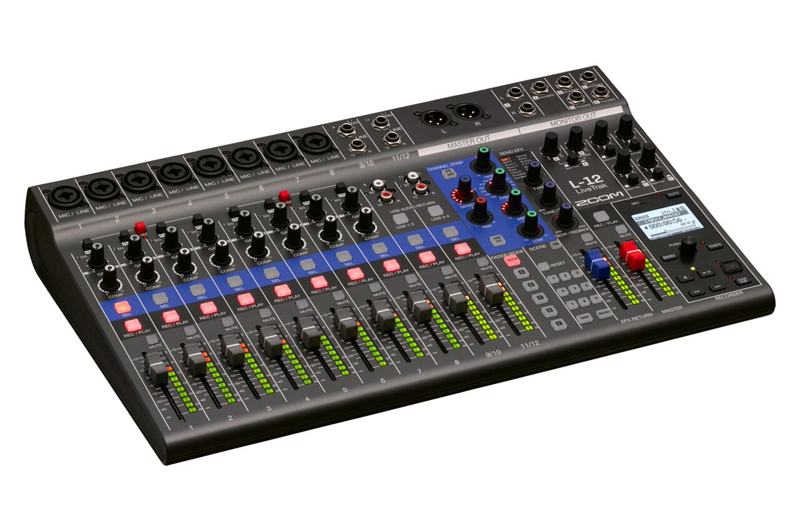

Zoom LiveTrak L-12 Digital Mixer/Recorder
- 12 channels with eight mic preamps
- Five custom headphone mixes
- Records 14 tracks at once to an SD card
$549.99 USD
In Stock
Zoom LiveTrak L-12 Digital Mixer/Recorder
The Zoom LiveTrak L-12 mixes a live performance while it records 12 channels to an SD card, and its digital mixer gives the players five custom headphone mixes.
Eight mono channels take XLR or 1/4-inch plugs through combo inputs, each with one-knob compression and gain up to +60 dB, and an equivalent input noise of -128 dBu. Channels 1 and 2 switch to Hi-Z for guitar or bass, and channels 3 to 8 have a 26 dB pad. Phantom power at +48 V switches on in two groups, channels 1 to 4 and channels 5 to 8. Two stereo channels take 1/4-inch or RCA line inputs for keyboards and other sources.

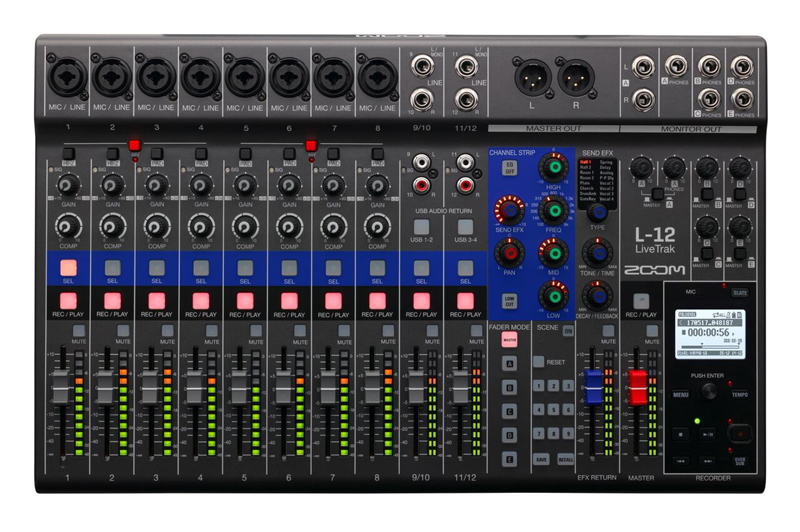

Every channel has a fader, a mute button, a 3-band EQ with a sweepable mid from 100 Hz to 8 kHz, and a low-cut filter, and 16 delay and reverb effects have adjustable parameters. Five powered headphone outputs each carry their own mix, output A also has balanced TRS outputs for stage monitors, and the main outputs are XLR. Nine scenes save fader positions, EQ, pan, mutes, and more.
The L-12 records 14 tracks at 44.1 or 48 kHz, or 12 at 96 kHz, as WAV files to SD cards up to 1 TB. Tracks are recorded before EQ and effects, so they can be remixed on board or in a DAW. Auto-record starts at a set level and keeps up to two seconds from before it started, and a built-in slate mic and metronome help in the session. Effects, EQ, overdub, the audio interface, fader modes, and the stereo mix tracks are not available at 96 kHz.

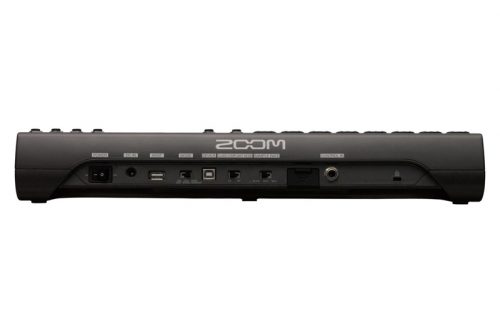

Over USB it is a 14-in/4-out audio interface, and it works with iOS devices through Apple’s Lightning to USB Camera Adapter. It can record to a computer and an SD card at the same time at up to 48 kHz. A USB host port copies projects to a flash drive, and card reader mode transfers files to a computer. The L-12 takes the FS01 footswitch and runs on the included AD-19 AC adapter.
Features
- 12 channels: eight mono XLR/TRS combo and two stereo line
- -128 dBu EIN and up to +60 dB of gain
- One-knob compression on channels 1 to 8
- Hi-Z on channels 1 and 2, 26 dB pad on channels 3 to 8
- +48 V phantom power
- 3-band EQ with sweepable mid and low cut on every channel
- 16 delay and reverb effects
- Five powered headphone outputs with custom mixes
- 14 tracks at once at 44.1 or 48 kHz, 12 at 96 kHz, to SD cards up to 1 TB
- 14-in/4-out USB audio interface
What's Included
- AD-19 AC adapter
- USB 2.0 cable
- Quick Guide
Specifications
| Channels | 12 (8 mono mic/line, 2 stereo line) |
|---|---|
| Inputs | 8 XLR/TRS combo mic/line (XLR pin 2 hot, TRS tip hot), gain +16 to +60 dB (pad off), −10 to +34 dB (pad on), +6 to +50 dB (Hi-Z on), impedance XLR 3 kΩ, TRS 10 kΩ/1 MΩ (Hi-Z on), maximum input 0 dBu (pad off) or +26 dBu (pad on); 2 stereo line inputs, 1/4-inch phone or RCA pin (unbalanced), +16 dBu maximum |
| Equivalent Input Noise | −128 dBu (IHF-A) at +60 dB, 150 Ω input |
| Phantom Power | +48 V (channels 1-4 and 5-8) |
| Outputs | Master out: XLR (balanced), +14.5 dBu maximum, 100 Ω; monitor out A: TRS (balanced), +14.5 dBu maximum, 100 Ω; monitor outs A-E (phones): standard stereo phone jacks, 42 mW + 42 mW into 60 Ω |
| Buses | Master 1; monitor 5; send effects 1 |
| Channel Strip | Compressor; low cut 75 Hz, 12 dB/octave; EQ high 10 kHz ±15 dB shelving, mid 100 Hz to 8 kHz ±15 dB peaking, low 100 Hz ±15 dB shelving |
| Effects | 16 send effect types |
| Maximum Tracks | 14 recording at 44.1 or 48 kHz, 12 at 96 kHz; 12 playback |
| Recording Formats | WAV: 44.1, 48, or 96 kHz; 16-bit or 24-bit; mono or stereo |
| Recording Media | SD (16 MB to 2 GB), SDHC (4 GB to 32 GB), and SDXC (64 GB to 1 TB) cards |
| USB | USB 2.0; audio interface 14-in/4-out at 44.1 or 48 kHz, 24-bit; card reader and USB host (USB 2.0 High Speed) |
| Frequency Response | 20 Hz to 20 kHz, −1.0 dB (44.1 kHz); 20 Hz to 40 kHz, −3.0 dB (96 kHz) |
| Display | Backlit LCD (128 × 64) |
| Power | Zoom AD-19 AC adapter (DC 12 V/2 A) |
| Dimensions | 445 mm (W) × 282 mm (D) × 70.5 mm (H) |
| Weight | 2.53 kg (main unit only) |
