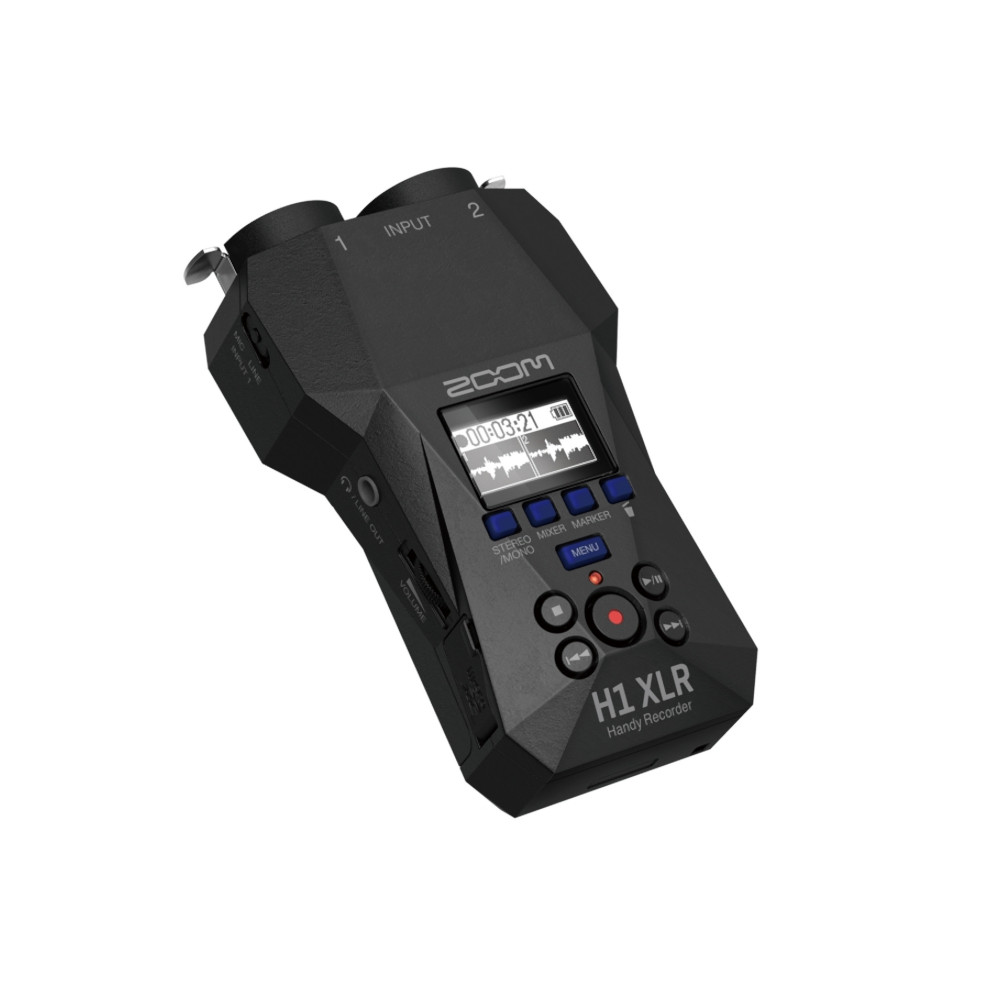

Zoom H1 XLR Handy Recorder
- Two locking XLR/TRS inputs with 32-bit float recording
- No gain to set
- USB-C audio interface while it records
$149.99 USD
In Stock
Zoom H1 XLR Handy Recorder

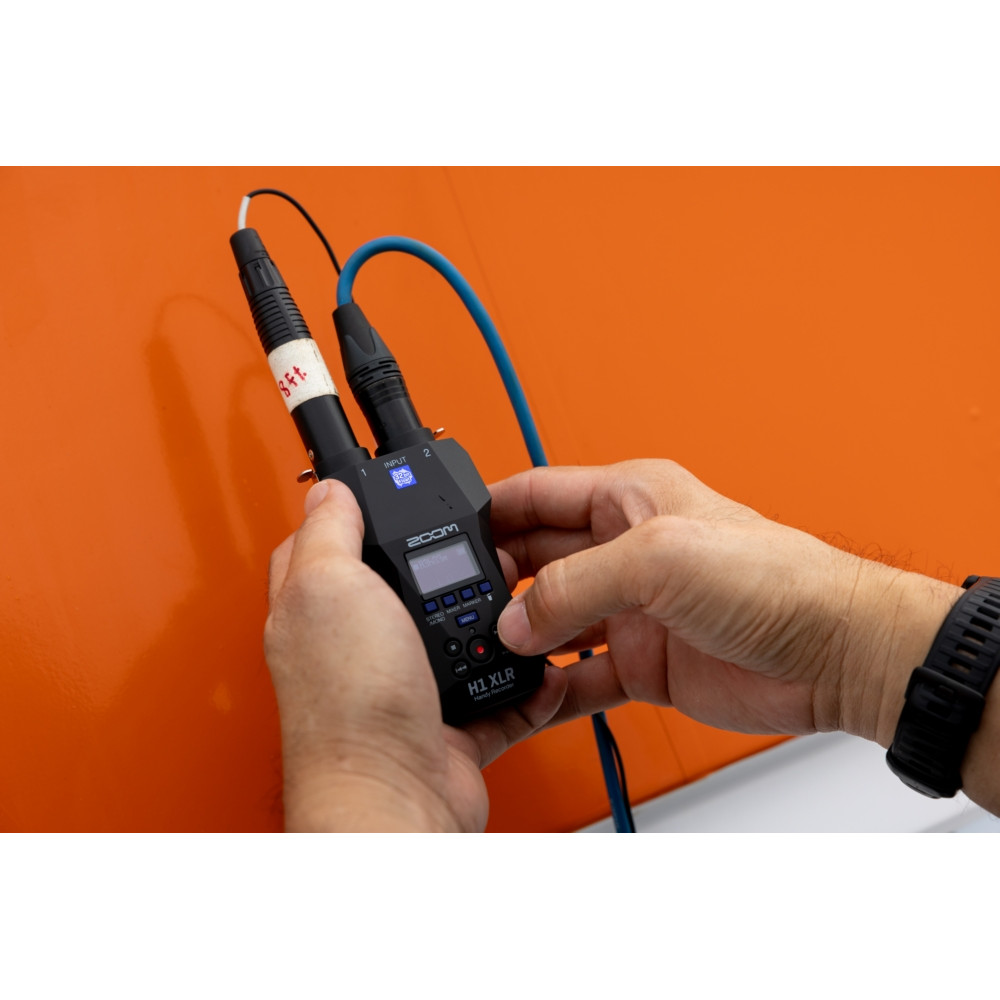

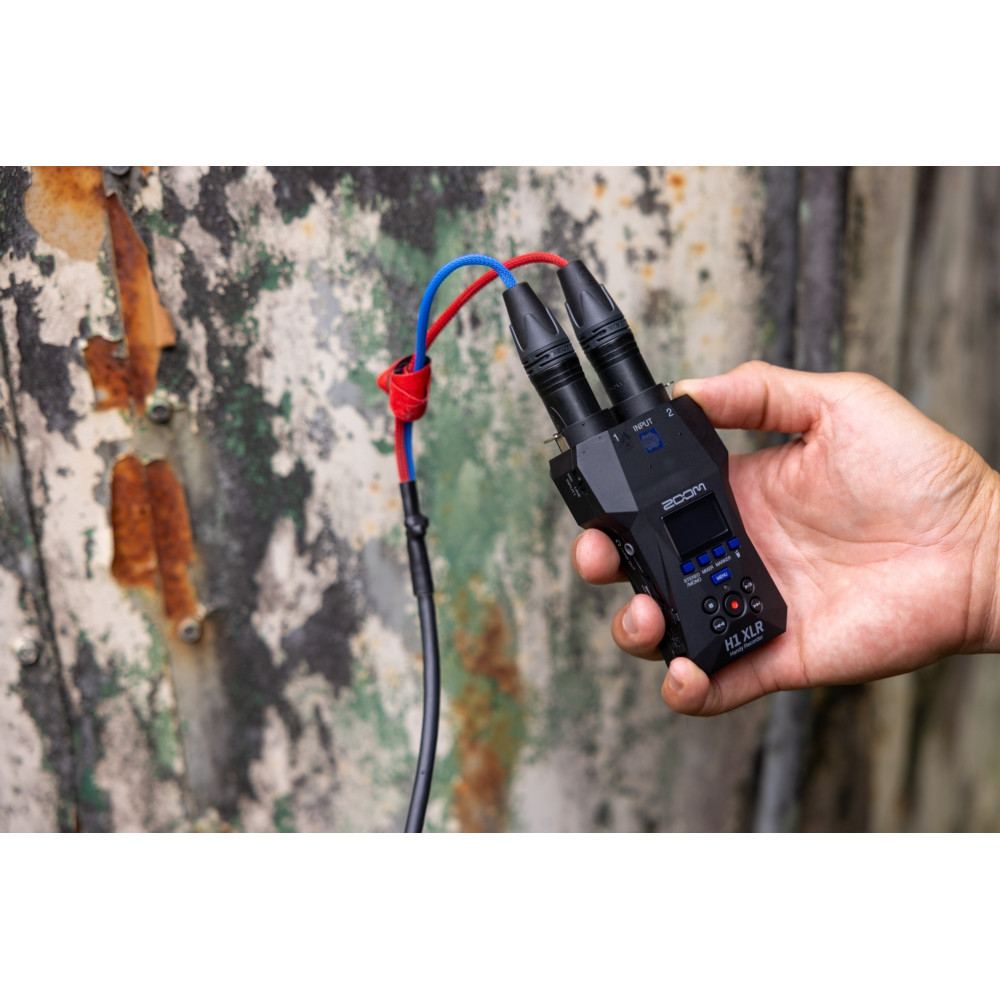

With two locking XLR/TRS combo inputs and 32-bit float recording through dual A/D converters, the Zoom H1 XLR is a two-track handy recorder with no gain to set.
A switch on each input selects mic or line level, the inputs accept +4 dBu line signals from a mixer, and +48 V phantom power runs condenser mics. The preamps have an equivalent input noise of -122 dBu. A 3.5 mm stereo mic/line input with plug-in power takes on-camera mics and lavaliers, and a built-in mixer sets each track’s level.

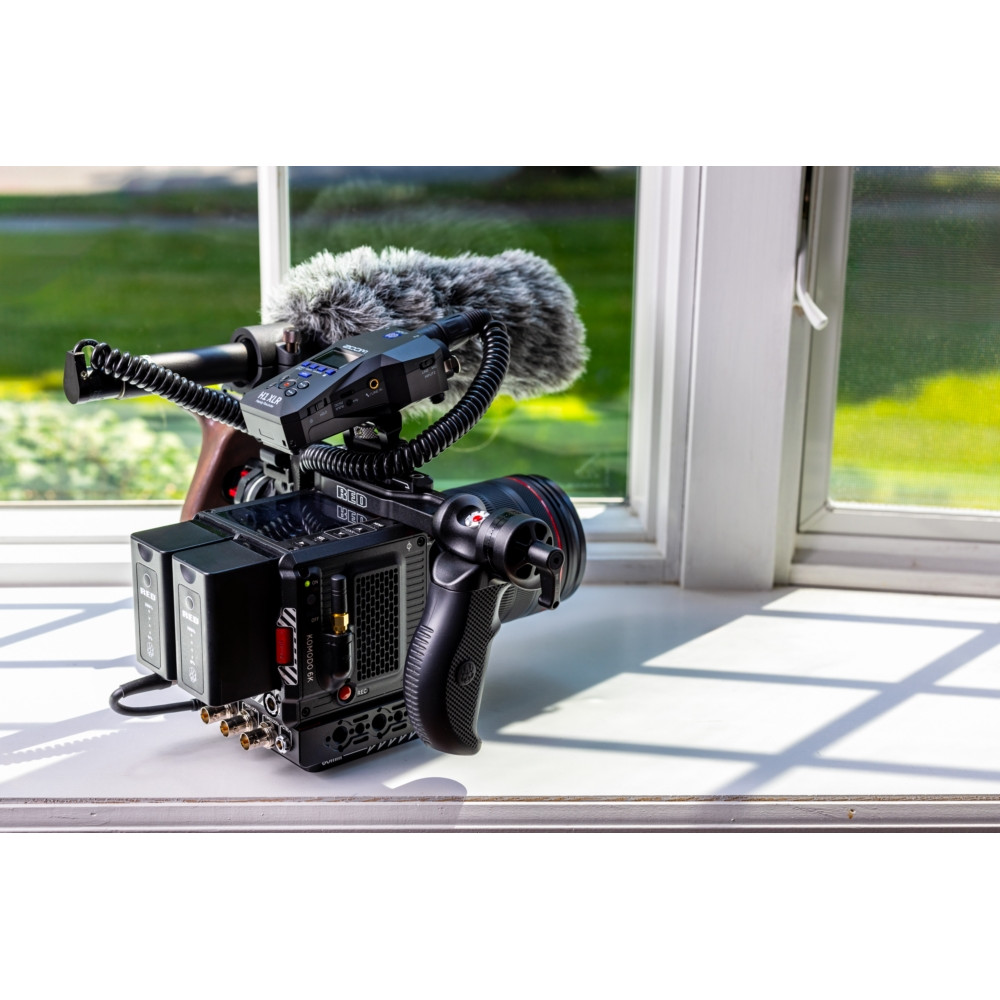

The H1 XLR records stereo or mono WAV files at up to 96 kHz to microSD cards up to 1 TB, and its OLED display shows real-time waveforms. A 3.5 mm headphone/line output monitors the recording or feeds a camera, the built-in speaker plays files back, and a 1/4″-20 thread mounts it on a rig.
Over USB-C it works as a 32-bit float audio interface for a PC, Mac, iOS, or Android device while it records to the card, and it can record audio straight into a phone’s video. Voice guidance reads the menus aloud for blind and visually impaired users. It runs on two AA batteries or USB-C power, including bus power and USB battery packs.
Features
- 32-bit float recording with dual A/D converters
- Two locking XLR/TRS combo inputs
- Mic/line switch on each input
- +48 V phantom power
- 3.5 mm stereo mic/line input with plug-in power
- OLED waveform display
- WAV at up to 96 kHz to microSD cards up to 1 TB
- 32-bit float USB-C audio interface
- Voice guidance for blind and visually impaired users
- Runs on two AA batteries or USB-C power
Specifications
| Inputs | 2 XLR/TRS combo (XLR pin 2 hot, TRS tip hot), mic or line; input impedance 2.7 kΩ or more (mic), 1 kΩ or more (line); maximum input +4 dBu (mic), +24 dBu (line); 3.5 mm stereo mini mic/line input, 2 kΩ, 2.5 V plug-in power |
|---|---|
| Equivalent Input Noise | −122 dBu or less (mic, IHF-A, 150 Ω input); −100 dBu or less (line, IHF-A, 600 Ω input) |
| Phantom Power | +48 V, 10 mA or less in total |
| Outputs | Headphone/line: 3.5 mm stereo mini, 20 mW + 20 mW into 32 Ω; built-in 250 mW speaker |
| Recording Media | microSDHC (4 to 32 GB) and microSDXC (64 GB to 1 TB) cards |
| Recording Formats | WAV (BWF, iXML): 44.1, 48, or 96 kHz, 32-bit float; stereo or mono |
| USB | USB-C; audio interface 2-in/2-out at 44.1 or 48 kHz, 16-bit or 32-bit float (USB Audio Class 1.0); file transfer USB 2.0 High Speed |
| Display | OLED (128 × 64) |
| Power | 2 AA batteries (alkaline, lithium, or NiMH), Zoom AD-17 AC adapter (DC 5 V/1 A), or USB bus power |
| Dimensions | 62.1 mm (W) × 107 mm (D) × 39.3 mm (H) |
| Weight | 164 g (with batteries) |
