Zoom EXH-6e Dual XLR/TRS Input Capsule
- Adds two locking XLR/TRS combo inputs
- +48 V phantom power from USB-C power
- 3.5 mm stereo mic/line input with plug-in power
$109.99 USD

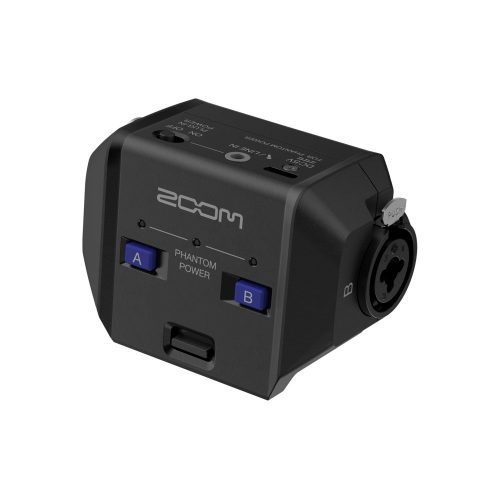

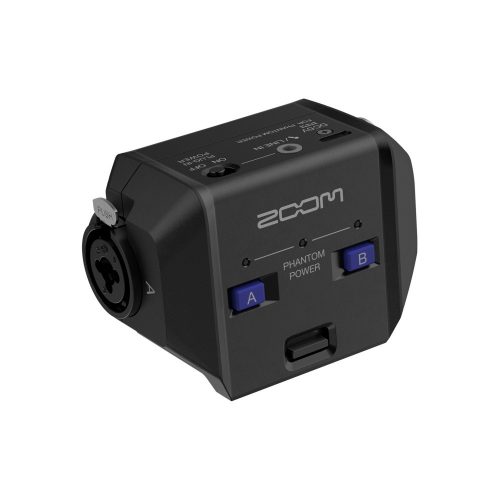

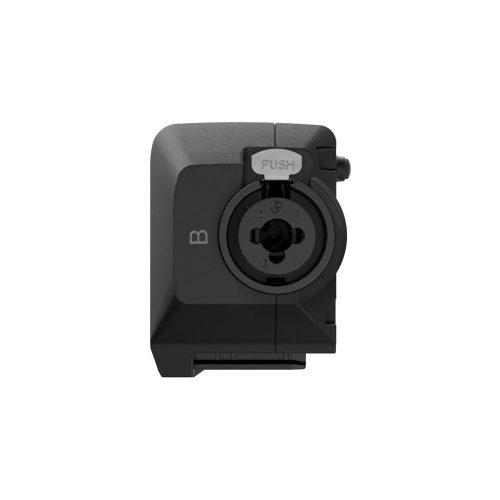

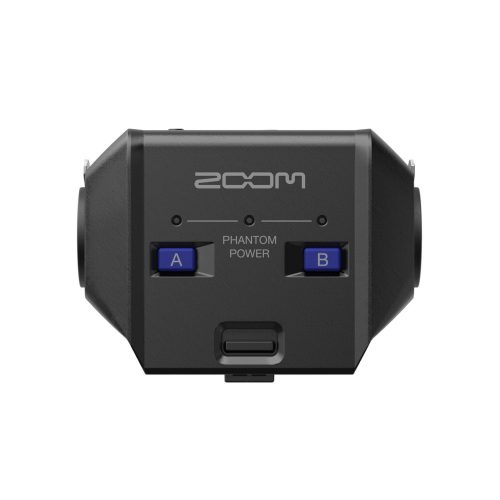

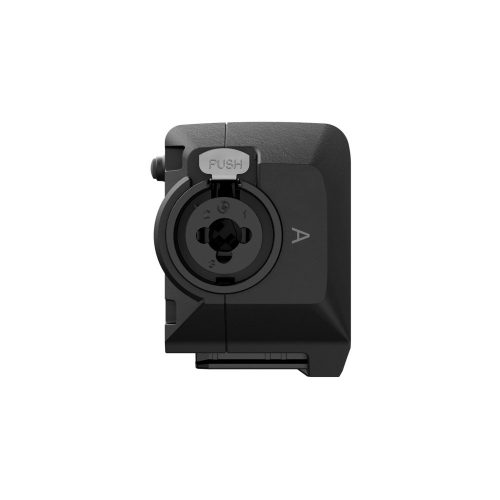

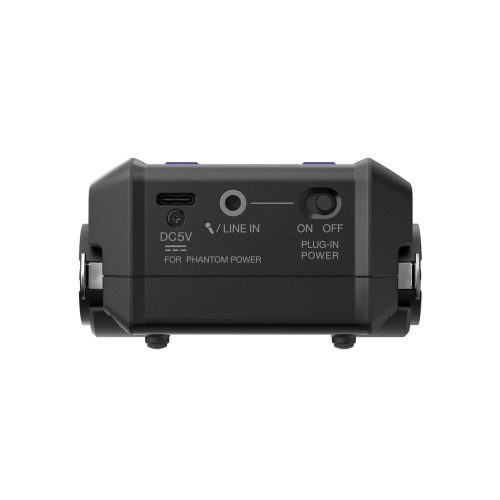

Zoom EXH-6e Dual XLR/TRS Input Capsule
The Zoom EXH-6e is a dual XLR/TRS input capsule that adds two locking combo inputs and a 3.5 mm stereo mic/line input to a Zoom H6studio, H5studio, or H6essential handy recorder.
Each combo input takes a mic on an XLR plug or a line-level source on a TRS plug, with no gain to adjust. With a portable battery or AC adapter on the capsule’s USB-C port, both inputs supply +48 V phantom power for condenser mics. The 3.5 mm input takes other mics and devices, and a switch turns on plug-in power for mics that need it.
The capsule uses Capsule System 3.0, which gives a stable connection and supports 32-bit float recording. The H6essential needs firmware 2.02 or later.
Features
- Two locking XLR/TRS combo inputs, mic or line
- No input gain to adjust
- +48 V phantom power with USB-C power connected
- 3.5 mm stereo mic/line input with switchable plug-in power
- Capsule System 3.0 with 32-bit float support
- Fits the H6studio, H5studio, and H6essential
Specifications
| Inputs | Inputs A/B: 2 XLR/TRS combo jacks (XLR pin 2 hot, TRS tip hot), no gain adjustment; input impedance 3.8 kΩ or more (mic), 39 kΩ or more (line); maximum input −4 dBu (mic), +16 dBu (line). Mic/line in: 3.5 mm stereo mini jack, 2 kΩ or more, plug-in power |
|---|---|
| Equivalent Input Noise | −120 dBu or less (IHF-A, 150 Ω input) |
| Phantom Power | +48 V, 10 mA maximum per channel (with power connected to the USB-C port) |
| Compatible With | Zoom H6studio, H5studio, and H6essential (firmware 2.02 or later) |
| Dimensions | 78.1 mm (W) × 56.7 mm (D) × 43.9 mm (H) |
| Weight | 96 g |
