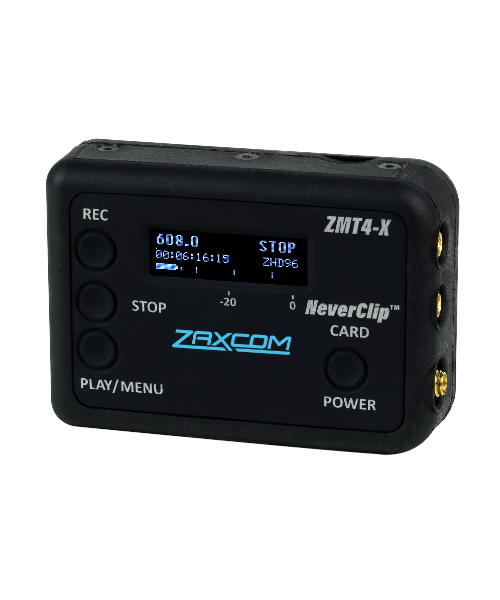

Zaxcom ZMT4-X Bodypack Transmitter
- Up to 16 hours on one Motorola battery
- Two microdot inputs for mono or stereo
- Encrypted audio with internal recording
From $2,195.00 USD
Zaxcom ZMT4-X Bodypack Transmitter
Built for long days, the Zaxcom ZMT4-X is a bodypack transmitter that runs up to 16 hours on a single Motorola battery.
Its two microdot inputs take one lavalier in mono mode or two in stereo mode. The Motorola BT100 or BT110 (PMNN4468A) battery also gives 48 hours of standby on a charge.
Encrypted Audio and Recording
Audio goes out fully encrypted and records at the same time to a microSD card inside the transmitter, with timecode. Recordings use Zaxcom’s MARF format, which keeps the file intact if the battery dies or the card comes out early.
ZaxNet Remote Control
ZaxNet is Zaxcom’s 2.4 GHz control link. From a ZRC remote or any ZaxNet device, the operator can change the frequency, output power, and input gain, start and stop the recorder, manage timecode, and format the card without touching the talent. Quality-control audio also goes out over ZaxNet, so the mic can be checked on the spot with an ERX receiver.
NeverClip and ZHD
NeverClip gives 136 dB of dynamic range in both mono and stereo modes. ZHD modulation fits more channels into each megahertz of spectrum, with Mono, Stereo, XR, ZHD48, and ZHD96 modes for crowded RF environments.
Frequency Band
The US model covers 512 to 608 MHz, with output power of 25, 50, or 75 mW.
Features
- Up to 16 hours on one Motorola BT100 or BT110 battery
- Two microdot inputs for mono or stereo
- Encrypted digital transmission
- Internal microSD recording with timecode
- NeverClip, 136 dB dynamic range
- ZaxNet remote control and quality-control audio
- Mono, Stereo, XR, ZHD48, and ZHD96 modes
- 25, 50, or 75 mW output
Specifications
| Transmitter | |
|---|---|
| RF Modulation | Proprietary digital |
| ZMT4.5-X Frequency Range | 512 – 614 MHz |
| ZMT4.6-X Frequency Range | 596 – 698 MHz |
| RF Frequency Step | 100 kHz |
| RF Bandwidth | ZHD48 50 kHz; ZHD96 100 kHz; XR 200 kHz |
| Channel Separation | ZHD48 as close as 100 kHz; ZHD96 as close as 200 kHz; XR 400 kHz |
| Antenna Connector | SSMA female, 50 Ω |
| Emission Designator | 180KV2E, 100KV2E, 50KV2E |
| FCC | Part 74.861 |
| Power Output | 25, 50, or 75 mW, software selectable |
| Audio | |
| Dynamic Range | 136 dB, mono or stereo |
| Distortion | 0.002% |
| High-Pass Filter | Off or 30 – 220 Hz, in steps |
| Mic Power | 5 V DC |
| Mic Connectors | 2 x microdot |
| Input Range | −60 to −30 dBu |
| Mic Impedance | 6.8 kΩ |
| A/D Conversion | 24-bit, 48 kHz |
| Timecode and Recording | |
| Clock Accuracy | 1.54 PPM (1 frame in 6 hours) |
| Timecode Type | SMPTE |
| Frame Rates | 23.98, 24, 25, 29.97 NDF, 29.97 DF, 30 NDF, 30 DF |
| Media | microSD card |
| File Format | .ZAX, converts to BWAV or MP3 |
| ZaxNet Receiver | |
| RF Frequency Range | 2.403 – 2.475 GHz |
| RF Modulation | Digital spread spectrum |
| RF Frequency Step | 1 MHz |
| RF Bandwidth | 1 MHz |
| Channel Separation | 2 MHz |
| Sensitivity | −96 dBm |
| Physical and Power | |
| Dimensions | 2.6 × 1.8 × 0.9 in, H x W x D |
| Weight | 125 g (4.4 oz) with battery |
| Display | Graphic OLED |
| Battery | Motorola BT100 or BT110 |
| Battery Life | Up to 16 hours; 48 hours standby |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit zaxcom.com. |
