Zaxcom VRX1 VHF IFB Receiver
- Analog VHF FM IFB receiver, 192 to 217 MHz
- Voice prompts, voting, and 1 to 15 frames of delay
- Up to 17 hours on two AA batteries
$495.00 USD
Zaxcom VRX1 VHF IFB Receiver
The Zaxcom VRX1 brings VHF IFB audio to directors, producers, and talent through any earpiece or headphones plugged into its 3.5 mm output.
It is an analog FM receiver for 192 to 217 MHz, with a direct conversion design that resists RF interference and stretches battery life. Ten standard channels between 216.025 and 216.975 MHz come preset for quick setup.
Compatibility
The VRX1 works with analog VHF FM transmitters in its range, including the Zaxcom VTX1 and the Comtek BST 75-216, BST 25-216, and M-216. It can share a transmitter with Comtek receivers already in use.
Voice Prompts and Voting

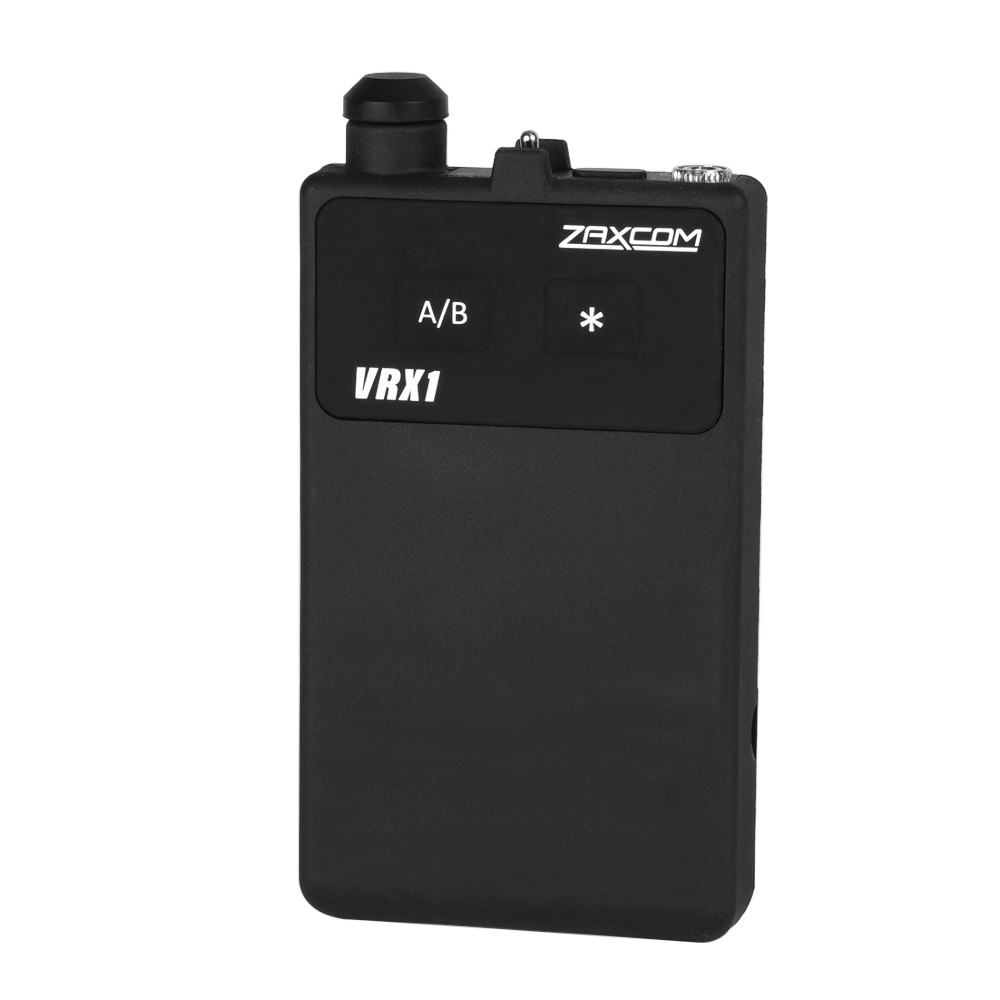

The A, B, and star buttons change settings, and each can be limited or disabled. Voice prompts announce the channel, battery level, and other settings in the headphones, so nobody has to look down at the receiver.
With voting on, the VRX1 switches to the strongest signal when more than one transmitter is on air. Voice prompts and voting can both be turned off.
Delay, Squelch, and Camera Feed

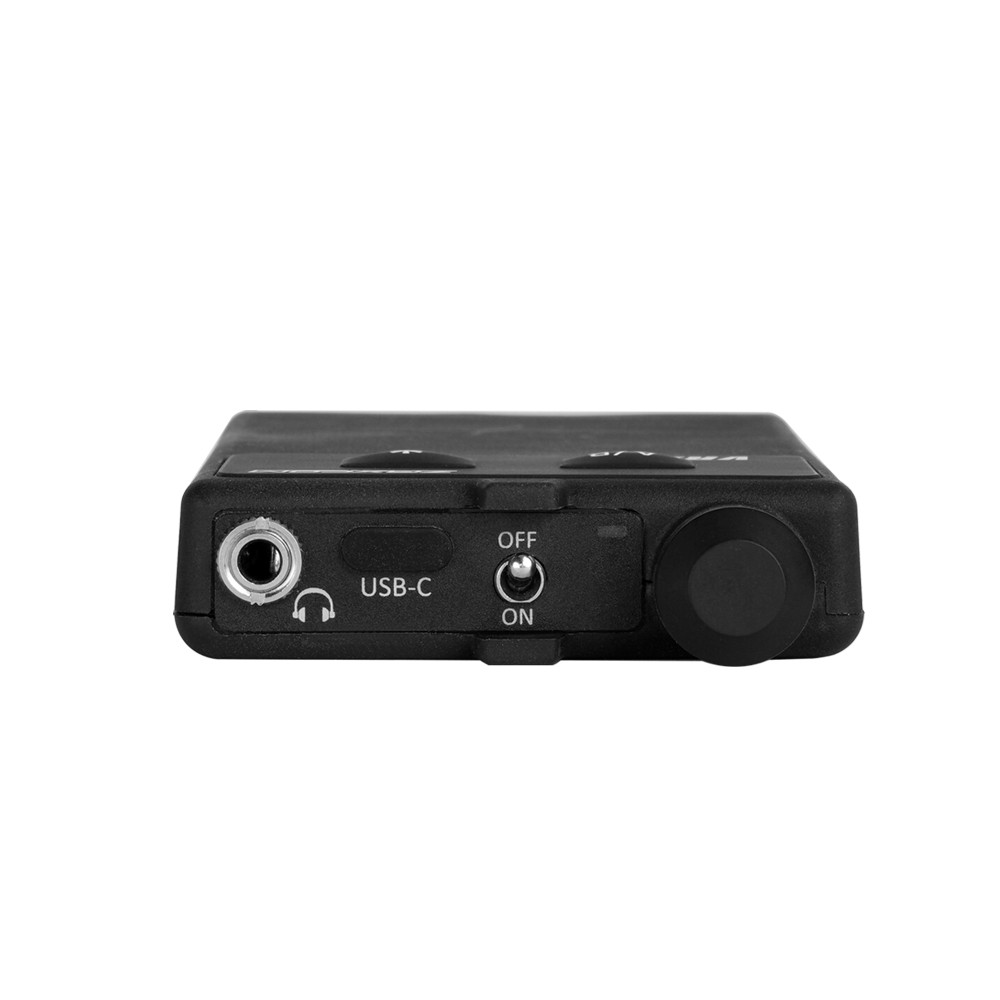

Audio delay can be set from 1 to 15 frames to match a video monitor, and an adaptive squelch quiets the output when no transmitter signal is present. The 3.5 mm output switches between unbalanced and balanced, so the VRX1 can also feed a single audio track to a camera.
Power and Setup

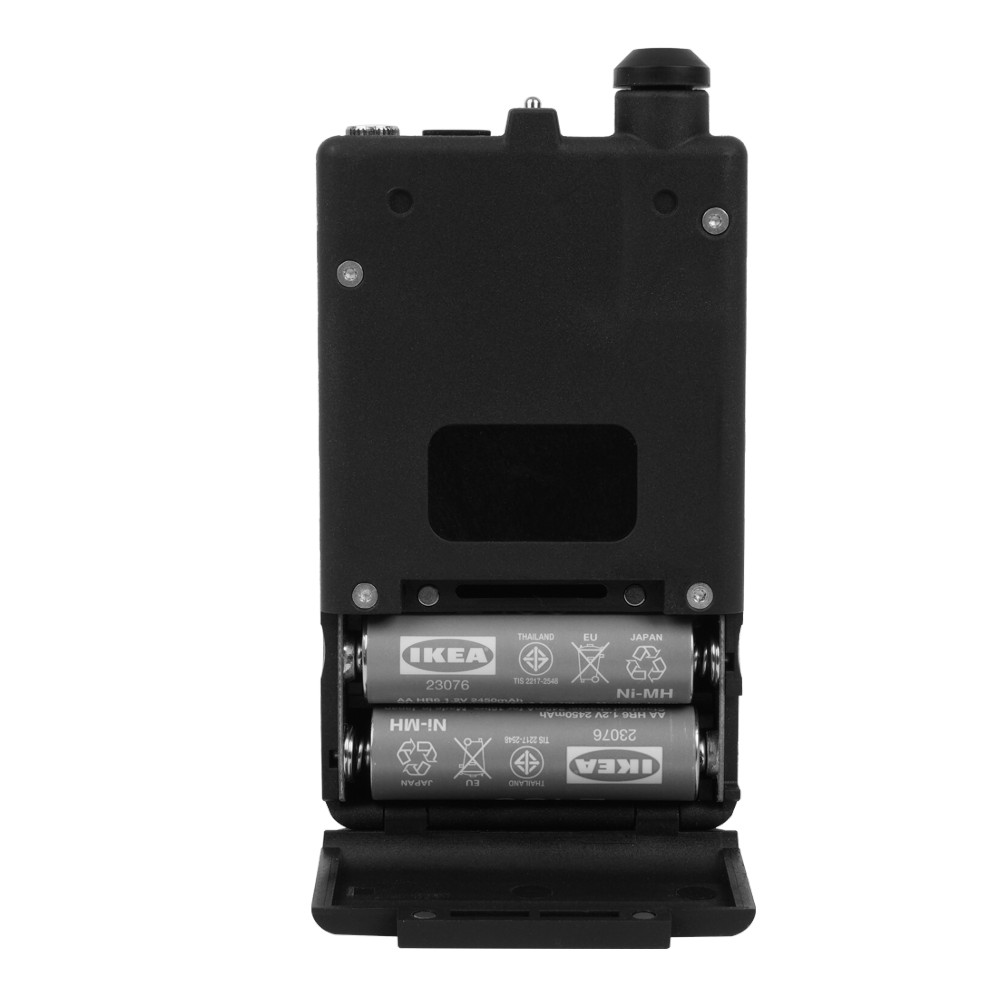

Two AA batteries run it for up to 9 hours on alkaline, 13 hours on NiMH, or 17 hours on lithium. The USB-C port powers the receiver and charges NiMH cells without taking them out.
The optional Zaxcom GUI Bridge (ZGB) connects over USB-C to reprogram channels and advanced settings, which makes a large inventory of receivers quicker to set up.
Features
- Analog VHF FM IFB receiver, 192 to 217 MHz
- Direct conversion design resists RF interference
- 10 preset channels, reprogrammable with the ZGB
- Works with the VTX1 and Comtek VHF transmitters
- Voice prompts and transmitter voting
- Audio delay of 1 to 15 frames
- Adaptive squelch
- Balanced or unbalanced 3.5 mm output
- Up to 17 hours on two lithium AA batteries
- USB-C power and in-unit NiMH charging
Specifications
| IFB Receiver | |
|---|---|
| Receiver Type | Direct conversion |
| RF Frequency Range | 192 – 217 MHz (76 – 86 MHz by special order) |
| RF Sensitivity | 0.8 µV for 20 dB |
| Modulation | FM |
| Minimum Channel Spacing | 100 kHz |
| Preset Channels | 10 |
| Frequency Step (Analog Mode) | 25 kHz |
| Spurious RF Rejection | Greater than 90 dB |
| Antenna | Headphone cable |
| Audio | |
| System Delay | 4 – 400 ms, adjustable |
| Audio Bandwidth | 16 kHz |
| Signal-to-Noise Ratio | 97 dB (full quieting) |
| Distortion | Less than 1%, analog FM |
| Output Connector | 3.5 mm (1/8 in) stereo |
| Minimum Headphone Impedance | 16 Ω |
| Output Level | 2.8 V max into 16 Ω |
| Output Type | Headphone or balanced differential |
| Physical and Power | |
| Dimensions | 4.60 × 2.46 × 0.64 in |
| Weight | 4 oz (113 g) with NiMH batteries |
| Batteries | 2 x AA alkaline, NiMH, or lithium |
| Battery Life | Alkaline up to 9 hours; NiMH up to 13 hours; lithium up to 17 hours |
| External Power | USB-C |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit zaxcom.com. |
