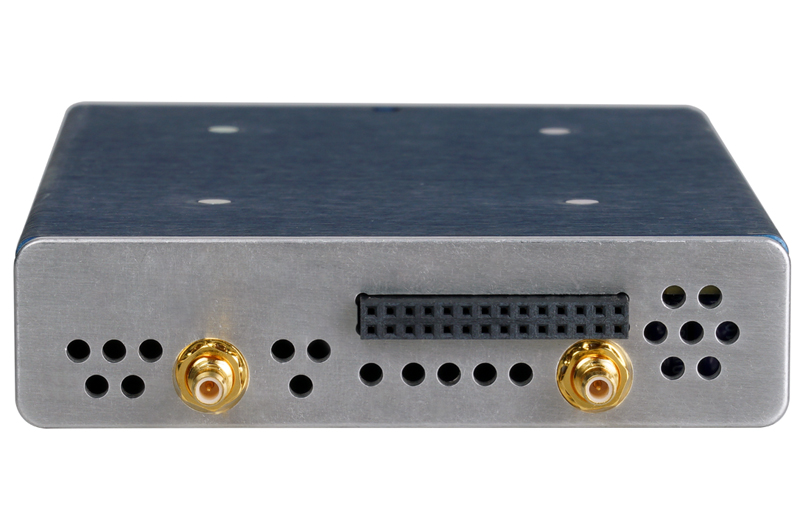

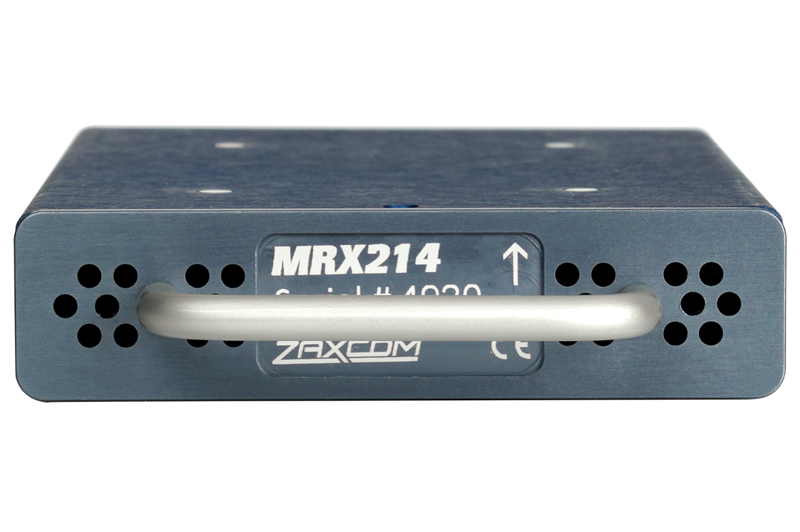

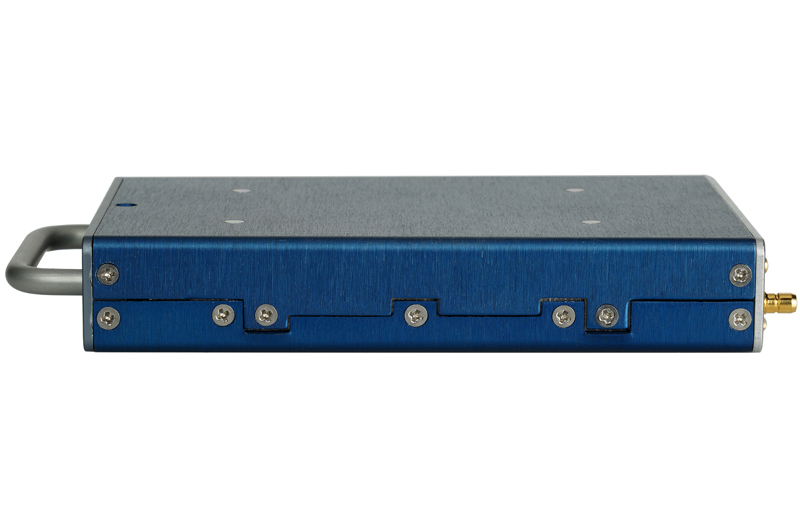

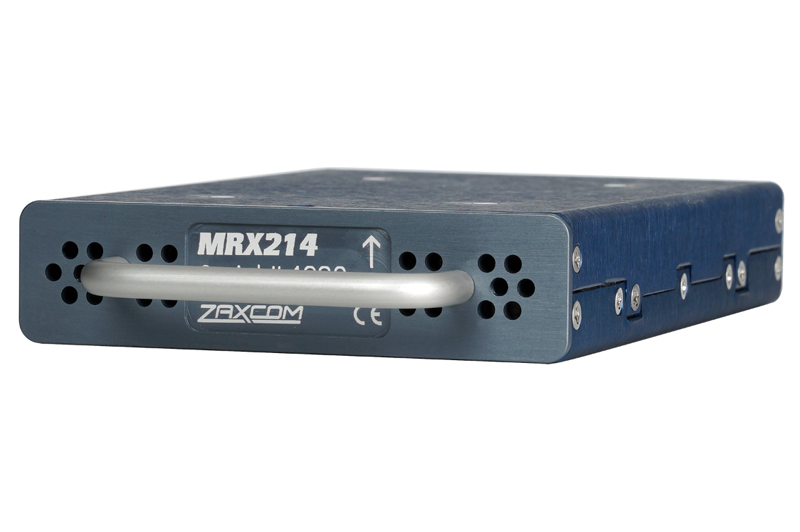

Zaxcom MRX214 Module Receiver

A hot-swappable module receiver, the Zaxcom MRX214 fits a Zaxcom host such as the Nova or Nova 2 mixer/recorder, RX-12, or RX-12R and takes two transmitters for up to four channels of audio.

It uses the high-Q tracking filter in its host to fight interference and extend range, and it decodes every current Zaxcom modulation (Mono, Stereo, XR, and ZHD96) from any Zaxcom Digital Recording Wireless transmitter.

An ultra-low -135 dB noise floor gives long range and makes the MRX214 very hard to overload, so a nearby transmitter barely affects reception of a distant one. Its RF performance beats the previous generation of Zaxcom receivers by 5 dB, and it rejects walkie-talkies, cell phones, and HD TV transmitters 10 dB better. Each module draws just 160 mA at 13 V DC.

The MRX214 comes in three tuning ranges, and an upgrade kit turns it into an MRX414 of the same range.

Features

• Module receiver for two transmitters, up to four channels
• Fits the Nova, Nova 2, RX-12, and RX-12R
• Hot swappable
• Decodes Mono, Stereo, XR, and ZHD96
• -135 dB noise floor
• 160 mA at 13 V DC
• Upgradable to an MRX414
