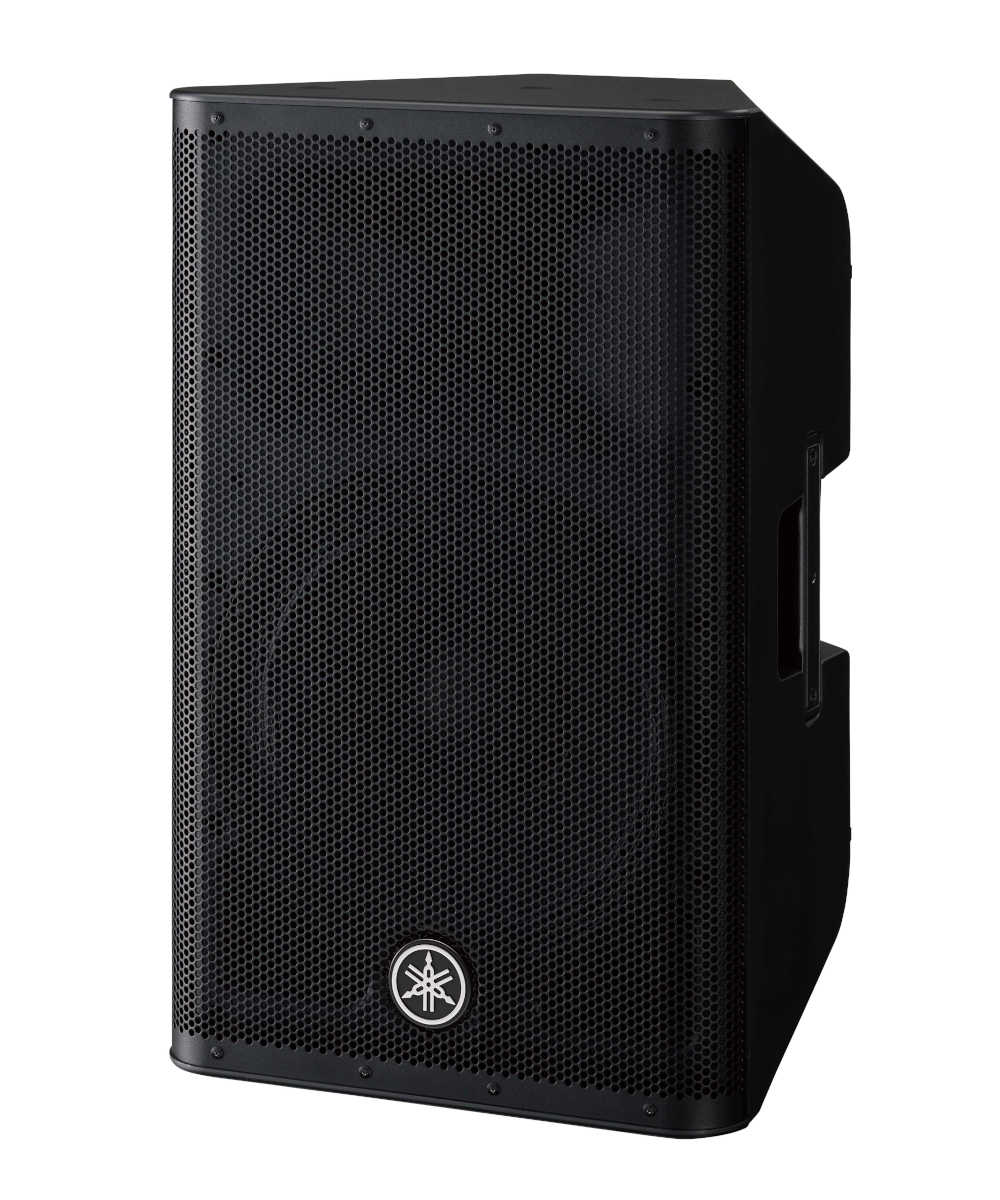

Yamaha DXR12mkII 12-Inch 2-Way Powered Loudspeaker
- 12-inch woofer and 1.75-inch neodymium compression driver
- 1100 W dynamic and 700 W continuous output power
- 134 dB SPL maximum output
$909.99 USD
Yamaha DXR12mkII 12-Inch 2-Way Powered Loudspeaker
The Yamaha DXR12mkII drives a 12-inch woofer and a 1.75-inch compression driver in a 2-way, bi-amped cabinet from 1100 W of power. It reaches 134 dB SPL, with bandwidth down to 52 Hz.
Yamaha’s mkII update to the DXR Series raises SPL and adds a larger, much lighter 1.75-inch neodymium compression driver for clear voices. The series was developed with the touring loudspeaker specialists at NEXO. FIR-X tuning, a linear phase crossover, handles the handoff between the two drivers. D-CONTOUR processing has FOH/MAIN and MONITOR settings that shape the response for how the speaker is being used.
The rear panel takes an XLR mic or line input, a pair of phone inputs, and a pair of RCA inputs, each with its own level control. An XLR thru passes input 1 along, and a link output sends the signal to the next DXR. The cabinet is black matte ABS, with a 35 mm pole socket that sits at 0 or 7 degrees, and three flying points for eyebolts.
Features
- 12-inch woofer and 1.75-inch neodymium compression driver
- 1100 W dynamic and 700 W continuous output power
- 134 dB SPL maximum output
- 90° by 60° nominal coverage
- 52 Hz to 20 kHz frequency range (−10 dB)
- FIR-X tuning linear phase crossover
- D-CONTOUR with FOH/MAIN and MONITOR settings
- XLR, phone, and RCA inputs with XLR thru and link out
- 35 mm pole socket with 0 and 7 degree positions
- 18.6 kg (41.0 lb) net weight
Specifications
| Speaker Type | 12-inch 2-way, bi-amp powered speaker, bass-reflex |
|---|---|
| Frequency Range (−10 dB) | 52 Hz – 20 kHz |
| Nominal Coverage | 90° horizontal; 60° vertical |
| LF Driver | 12-inch cone, 2.5-inch voice coil, ferrite magnet |
| HF Driver | 1.75-inch diaphragm, 1-inch throat compression driver, neodymium magnet |
| Crossover | FIR-X tuning (linear phase FIR filter) |
| Output Power | Dynamic 1100 W (LF 950 W, HF 150 W); continuous 700 W (LF 600 W, HF 100 W) |
| Maximum Output Level | 134 dB SPL (1 m, on axis) |
| Inputs | XLR × 1; phone × 2; RCA × 2 |
| Outputs | XLR thru × 1 (parallel with input 1); XLR link out × 1 |
| Processing | D-CONTOUR: FOH/MAIN, MONITOR, OFF |
| Power Requirements | 100 – 240 V, 50/60 Hz |
| Power Consumption | 110 W |
| Flying Points | Top × 2, rear × 1, for M10 × 18 mm eyebolts |
| Pole Socket | 35 mm, 0 or 7 degrees |
| Dimensions (W × H × D) | 362 mm (14 1/4 in) × 601 mm (23 5/8 in) × 350 mm (13 3/4 in) |
| Net Weight | 18.6 kg (41.0 lb) |
| Enclosure | ABS, matte black |
| Optional Accessory | UB-DXR12 U-bracket |
