Wisycom MPR52-ENG-B12 Two-Channel Ultra-Wideband Receiver
- Two-channel diversity ENG receiver
- Tunes 470 to 800 MHz plus 823 to 960 MHz bands
- Analog or AES3 digital output
$1,899.00 USD
Availability: In Stock
Wisycom MPR52-ENG-B12 Two-Channel Ultra-Wideband Receiver

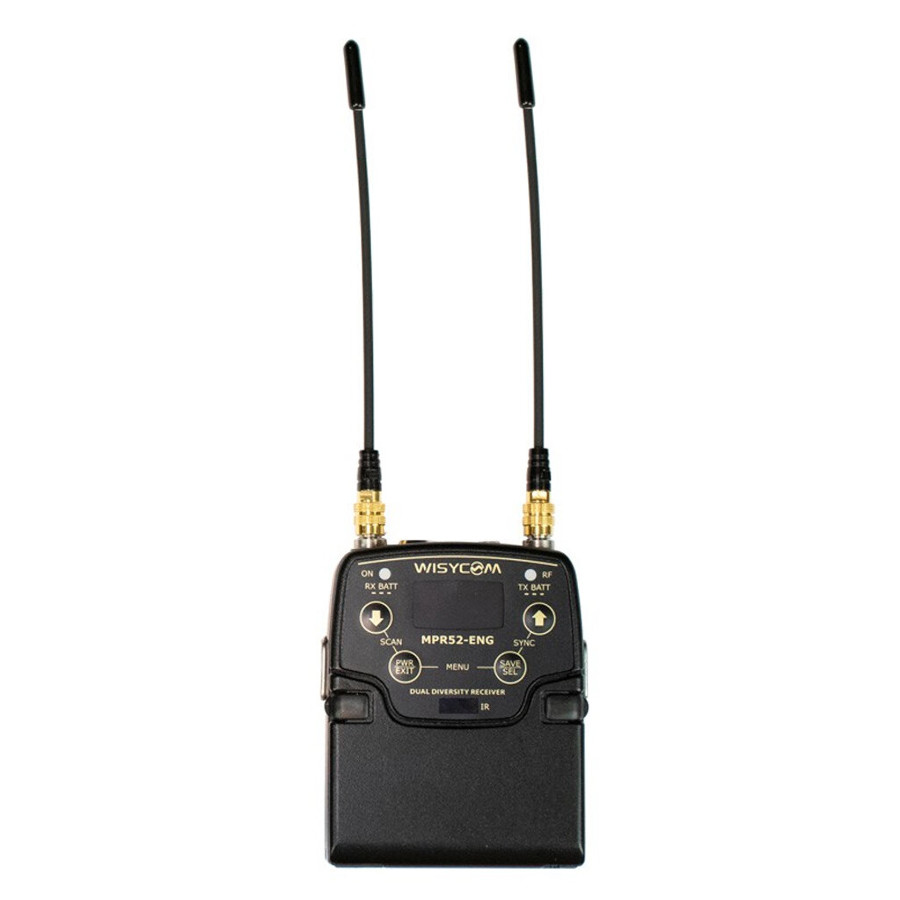

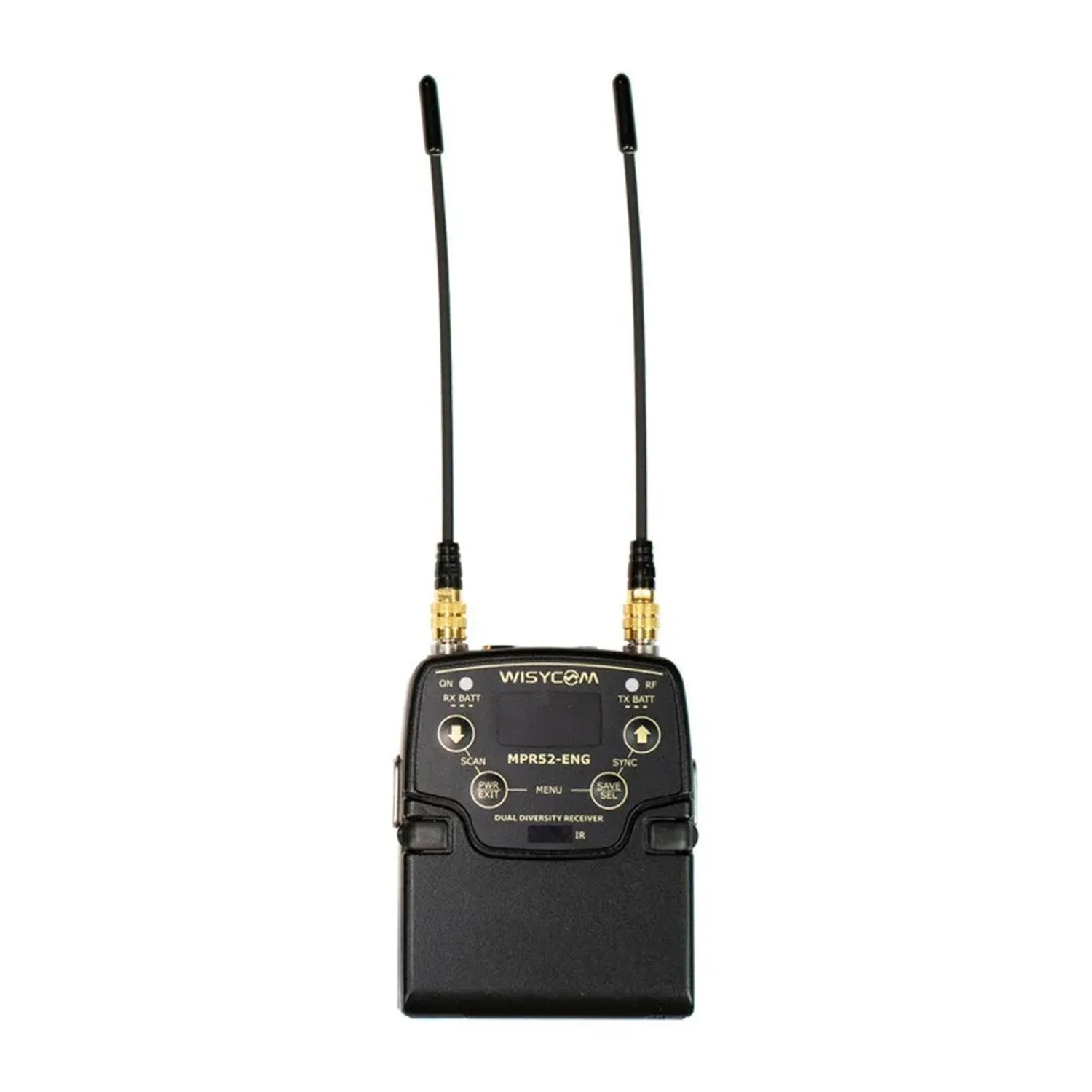

Made for ENG, the two-channel Wisycom MPR52-ENG-B12 puts two ultra-wideband diversity receivers in one compact bodypack, with both analog and AES3 digital outputs.
The B12 version tunes 470 to 800 MHz plus 823 to 832 and 920 to 960 MHz. High Q moving filters guard the front end from 470 to 960 MHz and from 960 to 1160 MHz. Each channel runs wideband or narrowband FM, set in software. Narrowband improves band efficiency by more than 50 percent and adds about 3 dB of sensitivity and noise immunity.
A fast spectrum scan, a high contrast OLED display, and transmitter programming by infrared make setup quick, and one button starts a scan or sync. Connected over USB to Wisycom Manager software, the MPR52 doubles as a quick, low noise portable spectrum scanner. Its DSP companders match the ENR, ENC, and ENS companders in Wisycom’s transmitters and emulate the companders other systems use.

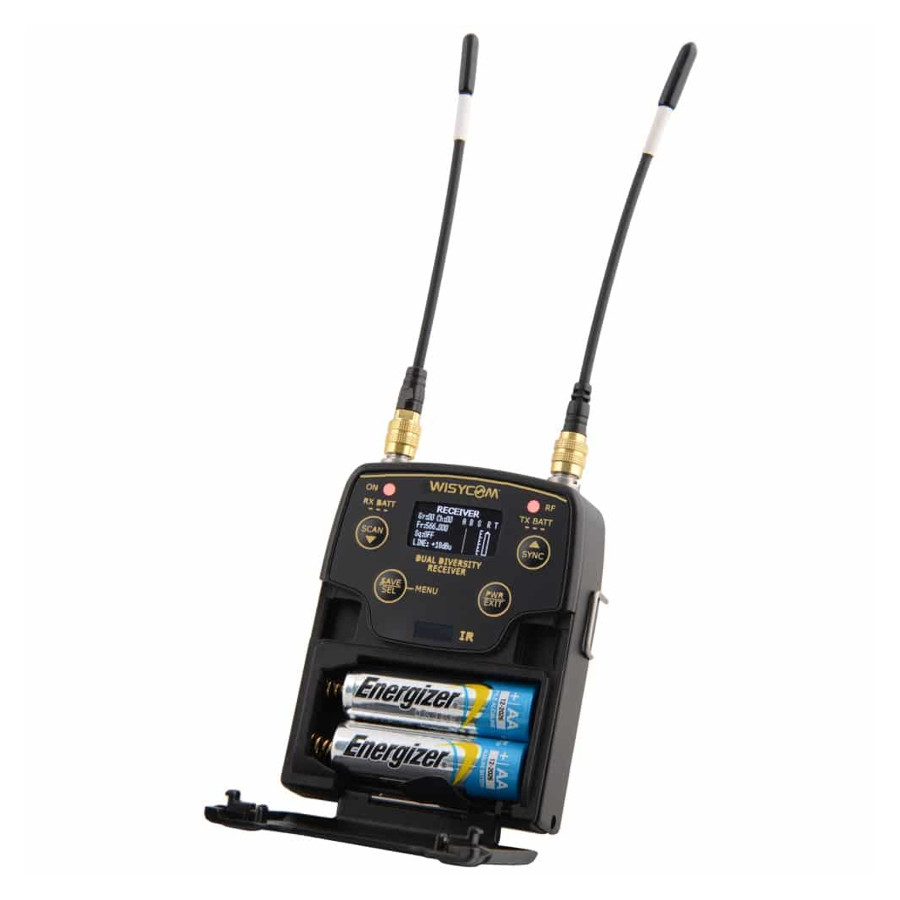

Power comes from the MPRLBP lithium-ion pack, which runs about 7 hours, or from two AA batteries. The lithium pack charges through the USB port or in the dedicated charger.
Features
- Two diversity receivers in one bodypack
- Tunes 470 to 800 MHz plus 823 to 832 and 920 to 960 MHz
- High Q moving front-end filters
- Wideband or narrowband FM, set in software
- Analog or AES3 digital output on a 5-pin mini XLR
- Fast spectrum scan and OLED display
- Transmitter programming by infrared
- Doubles as a portable spectrum scanner with Wisycom Manager
- Runs on the MPRLBP lithium pack or two AA batteries
Specifications
| Radio | |
|---|---|
| Frequency Range | 470 to 800, 823 to 832, and 920 to 960 MHz (B12) |
| Switchable Channels | 2400, in 40 groups of 60, user programmable |
| Frequency Step | 5 kHz minimum |
| Frequency Error | Less than ±2.5 ppm over the rated temperature range |
| Modulation | FM mono, wideband or narrowband (set in software) |
| Peak Deviation | ±54 kHz wideband, ±40 kHz narrowband |
| Antenna Inputs | 50 Ω SMA (SWR below 1:2, typical 1:1.4) |
| Sensitivity | 2 µV (6 dBµV) for SND/N above 58 dB; 5 µV (14 dBµV) for SND/N above 98 dB |
| Co-Channel Rejection | Above 80 dB typical (400 kHz spacing or more) |
| Spurious Emissions | Less than 2 nW (typical 0.1 pW) |
| Audio | |
| Noise Reduction | ENR, ENC, ENS, and FLAT; DSP emulation of SA572, SA575, and RMS companders |
| Audio Bandwidth | 30 Hz to 20 kHz wideband, 30 Hz to 15 kHz narrowband |
| Frequency Response | ±1 dB across the audio bandwidth |
| Distortion | 0.3% typical |
| Signal to Noise Ratio | 100 dB typical analog, above 125 dB typical AES3 |
| Audio Output | Electronically balanced, 5-pin mini XLR female, analog or digital, 200 Ω or less |
| Output Level | Up to +18 dBu at peak deviation, adjustable in 1 dB steps over 54 dB |
| Digital Output | AES3 at 48 kHz |
| Monitor Output | Locking 3.5 mm TRS (M6 × 0.5 thread), 2 × 100 mW at 32 Ω |
| Control and Power | |
| Control | Micro USB |
| Display | White OLED, 128 × 64 pixels |
| Power | MPRLBP lithium-ion pack, or 2 x AA alkaline or NiMH batteries |
| Battery Life | About 7 hours (MPRLBP), 3.5 hours (AA alkaline), 4.5 hours (AA NiMH 2.5 Ah) |
| Physical | |
| Operating Temperature | −10 to +50 °C (14 to 122 °F) |
| Dimensions (H x W x D) | 91 × 71.5 × 27 mm (3.6 × 2.8 × 1.1 in) with clip |
| Weight | 100 g (3.5 oz) without batteries |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit wisycom.com. |
