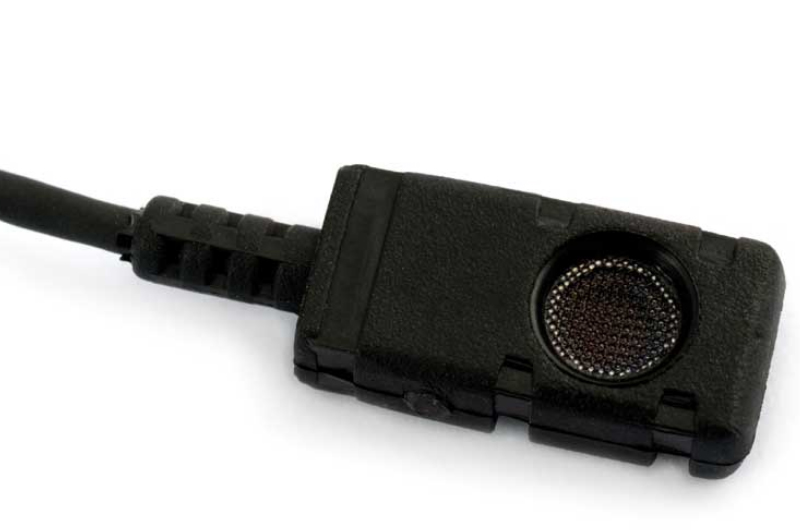

Voice Technologies VT506 Omnidirectional Lav Mic
- Omnidirectional lavalier with a slight frequency boost at 10 kHz
- RF-protected capsule and a cable molded into the housing
- TA5F, 3-pin LEMO, or XLR-3M connector
From $409.00 USD
Voice Technologies VT506 Omnidirectional Lav Mic
The Voice Technologies VT506 is an omnidirectional lavalier microphone with a slight frequency boost at 10 kHz, designed to be worn under clothing.
It picks up evenly from all sides, with neutral voice reproduction and no proximity effect, and its capsule is protected against RF interference.
The injection-molded housing is robust and shock-resistant, and the cable, molded directly into it, is very hard to pull out. The flexible 1.5 m cable keeps handling noise low.
Trew Audio carries the VT506 with a TA5F plug for Lectrosonics Servo-Bias inputs, a 3-pin LEMO plug, or a hardwired XLR-3M plug.
Features
- Omnidirectional electret condenser capsule
- Slight frequency boost at 10 kHz
- RF-protected capsule
- Robust, shock-resistant injection-molded housing
- Cable molded into the housing
- Flexible 1.5 m cable with low handling noise
- TA5F for Lectrosonics Servo-Bias, 3-pin LEMO, or XLR-3M hardwired
- Made in Switzerland
What's Included
- Alligator clip
- Dracula clip
- Tie tac clip
- Rubber Body Mount II
- Professional windscreen
- VTO-Box case
Specifications
| Capsule Type | Electret condenser |
|---|---|
| Polar Pattern | Omnidirectional |
| Frequency Character | Slight boost at 10 kHz |
| Frequency Range | 40 Hz to 20 kHz |
| Sensitivity | −45 dB re 1 V/Pa at 1 kHz (5.62 mV/Pa) |
| Noise Level | 26 dB A-weighted |
| Maximum SPL | 118 dB |
| Impedance | 1 kΩ |
| Bias Voltage | 1.3 V (0.9 to 20 V) |
| Current Drain | 25 µA |
| Capsule Dimensions | 13 × 7 × 3.5 mm |
| Cable | 1.5 m long, 1.5 mm diameter |
| Weight | 7 g |
| Wiring (2- and 3-Wire) | Red: +V DC; copper: audio; green: ground |
| Colors | Black, beige, or white |
| Made In | Switzerland |
