Viviana Pebble Cables

The Viviana Pebble Cables connect the Viviana Pebble Body Wave Antenna to a body-worn wireless transmitter.

The Pebble has an SMA input and is sold without a cable, so choose the cable whose transmitter end matches your transmitter’s antenna port. Every version is 25 cm (9.8 in) of 50 ohm cable, which keeps the RF chain matched between the transmitter and the Pebble. Store any spare cable on the Pebble’s back side, since cable across its front degrades the antenna.

Choosing a Version

• SMA to SMA: Lectrosonics DBSM, DBSMD, and DBSMWB; Shure AD1, ADX1, and ADX1M; Deity Theos; and the Saramonic UwMic transmitter series
• SSMA to SMA: Wisycom MTP61; Lectrosonics SMQV, SSM, LT, and LMb; and Zaxcom ZMT3, ZMT4, and ZMT Flex

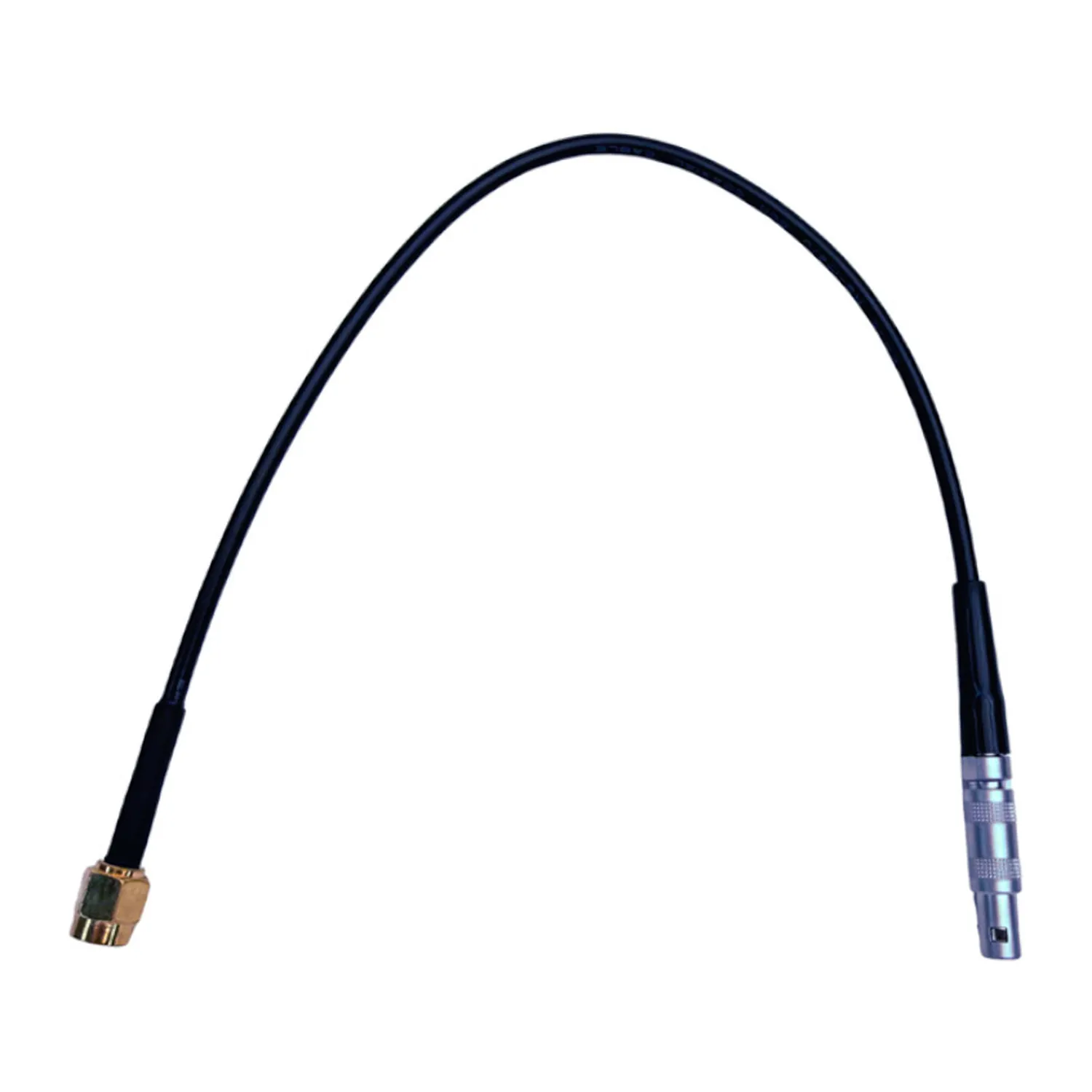

• 1-pin LEMO to SMA: Wisycom MTP40, MTP41, MTP41S, and MTP60

Antenna connectors can change between models and generations of a transmitter.

Features

• Connects the Viviana Pebble to a body-worn transmitter
• SMA to SMA, SSMA to SMA, or 1-pin LEMO to SMA
• SMA connector at the Pebble end
• 50 ohm cable
• 25 cm (9.8 in) long
