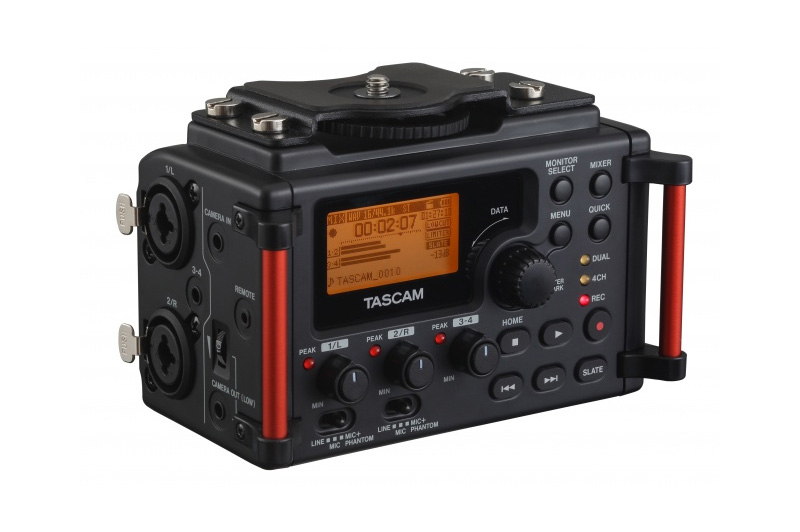

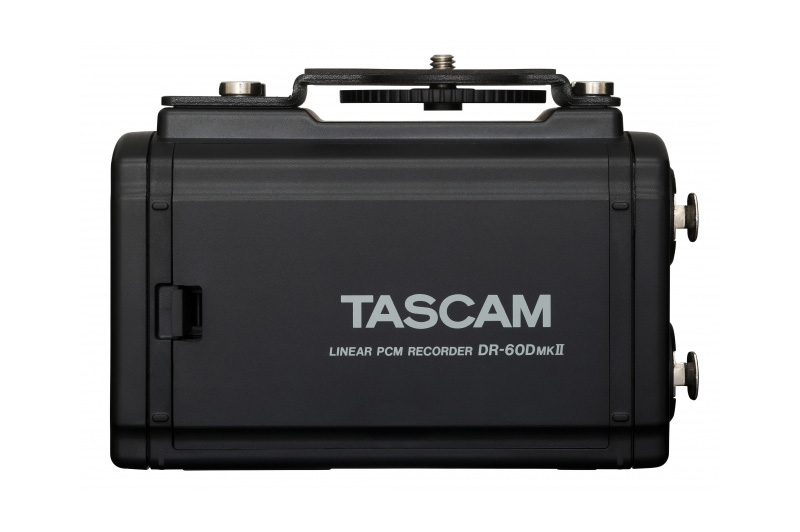

TASCAM DR-60DmkII 4-Ch Portable Recorder for HDSLR Cameras
TASCAM DR-60DmkII 4-Ch Portable Recorder for HDSLR CamerasTASCAM DR-60DmkII 4-Ch Portable Recorder for HDSLR CamerasTASCAM DR-60DmkII 4-Ch Portable Recorder for HDSLR CamerasTASCAM DR-60DmkII 4-Ch Portable Recorder for HDSLR Cameras

TASCAM DR-60DmkII 4-Ch Portable Recorder for HDSLR Cameras

$199.99 USD

Quantity:

SKU: TAS DR-60DMKII Categories: , , , , Tag:

Product Description

TASCAM’s DR-60DmkII, an update of the award winning DR-60D, is the audio recording solution for on-set filmmakers and videographers using HDSLR cameras. The streamlined design fits perfectly under an HDSLR camera rig, without relying on bulky recorders or settling for the lesser audio quality of the camera’s microphone in.

The DR-60DmkII is the next generation of 4-track solid-state recording, based on TASCAM’s decades of recording innovation. The upgraded HDDA microphone preamps provide up to 64 dB of gain, capturing every nuance of a performance. Up to four channels at a time can be recorded to the internal SD Card, at up to 96kHz/24-bit WAV/BWF file resolution. Two of the mic inputs utilize locking XLR connectors with 48-volt phantom power, and the other two inputs use 1/8” stereo connectors for wireless and lavaliere microphones.

A Camera Output sends the mic mix to the camera for later synchronization, and a Camera Input is provided for monitoring playback. An additional headphone out and line out assist the crew during filming. The DR-60DmkII is designed for low-noise operation, including soft touch buttons and dedicated gain controls.

Multiple recording modes are available on the DR-60DmkII. Four-Channel Mode records all four microphone inputs. There’s also an alternate setting for Dual Recording, which captures a copy of your audio at a lower level for a distortion-free safety track. Menus and operation are well laid out, owing to decades of innovative recording design.

Reach beyond the limited performance of your camera’s audio to capture the other half of your film. At a cost less than competing preamps, the TASCAM DR-60DmkII is the ultimate 4-track recorder designed for filmmakers, television, live events and web broadcasting.

Key Features:

  • High-quality HDDA (High Definition Discrete Architecture) mic preamps
  • Four inputs, three outputs, and simultaneous four-track recording with built-in mixer controls
  • Multiple Record modes (including dual “Safety Track” record mode) for self-tailored recording
  • Soft-touch buttons, which eliminate handling noise, and various other features such as the slate function were designed specifically for HDSLR use
  • Dedicated “Camera Out” provides simultaneous recording between HDSLR and the DR-60DmkII
  • Versatile slate tone generator provides easy adjustments for on-site movie editing
  • Channels 3 & 4 — 1/8″ connector supports high-output video camera microphones

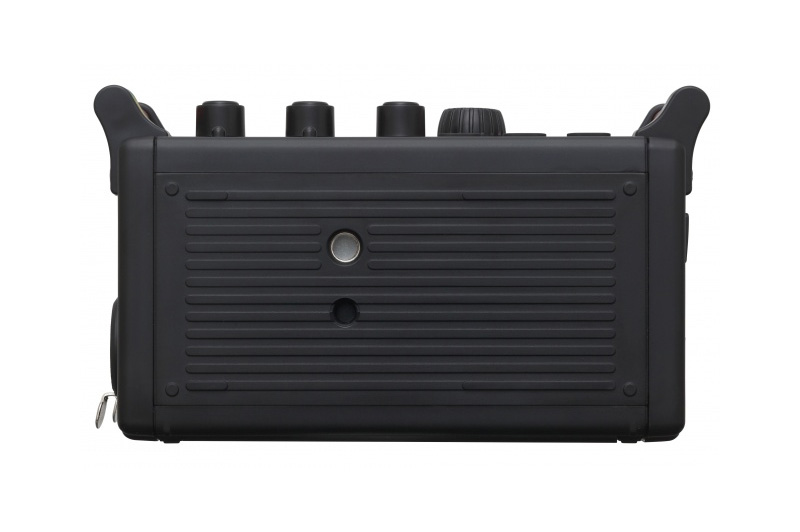

  • Tripod socket placed on the bottom and a screw for camera attachment placed on top
  • 1 lb (0.5 kg) lightweight body designed for rugged portability
Recording media SD card (64MB to 2GB), SDHC card (4GB to 32GB)
Recording format
WAV 44.1/48/96 kHz, 16/24 bit
BWF 44.1/48/96 kHz, 16/24 bit
Number of channels 4 channels (stereo x2)

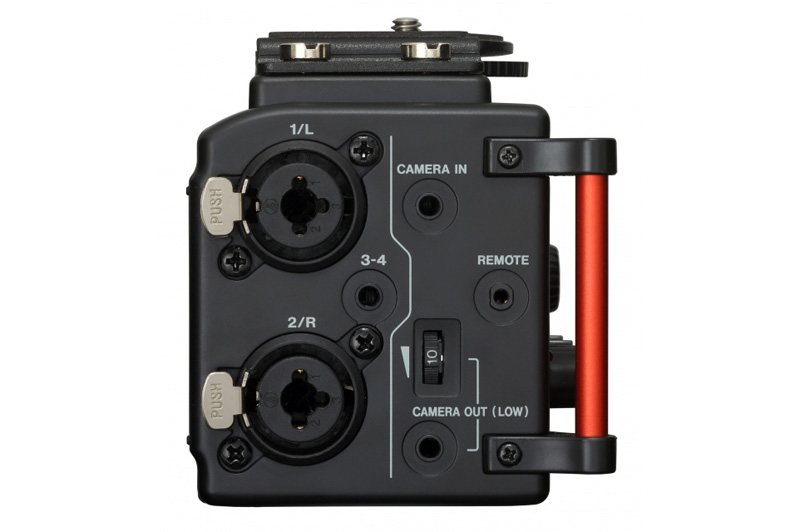

Analog audio input
1/L, 2/R connectors
Connector XLR-3-31 (1:GND, 2:HOT, 3:COLD)/6.3mm(1/4")TRS standard jack
Set to "MIC / MIC+PHANTOM"
Input impedance 2k ohms
Phantom power 48 V +/-4 V (10 mA / CH) / 24 V +/-4 V (10 mA / CH)
Maximum input level 0 dBu
Minimum input level -72 dBu
MIC input gain TRIM MAX
LOW +11 dB
MID +36 dB
HIGH +52 dB
HIGH+PLUS +64 dB
Set to “LINE”
Input impedance 10k ohms or more
Standard input level +4 dBu
Maximum input level +24 dBu
3-4 connector
Connector 1/8" stereo mini jack (this connector can supply plug-in power)
Input impedance 10k ohms
Maximum input level +10 dBV
Minimum input level -50 dBV
MIC input gain TRIM MAX
LOW +3dB
HIGH +26dB
HIGH+PLUS +38dB
CAMERA IN connector
Connector 1/8" stereo mini jack
Input impedance 10k ohms
Standard input level -10 dBV
Maximum input level +6 dBV
Analog audio output
CAMERA OUT connector
Connector 1/8" stereo mini jack
Output impedance 200 ohms
Standard output level -50 dBV
Maximum output level -30 dBV
LINE OUT connector
Connector 1/8" stereo mini jack
Output impedance 200 ohms
Standard output level -10 dBV
Maximum output level +10 dBV

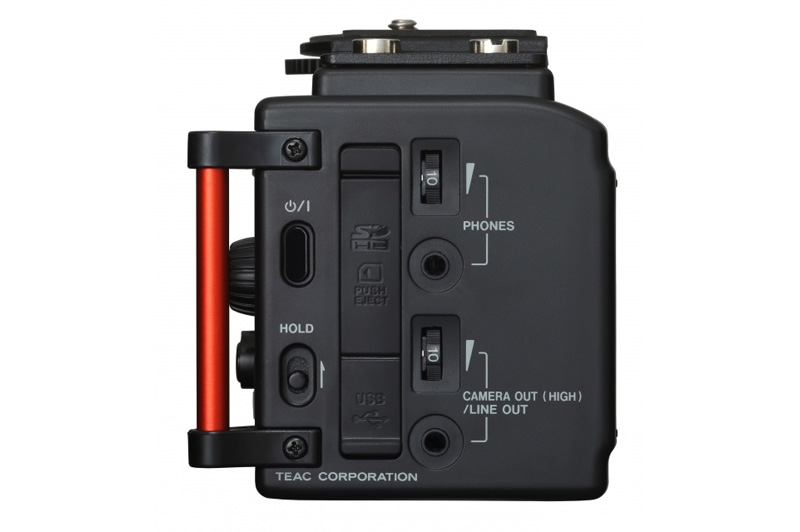

PHONES connector
Connector 1/8" stereo mini jack
Maximum output level 50 mW + 50 mW
USB
Connector Mini-B type
Format USB 2.0 high-speed mass storage class
REMOTE
Connector 2.5 mm TRS jack
Power Four AA batteries(Alkaline or NI-MH),
USB bus power,
Dedicated AC adapter (TASCAM PS-P515U, sold separately),
Dedicated external battery pack (TASCAM BP-6AA, sold separately)
Power consumption 5.4 W
Continuous operation time 2ch WAV, 44.1kHz, 16bit rec
DR-60D
Alkaline batteries (EVOLTA) About 2:30 min (Phantom on)
About 4:30 min (Phantom off)
NI-MH batteries (eneloop) About 3:15 min (Phantom on)
About 5:00 min (Phantom off)
NI-MH batteries (eneloop pro) About 3:45 min (Phantom on)
About 6:00 min (Phantom off)
DR-60D+BP-6AA
Alkaline batteries (EVOLTA) About 5:30 min (Phantom on)
About 10:30 min (Phantom off)
NI-MH batteries (eneloop) About 7:30 min (Phantom on)
About 12:00 min (Phantom off)
NI-MH batteries (eneloop pro) About 9:30 min (Phantom on)
About 14:30 min (Phantom off)
Dimensions 133 mm(W)×93.2 mm(H)×78 mm(D) (with the top adapter attached)
Weight 510g (not including batteries)
Operating temperature 0˚C to 40˚C
Standard accessories USB cable, warranty card, owner's manual
