Tascam DR-10L Pro Field Recorder and Lavalier Mic
- 32-bit float field recorder small enough to wear on a belt
- Includes the TM-10L lavalier mic with clip and windscreen
- LTC jam sync, and app control with the optional AK-BT1
$199.00 USD
Tascam DR-10L Pro Field Recorder and Lavalier Mic

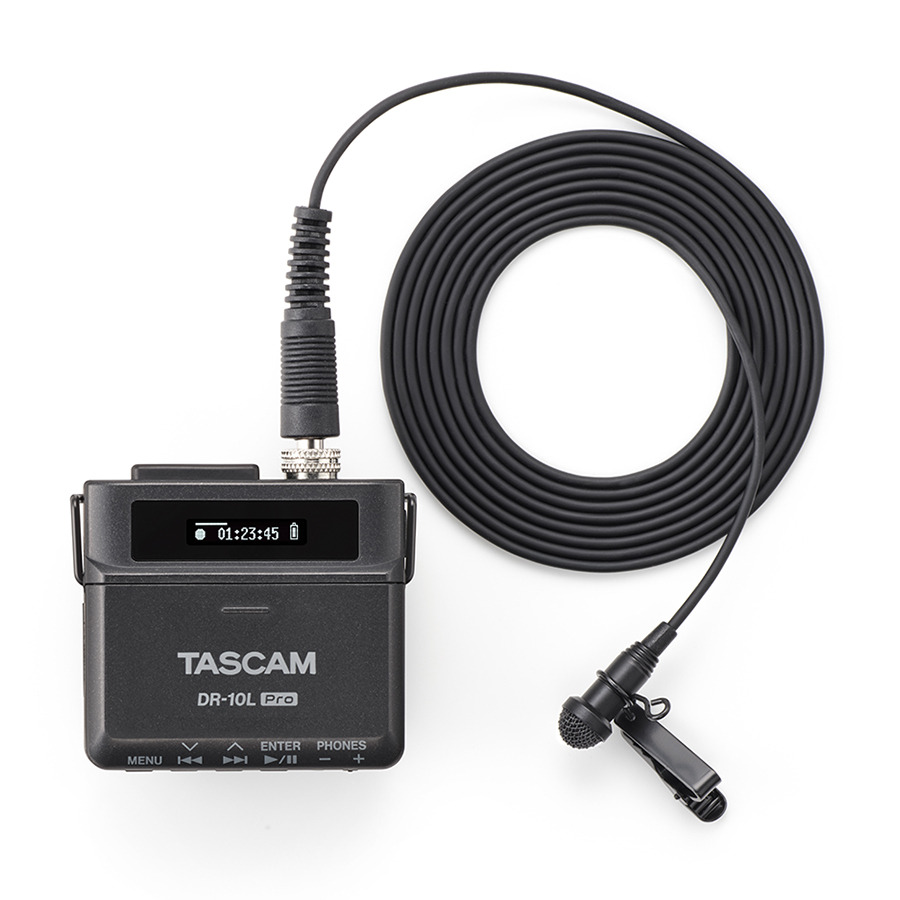

The Tascam DR-10L Pro is a 32-bit float field recorder small enough to wear on a belt, with a TM-10L lavalier mic in the box.
Recording
Dual A/D converters and 32-bit float recording keep full resolution on a voice at every level, from a whisper to a shout. It records WAV files at 44.1 or 48 kHz in 16-bit, 24-bit, or 32-bit float, or MP3, to microSD cards up to 512 GB, and writes BEXT and iXML metadata with each file.
A screw lock holds the mic plug in the 3.5 mm input. The sliding record switch and a key lock keep a take from stopping by accident. A limiter, auto level, and a low-cut filter at 40, 80, 120, or 220 Hz are set from the menu. A phase setting suits mics other than the included one.

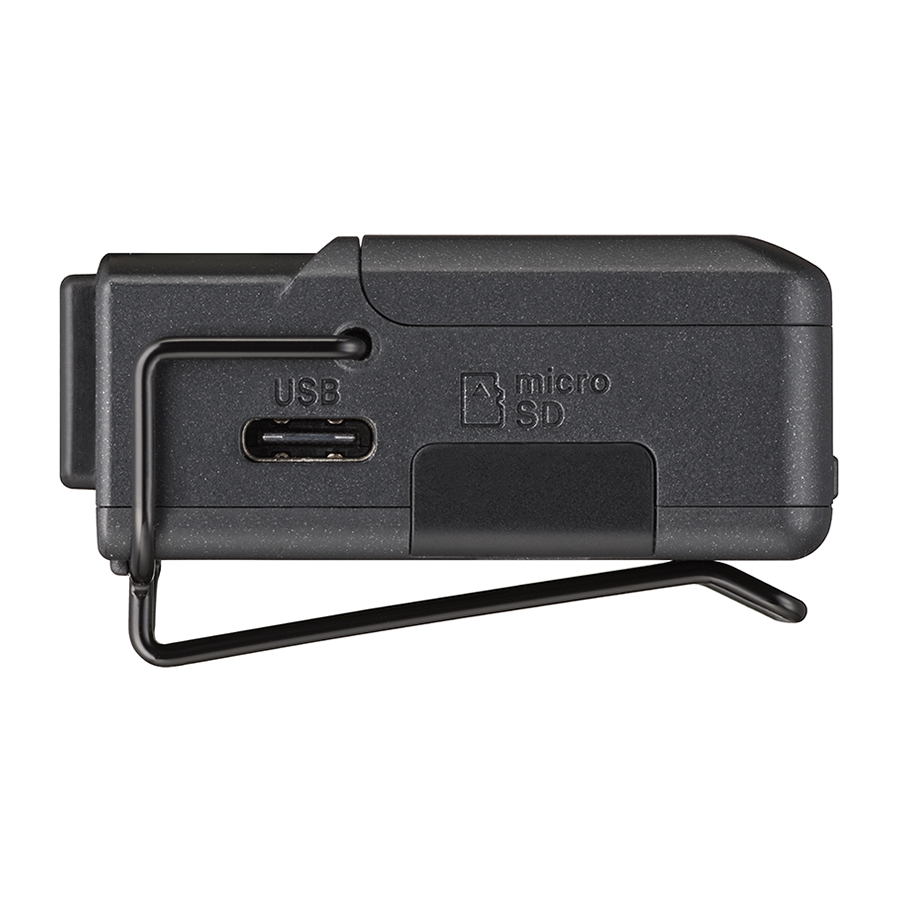

Two AAA batteries, sold separately, run it for about 16.5 hours with alkaline cells or about 24.5 hours with lithium cells when recording 48 kHz, 32-bit float WAV. It also runs on USB bus power through its USB-C port, which moves files to a computer as well.
Timecode and Remote Control
The input jack also takes LTC from a timecode generator to jam sync the recorder at frame rates from 23.98 to 30 fps. After the jam sync, it runs free on its own clock.
With the optional Tascam AK-BT1 Bluetooth adapter, the free DR-10L Pro CONNECT app controls and monitors up to five units from a phone or tablet. The adapter also lets the recorder receive timecode from supported Atomos products, though not while the app is in use.
Features
- 32-bit float recording with dual A/D converters
- TM-10L lavalier mic with clip and windscreen included
- WAV or MP3 to microSD cards up to 512 GB

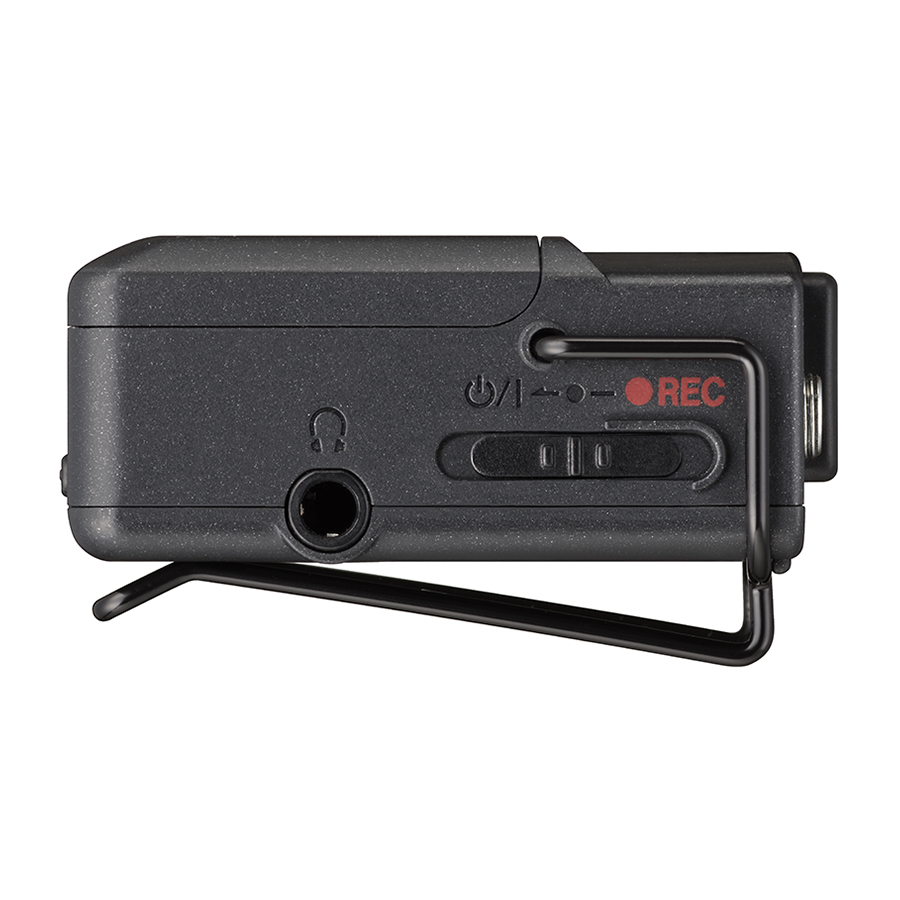

- Screw-lock mic input and a sliding record switch with key lock
- Limiter, auto level, and four-step low-cut filter
- LTC jam sync through the mic input
- App control of up to five units with the optional AK-BT1
- Runs on two AAA batteries or USB bus power
What's Included
- DR-10L Pro
- Tascam TM-10L lavalier mic (160 cm cable)
- Mic clip
- Windscreen
- Belt clip
- USB Type-A to Type-C cable
- iZotope RX Elements download voucher
Specifications
| Recording Media | microSD (64 MB – 2 GB), microSDHC (4 – 32 GB), microSDXC (64 – 512 GB) |
|---|---|
| Recording Format | WAV (BWF): 44.1 or 48 kHz; 16-bit, 24-bit, or 32-bit float; mono or poly MP3: 44.1 or 48 kHz; 128 or 192 kbps (recording), 32–320 kbps (playback) |

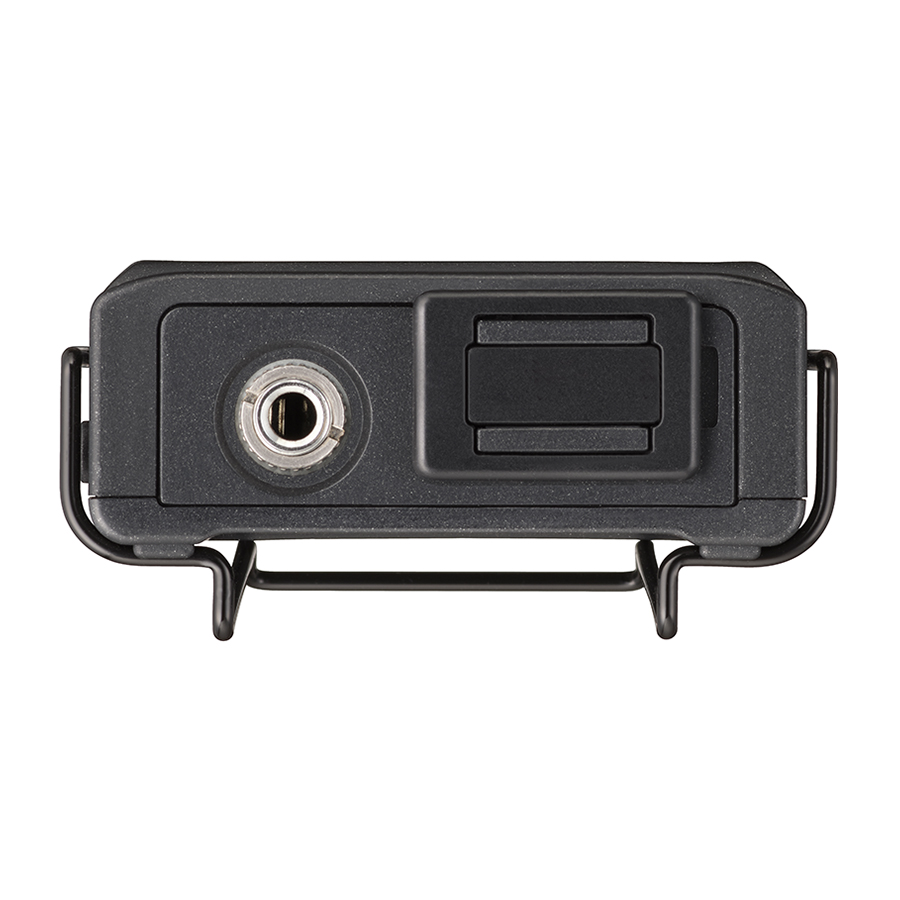

| Inputs | 3.5 mm (1/8″) mini TRS jack with screw lock (mic, or LTC from a timecode generator) |
| Mic Input | Maximum −11 dBV; gain 7.5 – 38 dB; impedance 2 kΩ or more |
| Plug-in Power | 2.3 V mic bias |
| Included Mic | Tascam TM-10L lavalier: sensitivity −42 dBV/Pa, maximum 115 dB SPL, 160 cm (63 in) cable |
| Outputs | 3.5 mm (1/8″) headphone jack (dual mono): 10 mW + 10 mW into 32 Ω |
| Timecode | LTC jam sync through the input jack (23.98, 24, 25, 29.97 non-drop and drop, 30 non-drop and drop fps) From supported Atomos products over Bluetooth with the Tascam AK-BT1 (sold separately) |
| Frequency Response | 20 Hz – 20 kHz, +0/−1 dB |
| Dynamic Range | 105 dB or higher |
| Distortion | 0.01% (1 kHz, −21 dBV input) |
| USB | USB Type-C, USB 2.0 High Speed mass storage; bus power |
| Bluetooth | Tascam AK-BT1 adapter (sold separately) |
| Power | 2 AAA batteries (alkaline, NiMH, or lithium; sold separately); USB bus power from a computer |
| Power Consumption | 0.3 W maximum (batteries); 0.1 A maximum (USB bus power) |
| Battery Life | Alkaline: about 16.5 h (about 16 h with Bluetooth) NiMH: about 11.5 h (about 10.5 h) Lithium: about 24.5 h (about 23 h) (48 kHz, 32-bit float mono WAV, headphones not connected) |
| Dimensions | 53 × 50.7 × 21.4 mm (2.09 × 2.00 × 0.84 in), W × H × D |
| Weight | 43 g (1.52 oz) without batteries; 65 g (2.29 oz) with batteries |
| Operating Temperature | 0 – 40 °C (32 – 104 °F) |
