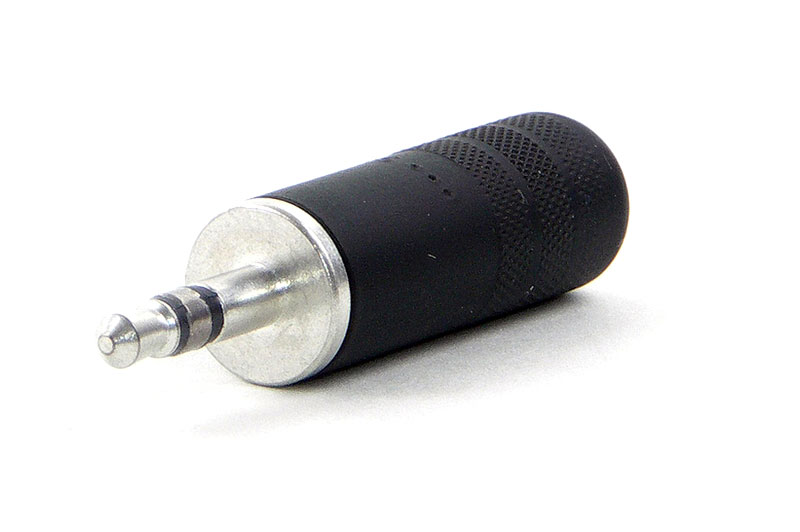

Switchcraft 35HD Series 3.5 mm Stereo Plug
- 3.5 mm (1/8″) stereo plug for cables up to 0.290 inch
- Longer cable clamp and larger solder terminals
- Black or nickel handle, tin contacts
From $7.77 USD
Switchcraft 35HD Series 3.5 mm Stereo Plug
The Switchcraft 35HD Series takes cables up to 0.290 inch in diameter into a 3.5 mm plug, with a long cable clamp and large solder terminals that leave room for solder connections.
The plug finger is insert molded, and the one-piece tip rod has a flat for easy soldering. A tubular insulator, included, keeps solder joints from touching the handle.
The long handle gives a good grip and makes the plug easy to pull from a jack, and a knurl on the back of the handle helps when you tighten it. The heavy-duty clamp gives larger cables better strain relief.
Choose a black or a nickel handle. Both have tin contacts.
Features
- 3-conductor 3.5 mm (1/8″) stereo plug
- Insert-molded plug finger
- One-piece tip rod with a flat for soldering
- Larger solder terminals
- Longer handle with a knurled grip
- Heavy-duty cable clamp
- Tubular insulator included
- Shielded
Available Options
| Handle | Order Code | Contacts | Cable Opening |
|---|---|---|---|
| Black Handle | 35HDBN | Tin | 0.290 inch |
| Nickel Handle | 35HDNN | Tin | 0.290 inch |
What's Included
- Switchcraft 35HD stereo plug
- Tubular insulator
Specifications
| Conductors | 3 (stereo) |
|---|---|
| Termination | Solder |
| Cable Opening | 0.29 in |
| Contact Plating | Tin |
| Terminal Material | Copper alloy, tin-plated |
| Sleeve Material | Copper alloy |
| Shielding | Shielded |
| Contact Resistance | 0.02 Ω |
| Dielectric Withstanding Voltage | 250 V |
| Insulation Resistance | 2,000 MΩ |
| Voltage Rating | 250 V |
| Current Rating | 4 A |
| Life | 5,000 cycles |
| Operating Force | 2.5 lb |
| Temperature Range | 0 to 66 °C |
