Sound Devices MixPre-10 II Multitrack Recorder and USB Audio Interface
- 8 Kashmir preamps and 12 tracks of 32-bit float recording
- 12-in, 4-out USB-C audio interface
- Internal timecode generator with BNC timecode in and out
$1,995.00 USD
Availability: In Stock
Sound Devices MixPre-10 II Multitrack Recorder and USB Audio Interface
The Sound Devices MixPre-10 II is a 12-track, 32-bit float recorder and USB audio interface with eight Kashmir mic preamps, sized for a bag, a tripod, or a desk.
It records 10 inputs at up to 192 kHz to an SD card, mixes them on its built-in 10 × 4 mixer, and backs up to a USB thumb drive.
Recording

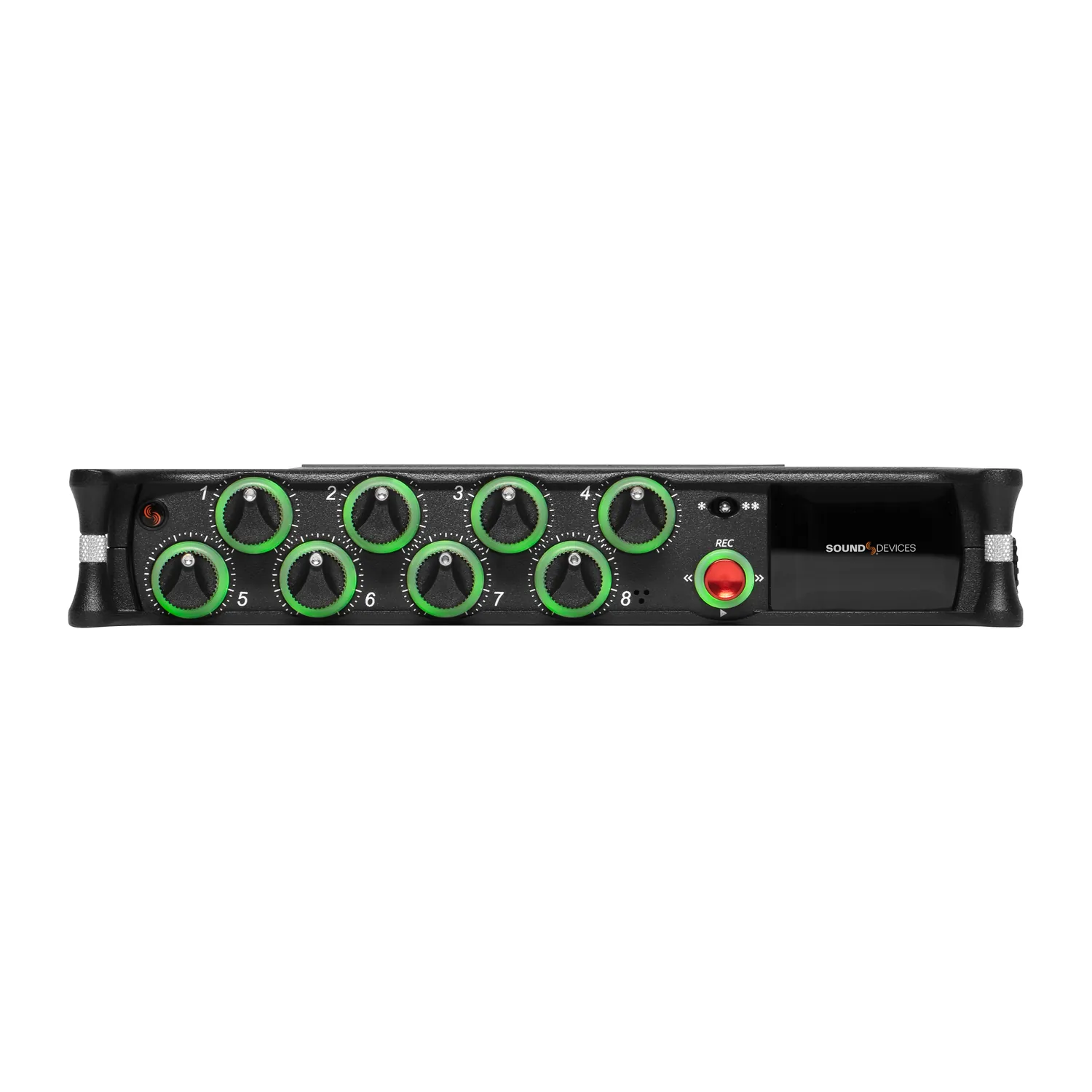

The eight Kashmir preamps have adjustable limiters, and the converters reach 142 dB of dynamic range. Choose 16-bit, 24-bit, or 32-bit float at sample rates from 44.1 to 192 kHz, with 10 seconds of pre-roll at 48 kHz. Basic mode keeps setup simple, and Advanced mode opens every setting.
USB Audio Interface
Over USB-C, the MixPre-10 II streams 12 inputs and 4 outputs to a computer at up to 32-bit float while it records and mixes.
Timecode and Sync
An internal timecode generator outputs LTC, and timecode comes in on BNC, Aux In, or HDMI. HDMI can also start and stop recording from a camera that sends a record flag.
Power and Control

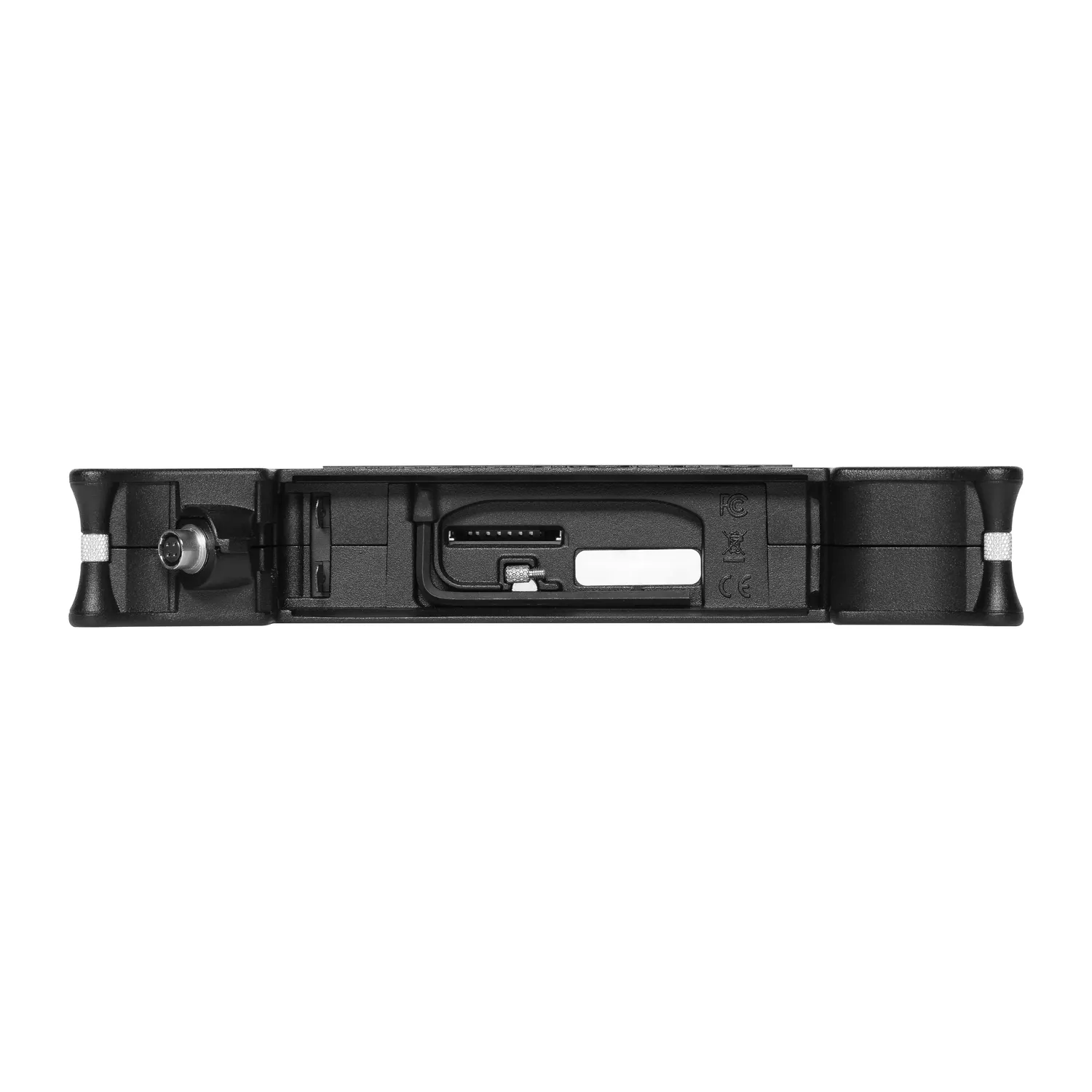

It runs on eight AA batteries in the included MX-8AA sled, on Sony L-mount batteries with an optional sled, or on the included XL-WPH3 power supply. The Wingman app controls it over Bluetooth, and USB-A accepts control surfaces, keyboards, and thumb drives.
Plugins
Optional plugins add NoiseAssist noise suppression, MixAssist automixing, the Musician mode for songwriting, and Ambisonics recording.
Features
- 8 Kashmir mic preamps with adjustable limiters and 48 V phantom
- 12 tracks: a stereo mix plus 10 ISOs
- 32-bit float recording at up to 192 kHz
- 12-in, 4-out USB-C audio interface
- Built-in 10 × 4 mixer
- Internal timecode generator, with timecode in and out on BNC
- Record triggering through HDMI or timecode
- 300 mW per side headphone amplifier
- Sunlight-readable color touchscreen and LED metering
- Wingman app control over Bluetooth
What's Included
- MX-8AA Battery Sled (batteries not included)
- XL-WPH3 AC Power Supply
- USB-C to USB-C cable
Specifications
| Inputs | |
|---|---|

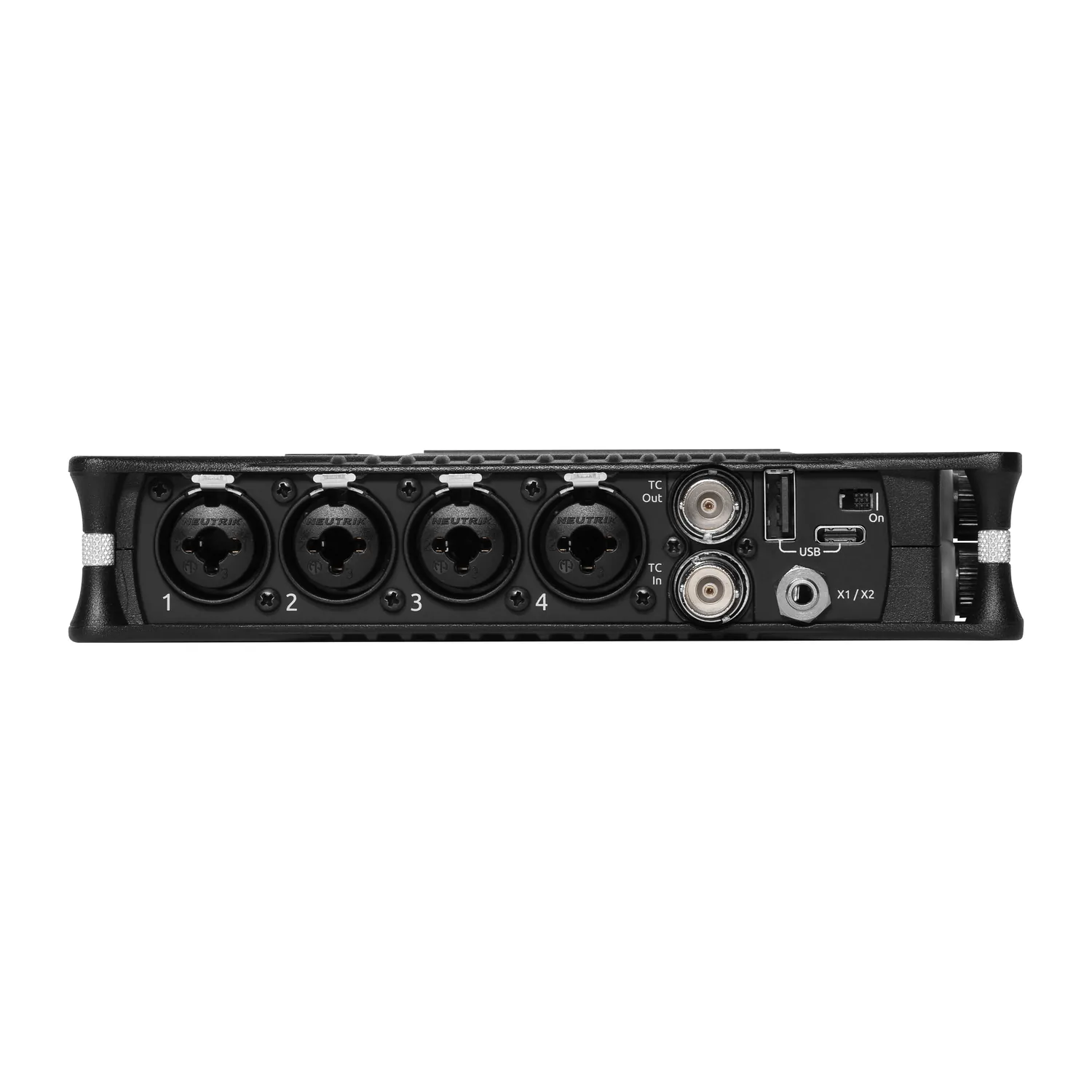

| Inputs | Mic: XLR active-balanced, 4k input Line: XLR or 1/4 in TRS active-balanced, 4k input Aux/Mic In: 3.5 mm TRS, 2-channel unbalanced, 2.2k USB audio: 4 channels 10 analog inputs in all: 8 mic/line, 2 on Aux In |
| Gain | Mic: +6 to +76 dB Line: −20 to +30 dB Fader and headphone: −inf to +20 dB |
| Maximum Input Level | Mic XLR: +14 dBu Line XLR or 1/4 in: +28 dBu Aux In: −10 dBu (mic), +10 dBu (line) |
| Microphone Powering | XLR: 48 V through 6.8k resistors, 10 mA each 3.5 mm: 3 V at 3k source |
| Low-Cut Filters | 40 to 160 Hz, adjustable, 18 dB/oct |
| Frequency Response | 10 Hz to 80 kHz ±0.5 dB re 1 kHz at 192 kHz |
| Equivalent Input Noise | −130 dBV (−128 dBu) max (A-weighting, gain 76 dB, 150 ohm source) |
| ADC | 32-bit precision; 142 dB dynamic range min (A-weighted) |
| Outputs | |
| L/R Out | TA3, 2-channel balanced, +18 dBu max output level |
| X1/X2 Out | 3.5 mm TRS stereo unbalanced, 500 ohm, +7.8 dBu max output level |
| Headphones | 3.5 mm TRS stereo, 300 mW + 300 mW, for headphones of any impedance |
| USB | Audio interface (USB-C): 12-in, 4-out, 44.1 to 96 kHz, up to 32-bit float; class-compliant or ASIO USB-A: keyboard, thumb drive, and MIDI control surfaces |
| Recording and Timecode | |
| Tracks | 12: stereo mix plus 10 ISOs |
| Sample Rates | 44.1, 47.952, 48, 48.048, 96, and 192 kHz |
| Bit Depth | 16, 24, or 32-bit float |
| Media | SD, SDHC, or SDXC card up to 512 GB, exFAT; USB thumb drive for copies |
| Timecode | Free Run, Time of Day, Rec Run, Ext LTC, and Camera TC modes BNC timecode or word clock in and out Timecode reader through HDMI 0.2 ppm accuracy |
| Remote Control | Wingman app over Bluetooth LE HDMI and timecode record triggers |
| Power and Physical | |
| Power | 8 × AA sled (included), NiMH recommended Optional L-mount sled for 2 hot-swappable batteries XL-WPH3 45 W AC adapter (included), 100 – 240 V, 50/60 Hz |
| Operating Temperature | −20 °C to 60 °C −4 °F to 140 °F |
| Dimensions (H × W × D) | 3.6 × 20.6 × 17.5 cm 1.38 × 8.13 × 6.88 in |
| Weight | 0.91 kg (32.1 oz), unpackaged, without batteries |
