Sony UWP-D26 Wireless Bodypack & Plug-On Package (470 to 542 MHz)
- UTX-B40 bodypack transmitter, UTX-P40 XLR plug-on transmitter, and URX-P40 receiver
- ECM-V1BMP omnidirectional lavalier included
- +48 V phantom power on the plug-on
$875.00 USD
Sony UWP-D26 Wireless Bodypack & Plug-On Package (470 to 542 MHz)

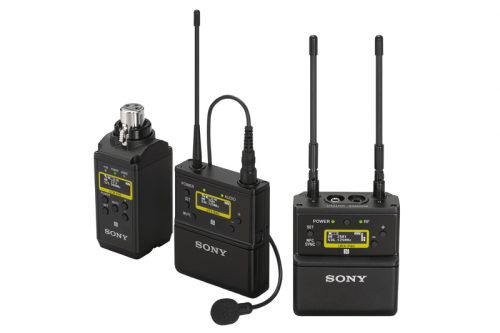

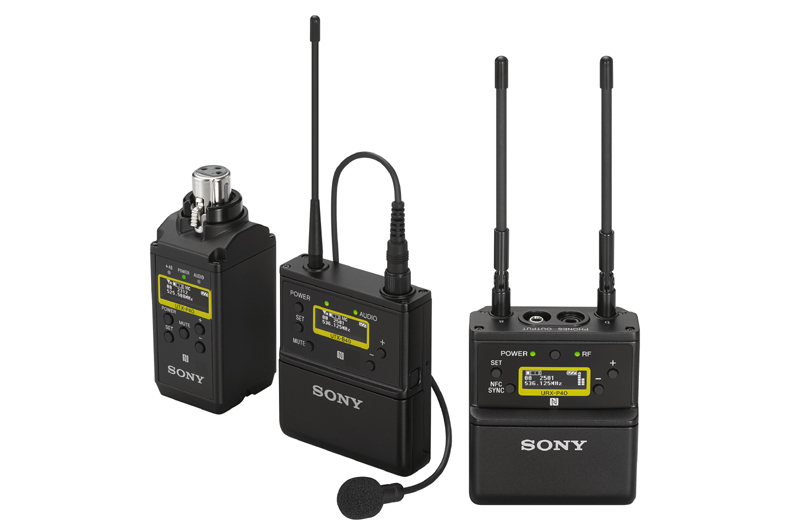

The Sony UWP-D26 gives a camera a wireless bodypack and an XLR plug-on in one box: a UTX-B40 transmitter with an ECM-V1BMP lavalier, a UTX-P40 plug-on transmitter, and a URX-P40 true diversity receiver.
This one is the 14UC block, tuning 470.125 to 541.875 MHz (UHF-TV channels 14 to 25). The bodypack and its omnidirectional lavalier go on the person talking, while the plug-on turns a handheld or shotgun microphone into a wireless one and supplies +48 V phantom power for a condenser. The receiver takes one transmitter at a time, and channel memory switches between the two. NFC SYNC sets the channel when a transmitter is held next to the receiver, and auto gain mode looks after the level. The supplied shoe mount adapter holds the receiver on a camera, and cables are included for a 3.5 mm or an XLR input.
With the optional SMAD-P5 adapter, compatible Sony cameras take a direct digital signal, power the receiver, and show its RF level, mute status, and low-battery alert in the viewfinder. On two AA batteries, the bodypack runs for about 8 hours, the plug-on for about 7 with +48 V off, and the receiver for about 6. USB Type-C can power any of them.
Features
- UTX-B40 bodypack transmitter, UTX-P40 XLR plug-on transmitter, and URX-P40 receiver
- ECM-V1BMP omnidirectional lavalier included
- +48 V phantom power on the plug-on
- NFC SYNC for quick, secure channel setting
- True double-tuner diversity reception
- Auto gain mode and a +15 dB boost for off-mic audio
- Channel memory for switching between two transmitters
- Headphone output, with a monitor mode for use as an ear monitor
- Works with the Sony WL-800 and UWP series
- Digital audio to compatible Sony cameras through the optional SMAD-P5 adapter
What's Included
- UTX-B40 bodypack transmitter
- UTX-P40 XLR plug-on transmitter
- URX-P40 receiver
- ECM-V1BMP omnidirectional lavalier microphone
- Microphone clip
- Windscreen
- 2 × belt clips
- SMAD-P4 shoe mount adapter
- Soft case for the plug-on transmitter
- 3.5 mm to 3.5 mm output cable
- 3.5 mm to XLR male output cable
Specifications
| Carrier Frequencies | 14UC: 470.125 to 541.875 MHz (UHF-TV channels 14 to 25) |
|---|---|
| Transmitters | UTX-B40 bodypack transmitter; UTX-P40 XLR plug-on transmitter |
| Receiver | URX-P40 portable receiver |
| Reception Type | True diversity |
| Microphone | ECM-V1BMP omnidirectional electret condenser lavalier |
| RF Output Power | UTX-B40: 30 mW/5 mW selectable; UTX-P40: 40 mW/5 mW selectable |
| Transmitter Inputs | UTX-B40: 3.5 mm 3-pole locking mini jack; UTX-P40: XLR-3-11C type (female) |
| Frequency Response | 23 Hz to 18 kHz (typical) |
| Bodypack Dimensions | 63 × 73 × 19 mm (2 1/2 × 2 7/8 × 3/4 in), without the antenna |
| Bodypack Weight | Approx. 83 g (2.9 oz), without batteries |
| Plug-On Dimensions | 38 × 98 × 38 mm (1 1/2 × 3 7/8 × 1 1/2 in), with the input connector |
| Plug-On Weight | Approx. 139 g (4.9 oz), without batteries |
| Receiver Output Connector | 3.5 mm 3-pole locking mini jack; external connection |
| Headphone Output | 3.5 mm mini jack, max. 10 mW (16 ohm) |
| Power Requirements | DC 3.0 V (2 AA alkaline batteries); DC 5.0 V (USB Type-C), each unit |
| Battery Life | UTX-B40 approx. 8 hours at 30 mW; UTX-P40 approx. 7 hours at 40 mW with +48 V off, approx. 6 hours with +48 V on and an ECM-673; receiver approx. 6 hours |
| Receiver Dimensions | 63 × 70 × 31 mm (2 1/2 × 2 7/8 × 1 1/4 in), without the antenna |
| Receiver Weight | Approx. 131 g (4.6 oz), without batteries |
