Shure SLXD4Q+ Quad Channel Receiver
2,400.00 USD
- Four channels in one rack space
- Wide 138 MHz tuning range
- 32 available channels per frequency band (region dependent)
- Transparent 24-bit digital audio
G57 Frequency Band
Description
Shure SLXD4Q+ Quad Channel Receiver
Shure SLXD4Q+ Quad Channel Receiver — Streamlines SLX-D digital wireless performance into a space-saving footprint. Featuring expanded capabilities for confident speech presentation and vocal performance, from lecture halls to live entertainment. For Dante Audio connectivity, see the SLXD4QDAN+.
Features
- Four channels in one rack space
- Wide 138 MHz tuning range
- 32 available channels per frequency band (region dependent)
- Transparent 24-bit digital audio
- 118 dB dynamic range
- Audio Summing matches receiver output to available mixer channels (4,3,2 or 1)

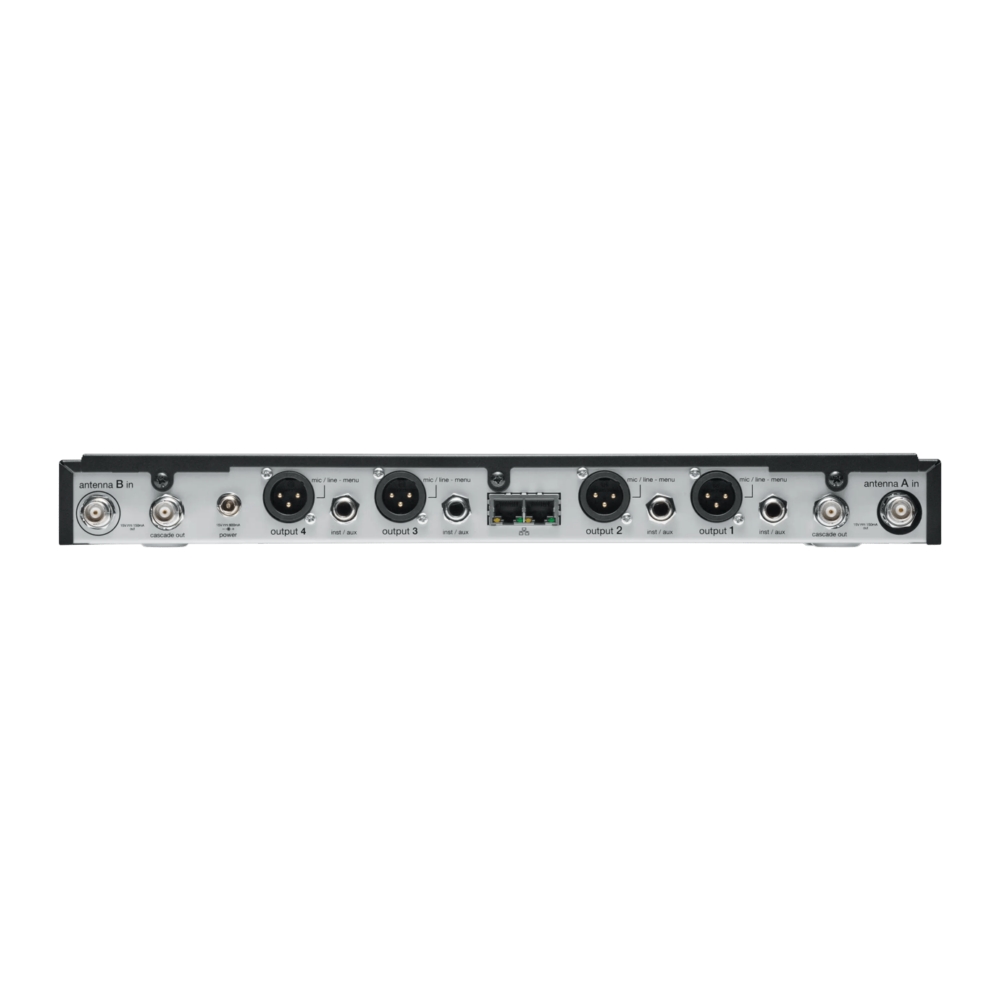

- 4 XLR and 4 1/4″ outputs and 2 local ethernet connections
- RF Cascade creates an 8-channel system by linking two SLXD4Q+ together, no other accessories required
- Bias Voltage power supply management
- Digital predictive switching diversity
- Easy pairing of transmitters and receivers over IR scan and sync
- Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery
- Rugged metal construction
Product Overview
Four channels of wireless versatility, wherever required. Featuring industry-leading digital wireless technology and design in a convenient full-rack quad configuration, the SLXD4Q+ efficiently saves space and accessories, and easily scales to match channel requirements. SLX-D® Digital Wireless delivers transparent, 24-bit digital audio and rock solid RF performance with streamlined network-ready setup and rechargeability options in a suite of versatile wireless system configurations.
Specifications
| Housing | Galvanized Steel |
| Power Requirements | 15 V @ 1.03 A with Dante; 15 V @ 0.9 A without Dante |
| Dimensions (HxWxD) | 42 x 393 x 152 mm (1.65 x 15.47 x 5.98 in.) |
| Weight | 1750 g, without antennas |
| RF Input | |
| Spurious Rejection | >75 dB, typical |
| Connector Type | BNC |
| Impedance | 50 Ω |
| Bias Voltage | 15 V DC, 150 mA maximum, per antenna; switchable on-off |
| Audio Output | |
| Audio Frequency Response | 20 Hz– 20 kHz (+1, -2 dB) |
| Gain Adjustment Range | -18 to +42 dB in 1 dB steps |
| Configuration | 1/4″ (6.35 mm): Balanced (Tip = audio +, Ring = audio -, Sleeve = ground ) XLR: Balanced (1=ground, 2=audio +, 3=audio −) |
| Impedance | 1/4″ (6.35 mm): 1.1 kΩ (550 Ω Unbalanced) XLR (line): 500 Ω (250 Ω Unbalanced) XLR (mic): 150 Ω |
| Full Scale Output | 1/4″ (6.35 mm): +12 dBV Unbalanced, +18 dBV Balanced XLR: LINE setting= +18 dBV, MIC setting= -12 dBV |
| Mic/Line Switch | 30 dB pad |
| Phantom Power Protection | 1/4″ (6.35 mm): Yes XLR: Yes |
| Cascade Output | |
| Connector Type | BNC [Note: For connection of one additional receiver in the same band] |
| Configuration | Unbalanced |
| Impedance | 50 Ω |
| Insertion Gain | 0–2 dB, typical |
| Networking | |
| Network Interface | 10/100 Mbps, 1 Gbps, Dante Digital Audio |
| Network Addressing Capability | DHCP or Manual IP address |
| Maximum Cable Length | 100 m (328 ft) |
What's Included
- 1x SLXD4Q+ Receiver
- 2x 1/4 Wave Antennas
- 2x Bulkhead BNC Adapter
- 2x BNC Cable (22″)
- 1x Rack Mounting Hardware Kit
- 2x Bracket
- 1x Ethernet Cable
- 1x PS60 Power Supply
- 1x Adhesive foot
