Shure SLXD15+/85M Portable Wireless System with WL185m Lavalier
- Portable digital wireless lavalier system
- SLXD5+ receiver, SLXD1+ bodypack, WL185m lav
- For camera shoe or audio bag
$899.00 USD

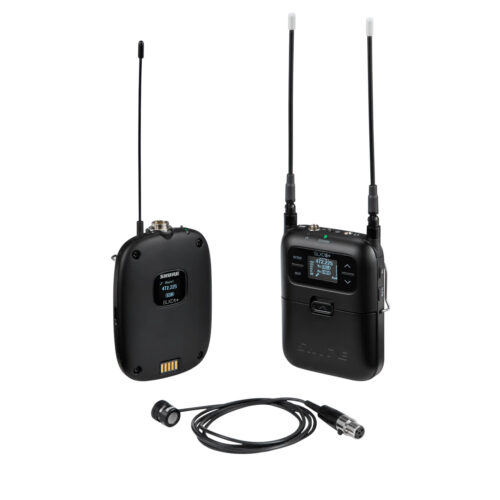

Shure SLXD15+/85M Portable Wireless System with WL185m Lavalier
The Shure SLXD15+/85M is a portable digital wireless system that sends the low-profile WL185m cardioid lavalier from an SLXD1+ bodypack to the SLXD5+, a receiver sized for a camera’s shoe or an audio bag.
SLX-D+ tunes across a wide 138 MHz range, here the G57 band of 470 to 608 MHz, with transparent 24-bit audio and more than 118 dB of dynamic range.
ShowLink Ease keeps transmitter and receiver linked after one IR sync, so the receiver can change the transmitter’s frequency, RF power, and lock settings and update the transmitter’s firmware without a resync. Patented digital feedback reduction places up to 16 filters per channel, and AES-256 encryption secures the audio.
The SLXD5+ receiver has two 3.5 mm outputs, one for the camera in balanced mono or dual mono and one for headphones, and dual built-in antennas. It runs up to 5.5 hours on an SB903 or two AA batteries, or from USB-C. Multi-mic mode shares frequency lists between SLXD5+ receivers over IR, so one receiver can monitor several transmitters. The included non-conductive shoe adapter mounts the receiver on a camera without ground-loop noise.
The WL185m comes with a single-mount tie clip and a snap-fit windscreen, and two audio cables connect the receiver to a camera or recorder. SLX-D+ transmitters run up to 8 hours on two AA batteries or a Shure SB903 rechargeable. The Wireless Workbench Mobile app connects over Bluetooth for live remote control.
Features
- SLXD5+ portable receiver, SLXD1+ bodypack, WL185m cardioid lavalier
- 24-bit digital audio, over 118 dB dynamic range
- 138 MHz tuning range, G57 band 470 to 608 MHz
- ShowLink Ease remote control of transmitters
- Digital feedback reduction
- AES-256 encryption
- Camera and headphone outputs on the receiver
- Multi-mic mode
- Non-conductive camera shoe adapter
What's Included
- SLXD5+ single-channel portable receiver
- SLXD1+ bodypack transmitter
- WL185m low-profile cardioid lavalier microphone
- Single-mount tie clip
- Snap-fit windscreen
- 4 × AA batteries
- 2 × audio cables
- WA311 non-conductive cold shoe mount adapter
Specifications
| System | |
|---|---|
| Frequency Band | G57, 470 – 608 MHz |
| Working Range | 100 m (328 ft) |
| Latency | 2.8 ms |
| Dynamic Range | 118 dB, A-weighted, typical |
| Total Harmonic Distortion | Under 0.02% |
| High-Pass Filter | 160 Hz at −12 dB/octave |
| SLXD5+ Portable Receiver | |
| Audio Frequency Response | 20 Hz – 20 kHz (+1, −3 dB) |
| Outputs | 3.5 mm camera out (balanced mono or dual mono), 3.5 mm headphone |
| Camera Full-Scale Output | 15 dBV, balanced line |
| Headphone Output | 13 mW at 64 Ω |
| Antennas | Dual integrated 1/4 wave |
| Power | SB903 rechargeable, 2 AA batteries, SBC-DC-903, or 5 V DC via USB-C |
| Battery Life | Up to 5.5 hours |
| Housing | Aluminum |
| Dimensions | 107 × 68 × 25.3 mm (4.21 × 2.68 × 1 in), H x W x D |
| Weight | 182 g (6.4 oz) |
| SLXD1+ Bodypack Transmitter | |
| Input | TA4M |
| Input Impedance | 1 MΩ |
| Maximum Input Level | 8.2 dBV |
| RF Power | 1 or 10 mW |
| Power | 2 AA batteries or SB903 rechargeable, up to 8 hours |
| Housing | PC/ABS |
| Dimensions | 98 × 68 × 25.5 mm (3.86 × 2.68 × 1 in), H x W x D |
| Weight | 89 g (3.1 oz) |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit www.shure.com. |
