Shure SLXD14+/93 Digital Wireless Bodypack System with WL93 Lavalier
- Digital wireless lavalier system
- SLXD4+ receiver, SLXD1+ bodypack, WL93 lav
- G57 band, 470 to 608 MHz
$859.00 USD
Shure SLXD14+/93 Digital Wireless Bodypack System with WL93 Lavalier

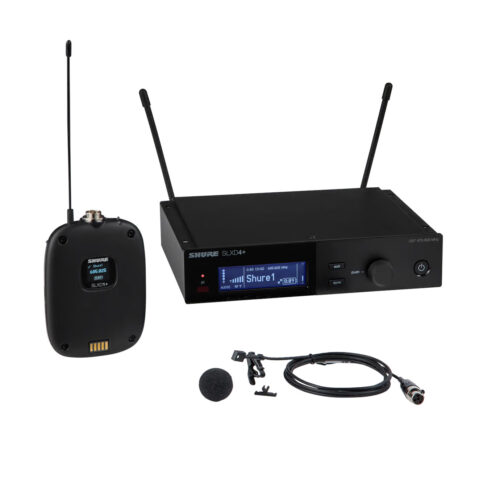

The Shure SLXD14+/93 is a single-channel digital wireless system with the miniature WL93 omnidirectional lavalier, an SLXD1+ bodypack transmitter, and the SLXD4+ rack receiver.
SLX-D+ tunes across a wide 138 MHz range, here the G57 band of 470 to 608 MHz, with transparent 24-bit audio and more than 118 dB of dynamic range.
ShowLink Ease keeps transmitter and receiver linked after one IR sync, so the receiver can change the transmitter’s frequency, RF power, and lock settings and update the transmitter’s firmware without a resync. Patented digital feedback reduction places up to 16 filters per channel, and AES-256 encryption secures the audio.
The receiver’s menu walks through a frequency scan for one receiver or a whole networked system. It has XLR and 1/4 in outputs with a mic/line switch, BNC antenna inputs, and an Ethernet port.
The WL93 comes with a tie bar, a sew-on mounting bracket, and a snap-fit windscreen. SLX-D+ transmitters run up to 8 hours on two AA batteries or a Shure SB903 rechargeable. Wireless Workbench desktop software and the Wireless Workbench Mobile app monitor and control the system. The receiver also works with legacy SLX-D transmitters in the G58, H55, or J52 bands, and legacy SLX-D receivers can use SLX-D+ transmitters without ShowLink Ease.
Features
- SLXD4+ receiver, SLXD1+ bodypack, WL93 omnidirectional lavalier
- 24-bit digital audio, over 118 dB dynamic range
- 138 MHz tuning range, G57 band 470 to 608 MHz
- ShowLink Ease remote control of transmitters
- Digital feedback reduction
- AES-256 encryption
- Up to 8 hours on 2 AA batteries or an SB903
What's Included
- SLXD4+ digital wireless receiver
- SLXD1+ bodypack transmitter
- WL93 miniature omnidirectional lavalier microphone
- Tie bar
- Sew-on mounting bracket
- Snap-fit windscreen
- 2 × 1/4-wave antennas
- Rackmount kit
- 2 × AA batteries
- Power supply
- Carrying pouch
Specifications
| System | |
|---|---|
| Frequency Band | G57, 470 – 608 MHz |
| Working Range | 100 m (328 ft) |
| Latency | 2.8 ms |
| Dynamic Range | 118 dB, A-weighted, typical |
| Total Harmonic Distortion | Under 0.02% |
| High-Pass Filter | 160 Hz at −12 dB/octave |
| SLXD4+ Receiver | |
| Audio Frequency Response | 20 Hz – 20 kHz (+1, −2 dB) |
| Gain Range | −18 to +42 dB in 1 dB steps |
| Outputs | XLR (mic or line) and 1/4 in (6.35 mm) |
| Mic/Line Switch | 30 dB pad |
| Antenna Connectors | BNC, 50 Ω |
| Network | Ethernet 10/100 Mbps |
| Power | 15 V DC at 360 mA, external supply |
| Housing | Galvanized steel |
| Dimensions | 42 × 197 × 152 mm (1.65 × 7.76 × 5.98 in), H x W x D |
| Weight | 900 g (1.98 lb) |
| SLXD1+ Bodypack Transmitter | |
| Input | TA4M |
| Input Impedance | 1 MΩ |
| Maximum Input Level | 8.2 dBV |
| RF Power | 1 or 10 mW |
| Power | 2 AA batteries or SB903 rechargeable, up to 8 hours |
| Housing | PC/ABS |
| Dimensions | 98 × 68 × 25.5 mm (3.86 × 2.68 × 1 in), H x W x D |
| Weight | 89 g (3.1 oz) |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit www.shure.com. |
