Shure GLXD24R+/B58 Dual-Band Digital Wireless Handheld System
- Dual-band digital wireless, 2.4 and 5.8 GHz
- GLXD2+ Beta 58A handheld and GLXD4R+ half-rack receiver
- Rechargeable battery, up to 12 hours
$849.00 USD
Shure GLXD24R+/B58 Dual-Band Digital Wireless Handheld System

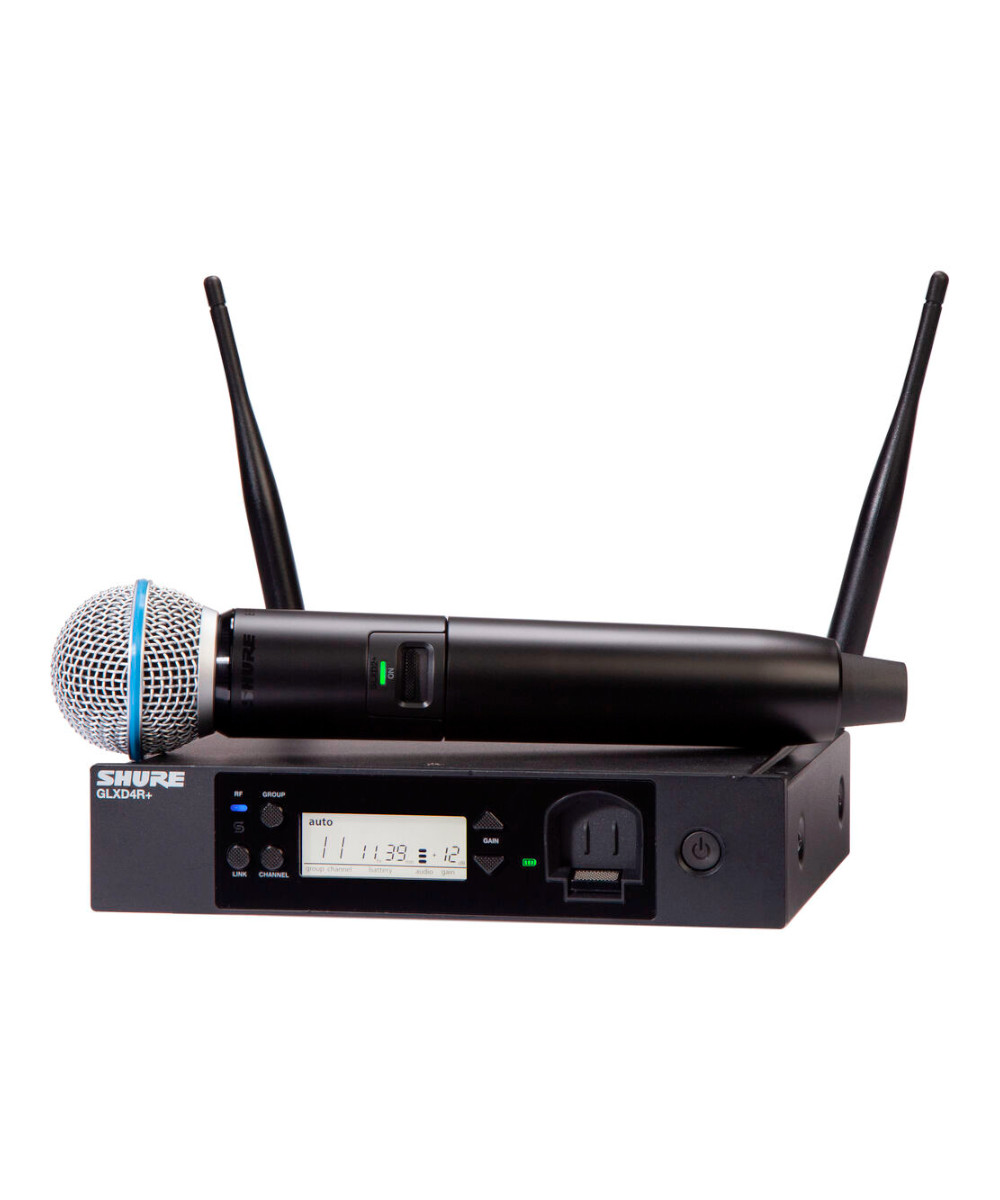

The Shure GLXD24R+/B58 puts a Beta 58A vocal cartridge on a GLXD2+ handheld transmitter and pairs it with a GLXD4R+ half-rack receiver, for dual-band digital wireless vocals.
Dual-band operation in the 2.4 and 5.8 GHz bands more than doubles the available bandwidth, and the system moves away from interference without interrupting the audio. It runs license-free.
The Beta 58A cartridge handles up to 147 dB SPL.
The GLXD4R+ half-rack receiver has a mic/line switch on its XLR output, a 1/4 in instrument/aux output, and a data sync link to the GLX-D+ frequency manager for larger installations. It links to its transmitter on its own and scans for the best channel at the press of a button. Gain is set from the receiver in 1 dB steps, and its display shows the transmitter’s remaining battery time.
The included SB904 lithium-ion battery runs up to 12 hours and charges in the receiver’s built-in bay or over USB-C. Fifteen minutes in the bay gives up to 90 minutes of use, and the battery has no memory effect.
GLX-D+ transmitters and receivers do not work with the earlier GLX-D or GLX-D Advanced systems.
Features
- Dual-band digital wireless, 2.4 and 5.8 GHz
- Moves away from interference without dropouts
- GLXD2+ handheld with Beta 58A cartridge
- GLXD4R+ half-rack receiver with mic/line XLR output
- Battery charging bay in the receiver
- SB904 rechargeable battery, up to 12 hours
- License-free operation
What's Included
- GLXD4R+ half-rack receiver
- GLXD2+ handheld transmitter with Beta 58A cartridge
- SB904 lithium-ion rechargeable battery
- 15 V DC power supply
Specifications
| System | |
|---|---|
| Wireless Technology | Shure proprietary digital, dual-band |
| Tuning Bandwidth (Z3) | 2400 – 2483.5 MHz and 5725 – 5850 MHz |
| RF Output Power | 10 mW E.I.R.P. maximum |
| Audio Frequency Response | 20 Hz – 20 kHz |
| Dynamic Range | 122 dB, A-weighted |
| RF Sensitivity | −88 dBm, typical |
| Group Latency | 4.53 ms (groups 1 and 3), 8 ms (group 2) |
| Battery | Shure SB904 lithium-ion, 3.6 V, 2420 mAh |
| Battery Life | Up to 11.5 hours |
| Receiver | GLXD4R+ half-rack |
| Channel Count | Up to 4 typical, 8 optimal; up to 11 typical, 16 optimal with the GLX-D+ frequency manager |
| Outputs | XLR (mic or line level, 30 dB pad switch), 1/4 in (6.35 mm) TRS instrument/aux |
| Gain Adjustment | −18 to 42 dB, 1 dB steps |
| Antennas | Dual-band 1/2 wave sleeve dipole |
| Power | 15 V DC external supply |
| Dimensions | 196.8 × 162.97 × 41.8 mm (7.7 × 6.4 × 1.6 in), without antennas |
| Weight | 866 g (30.5 oz) |
| Housing | Steel |
| Transmitter | GLXD2+ handheld with Beta 58A cartridge |
| Maximum Input Level | 147 dB SPL |
| Length | 246 mm (9.69 in) |
| Transmitter Weight | 225 g (7.9 oz), without battery |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit www.shure.com. |
