Shure ADTQ Axient Digital PSM Quad Wireless Transmitter
- Four-radio Axient Digital PSM transmitter
- Five transmission modes, spatial diversity
- Analog, AES3, Dante, and AES67 inputs
From $9,460.00 USD
Shure ADTQ Axient Digital PSM Quad Wireless Transmitter

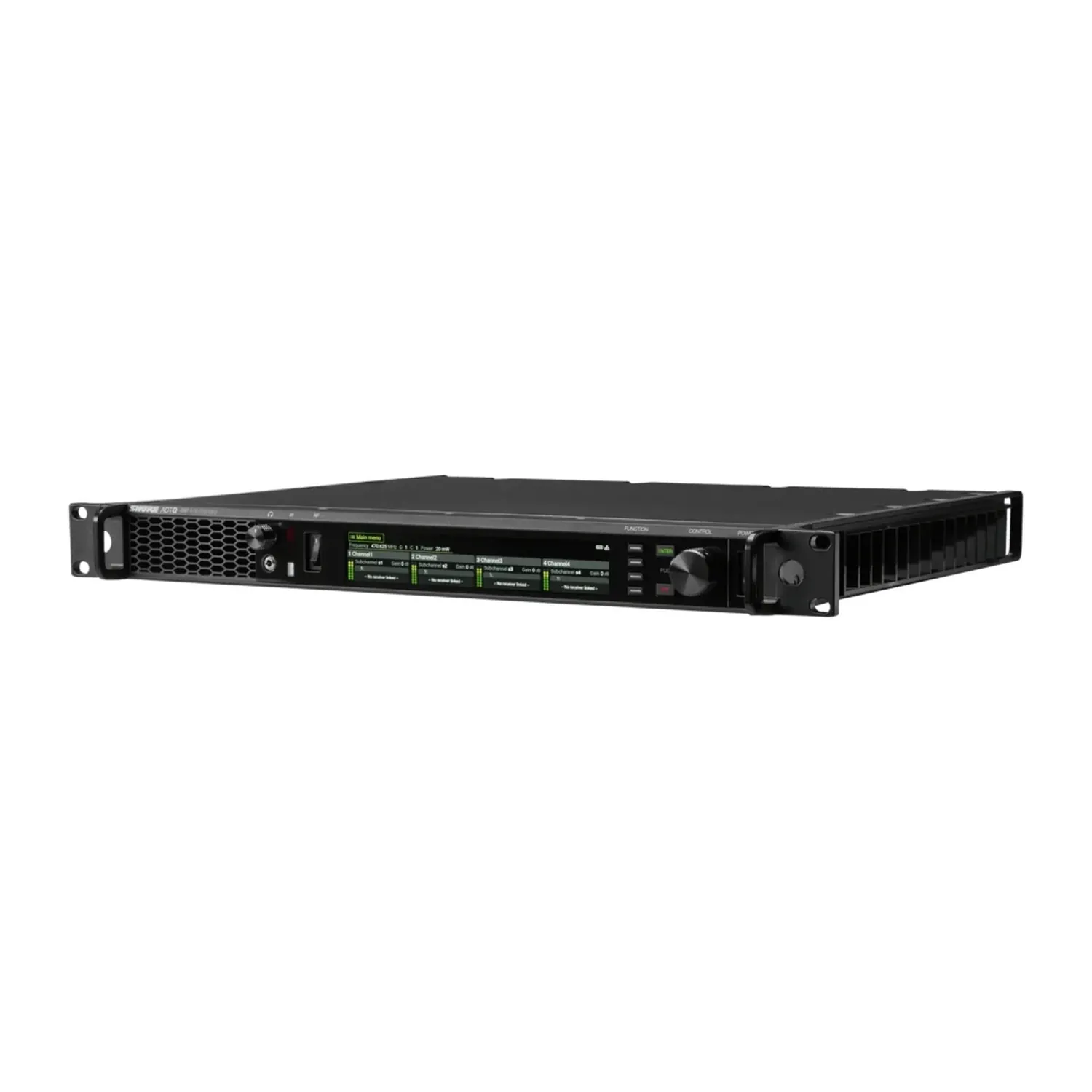

With four radios in one rack space, the Shure ADTQ, an Axient Digital PSM quad transmitter, carries digital stereo monitor mixes to ADXR bodypack receivers for the largest in-ear systems.
Each radio runs in one of five transmission modes. Multichannel Wideband carries up to four stereo channels per radio, Narrowband gives more RF power and range, and SC Narrowband adds resistance to dropouts at narrowband range. Analog FM gives ultra-low latency, and Axient Digital Standard sends audio to any Axient Digital microphone receiver. Spatial diversity transmission guards against multipath, and every signal is encrypted.

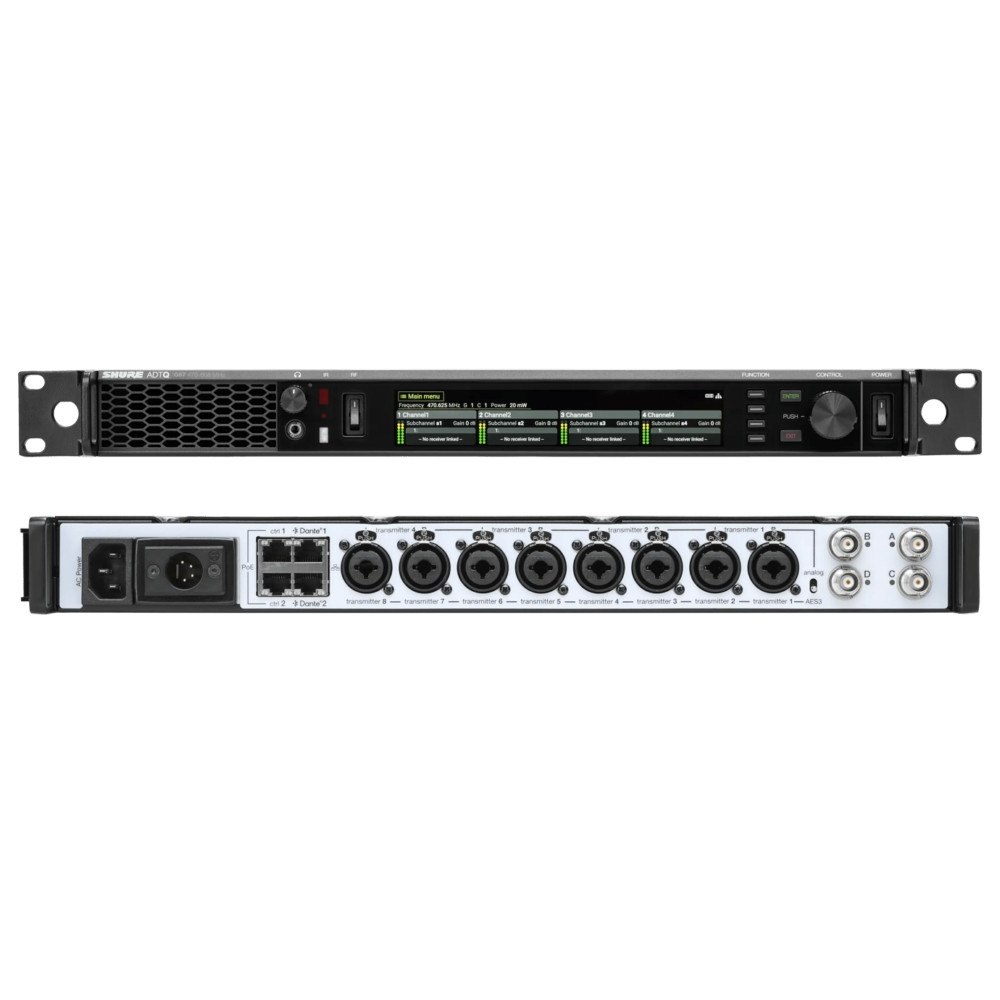

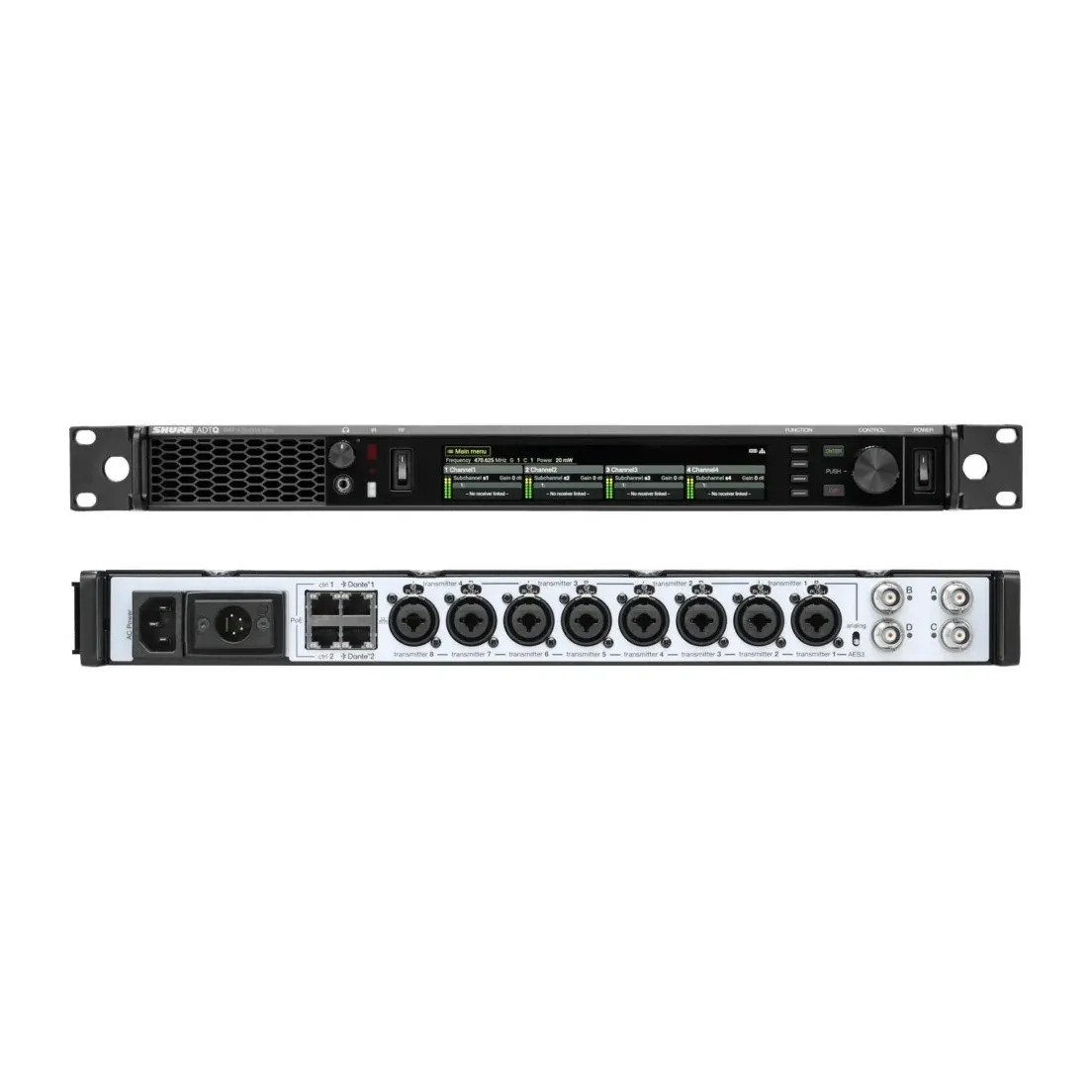

Inputs take analog or AES3 on eight XLR and 1/4 in combo connectors, or Dante and AES67 over four Ethernet ports. ShowLink gives the monitor engineer live control of every ADXR setting, and Wireless Workbench monitors the system over the network. A 6.6 in color display, a Channel Quality meter, and a 3.5 mm headphone output sit on the front. Four coaxial antenna outputs connect antennas directly, and optional internal antenna combining cuts down on external combiners. Channel licenses add more channels.
The AD8C and AD221 combiners expand an Axient Digital PSM system. The DC Module version adds a DC input for redundant power.
Features
- Four radios, digital stereo
- Five transmission modes
- Spatial diversity transmission
- Analog, AES3, Dante, and AES67 inputs
- ShowLink control of ADXR bodypacks
- Encrypted RF
- 6.6 in color display
- Optional internal antenna combining
- AC power cascade; DC module version
Available Options
| Power Option | Frequency Bands | Part Numbers |
|---|---|---|
| AC Power | G57, K54, X55 | ADTQUS=-G57, ADTQUS=-K54, ADTQUS=-X55 |
| DC Module | G57, K54, X55 | ADTQDC=-G57, ADTQDC=-K54, ADTQDC=-X55 |
What's Included
- ADTQ transmitter
- Rackmount kit
- Locking power cable
- Locking power jumper cable
- 2 × BNC cables
- 2 × BNC cable assemblies
- 2 × BNC bulkhead adapters
- 2 × half-wave antennas
- Ethernet cable
- Ethernet jumper cable
Specifications
| Transmitter | |
|---|---|
| RF Carrier Frequency Range | G57: 470 – 608 MHz K54: 606 – 663 MHz, with gaps at 608 – 614 and 616 – 653 MHz X55: 941 – 960 MHz |
| Working Range | 100 m (330 ft) |
| Latency | Analog FM 1.29 ms; digital 2.8 ms or less |
| Audio Frequency Response | 20 Hz – 15 kHz (±1 dB) |
| Signal-to-Noise Ratio | 110 dB, digital, typical |
| Audio Inputs | XLR or 6.35 mm (1/4 in) TRS combo, analog or AES3; Dante and AES67 over Ethernet |
| Nominal Input Level | Switchable +4 dBu or −10 dBV |
| Dante | 24-bit, 48 or 96 kHz |
| Headphone Output | Locking 3.5 mm (1/8 in) TRS, 100 mW at 32 Ω |
| RF Connector | BNC, 50 Ω |
| Network Interface | 10/100 Mbps, 1 Gbps |
| Dimensions | 44 × 482 × 385 mm (1.7 × 19.0 × 15.2 in), H x W x D |
| Housing | Steel, extruded aluminum |
| AC Power | 100 – 240 V AC, 50 – 60 Hz, 1.2 A max |
| DC Power (DC Module Versions) | 12 – 48 V DC, 10.1 A max |
| Operating Temperature | −18 to 50 °C (0 to 122 °F) |
| Radios | 4 |
| Combo Inputs | 8 x XLR / 6.35 mm (1/4 in) |
| Antenna Outputs | 4 x BNC |
| Weight | ADTQ 4.7 kg (10.4 lb); ADTQDC 5.0 kg (11.1 lb) |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit www.shure.com. |
