Sennheiser XSW 2-CI1 Wireless Instrument Set (548-572 MHz)
- Wireless instrument set for guitar or bass
- True diversity metal receiver with rackmount kit
- A band, 548 to 572 MHz, up to 12 channels
$429.00 USD
In Stock
Sennheiser XSW 2-CI1 Wireless Instrument Set (548-572 MHz)

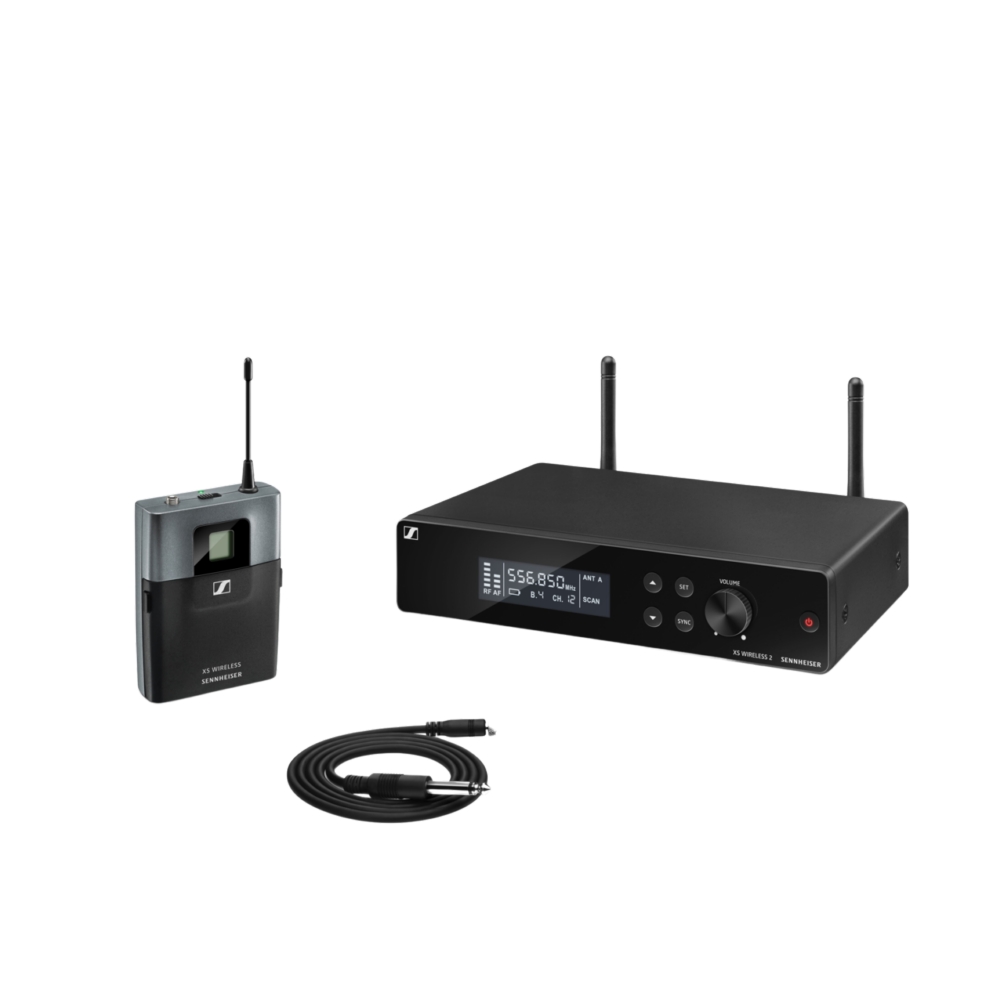

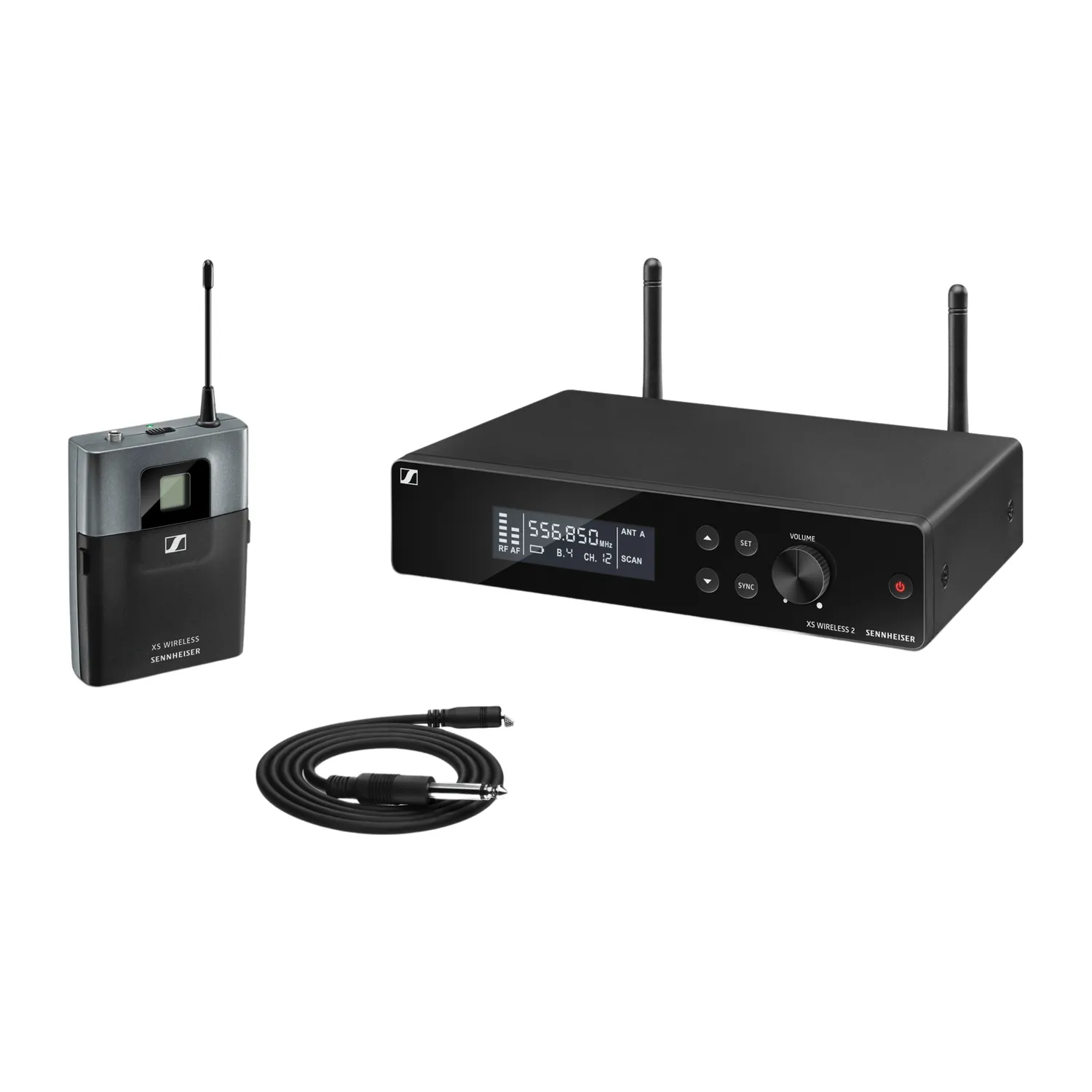

The Sennheiser XSW 2-CI1 takes a guitar or bass wireless on stage with a CI 1 instrument cable, a compact bodypack, and a rack receiver in a metal housing.

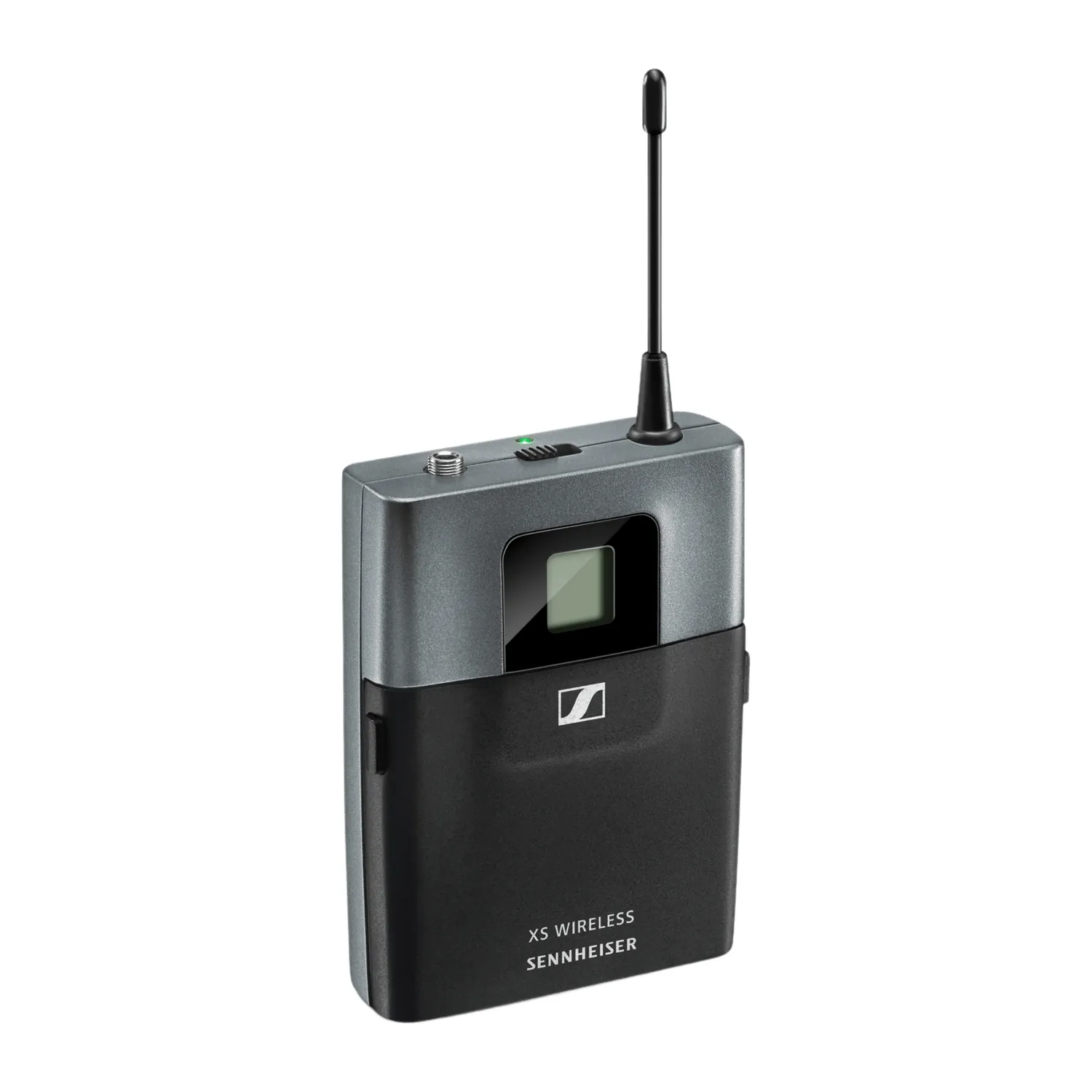

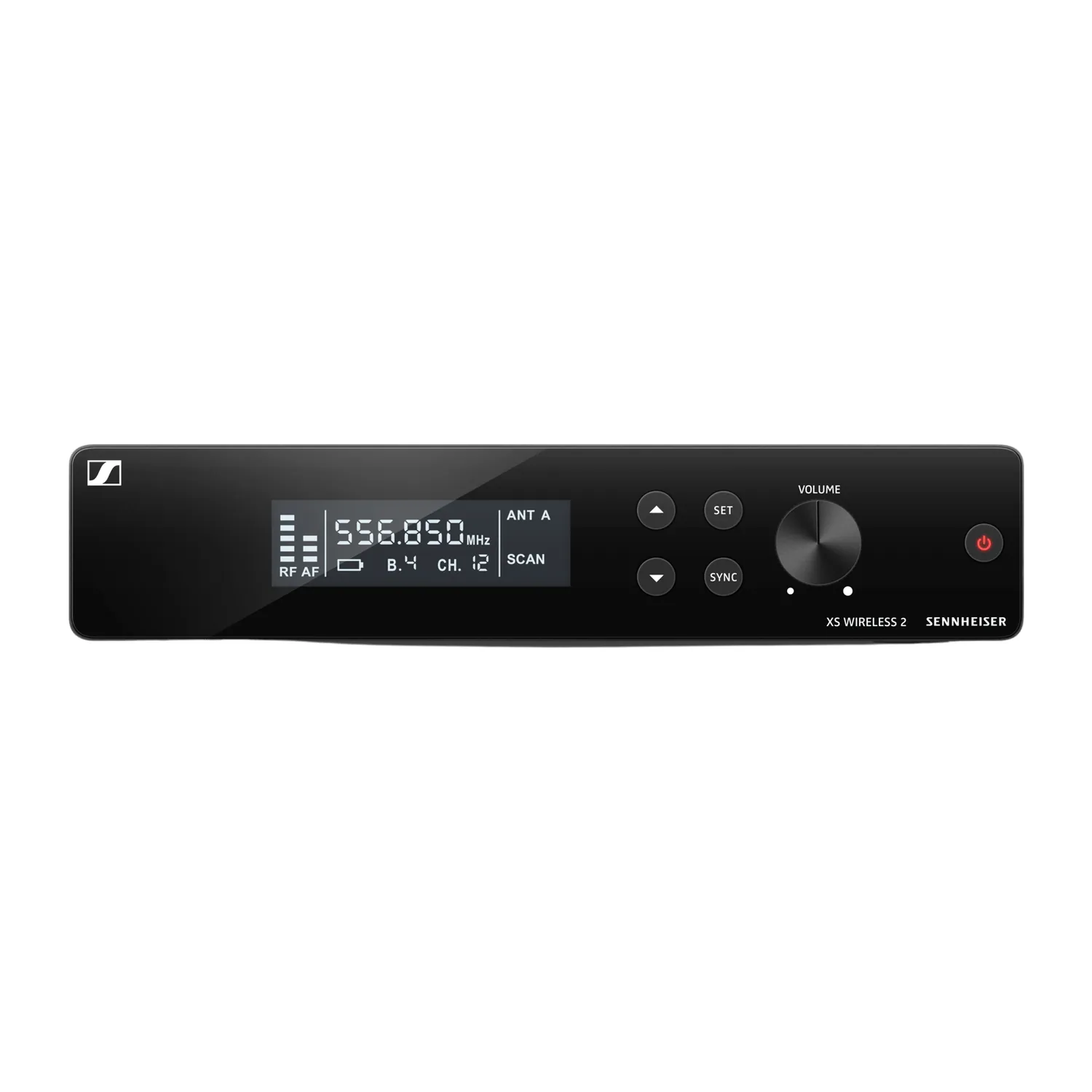

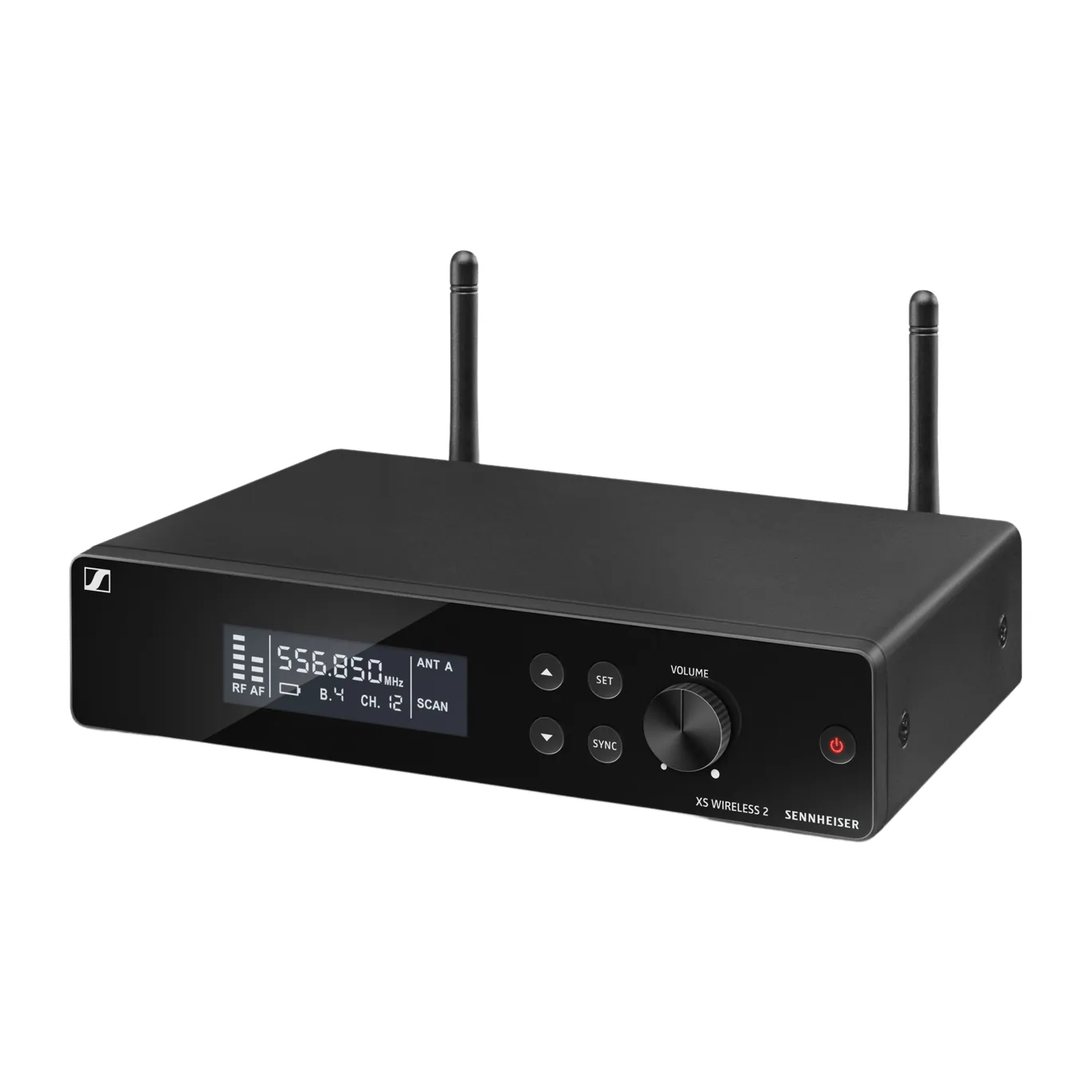

The CI 1 runs from the instrument’s jack to the SK-XSW bodypack on the player’s strap or belt. At the other end, the EM-XSW 2 receiver uses true diversity with external antennas and has an LCD for manual settings. Frequencies are set up automatically and synced to the transmitter.
This set is the A model, for 548 to 572 MHz, with up to 12 compatible channels. The bodypack runs about 10 hours on two AA batteries, and the receiver has XLR and 6.3 mm outputs.
Features
- CI 1 instrument cable
- Compact SK-XSW bodypack transmitter
- True diversity receiver in a metal housing
- External antennas and LCD
- Automatic frequency setup and sync
- Up to 12 compatible channels
- Rackmount kit included
What's Included
- EM-XSW 2 rack receiver
- SK-XSW bodypack transmitter
- CI 1 instrument cable

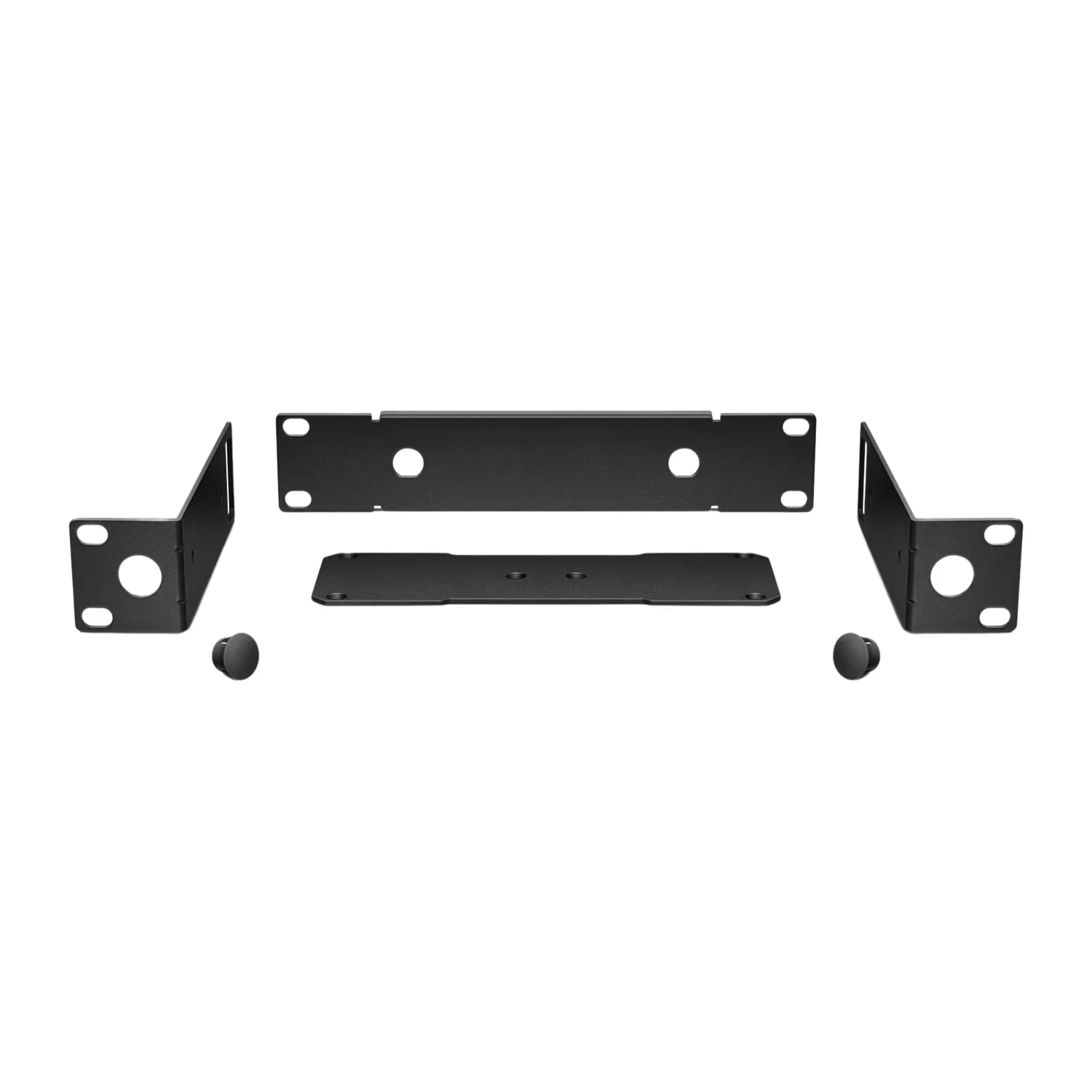

- GA 1-XSW 2 rackmount kit
- NT 12-5 CW power supply with country adapters
- 2 x AA batteries
Specifications
| System | |
|---|---|
| Frequency Range | 548 – 572 MHz (A band) |
| Receiver Principle | Double superheterodyne |
| Audio Frequency Response | 50 Hz – 16 kHz (−3 dB) |
| Signal-to-Noise Ratio | ≥ 103 dB(A) |
| THD | ≤ 0.9% |
| Squelch | 3 to 28 dBµV, with pilot tone |

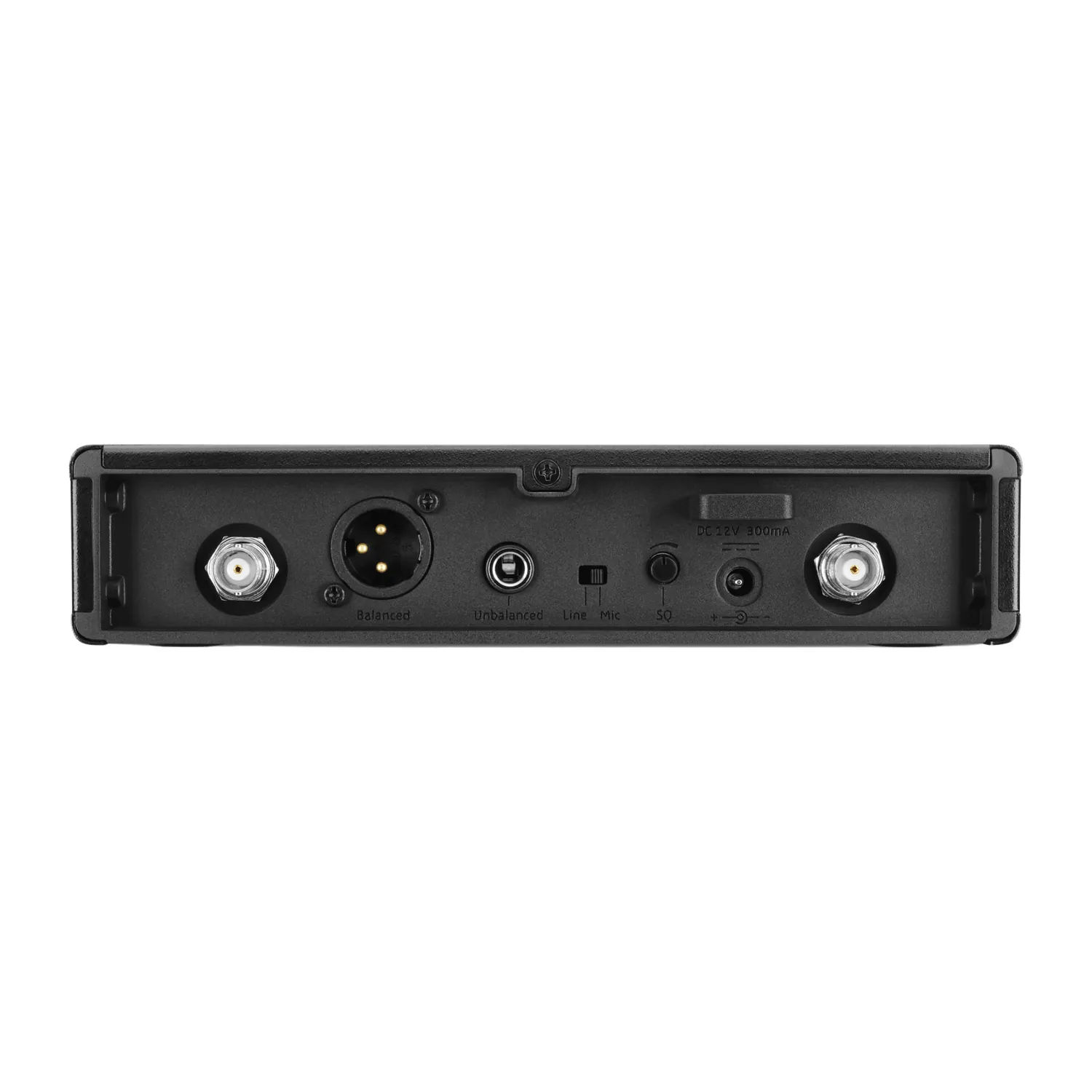

| Outputs | 6.3 mm jack, unbalanced, +6 dBu XLR, balanced, +12 dBu |
| Diversity | True diversity, external antennas |
| Compatible Channels | Up to 12 |
| Receiver Dimensions | 200 × 42 × 127 mm (7.87 × 1.65 × 5 in), approx. |
| Bodypack Transmitter | |
| Input | CI 1 instrument cable |
| Transmitter Adjustment | 0 to −30 dB, in 10 dB steps |
| Power | 2 AA batteries, about 10 hours |
| Line/Mic Level | 20 dB, switchable |
| Warranty | 2 years |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit www.sennheiser.com. |
