Sennheiser Spectera MADI Card
- MADI (AES10) input and output for the Spectera Base Station
- BNC coaxial or optical multimode versions
- Two cards give redundant MADI
From $159.00 USD
Sennheiser Spectera MADI Card
The Sennheiser Spectera MADI Card adds MADI audio input and output to the Spectera Base Station.
The Base Station has two slots: fit one card to send Spectera’s channels to a console over MADI (AES10), or two for redundant MADI. Choose the BNC card for 75 Ω coaxial cable or the OM card for optical multimode fiber with SC duplex connectors.
Features
- MADI (AES10) input and output for the Spectera Base Station

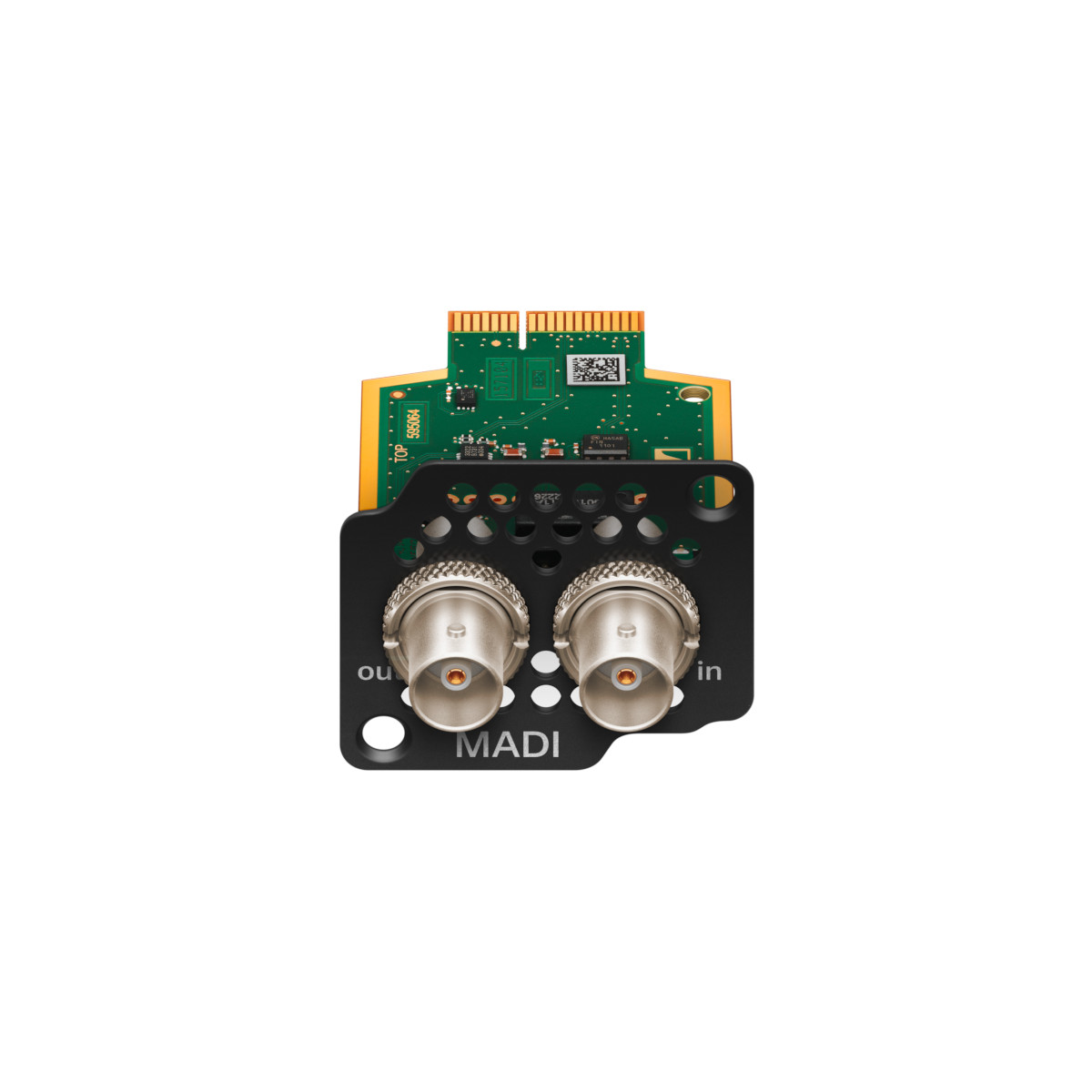

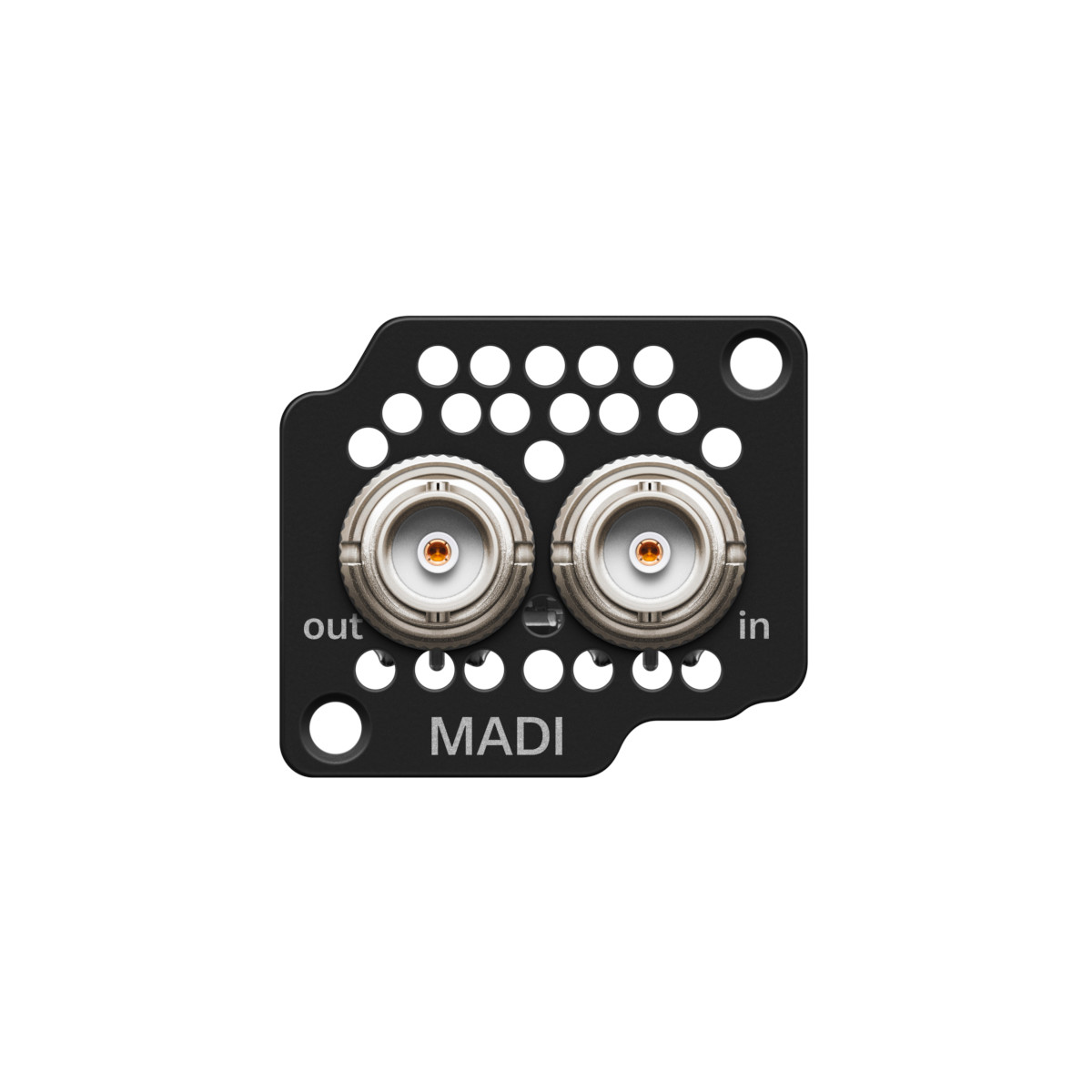

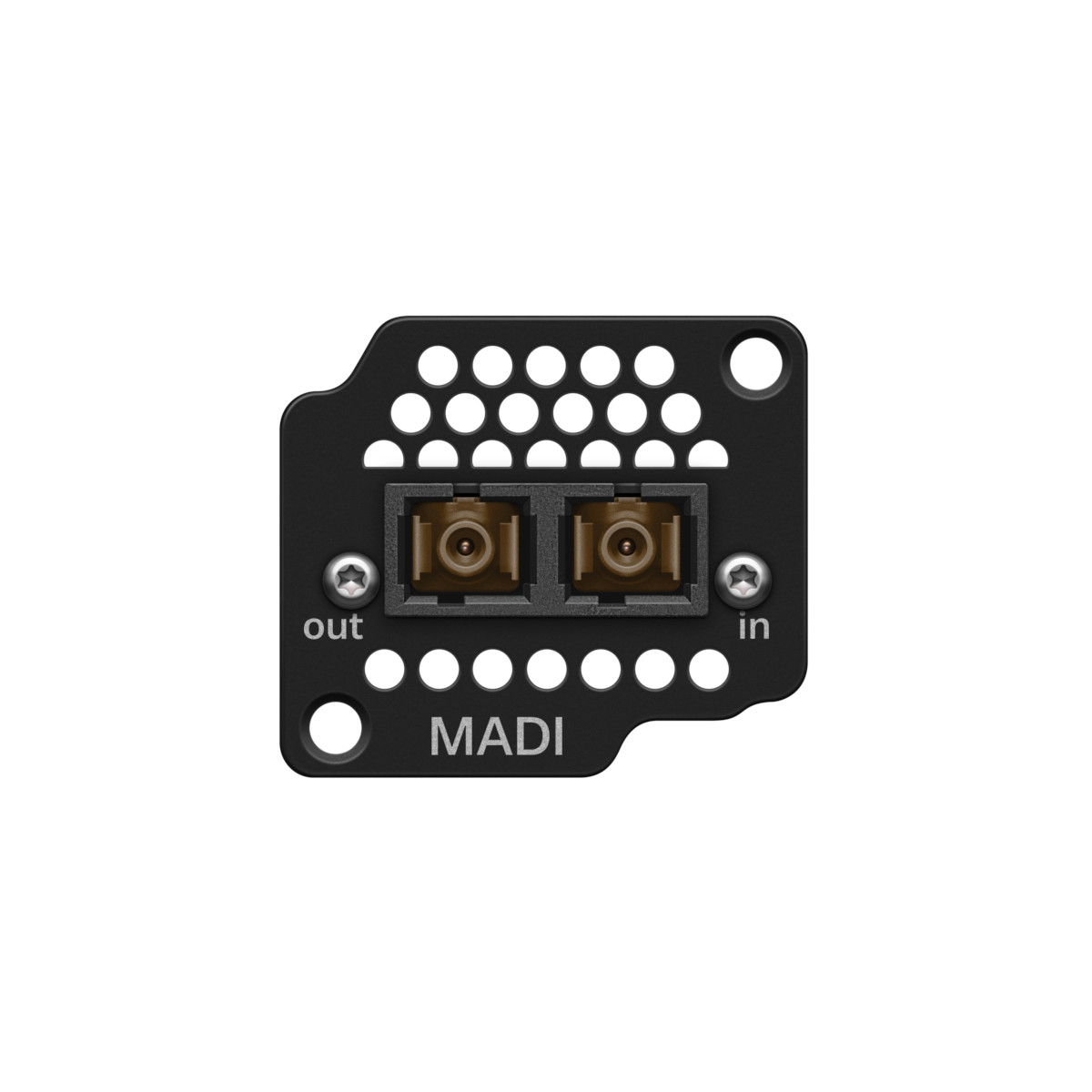

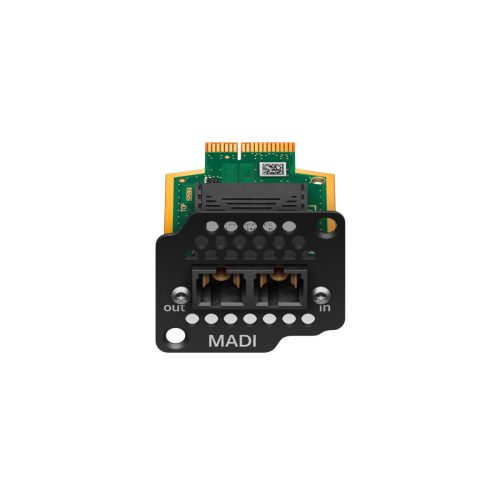

- BNC (75 Ω coaxial) or optical SC (multimode) versions
- Two slots on the Base Station for redundant MADI
Available Options
| Connector | Part Number | Connection |
|---|---|---|
| BNC | 509293 | BNC, 75 Ω coaxial |
| Optical (OM) | 509295 | Optical SC duplex, multimode fiber |
About Sennheiser Spectera
Spectera is Sennheiser‘s wideband, bidirectional wireless system. One 1RU Base Station carries up to 64 channels, 32 in and 32 out, in a single wideband RF carrier of 6 or 8 MHz. SEK bodypacks and DAD antennas complete the system, which you manage in the Spectera WebUI or SoundBase software.
Fritz Sennheiser founded the company near Hanover, Germany, in 1945, and they remain an independent, family-owned business.
Specifications
| MADI Card | |
|---|---|
| Audio Input and Output | MADI (AES10) |
| Connectors | BNC: BNC, 75 Ω Optical (OM): optical SC duplex, multimode |
| Fits | Spectera Base Station (2 slots) |
| Operating Temperature | −10 to +50 °C (14 to 122 °F) |
| Storage Temperature | −25 to +70 °C (−13 to 158 °F) |
| Humidity | 25 to 95%, non-condensing |
| Color | Black |
| Warranty | 2 years |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit www.sennheiser.com. |
