Sennheiser EW-D SK BASE SET Digital Wireless Bodypack System

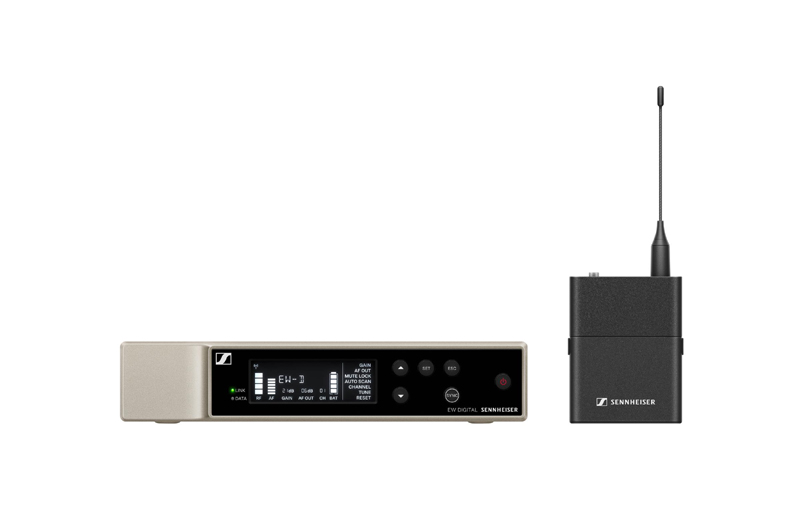

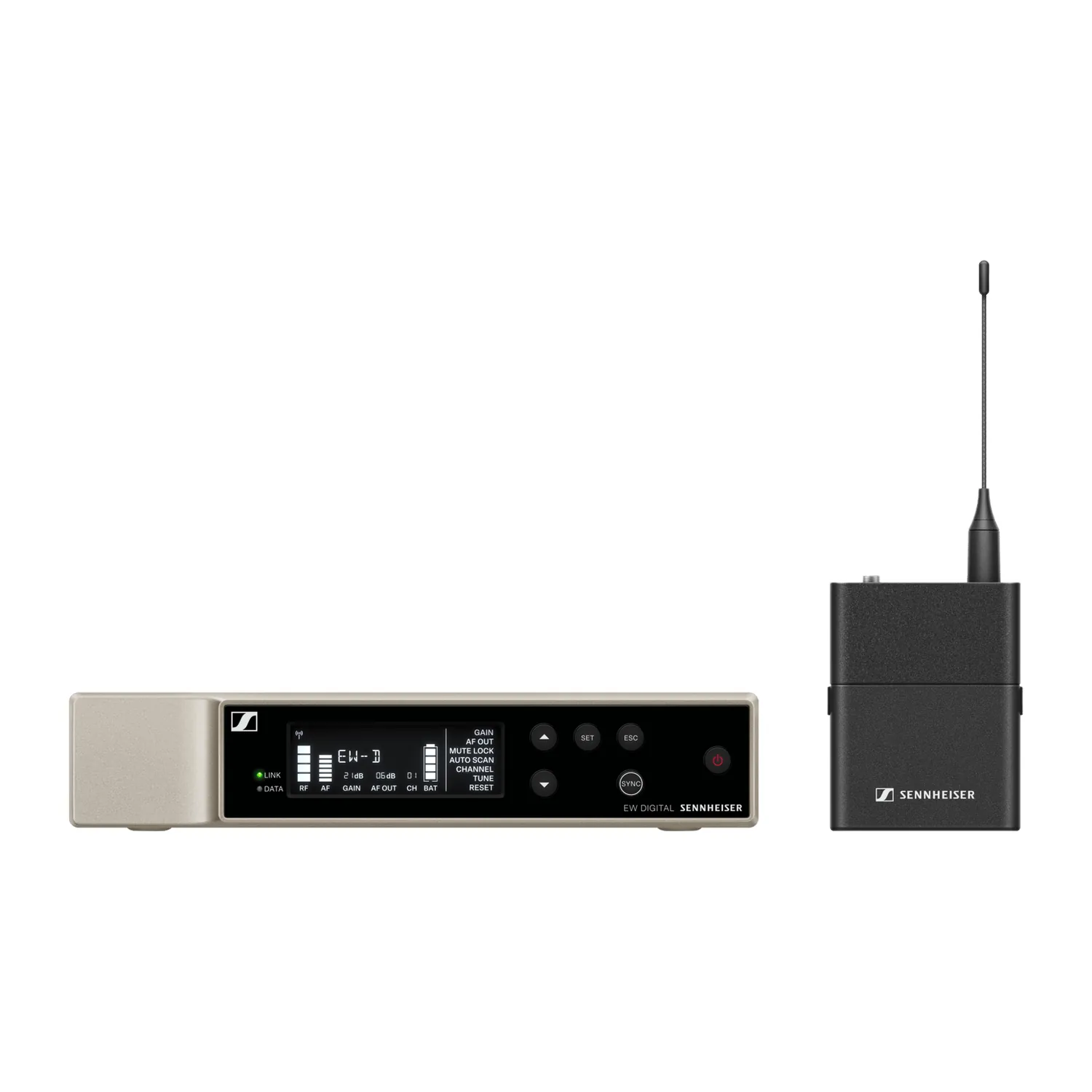

- EW-D EM receiver and EW-D SK bodypack
- Add your own EW-D lavalier, headset, or cable
- 134 dB dynamic range, Smart Assist app setup
From $649.00 USD
Sennheiser EW-D SK BASE SET Digital Wireless Bodypack System
The Sennheiser EW-D SK BASE SET pairs an EW-D EM rack receiver with an EW-D SK bodypack transmitter, ready for the Evolution Wireless Digital lavalier, headset, or instrument cable you choose.
No microphone comes in the set. Pairing and setup run through the EW-D Smart Assist app over Bluetooth Low Energy, and auto scan finds clear frequencies for you.
Frequency Bands
This page offers three US bands: Q1-6 (470.2 to 526 MHz), R1-6 (520 to 576 MHz), and R4-9 (552 to 607.8 MHz). Each covers 56 MHz with up to 90 channels on an even 600 kHz grid.
Receiver and Transmitter
The EW-D EM is a half-rack receiver that runs on its 12 V power supply and puts out up to 18 dBu. The SK bodypack runs up to 8 hours on the two included AA batteries or up to 12 hours on a BA 70 pack, sold separately.
Features
- EW-D EM rack receiver and EW-D SK bodypack
- Microphone sold separately
- 134 dB dynamic range, 1.9 ms latency
- Smart Assist app setup over Bluetooth
- Up to 90 channels in 56 MHz
- Rackmount set, antennas, and power supply included
- Up to 12 hours on a BA 70, 8 hours on AA
What's Included
- EW-D EM rack receiver
- EW-D SK bodypack transmitter
- 2 x rod antennas
- NT 12-5 CW power supply with country adapters
- GA 3 rackmount set
- 4 x rubber feet
- 2 x AA batteries
- Quick guide
- Safety guide
Specifications
| System | |
|---|---|
| Frequency Ranges | Q1-6: 470.2 – 526 MHz R1-6: 520 – 576 MHz R4-9: 552 – 607.8 MHz |
| Audio Frequency Response | 20 Hz – 20 kHz (−3 dB) |
| Dynamic Range | 134 dB |
| THD | ≤ −60 dB (1 kHz at −3 dBFS) |
| System Latency | 1.9 ms |
| Bluetooth Low Energy | 2402 – 2480 MHz |
| EW-D EM Receiver | |
| Input Voltage | 11 – 13 V DC |
| Audio Output Level | 18 dBu max. |
| Dimensions | 212 × 44 × 189 mm (8.35 × 1.73 × 7.44 in) |
| Weight | About 1000 g (2.2 lb) without antennas and power supply |
| EW-D SK Transmitter | |
| Transmission Power | 10 mW ERP (audio link) |
| Input Voltage | 2.0 – 4.35 V |
| Power | 2 AA batteries or BA 70 rechargeable pack |
| Operating Time | Up to 12 hours (BA 70), up to 8 hours (AA) |
| Dimensions | 63 × 80 × 20 mm (2.48 × 3.15 × 0.79 in) without antenna |
| Weight | 120 g (4.23 oz) without batteries |
| Warranty | 2 years |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit www.sennheiser.com. |
