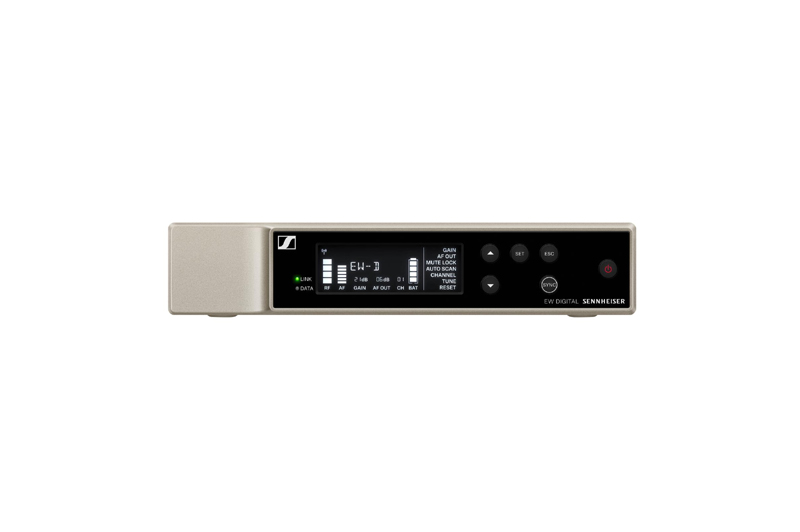

Sennheiser EW-D EM Digital Half-Rack Receiver
- Half-rack receiver for Evolution Wireless Digital
- 134 dB dynamic range, 1.9 ms latency
- Rackmount set, antennas, and power supply
From $329.00 USD
Sennheiser EW-D EM Digital Half-Rack Receiver
Made for Evolution Wireless Digital handheld and bodypack transmitters, the Sennheiser EW-D EM is a digital half-rack receiver.
Two of them fit side by side in one rack space with the included GA 3 kit. The receiver pairs with its transmitter and is set up through the Smart Assist app over Bluetooth Low Energy, and auto scan finds clear frequencies. Its 134 dB dynamic range means transmitters need no input sensitivity setting, and the output reaches 18 dBu.
Frequency Bands
This page offers three US bands: Q1-6 (470.2 to 526 MHz), R1-6 (520 to 576 MHz), and R4-9 (552 to 607.8 MHz). Each band covers 56 MHz with up to 90 channels. The signal is digital, so channels sit on an even 600 kHz grid without the intermodulation that limits analog systems.
Features
- Half-width 19-inch rack receiver
- For EW-D handheld and bodypack transmitters
- 134 dB dynamic range, 1.9 ms latency
- Smart Assist app setup
- Up to 90 channels in 56 MHz
- Rackmount set, antennas, and power supply included
What's Included
- EW-D EM rack receiver
- 2 x rod antennas
- NT 12-5 CW power supply with country adapters
- GA 3 rackmount kit
- 4 x rubber feet
- Quick guide
- Safety guide
Specifications
| System | |
|---|---|
| Frequency Ranges | Q1-6: 470.2 – 526 MHz R1-6: 520 – 576 MHz R4-9: 552 – 607.8 MHz |
| Tuning Bandwidth | 56 MHz, up to 90 channels on a 600 kHz grid |
| Audio Frequency Response | 20 Hz – 20 kHz (−3 dB) |
| Dynamic Range | 134 dB |
| THD | ≤ −60 dB (1 kHz at −3 dBFS) |
| Latency | 1.9 ms |
| Bluetooth Low Energy | 2402 – 2480 MHz, for the Smart Assist app |
| Operating Temperature | −10 to +55 °C (14 to 131 °F) |
| Receiver | |
| Format | Half-width 19-inch rack receiver |
| Audio Output Level | 18 dBu max. |
| Input Voltage | 11 – 13 V DC |
| Dimensions | 212 × 44 × 189 mm (8.35 × 1.73 × 7.44 in) |
| Weight | 1000 g (35.27 oz) |
| Warranty | 2 years |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit www.sennheiser.com. |
