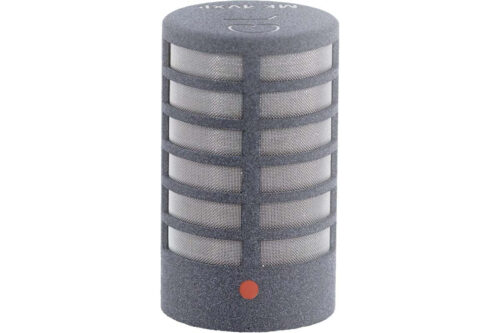

Schoeps MK 4VXP Cardioid, Side-Addressed (Very Close Pickup) Microphone Capsule

Cardioid, Side-Addressed (Very Close Pickup) Microphone Capsule

This product is currently out of stock and unavailable.

Description

  • Cardioid, side-addressed for very close speech pickup (<10 cm)
  • Low-frequency response rolloff (-10 dB at 100 Hz)
  • Polar diagram identical as the MK 4V
  • Preferred applications: close speech pickup, also available in the HSC 4VXP headset

This cardioid capsule is designed for the very closest speech pickup, i.e. directly in front of the speaker?s mouth.

Its low-frequency rolloff is compensated by proximity effect. Thus it has (up to the point of its high-frequency emphasis) a flat frequency response for the speaker?s voice, while showing a rolloff at low frequencies for all sound that originates from a greater distance. As a result, background sounds are picked up less strongly than the person speaking.

Specifications

Pickup pattern Cardioid
Frequency range
  •  40 Hz – 19 kHz with CMC 6 / CMR,
  • 40 Hz – 39 kHz with CMC 6xt
Sensitivity -38,5 dB (V/Pa), 12 mV/Pa with CMC 6
Equivalent noise level (A-weighted) 14 dB with CMC 6
Equivalent noise level (CCIR) 24 dB with CMC 6
Signal-to-noise ratio (A-weighted) 80 dB with CMC 6
Maximum sound pressure level (THD < 0.5 %) 133 dB-SPL with CMC 6
Length 34 mm
Diameter 20 mm
Weight 18 g
