Schoeps Mono Set CMC 6 with MK 41 and CUT 60 Filter

The Schoeps Mono Set CMC 6 pairs the CMC 6 U amplifier and the MK 41 supercardioid capsule with the CUT 60, Schoeps’ steep low-cut filter, a setup made for dialogue on a boom.

The MK 41 is a standard capsule for indoor film sound. Its directivity at low and middle frequencies comes close to a shotgun’s, and its pattern stays nearly the same across the range, so it picks up off-axis and room sound without coloration. It is less prone to feedback than any other Schoeps capsule type, as long as no loudspeaker faces its rear.

The CUT 60 screws in between the capsule and the amplifier. Its filter at 60 Hz falls at 24 dB/oct and is always on, so wind and boom handling noise stay out of the signal chain while speech is untouched. With the CMC 6 it also raises the microphone’s sensitivity by 5 dB.

The CMC 6 U amplifier detects P48 or P12 phantom power on its own and drives the cable through a balanced, transformer-free class-A output stage, with low distortion and strong rejection of radio interference.

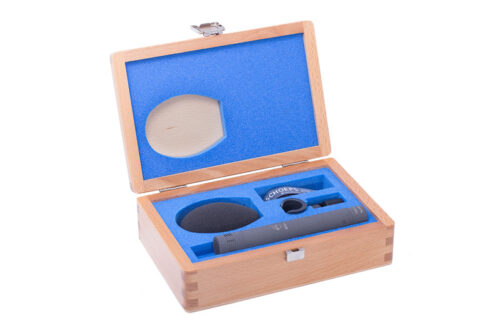

The set comes with an SG 20 stand clamp, a B 5 foam pop screen, and a case.

Features

CMC 6 U amplifier with MK 41 supercardioid capsule
CUT 60 low-cut filter, 24 dB/oct at 60 Hz
A standard capsule for indoor dialogue
Off-axis sound without coloration
Runs on P48 or P12 phantom power
SG 20 clamp, B 5 pop screen, and case

What's Included

CMC 6 U microphone amplifier
MK 41 supercardioid capsule
CUT 60 low-cut filter
SG 20 stand clamp
B 5 foam pop screen
Case

Specifications

CMC 6 U Amplifier
Frequency Range	20 Hz to 20 kHz
Maximum Output Voltage	1 V (0 dBV) into 1 kΩ
Maximum SPL (THD < 0.5%)	131 dB SPL with MK 4 (P48 and P12)
Low-Cut Filter	20 Hz, 12 dB/oct
Output Impedance	42 Ω
Minimum Load Impedance	1 kΩ
Common Mode Rejection (1 kHz)	Over 55 dB
Maximum Cable Length	Over 400 m (1300 ft)
RFI Shield	Yes
Phantom Power	P48 (20 to 52 V), P12 (10 to 13 V)
Current Consumption	4 mA (P48), 8 mA (P12)
Output	XLR-3M, analog, 1 channel
Length	116 mm
Diameter	20 mm
Weight	60 g
MK 41 Capsule
Pickup Pattern	Supercardioid
Frequency Range	40 Hz to 26 kHz (40 Hz to 41 kHz with CMC 6xt)
Sensitivity	−36 dB (V/Pa), 16 mV/Pa
Equivalent Noise Level (A-Weighted)	14 dB
Equivalent Noise Level (CCIR)	23 dB
Signal-to-Noise Ratio (A-Weighted)	80 dB
Maximum SPL (THD < 0.5%)	131 dB SPL with CMC 6, 135 dB SPL with CMC 1
Length	22 mm
Diameter	20 mm
Weight	17 g
CUT 60 Filter
Low-Cut Filter	60 Hz, 24 dB/oct
Effect on Sensitivity	+5 dB with CMC 6, none with CMC 1
Length	17 mm
Diameter	20 mm
Weight	18 g
