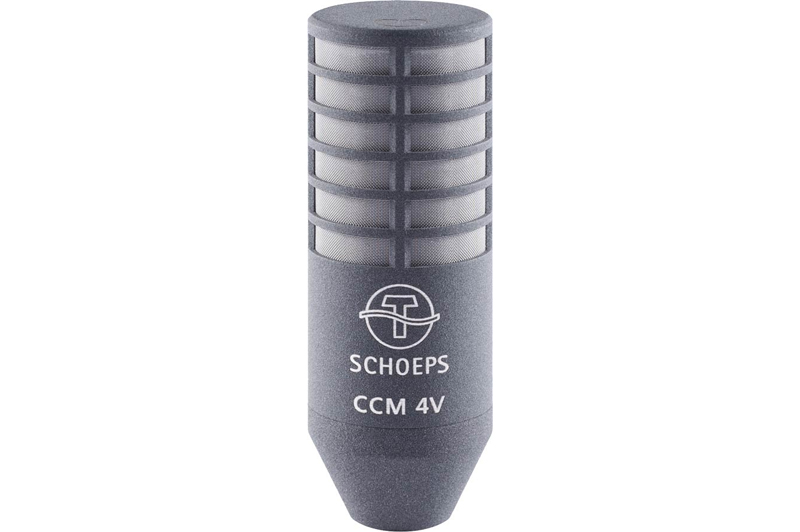

Schoeps CCM 4V Vertical (side-addressed) Cardioid Compact Microphone

Vertical (side-addressed) Cardioid Compact Microphone

This product is currently out of stock and unavailable.

Description

  • vertical (side-addressed) cardioid capsule
  • for a very wide range of recording applications
  • slight high-frequency emphasis
  • often preferred for singing or speaking voices, most instruments, spot microphones and stereo techniques such as XY, ORTF and MS.

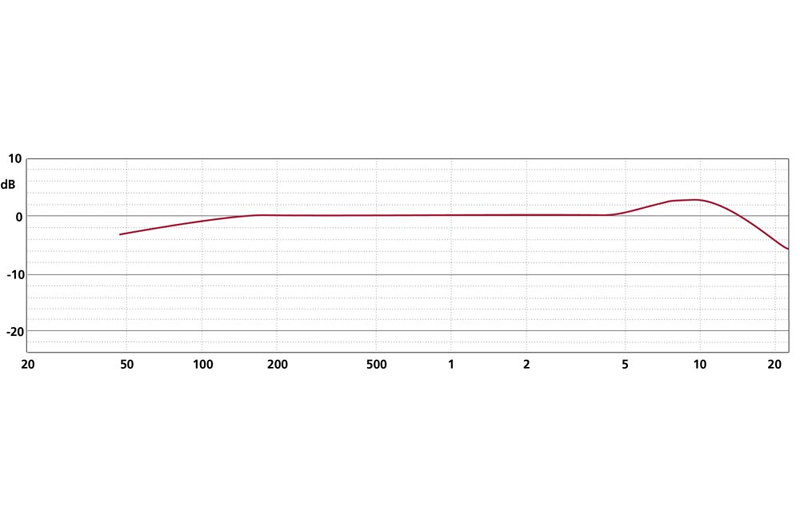

The CCM 4V was created in answer to requests for a cardioid with its main axis along the side. In addition to its usefulness in the concert hall, this microphone type is of particular value in speech recording, since its slight emphasis around 10 kHz helps to improve intelligibility.

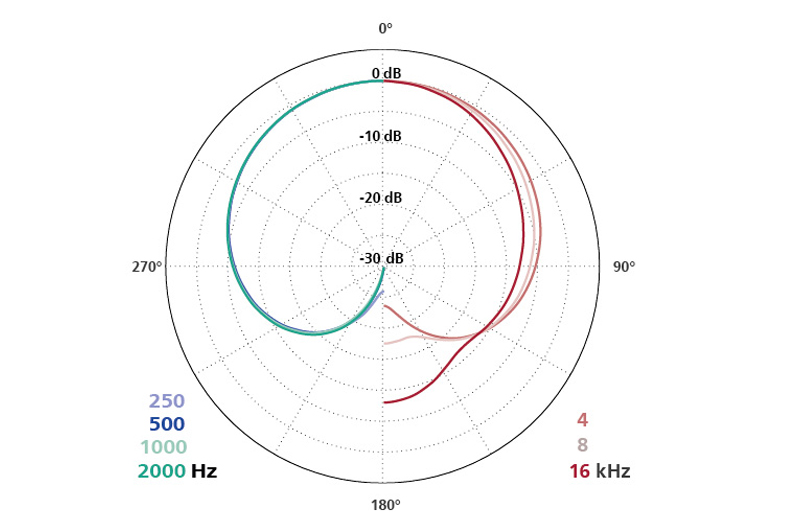

The directional response is especially well maintained even at higher frequencies, due to the acoustically transparent housing. There is less high-frequency emphasis of off-axis sound than occurs with most small, axial-response cardioids. The CCM 4V still sounds somewhat brigher than the CCM 4, however, because of its overall frequency response.

Practice

The CCM 4V may be easier to use in near-coincident setups than the CCM 4: the microphone bodies do not get in each other’s way.

Specifications

Frequency range see corresponding capsule
Sensitivity see corresponding capsule
Maximum sound pressure level (THD < 0.5 %)
  • 136 dB-SPL (P48)
  • 128 dB-SPL (P12)
Maximum output voltage 2,6 V (8,3 dbV) with 2 kΩ load
Low cut filter 20 Hz, 12 dB/Okt.
Output impedance 90 Ω @ 1 kHz
Maximum cable length > 400 m
SCHOEPS RFI Shield No
Powering standard / Valid range
  • P48 / > 40 V
  • P12 / > 10 V
Current consumption
  • 4 mA (P48)
  • 3,6 mA (P12)
Common mode rejection ratio (at 1 kHz) > 55 dB
Minimum recommended load impedance 2 kΩ
Length 58 mm (CCM-L)
Diameter 20 mm
Weight 45 g (CCM-L)
