Saramonic K9 Lavalier – 3 mm Omnidirectional Lav Microphone
- 3 mm omnidirectional capsule from the K9 wireless system
- IP67 rated with a Kevlar-reinforced cable
- Locking 3.5 mm TRS, TA5F, and LEMO 3-pin versions
From $129.00 USD
Saramonic K9 Lavalier – 3 mm Omnidirectional Lav Microphone
Saramonic K9 Lavalier — The 3 mm lavalier from Saramonic’s K9 digital wireless system is built to disappear under clothing, in hair, or on costumes and to hold up to the wear of daily production work. The capsule measures 3 × 17.5 mm, carries an IP67 rating against dust and water, and rides on a Kevlar-reinforced cable rated for 50 N of pulling force. Its omnidirectional pattern captures dialog evenly from every direction, with a 20 Hz to 20 kHz frequency response, 118 dB maximum SPL, and 110 dB of dynamic range.
The K9 Lavalier comes in three connector versions:
| Connector | Compatible Transmitters |
|---|---|
| Locking 3.5 mm TRS Sennheiser pin-out |
Sennheiser EW-DP, Evolution G1 – G4, SK AVX Saramonic K9 Saramonic, DJI, RODE, Deity, and Hollyland wireless systems |

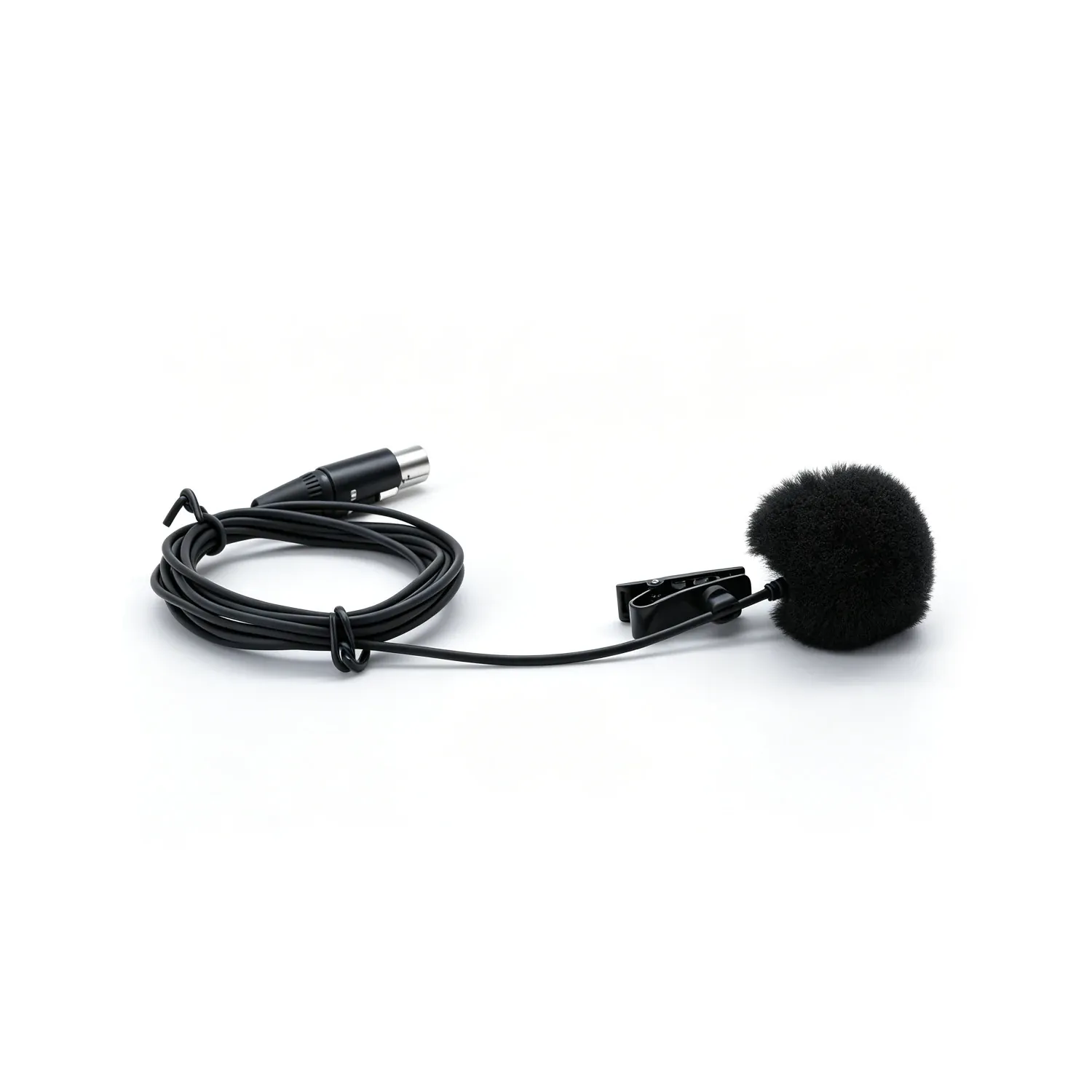

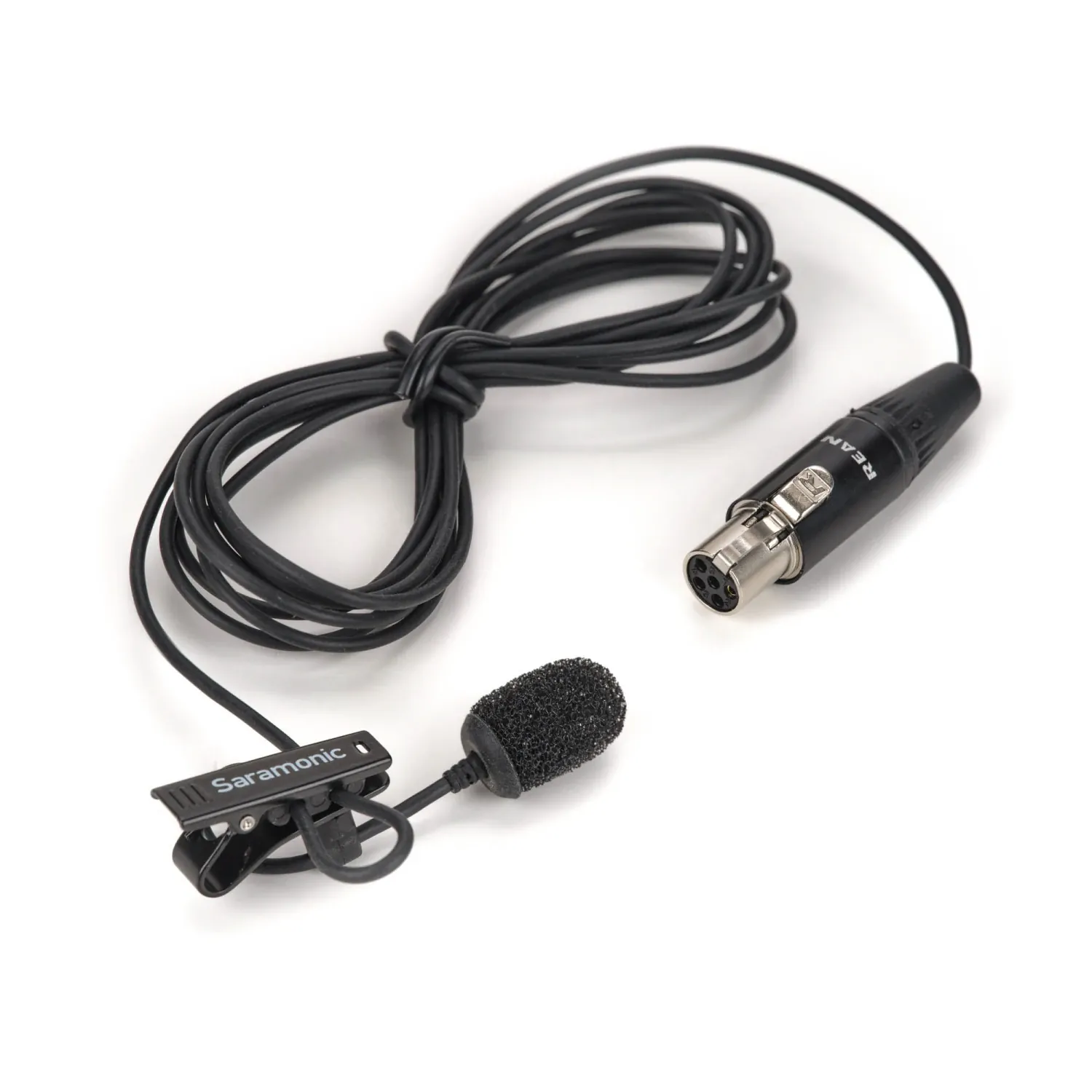

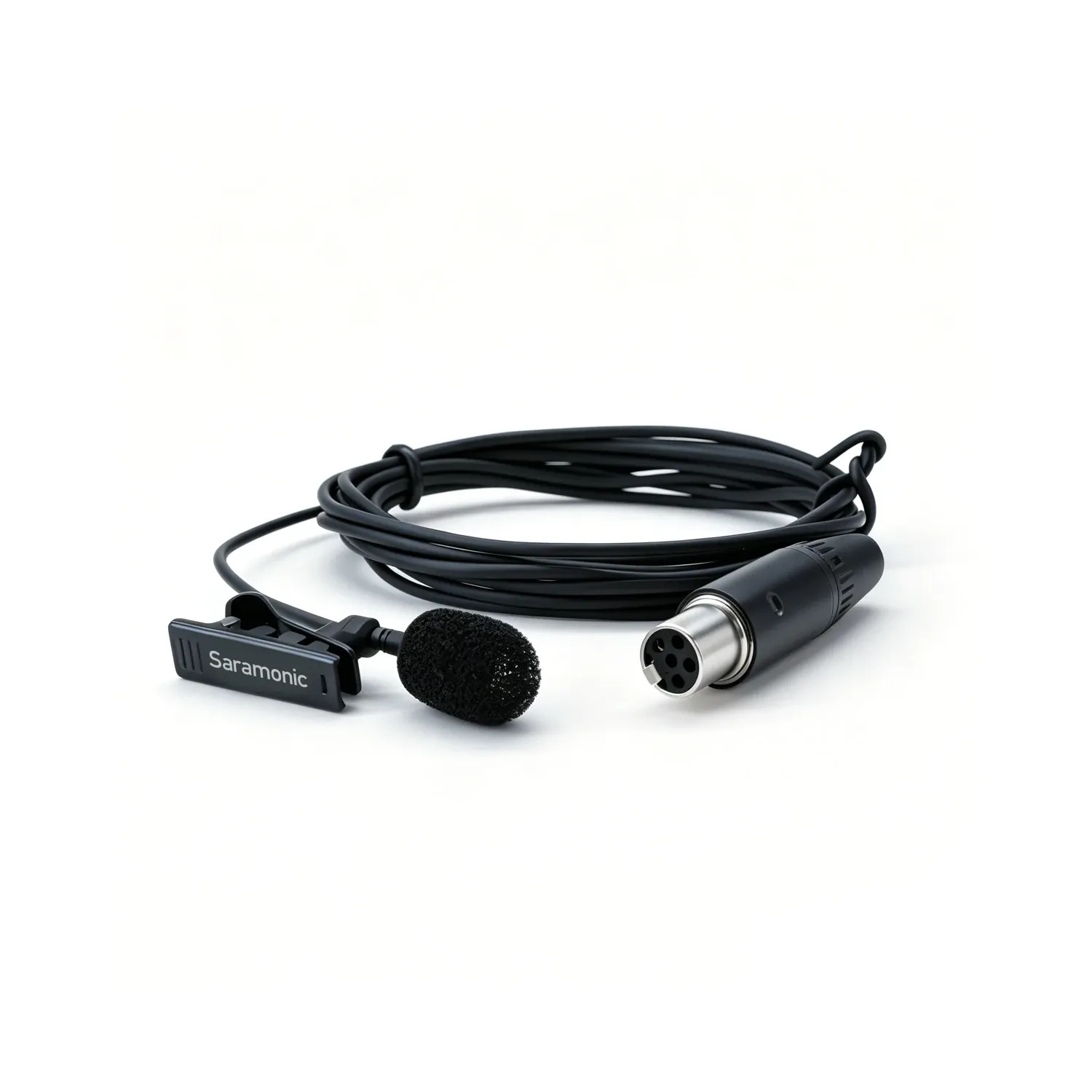

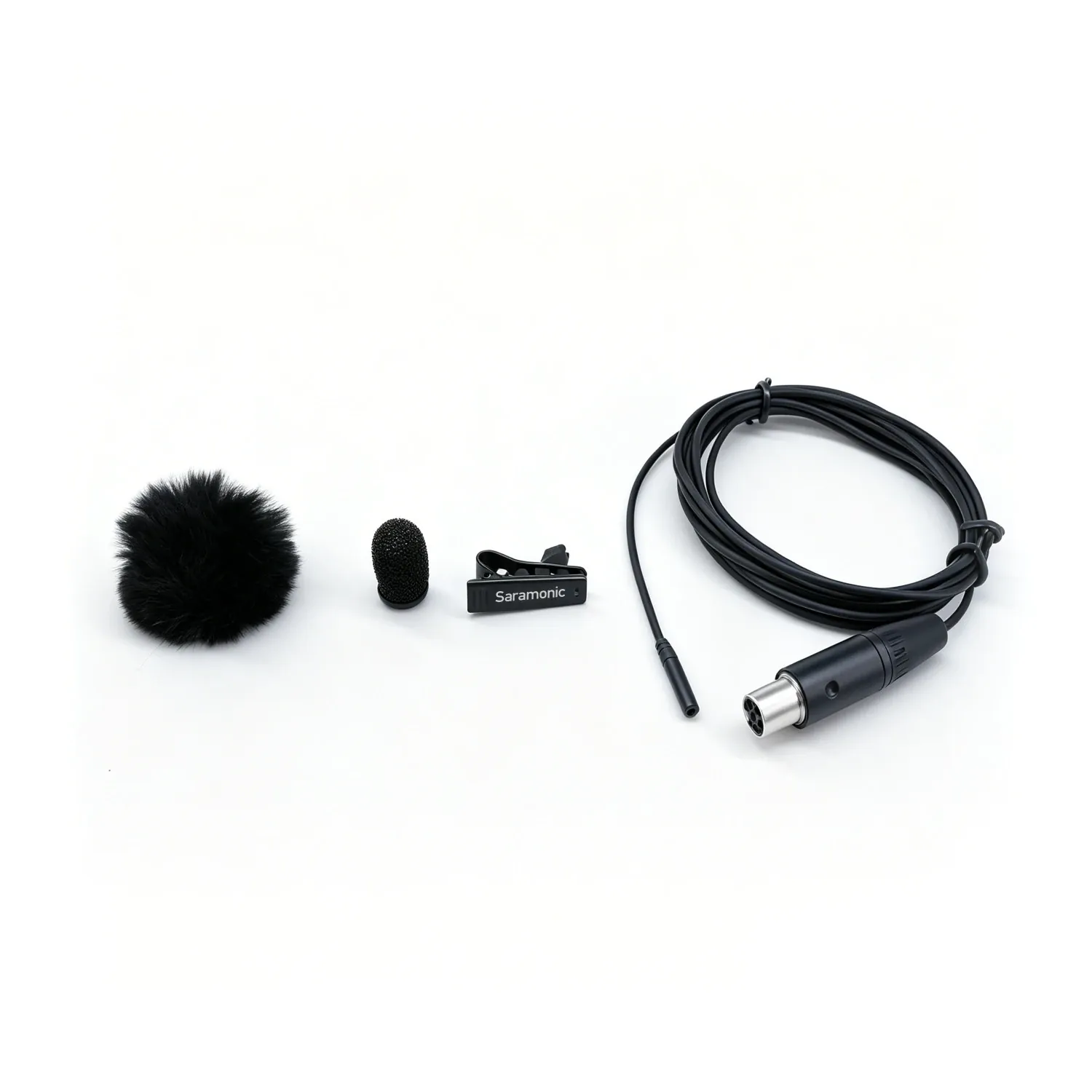

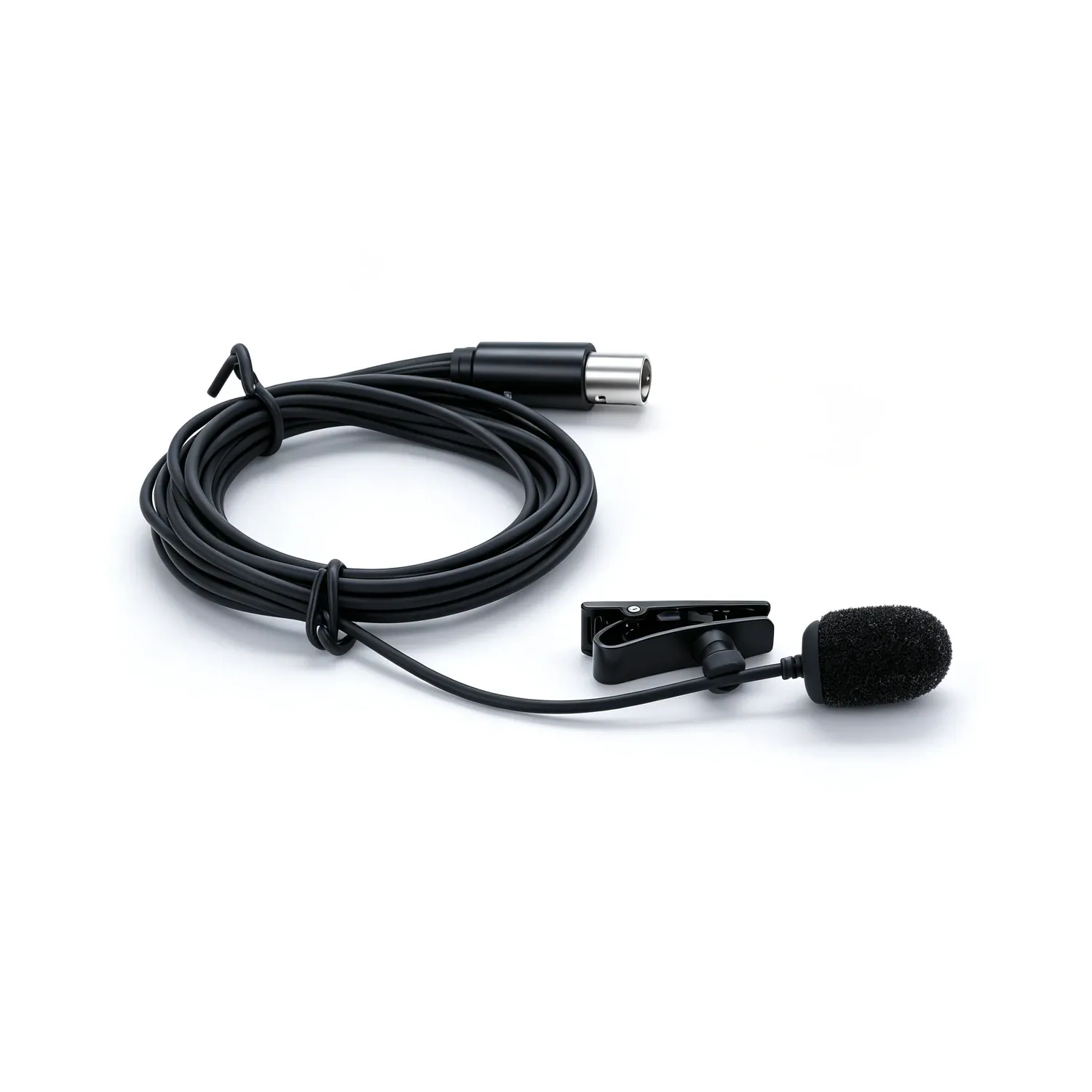

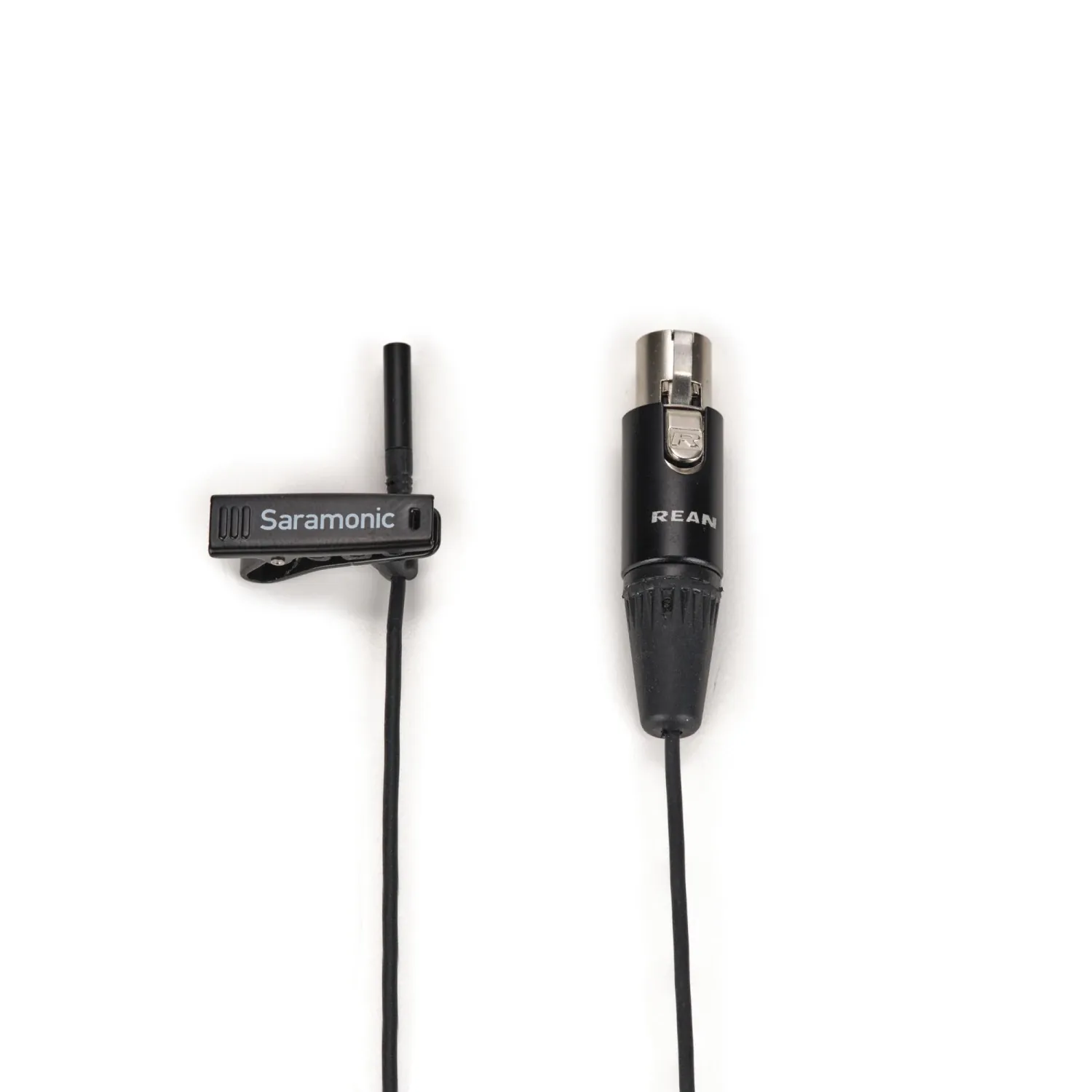

| TA5F | Select Lectrosonics and Audio-Technica transmitters |

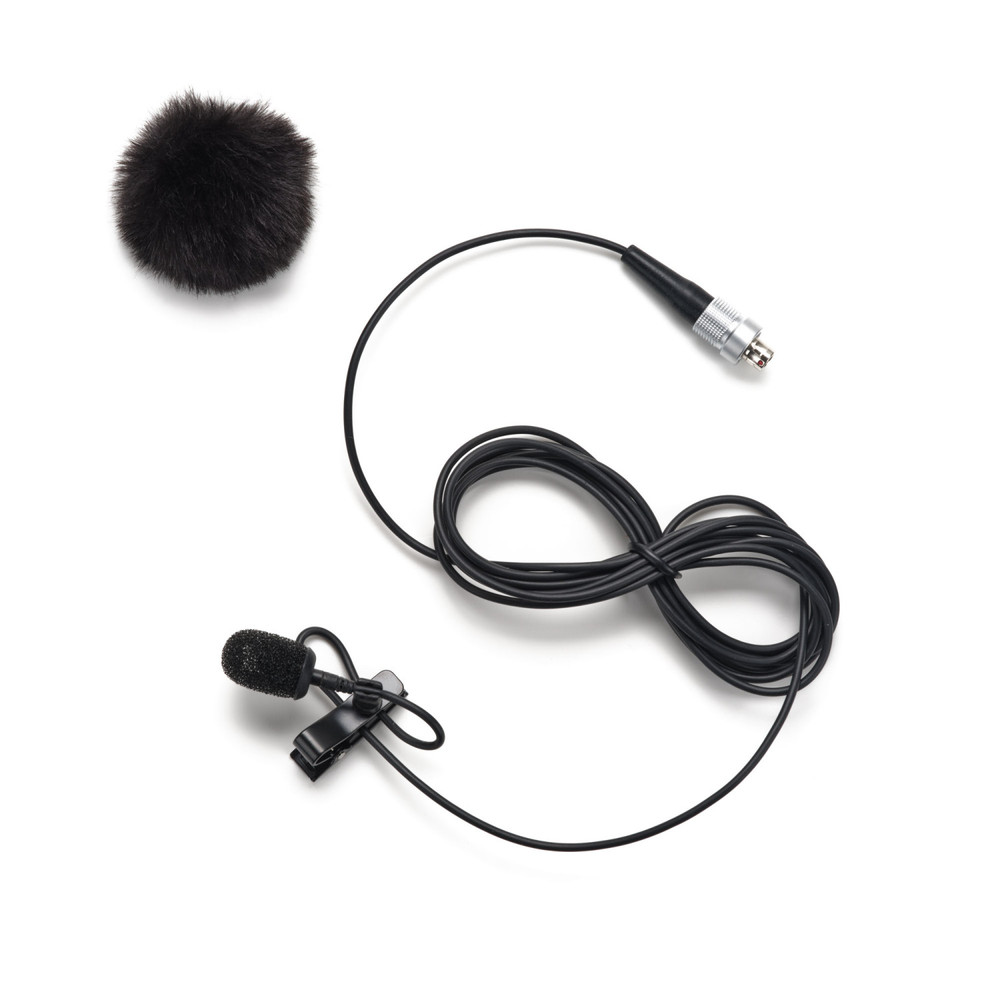

| LEMO 3-Pin | Select Shure, Lectrosonics, and Sennheiser transmitters |
Features
- ⌀3 × 17.5 mm omnidirectional capsule
- IP67 dust and water resistance
- Kevlar-reinforced cable rated for 50 N of pulling force
- 118 dB maximum SPL and 110 dB dynamic range
- 20 Hz – 20 kHz frequency response
- Runs on 1.3 to 5.0 V bias

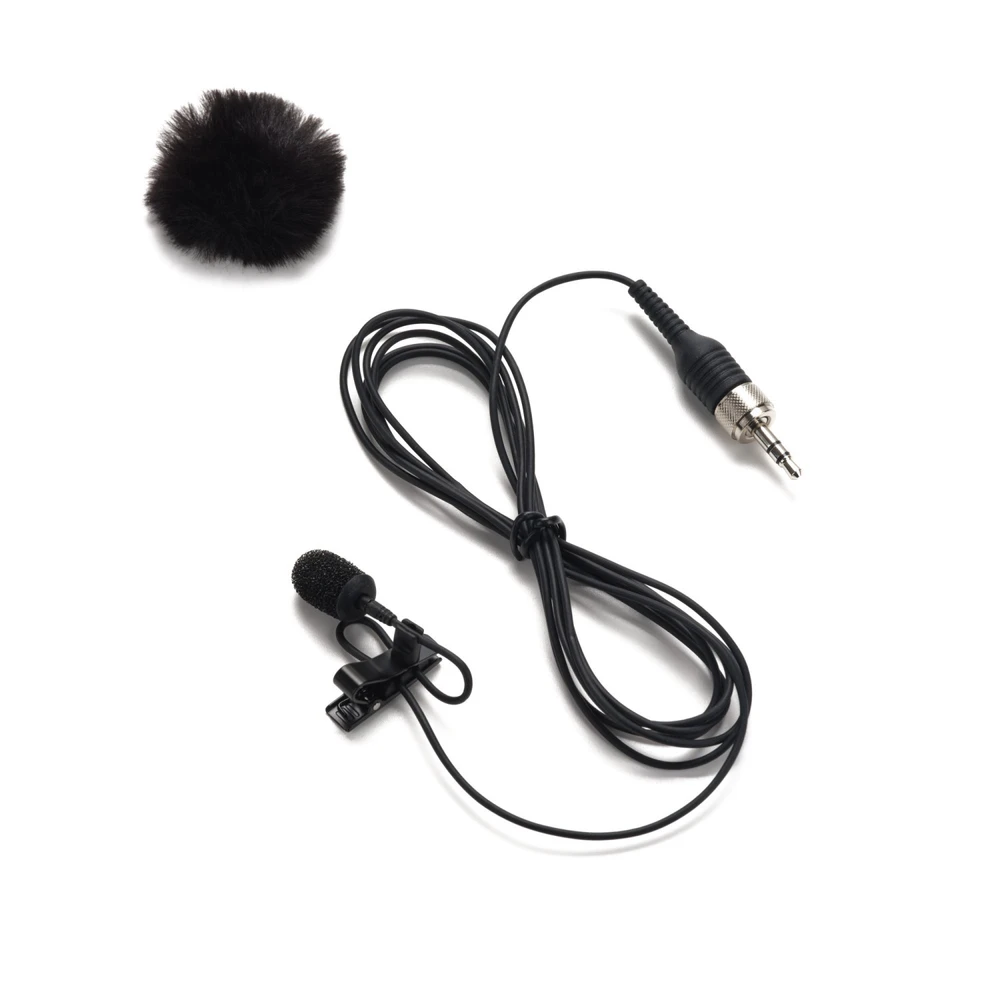

- Locking 3.5 mm TRS version wired to the Sennheiser pin-out
- TA5F version for select Lectrosonics and Audio-Technica transmitters
- LEMO 3-pin version for select Shure, Lectrosonics, and Sennheiser transmitters
Specifications
| Microphone | |
|---|---|
| Polar Pattern | Omnidirectional |
| Capsule Size | ⌀3 × 17.5 mm |
| Max SPL | 118 dB |
| Dynamic Range | 110 dB |
| Sensitivity | −35 dB (1.5 V, 2.2 kΩ, 1 kHz) |
| Self-Noise | 25 dB typical (A-weighted) |
| Signal-to-Noise Ratio | >68 dB |
| Operating Voltage | 1.3 – 5.0 V |
| Frequency Response | 20 Hz – 20 kHz |
| Distortion | <3% |
| Weatherproof Rating | IP67 |
| Tensile Strength | ≥50 N maximum pulling force |
| Operating Temperature | −20 to 70 °C −4 to 158 °F |
| Weight | 11 g (0.39 oz) |
| Cable Length | 1.8 m (5.91 ft) |
| Connector Options | |
| Locking 3.5 mm TRS | Sennheiser pin-out Sennheiser EW-DP, Evolution G1 – G4, SK AVX, and other transmitters with this wiring; K9 system |
| TA5F | Select Lectrosonics and Audio-Technica transmitters |
| LEMO 3-Pin | Select Shure, Lectrosonics, and Sennheiser transmitters |
