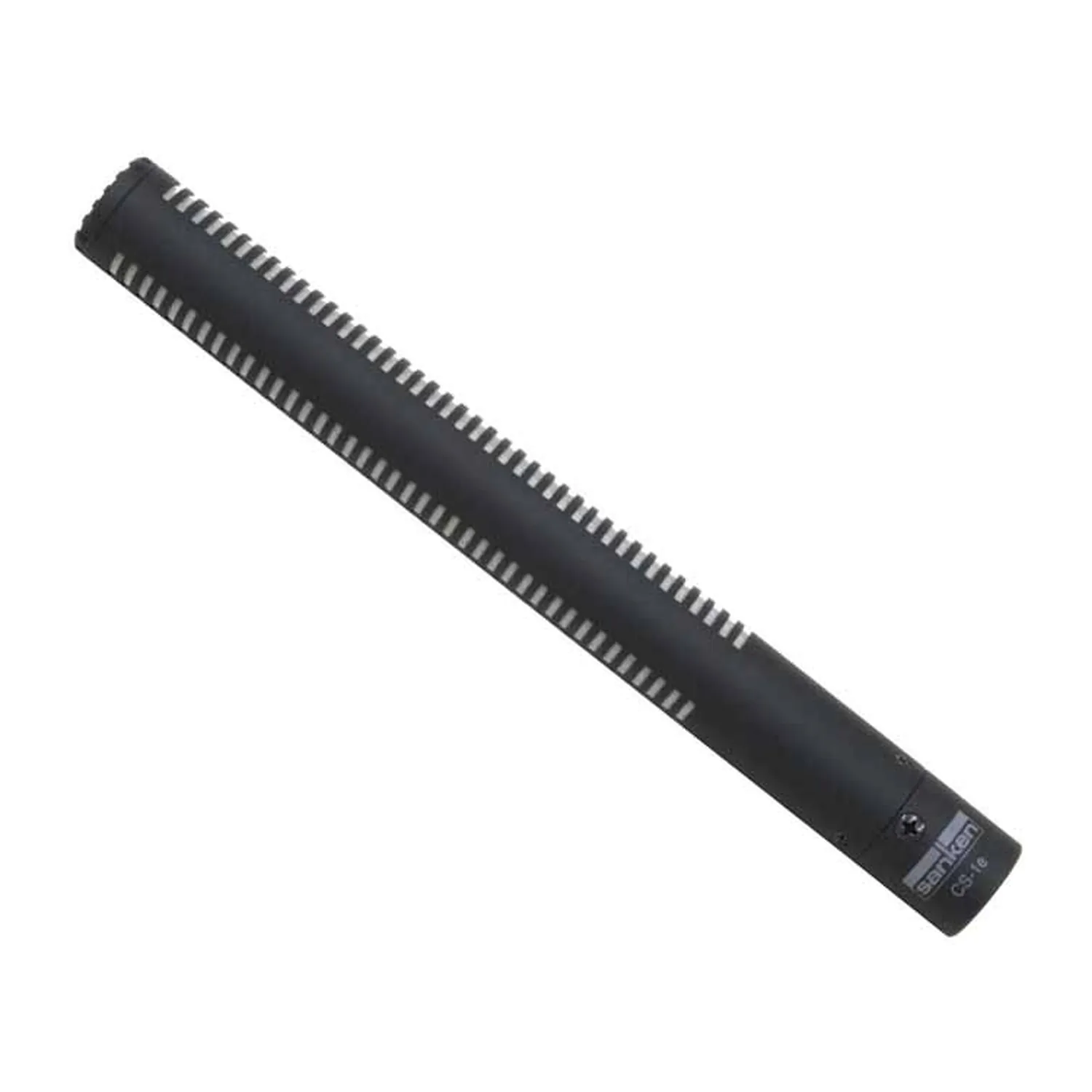

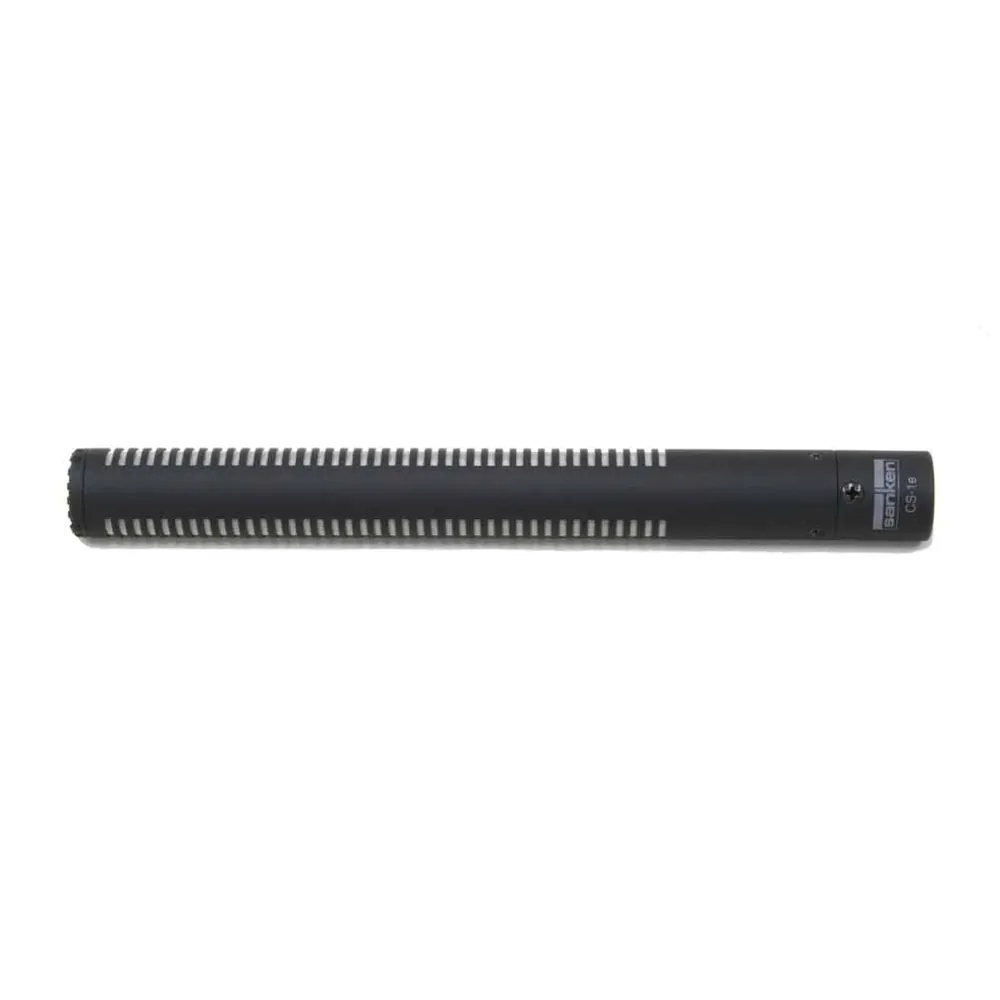

Sanken CS-1e Short Shotgun Microphone
- Short shotgun, 181.5 mm long and 80 g
- Very sharp super cardioid directivity

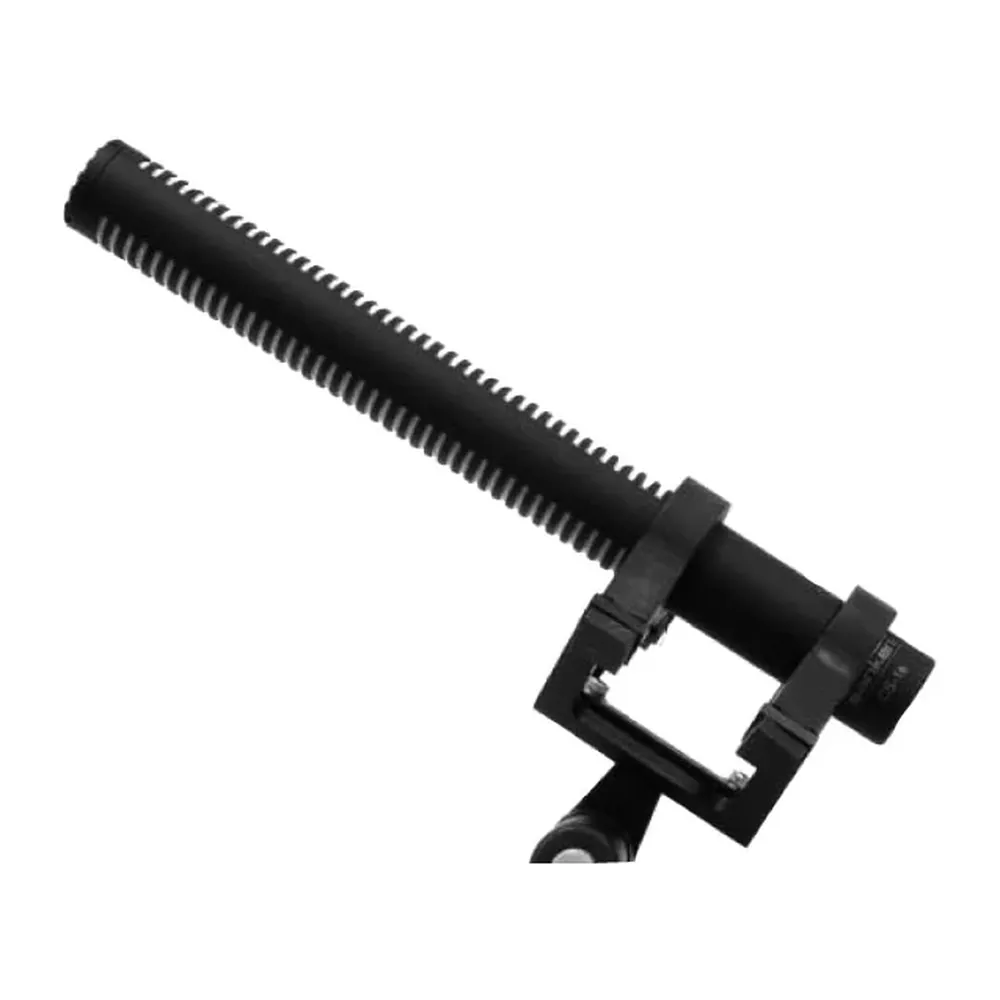

- For boom poles and camera mounts
$850.00 USD
In Stock
Sanken CS-1e Short Shotgun Microphone
The Sanken CS-1e fits very sharp directivity into a short shotgun microphone 181.5 mm long and 80 g, for boom poles and camera mounts.
It is Sanken’s update of the CS-1, with a longer pickup reach, extended low-frequency response, and lower noise. Its short body stays out of the camera’s view, and one-person ENG crews can use it on a boom pole or a camera mount.
The capsule is a DC biased condenser with 15 dB-A self-noise and a 130 dB SPL maximum, powered by 48 V phantom through an XLR-3M connector. Its components are chosen to resist humidity and sudden temperature changes.
Features
- Super cardioid pickup with very sharp directivity
- 181.5 mm long, 80 g
- Longer reach and lower noise than the CS-1
- DC biased condenser capsule
- 50 Hz to 20 kHz frequency range
- 15 dB-A self-noise
- 48 V phantom power, XLR-3M connector
- Urethane windscreen and vinyl case included
What's Included
- CS-1e microphone
- Urethane windscreen
- Measurement data
- Instruction manual
- Warranty card
- Vinyl case
Specifications
| Acoustic | |
|---|---|

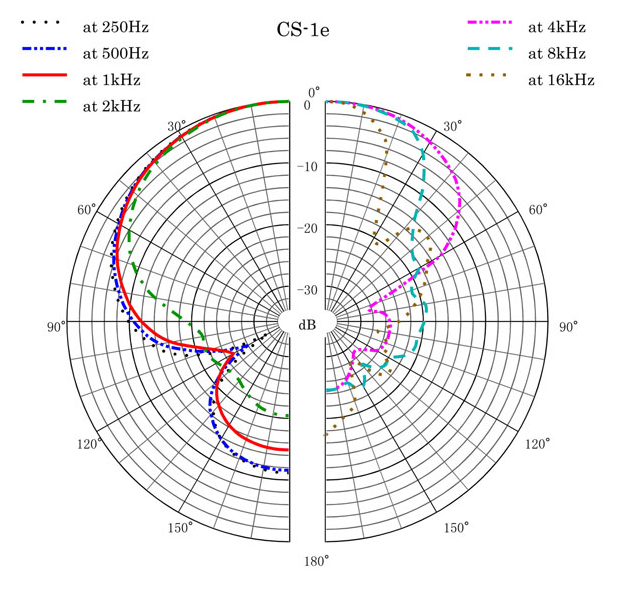

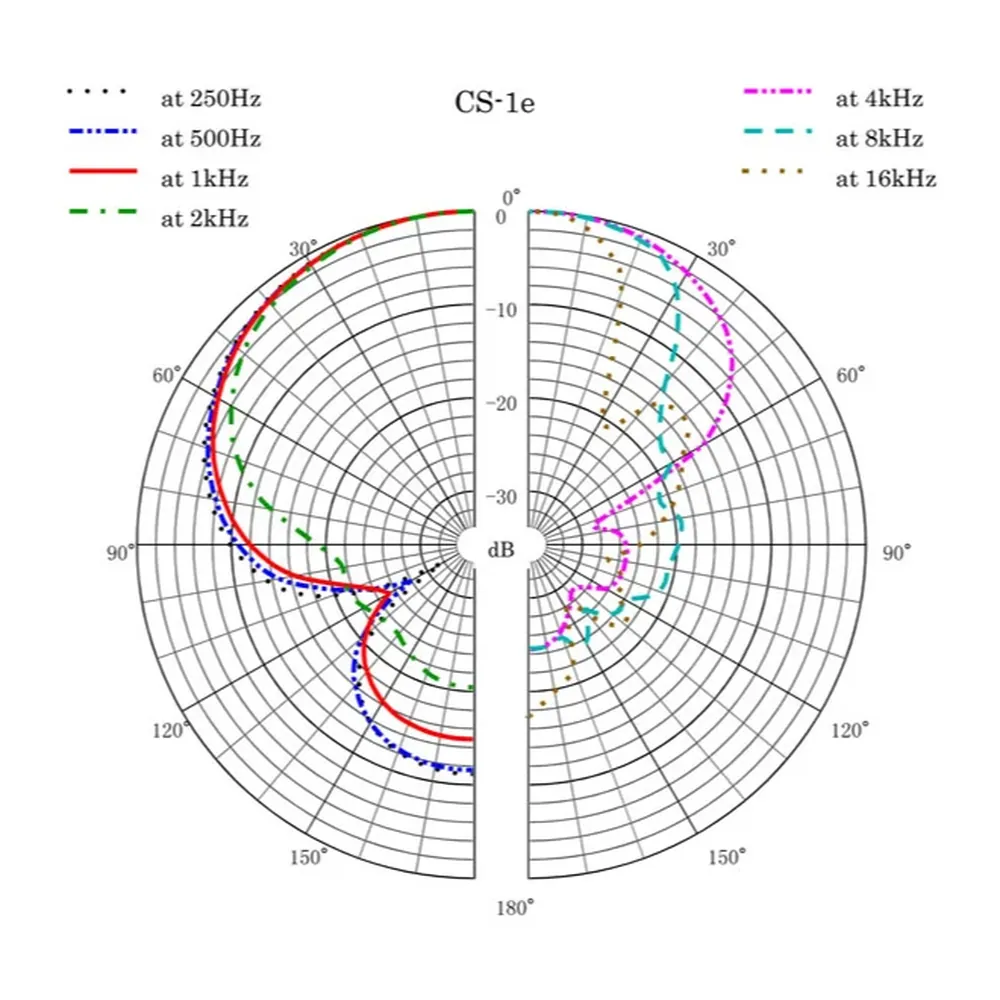

| Polar Pattern | Super cardioid, lobar |
| Transducer | DC biased condenser |

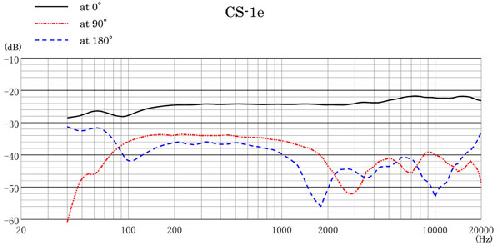

| Frequency Range | 50 Hz to 20 kHz |
| Sensitivity at 1 kHz | 63.1 mV/Pa (−24 dB re 1 V/Pa) |
| Equivalent Noise Level | 15 dB-A |
| Maximum SPL (1% THD) | 130 dB SPL |
| Output Impedance | 120 Ω at 1 kHz |
| Power and Physical | |
| Powering | +48 V ±4 V phantom |
| Current Consumption | 3.5 mA |
| Dimensions | 181.5 mm long, 19 mm diameter |
| Weight | 80 g |
| Finish | Matte black |
| Connector | XLR-3M |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit sanken-mic.com. |
