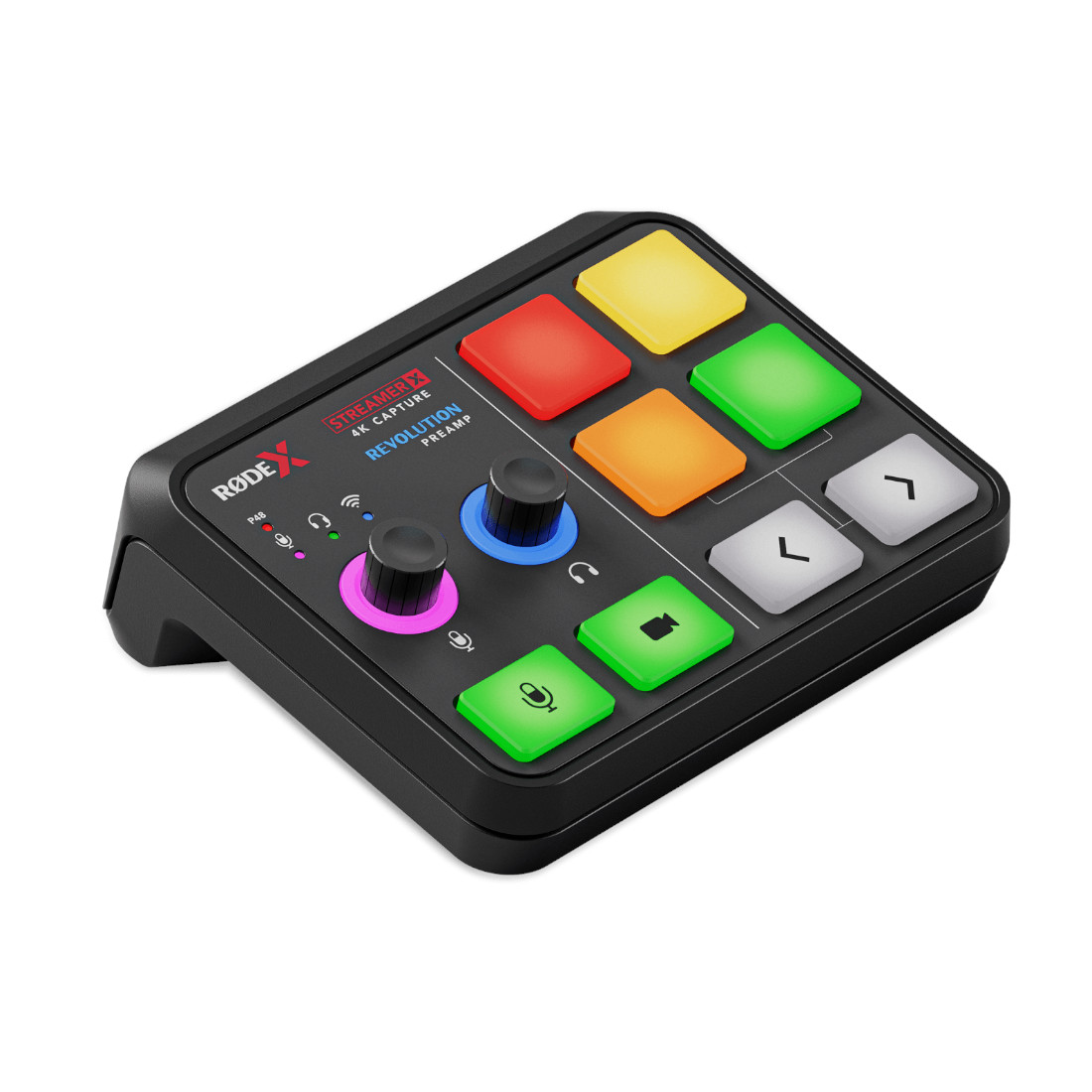

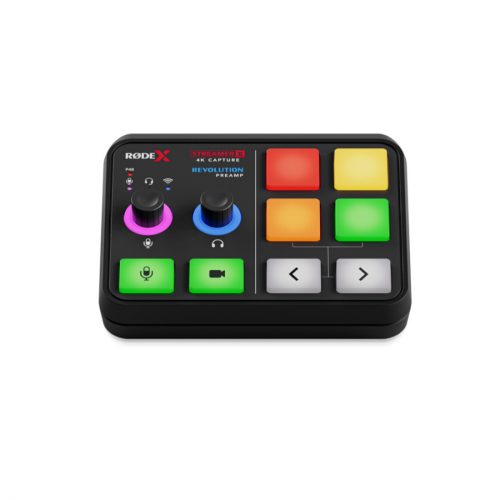

RODE Streamer X Audio Interface and Video Capture Card

Built to replace a multi-device streaming setup, the RODE Streamer X combines an audio interface, video capture card, and control surface in one compact unit.

Video Capture

HDMI connections capture video at up to 4K30 and pass it through at up to 4K60 HDR with zero latency, with Variable Refresh Rate support. The Streamer X’s capture modes also include 1440p60, 1080p120, and 1080p60 HDR. It takes gameplay from a PC or console or a feed from a DSLR, for streams, meetings, and presentations.

Audio Inputs

A Neutrik combo jack takes an XLR microphone or an instrument, with phantom power available. The Revolution Preamp gives up to 76 dB of gain at -131.5 dBV of noise, so no booster or lifter is needed. A 3.5mm TRRS jack connects a headset, and the integrated wireless receiver connects RODE Series IV transmitters such as the Wireless PRO, Wireless GO II, and Wireless ME. A range of RODE USB microphones can add another mic input. All inputs can run at once through UNIFY software. A 1/4″ headphone output gives zero-latency monitoring. An internal processor handles Aphex audio processing.

Control and Software

Dedicated controls set mic and headphone levels, and large buttons mute audio and video. Four SMART pads, with up to 64 through bank switching, trigger audio playback, voice effects, and MIDI messages that can fire a keyboard shortcut on a computer. Dual USB-C interfaces connect two computers or consoles. The RODE Central desktop app handles configuration and control, and free UNIFY streaming software adds advanced audio routing and mixing.

Features

• Up to 4K30 video capture and 4K60 pass-through via HDMI
• Variable Refresh Rate support
• Neutrik combo jack with a Revolution Preamp for XLR microphones or instruments
• 3.5mm TRRS headset input and 1/4″ headphone output
• Integrated wireless receiver for RODE Series IV microphones
• Internal processor with Aphex audio processing
• Four customizable SMART pads for sounds, voice effects, and MIDI commands
• Dual USB-C interfaces for two computers or consoles
• Designed and made in Sydney, Australia
