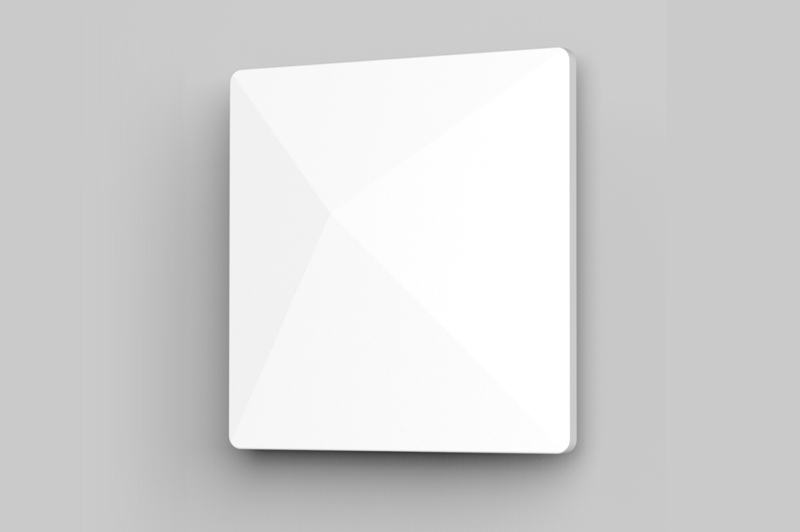

RF Venue D-ARC Diversity Architectural Antenna – White
- Two antennas in one slim, paintable panel
- A and B diversity connections
- Wall or ceiling mount in any position
$729.00 USD
RF Venue D-ARC Diversity Architectural Antenna – White
The RF Venue D-ARC Diversity Architectural replaces two separately spaced wireless microphone antennas with one slim panel, using a patent-pending dual-feed design that provides both A and B connections.
The white enclosure mounts on a wall or ceiling in any position and can be painted to match the room. It gives a clean look to conference rooms, meeting spaces, training rooms, schools, auditoriums, and houses of worship. Like the Diversity Fin, it reduces the dropouts caused by changes in the angle and orientation of the signal. The pattern is a 140-degree cone with a typical range of 200 feet.
Installation takes minutes: the rear plate is pre-drilled with several mounting hole options, and it connects to the front plate with the included screws. Connect the two rear BNC cables to your in-wall or in-ceiling coaxial run. Wall and ceiling hardware kits are in the box.
Features
- Two antennas in one slim, paintable panel
- A and B diversity connections
- Wall or ceiling mount in any position
- 140-degree cone with a typical range of 200 feet
- Pre-drilled rear plate
- Wall and ceiling hardware kits included
What's Included
- D-ARC antenna
- Ceiling hardware mounting kit
- Wall hardware mounting kit
Specifications
| Operating Frequency | 470 to 698 MHz |
|---|---|
| Bandwidth | 146 MHz |
| Impedance | 50 Ω |
| Average Return Loss | −6.4 dB |
| Pattern Type | Diversity flood |
| Gain | 3 dBd |
| Polarization | Linear |
| Dimensions | 280 × 280 × 50 mm / 11 × 11 × 2 in |
| Weight | 0.9 kg / 2 lb |
| Mount Location | Wall or ceiling |
| Operating Temperature | −10 to 40 °C / 14 to 104 °F |
| Color | White |
| Connectors | BNC female |
