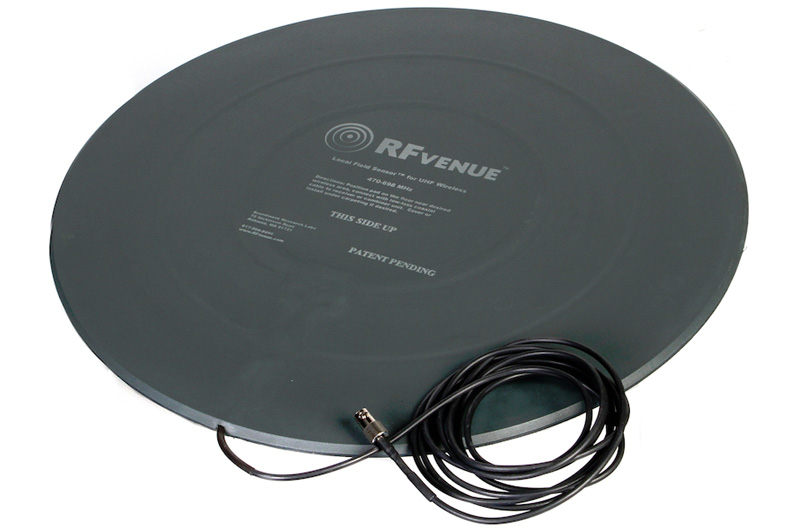

RF Venue Spotlight Antenna
759.00 USD
The RF Venue Spotlight is an antenna used for “nearfield” UHF wireless audio applications. The slim 7mm floor pad housing allows deployment in close proximity to talent.
Share on:
Description
The RF Venue Spotlight is an antenna used for “nearfield” UHF wireless audio applications. The slim 7mm floor pad housing allows deployment in close proximity to talent – on the floor, under carpets and stages – which raises the signal-to-noise ratio considerably and allows microphones to operate in extremely hostile RF conditions.
Be the first to review “RF Venue Spotlight Antenna”
You must be logged in to post a comment.
| Operating frequency | 468-740 MHz |
| Bandwidth | 272 MHz |
| Average return loss | 7.04 dBm |
| Impedance (nom) | 50Ω |
| Pattern type | Floor Omni |
| Gain | -1dBd |
| F/B Ratio | N/A |
| F/S Ratio | N/A |
| Transmit power (max) | 100mW |
| Polarization | Elliptical |
| Physical Characteristics | ---------- |
| Diameter | 83 mm / 19 in |
| Thickness | 7mm/0.26 in Typ |
| Weight | 1.4 kg/ 3 lbs |
| Operating temperature | -10-40C (-14-40 F) |
| Mounting location | Floor |
| Color/Reflectance | Stage Gray 18% Avg. |
| Connector | BNC Female |
