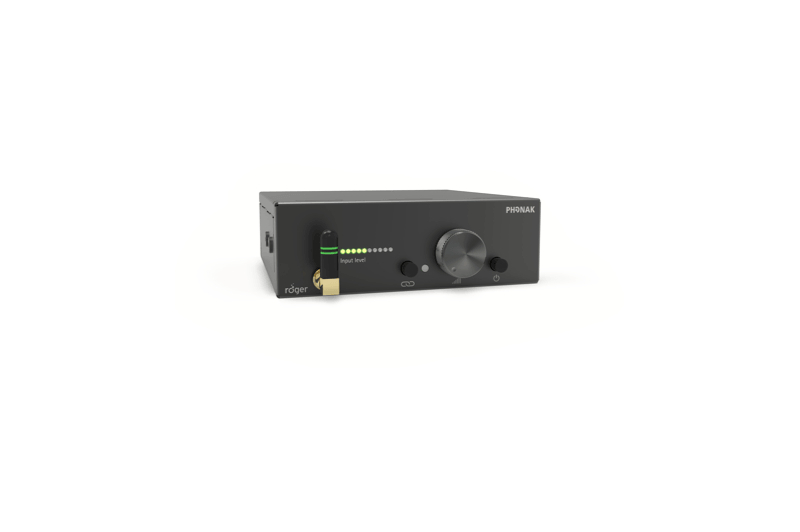

Phonak Roger BaseStation

The Roger BaseStation stationary transmitter, delivers high quality speech signals to the wireless Roger Earpiece.

SKU: PHO ROGERBASESTATION Categories: , , , , Tag:

Description

The Roger BaseStation stationary transmitter, delivers high quality speech signals to the wireless Roger Earpiece. Using Phonaks new digital standard at 2,4GHz and fully automatic frequency hopping technology ensures that the signal is transferred to the in-ear receiver in unrivalled sound quality.

Key Features:

  • License free 2.4 GHz transmission
  • Adaptive automatic frequency hopping
  • Balanced audio in (XLR or 6.3)
  • Audio input graphical display
  • Volume control: –14 to +12 dB
  • Bandwidth: 100–7200 Hz
  • Transmission range: 15–40 m (depending on environment)
  • Rack and wall mount included
  • Weight: 488 g
  • Housing dimensions: 132 x 132 x 44 mm

Reviews

There are no reviews yet.

Be the first to review “Phonak Roger BaseStation”

Housing Dimensions (L x W x H): 132 x 132 x 44 mm (5.1”x5.1”x1.6”)
Weight: 488 g (1.1 lbs)
Color: Black
Operating conditions: 0° to + 45° Celsius (+32° to +113° Fahrenheit) and relative humidity of <95% (non condensing)
Transport and storage conditions: -20° to +60° Celsius (-4° to +140° Fahrenheit) and relative humidity of 90% for a long period
Power supply: 100-240 VAC to 5.3 VDC / 4 A
Power consumption: 225 mW (75 mA @ 3 V)
Range unbalanced input (jack 3.5):
  • Nominal: -27 dBu / 0.035 Vrms
  • Max: 0 dBu / 0.77 Vrms
Range balanced input (XLR + jack 6.3):
  • Nominal: 0 dBu / 0.77 Vrms
  • Max: + 20 dBu / 7.75 Vrms
Impedance unbalanced input:25 kΩ
Impedance balanced input (XLR + jack 6.3):2.2 kΩ
Connections type and pinout unbalanced input(jack 3.5):
  • Tip: Audio left
  • Ring: Audio right
  • Sleeve: GND
  • Compatible with mono or stereo inputs (Stereo signals are transformed into mono)
Connections type and pinout balanced input (XLR):
  • 1: GND
  • 2: Hot (+)
  • 3: Cold (-)
Connections type and pinout balanced input(jack 6.3):
  • Balanced input
  • Tip: Hot (+)
  • Ring: Cold (-)
  • Sleeve: GN
Audio bandwidth: 100 Hz - 7200 Hz
SNR: 55 dB (@ 1 kHz)
THD: -42 dB (< 0.8 % @ 1 kHz)
Transmission technology: 2.4 GHz adaptive frequency hopping
Power emission: 100 mW
Operating range to Roger Earpiece: 15-40 m (49-131 ft) depending on environment
Operating range for Connect feature:10 cm (4“)
