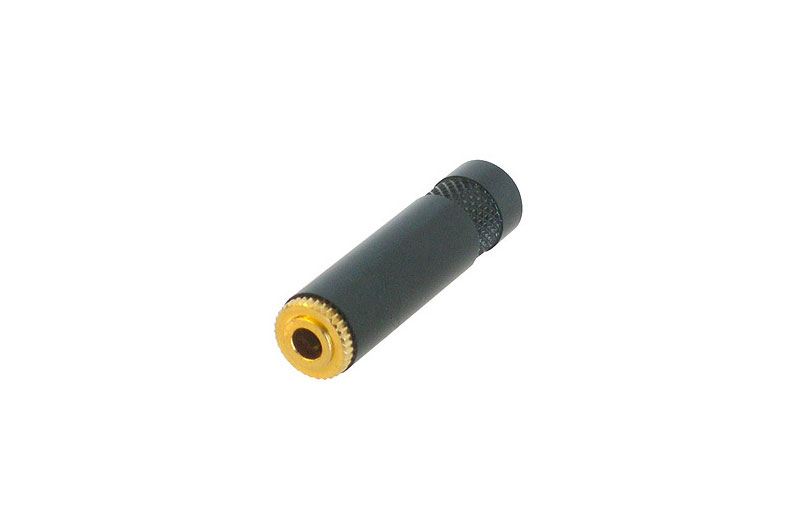

Neutrik REAN NYS240 3.5 mm Stereo Cable Jack

  • 3.5 mm (1/8-inch) stereo cable jack
  • Metal housing and steel cable clamp
  • Black housing with gold-plated contacts

From $3.37 USD

Brand: Category: Trew SKU: NEURNYS240

Neutrik REAN NYS240 3.5 mm Stereo Cable Jack

With a metal housing and a steel cable clamp, the Neutrik REAN NYS240 puts a 3-pole 3.5 mm (1/8-inch) stereo socket on the end of a cable.

Its contacts and ground contact are bronze, and its outlet takes cable up to 4 mm in outer diameter. It is rated for over 1,000 mating cycles. Trew Audio carries it with a black housing and gold-plated contacts.

Features

  • 3-pole 3.5 mm (1/8-inch) stereo cable jack
  • Metal housing with a steel cable clamp
  • Bronze contacts
  • For cable up to 4 mm
  • Rated for over 1,000 mating cycles
  • Black housing with gold-plated contacts

About Neutrik

Neutrik makes XLR connectors, plugs and jacks, speaker and data connectors, patch panels, power connectors, and BNC connectors. They do their research, development, and manufacturing at their headquarters in Schaan, Liechtenstein. They hold approvals from UL, cUL, VDE, SEV, and CSA, and their quality system is based on ISO 9001.

Specifications

General
Connection Type Jack, cable
Size 3.5 mm
Poles 3 (stereo)
Electrical
Contact Resistance 10 mΩ max.
Insulation Resistance Over 200 MΩ (initial)
Mechanical
Cable O.D. 4 mm (0.16 in) max., 4 mm outlet
6 mm (0.24 in) max., 6 mm outlet
Insertion and Withdrawal Force 60 N max.
Lifetime Over 1,000 mating cycles
Material
Contacts Bronze
Contact Plating (Black Housing) Gold
Ground Contact Bronze
Bushing PP
Insulation PA66 + 30% GF
Clamp Steel
Insulated Pipe Steel
Housing Plating (Nickel Housing) Nickel
Housing Finish (Black Housing) Black
