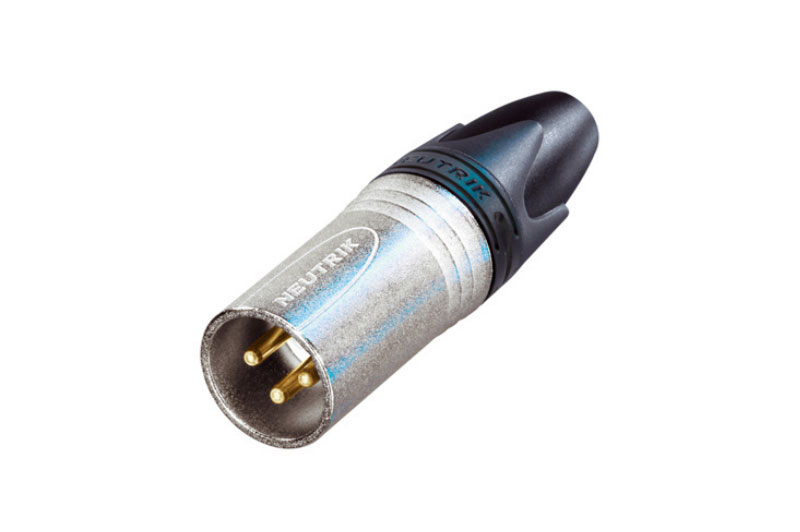

Neutrik NC3MXX-EMC 3-Pole Male EMC-XLR Cable Connector

The Neutrik NC3MXX-EMC adds extra RF screening to a 3-pole male XLR cable connector, for live and recording work where radio transmissions or cell phones cause interference.

It is a version of Neutrik’s XX series cable connector. A circular capacitor around the cable shield keeps an unbroken RF shield connection from the cable to the housing of the chassis connector. The capacitor works as a high-pass filter with a cutoff around 10 MHz, and because the shield has no low-frequency connection to ground, ground loops are easier to avoid. A ferrite bead of 24 ohms at 1 MHz between pin 1 and the cable screen adds a low-pass filter for better RF rejection.

The shell is nickel-plated zinc diecast, a chuck-type strain relief clamps the cable securely, and a boot with a rubber gland protects it from bending stress. The gold-plated solder contacts take wire up to 0.75 mm² (20 AWG), and the connector takes cable from 3.5 to 8.0 mm across.

Features

• 3-pole male XLR cable connector with a capacitive shield-to-shell connection
• Circular capacitor around the cable shield, a high-pass filter with a cutoff around 10 MHz
• Ferrite bead of 24 ohms at 1 MHz between pin 1 and the cable screen
• No low-frequency shield connection to ground, to help avoid ground loops
• Nickel-plated zinc diecast shell
• Gold-plated solder contacts for wire up to 0.75 mm² (20 AWG)
• Chuck-type strain relief for cable 3.5 to 8.0 mm in diameter
• Neutrik XXR colored coding rings change without unsoldering the insert
