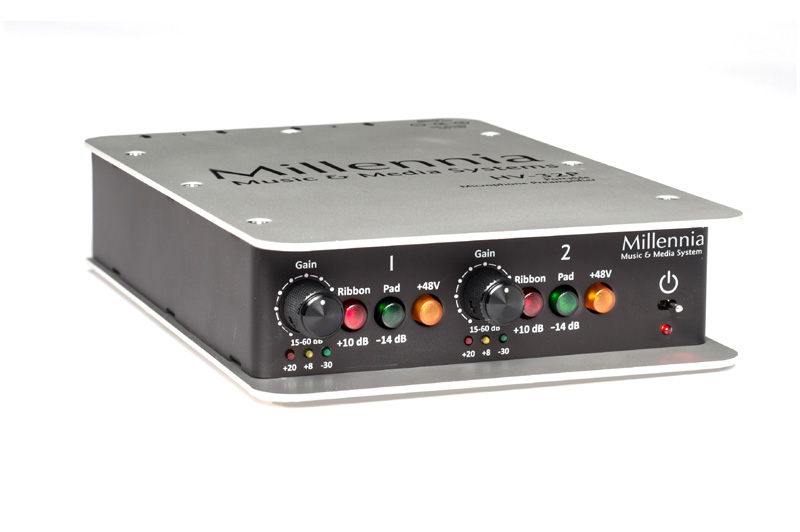

Millennia HV-32P Portable Two Channel Microphone Preamplifier
- Two-channel portable microphone preamplifier
- Continuously variable gain up to 60 dB, 70 dB in ribbon mode
- Runs on 12 to 15 V DC; universal power supply included
$1,727.00 USD
Millennia HV-32P Portable Two Channel Microphone Preamplifier
The Millennia HV-32P is a portable two-channel microphone preamplifier with continuously variable gain, a ribbon mode, and phantom power, running on 12 to 15 V DC.
Gain runs from 14.5 dB to 60 dB and rises faster near the knob’s full clockwise position, for low-level signals. The Ribbon-Dyn mode DC couples a ribbon or dynamic microphone to the gain stage and adds 10 dB, for up to 70 dB of gain. A microphone that needs phantom power does not work in this mode.
A switch turns on +48 V phantom power for condenser microphones, and the pad cuts the signal by about 14 dB after the gain stage. Signal LEDs light green at -30 dBu, yellow at +8 dBu, and red at +20 dBu.
Equivalent input noise is -130 dB at 60 dB of gain, and the frequency response runs from under 10 Hz to over 200 kHz.
Features
- Two channels in a portable chassis
- Continuously variable gain, 14.5 dB to 60 dB
- Ribbon-Dyn mode with 10 dB of extra gain
- +48 V phantom power
- Pad of about 14 dB
- Three-color signal LEDs
- 12 to 15 V DC operation
- Universal power supply included
What's Included
- Millennia HV-32P preamplifier
- Universal line lump power supply (12 V output)
Specifications
| Channels | 2 |
|---|---|
| Type | Portable microphone preamplifier |
| Gain | 14.5 dB to 60 dB, continuously variable (70 dB in Ribbon-Dyn mode); 1 dB minimum with pad |
| Pad | About 14 dB, after the gain stage |
| Frequency Response (−3 dB) | Under 10 Hz to over 200 kHz (typical −1.0 dB at 10 Hz, −1.5 dB at 200 kHz) |
| Equivalent Input Noise | −130 dB EIN (60 dB gain, 10 Hz to 30 kHz, inputs common) |
| THD+N | Under 0.003%, typical under 0.001% (35 dB gain, 10 Hz to 20 kHz, +24 dBu out) |
| Intermodulation Distortion (50 Hz and 7 kHz, 35 dB gain) | Under 0.0006% at +12 dBu out; under 0.001% at +20 dBu out |
| Phase Response | Under 2 degrees deviation (35 dB gain, 50 Hz to 20 kHz, +27 dBu out) |
| Common Mode Rejection | Over 65 dB, typical over 85 dB (35 dB gain, 10 Hz to 20 kHz, 100 mV) |
| Slew Rate | Over 25 V per microsecond (35 dB gain, +24 dBu out) |
| Maximum Output Level | +26 dBu at under 0.001% THD+N; +28 dBu at under 0.05% THD+N (1 kHz, 35 dB gain) |
| Phantom Input Impedance (1 kHz) | 2,210 ohms |
| Output Impedance | 24.3 ohms (x2) |
| Phantom Power | +48 V DC, +/-2 V |
| Signal LEDs | −30 dBu (green), +8 dBu (yellow), +20 dBu (red) |
| Power | 12 to 15 V DC; universal line lump power supply (12 V output) included |
| Dimensions (W x H x D) | 5.67 × 1.69 × 8.19 in |
| Shipping Weight | 3 lb |
| Operating Environment | 0 to 40 °C (32 to 104 °F), 10 to 80% RH, up to 3,000 m altitude |
