Listen Technologies LA-122 Universal Antenna Kit (72 and 216 MHz)

  • Antennas for 72 MHz and 216 MHz systems
  • Mounts on walls, electrical boxes, and ceilings
  • 25-foot RG-58 coaxial cable included

$166.00 USD

Brand: Categories: , , Trew SKU: LIS.LA122 MPN: LA-122

Listen Technologies LA-122 Universal Antenna Kit (72 and 216 MHz)

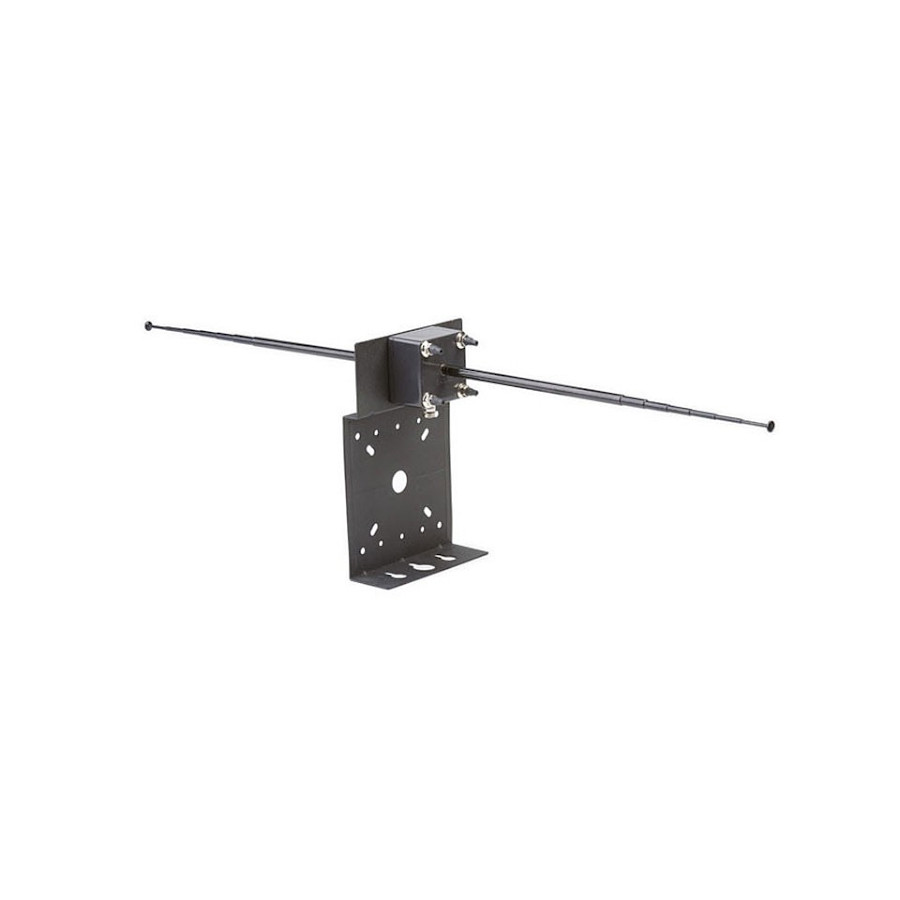

The Listen Technologies LA-122 is a universal remote antenna kit with antennas for both 72 MHz and 216 MHz systems.

It holds the parts to build several versions of the antenna, with telescoping and flexible antennas for each band, and a 25-foot RG-58 coaxial cable with BNC connectors on both ends. Typical range is up to 1,000 feet at 72 MHz and 3,000 feet at 216 MHz, and the telescoping dipole antenna, placed as high as possible, gives the most range.

The mounting hardware attaches the antenna to a wall or an electrical box, sets it on a horizontal surface such as the top of a rack, or installs it inside a wall or ceiling. It can also hang inverted from a ceiling or mount on a mast or conduit, though hardware for a mast is not included.

Features

  • Antennas for 72 MHz and 216 MHz systems
  • Range up to 1,000 feet at 72 MHz and 3,000 feet at 216 MHz
  • Telescoping and flexible antennas for each band
  • Wall, electrical box, surface, and ceiling mounting
  • 25-foot RG-58 coaxial cable with BNC connectors

What's Included

  • 2 × LA-102 telescoping top mounted antennas, 216 MHz
  • 2 × LA-106 telescoping top mounted antennas, 72 MHz
  • 2 × flexible antennas, 72 MHz
  • 2 × flexible antennas, 216 MHz
  • Grounding base
  • Mounting bracket
  • Wall and electrical box mounting plate
  • Shorting plate
  • Antenna module
  • 25-foot (7.6 m) RG-58 coaxial cable with BNC connectors on both ends
  • 2 × hex kep nuts
  • 2 × fiber washers
  • 4 × machine screws, #8-32 × 3/4-inch
  • 4 × tapping screws
  • 4 × dry anchors
  • Owner’s manual

Specifications

Frequency Range 72.025 to 75.975 MHz; 216.0125 to 216.9875 MHz
Antenna Type Monopole and dipole
Gain 0 dB (unity)
Connectors BNC
Cable 25 ft (7.6 m) RG-58 coaxial, BNC connectors on both ends
Typical Range Up to 1,000 ft (305 m) at 72 MHz, 3,000 ft (914 m) at 216 MHz
Dipole Vertical Length 80 in (203.2 cm) at 72 MHz, 27 in (68.6 cm) at 216 MHz
Mounting Wall, single and dual electrical box, ceiling electrical box, horizontal surface, inverted ceiling, in-wall or in-ceiling, mast or conduit (mast hardware not included)
Bracket Dimensions 4.5 × 7.0 × 2.5 in (11 × 18 × 6.4 cm), W x D x H
Grounding Base Dimensions 8.0 × 8.0 × 2.0 in, W x D x H
Mounting Plate Dimensions 4.48 × 4.55 in (11.4 × 11.6 cm)
Weight 4.4 lb (2.0 kg)
