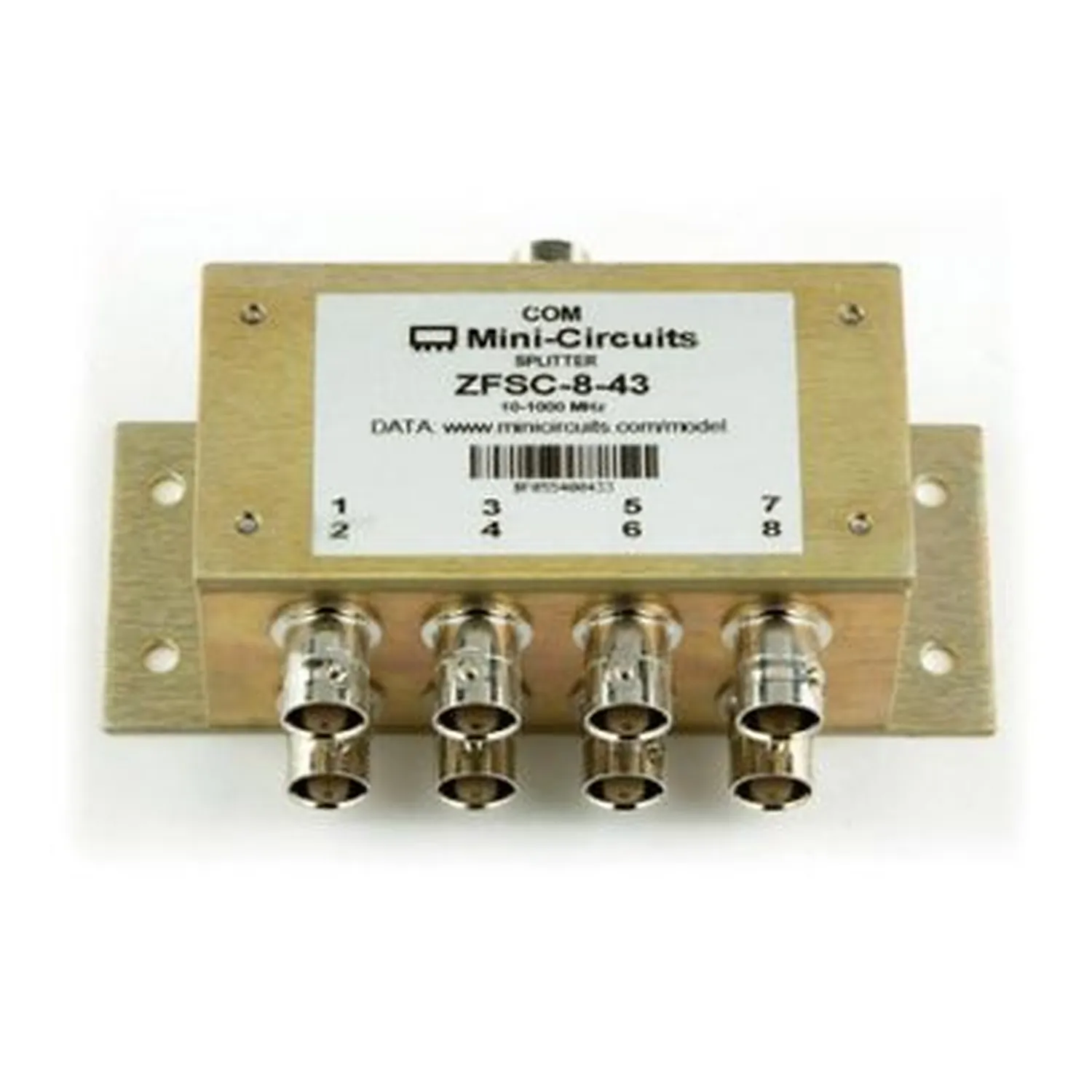

Lectrosonics ZFSC843 Eight-Way Passive RF Splitter
- Eight-way passive RF splitter
- 1 to 1000 MHz
- 25 dB typical isolation
Unavailable for shipping outside the United States and Canada.
$194.00 USD
Availability: In Stock
Lectrosonics ZFSC843 Eight-Way Passive RF Splitter
The Lectrosonics ZFSC843 eight-way passive RF splitter divides one RF signal among eight outputs across 1 to 1000 MHz and needs no power.
Typical insertion loss is about 10.1 dB at 500 MHz and 10.2 to 10.3 dB at 740 MHz, and isolation between the outputs is 25 dB typical. It is the Mini-Circuits ZFSC-8-43 in a rugged shielded case, with BNC connectors. With a UFM230 amplifier ahead of it, one antenna can feed eight receivers; set the amplifier’s gain to make up the cable and splitter loss.
Features
- Eight-way passive RF splitter
- 1 to 1000 MHz
- 25 dB typical isolation
About Lectrosonics
Lectrosonics has built professional audio gear in New Mexico since 1971, today in Rio Rancho, and has kept its production in the United States. Its wireless IFB system, introduced in 1998, came into wide use in broadcast and film, and its Digital Hybrid Wireless line followed in 2002. Lectrosonics equipment carries a one-year factory warranty against defects in materials and workmanship, and its own factory service center handles repairs.
Specifications
| Splitter | |
|---|---|
| Configuration | 8-way, passive |
| Frequency Range | 1 to 1000 MHz |
| Insertion Loss (Typical) | 500 MHz: 10.09 to 10.16 dB 740 MHz: 10.18 to 10.33 dB |
| Isolation | 25 dB typical 500 MHz: 26.96 to 35.80 dB 740 MHz: 23.45 to 39.94 dB |
| Connectors | BNC |
| Case | Rugged, shielded |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit lectrosonics.com. |
