Lectrosonics SSM Micro Belt-Pack UHF Transmitter
- Micro Digital Hybrid transmitter for costuming
- LEMO 3-pin input, 25 or 50 mW
- Rechargeable LB-50 battery, about 6 hours per charge
Unavailable for shipping outside the United States and Canada.
From $1,790.00 USD
Lectrosonics SSM Micro Belt-Pack UHF Transmitter

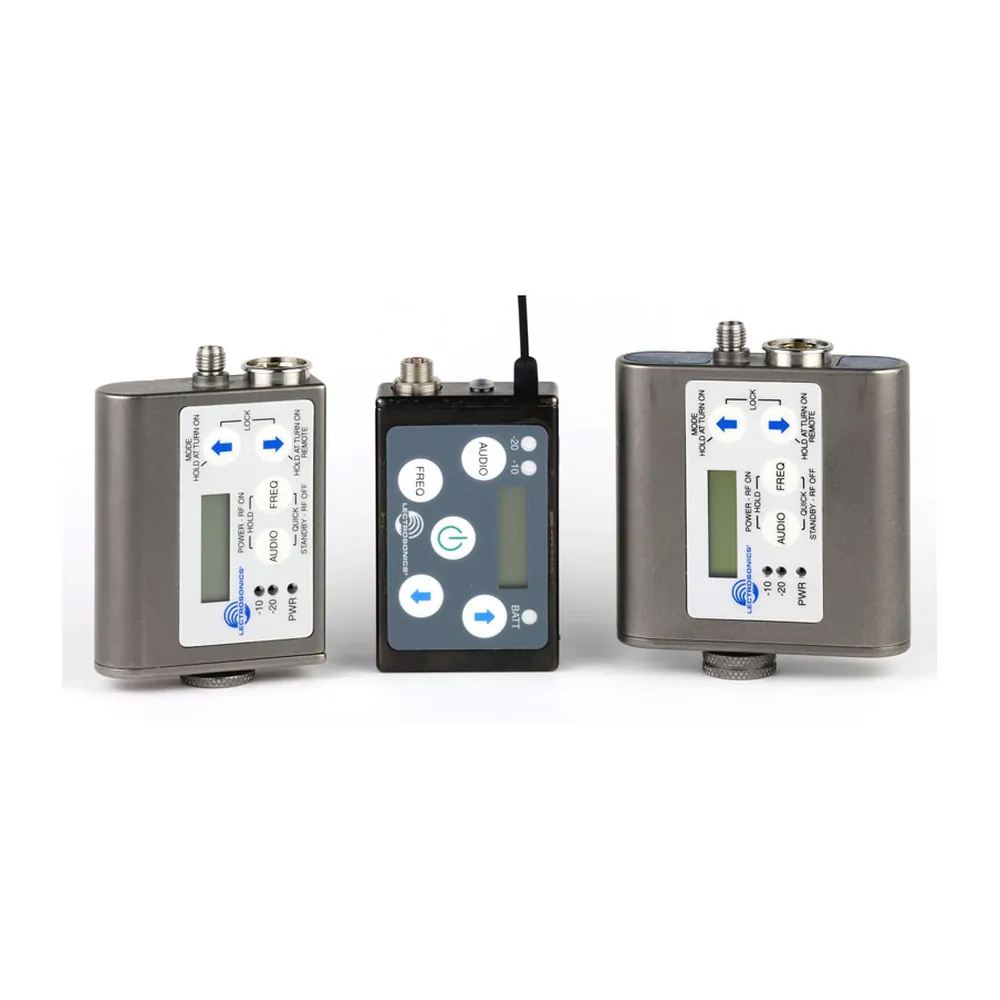

Made to hide in costuming for theater and other productions, the Lectrosonics SSM micro belt-pack transmitter matches the features and performance of the full-size Digital Hybrid Wireless models.
It weighs 65 grams with its battery and measures 58 by 38 by 14 mm. A rechargeable LB-50 lithium-ion battery runs it for about 6 hours per charge and changes quickly, and RF power is 25 or 50 mW.
Frequency Bands
Trew Audio carries the SSM in two bands: A1 (470.100 to 537.575 MHz) and B1 (537.600 to 607.950 MHz). Frequencies step in 100 or 25 kHz increments across up to 76.7 MHz, for up to 3072 frequencies over three standard Lectrosonics blocks.
Input and Audio
The LEMO 00 3-pin input, common in theater, has a threaded collar and takes mic or line signals through servo bias circuitry, with gain in 1 dB steps. The preamp’s limiter cleanly handles peaks more than 30 dB above full modulation. Bias voltage and input impedance are set in the menu, which also holds presets for DPA, Countryman B6 and E6, Sanken COS-11, and Sennheiser MKE 1 and MKE 2 lavaliers. Digital Hybrid Wireless gives compandor-free audio in Nu Hybrid mode, and compatibility modes work with Lectrosonics Mode 3 and IFB receivers.
Build and Setup

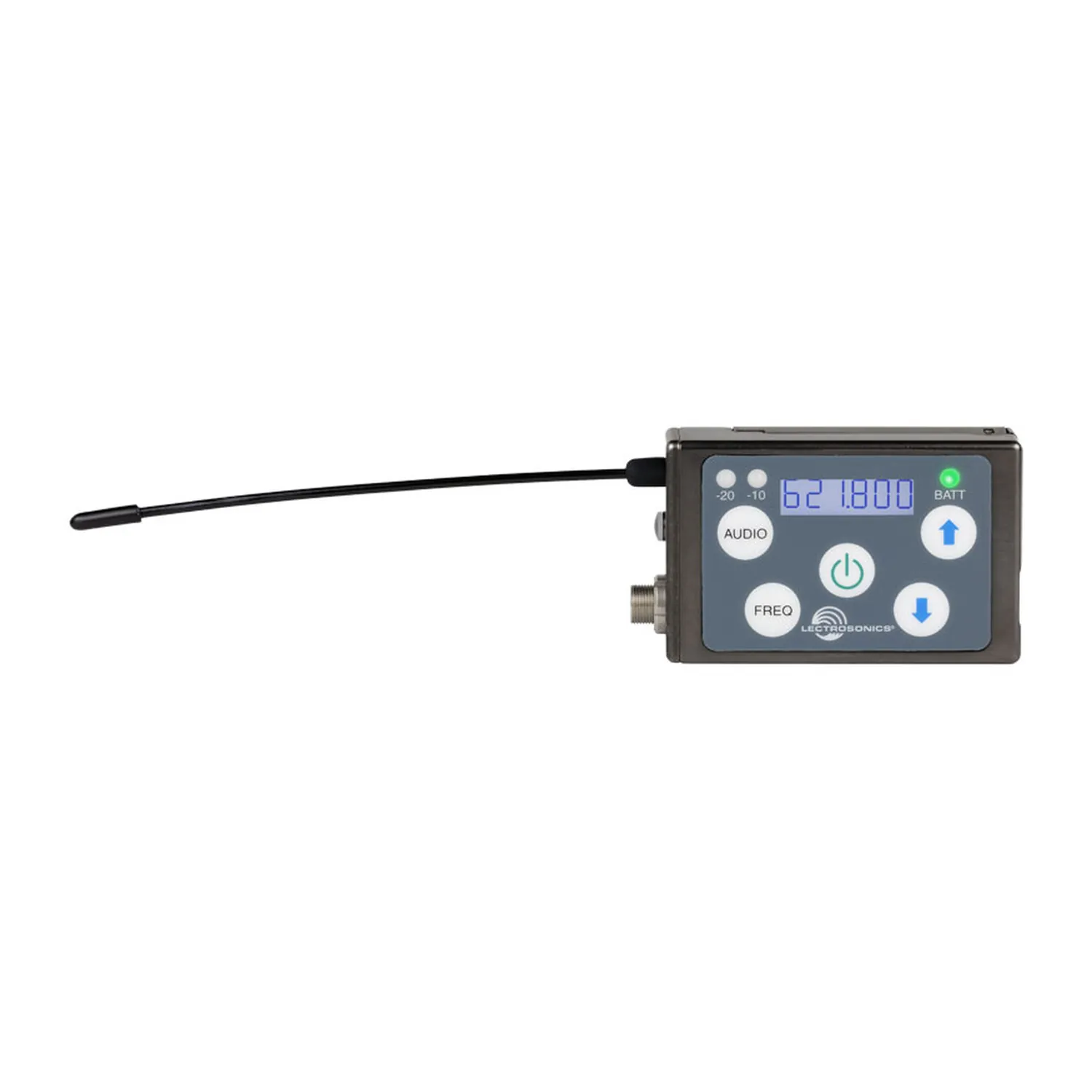

The machined aluminum housing has an ultra-hard black electroless nickel finish (ebENi), and the hinged stainless steel battery door latches so it cannot be jarred open. The hardened stainless steel belt clip attaches or comes off without tools. A backlit LCD shows settings, an IR port next to the antenna copies them from IR-enabled receivers, and a USB port takes firmware updates. Audio-coupled remote control changes frequency, level, and sleep settings from the RM remote or a smartphone app.
Good to Know
The SSM works with Lectrosonics receivers including the UCR411A, the SR Series, the L Series, and the Venue Series. Sweat and other moisture damage the SSM, so keep it wrapped or fitted with the optional SSMCVR silicone cover.
Features
- Micro belt-pack transmitter sized for costuming
- Tunes across three standard frequency blocks
- Compandor-free Digital Hybrid Wireless audio
- Selectable 25 or 50 mW output
- Compatibility modes for Mode 3 and IFB receivers
- 25 or 100 kHz tuning steps
- Gain in 1 dB steps
- LEMO 00 3-pin input with a threaded collar
- Quick-change rechargeable lithium-ion battery
- Audio-coupled remote control
What's Included
- 26995 belt clip
- 27079 antenna-up belt clip
- 35939 pouch

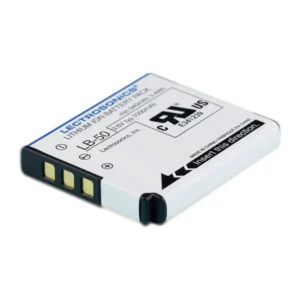

- LB-50 lithium-ion battery (40106-1)
- 40117 battery charger
- 3 × P1311 USB port plugs
Specifications
| Transmitter | |
|---|---|
| Operating Frequencies | Band A1: 470.100 to 537.575 MHz Band B1: 537.600 to 607.950 MHz |
| Frequency Selection Steps | Selectable, 100 or 25 kHz |
| RF Power Output | Selectable, 25 or 50 mW |
| Compatibility Modes | Nu Hybrid, Mode 3, IFB |
| Pilot Tone | 25 to 32 kHz |
| Frequency Stability | ±0.002% |
| Equivalent Input Noise | −120 dBV, A-weighted |
| Input Level | Nominal 2 mV to 300 mV before limiting Greater than 1 V with limiting |
| Input Impedance | Mic: 300 or 4.5 k ohms, selectable Line: greater than 100 k ohms |
| Input Limiter | DSP-controlled dual envelope soft limiter, greater than 30 dB range |
| Gain Control Range | 44 dB |
| Audio Input | LEMO 00 Series 3-pin |
| Antenna | Galvanized steel, flexible wire |
| Audio | |
| Frequency Response | 70 Hz to 20 kHz, ±1 dB |
| Low-Frequency Roll-Off | −12 dB per octave at 70 Hz |
| THD | 0.2% typical |
| SNR at Receiver Output | SmartNR Off: 103.5 dB, 108.0 dB with limiting SmartNR Normal: 107.0 dB, 111.5 dB with limiting |
| Power and Physical | |
| Battery | LB-50 lithium-ion, 3.6 V, 1000 mAh |
| Battery Life | 6 h per charge |
| Operating Temperature | −20 to 40 °C (−5 to 104 °F) |
| Weight | 65.2 g (2.3 oz) with battery |
| Dimensions (Housing) | 58.4 × 38 × 14.2 mm 2.3 × 1.5 × 0.56 in |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit lectrosonics.com. |
