Lectrosonics SRSUPER Unislot Camera Adapter Kit for SR Receivers
- DB25 rear panel for SR Series receivers
- Fits SuperSlot docks and Unislot camera slots
- End plate, blue bezel, gasket, and screws
$194.00 USD
Availability: In Stock
Lectrosonics SRSUPER Unislot Camera Adapter Kit for SR Receivers
The Lectrosonics SRSUPER is a Unislot camera adapter kit that gives an SR Series receiver a DB25 rear panel for SuperSlot docks and camera slots.
Unislot is the camera slot standard found on Ikegami and Panasonic cameras. The DB25 panel carries both audio channels and power between the slot and receivers such as the SRc and the DSR.
Two Phillips screws hold the receiver’s rear panel, and the new panel connects to the receiver through a small mating connector. Short screws attach the bezel to the housing, and long screws from the other side lock the bezel in place. If the receiver is hard to insert, mount the blue bezel in the camera first. The SRUNISCREWKIT replaces lost screws.
Features
- DB25 rear panel for SR Series receivers
- Fits SuperSlot docks and Unislot camera slots
- End plate, blue bezel, gasket, and screws

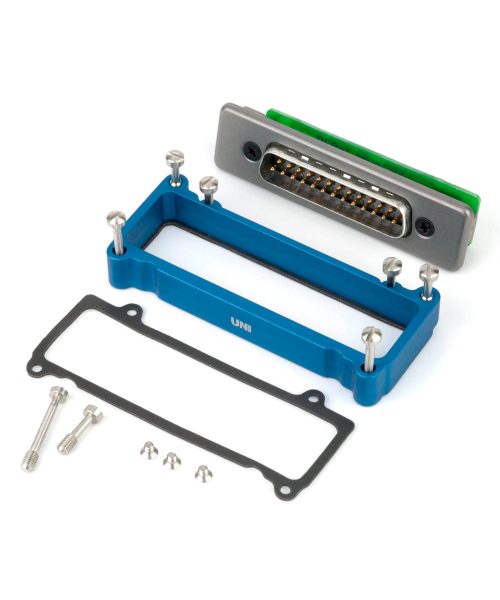

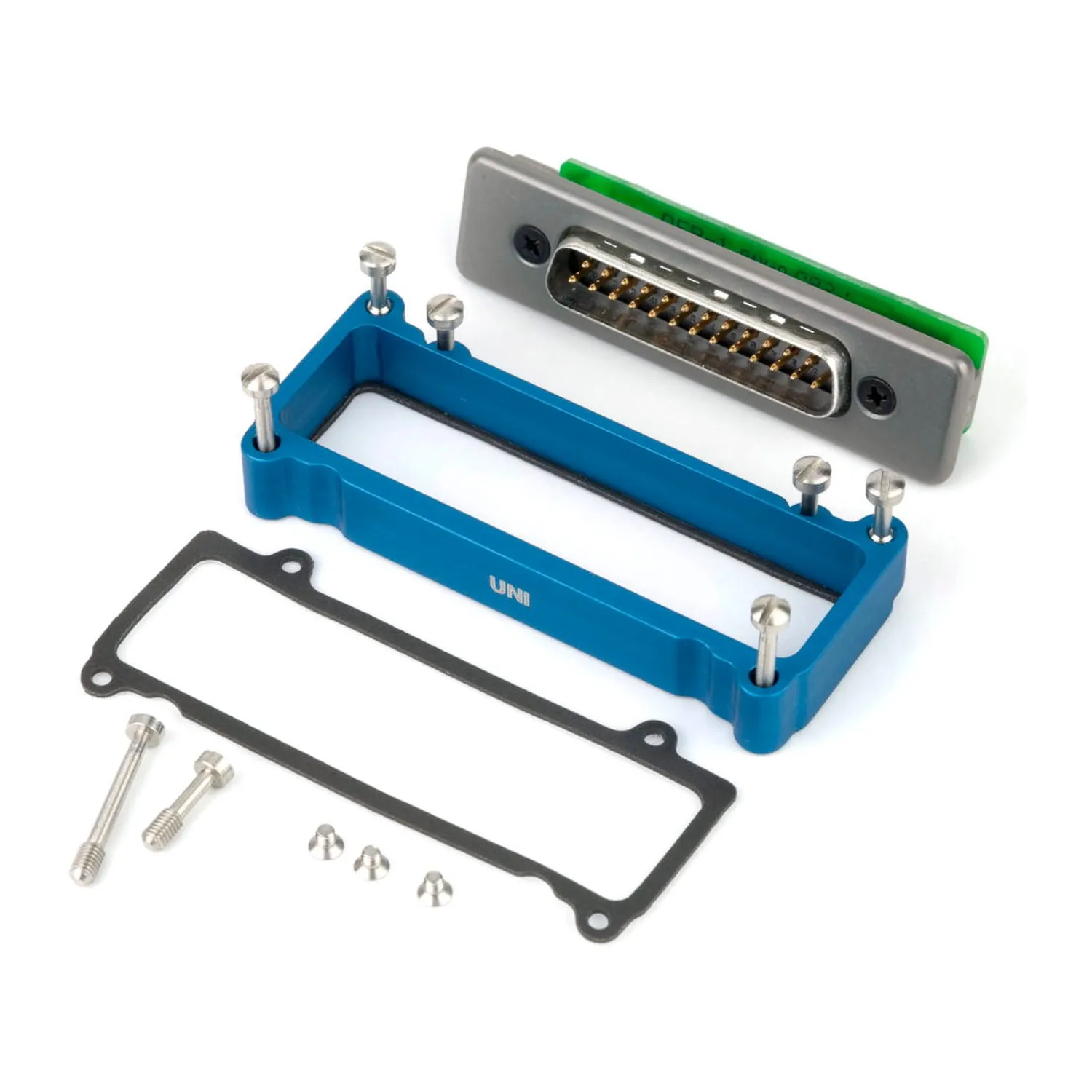

What's Included

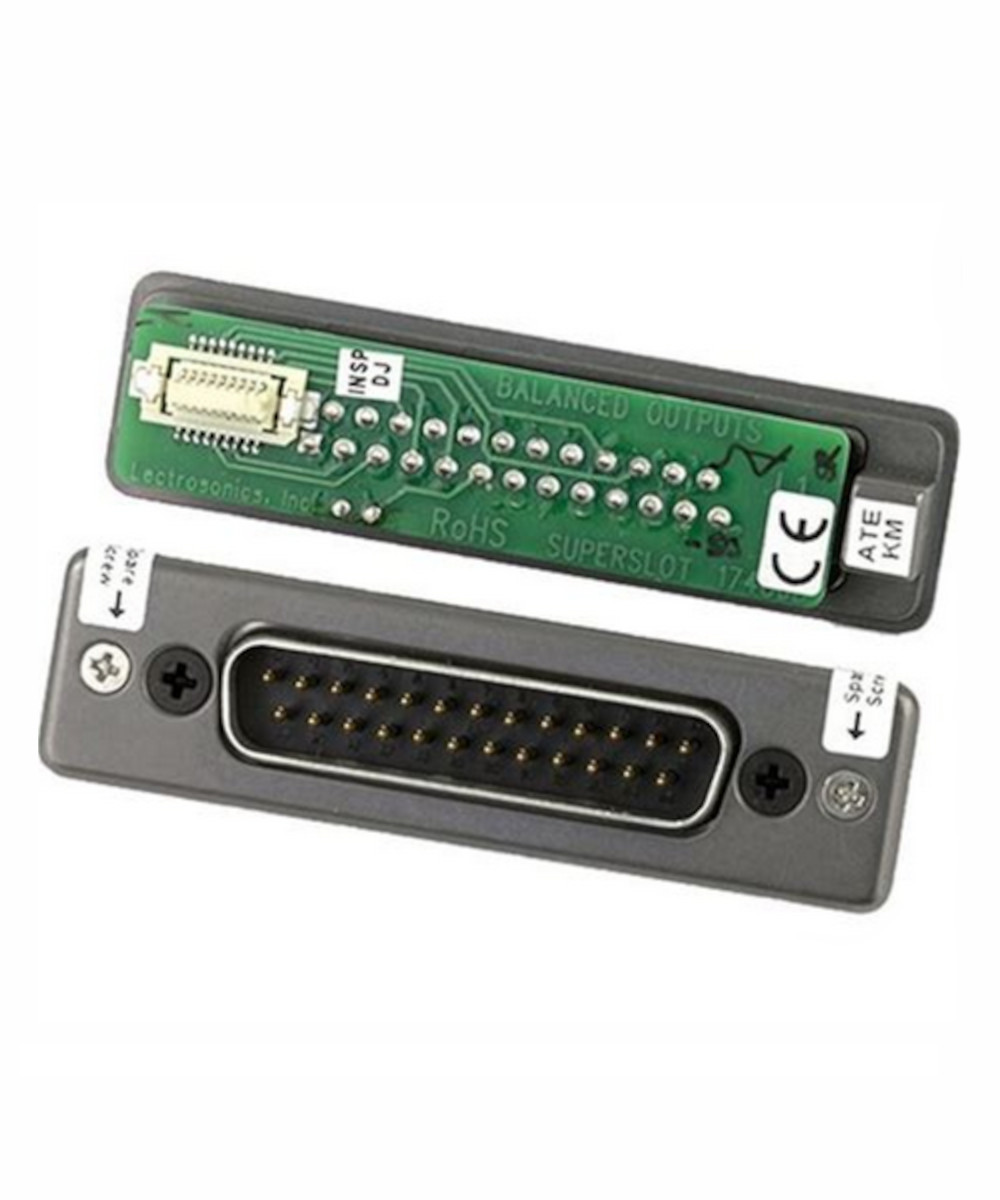

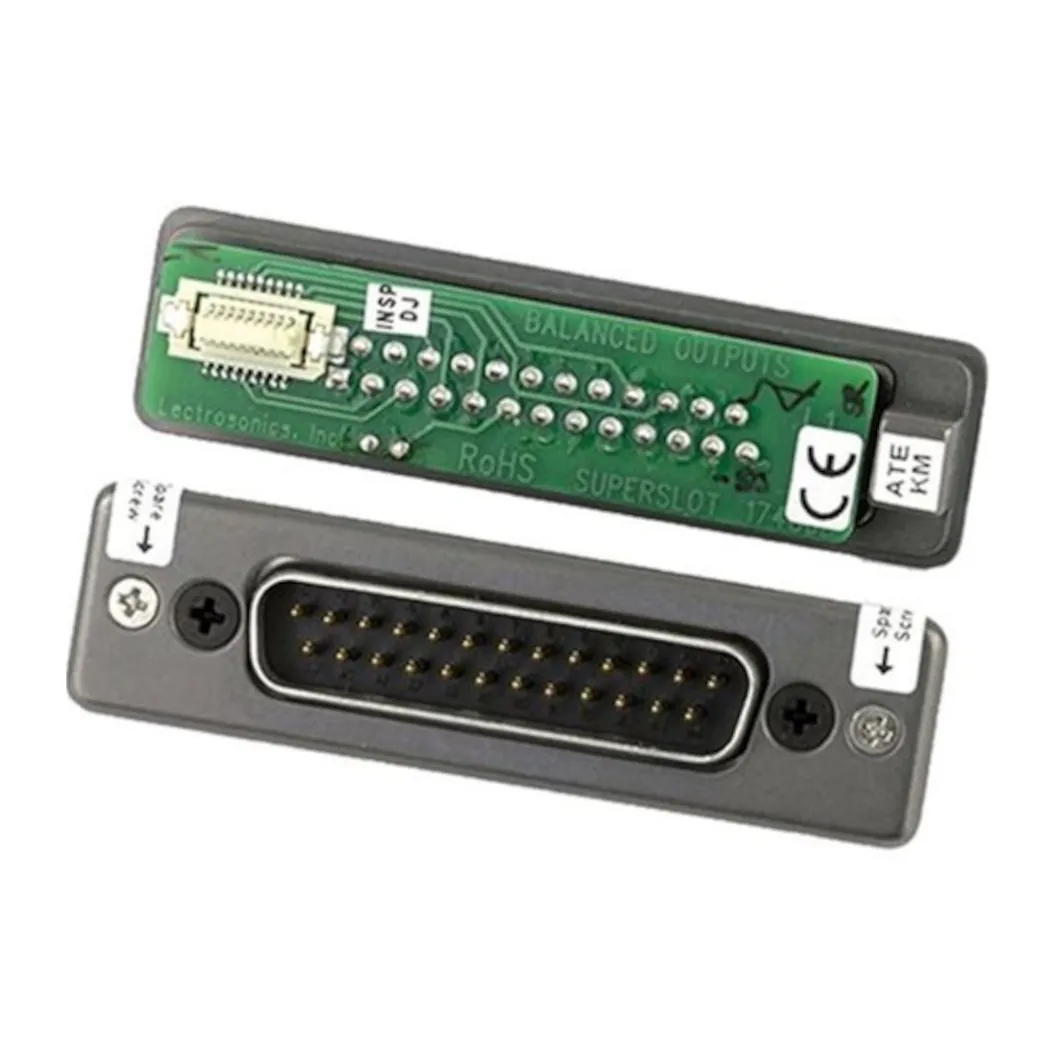

- End plate adapter with DB25 connector
- Blue bezel
- Gasket
- Hardware set
Specifications
| Adapter | |
|---|---|
| Connector | DB25, wired for audio channels 1 and 2 and power |
| Fits | SR Series receivers |
| Slots | SuperSlot docks; Unislot camera slots, such as Ikegami and Panasonic |
| Replacement Screws | SRUNISCREWKIT |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit lectrosonics.com. |
