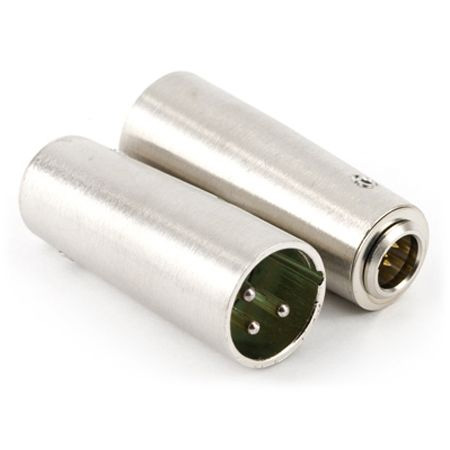

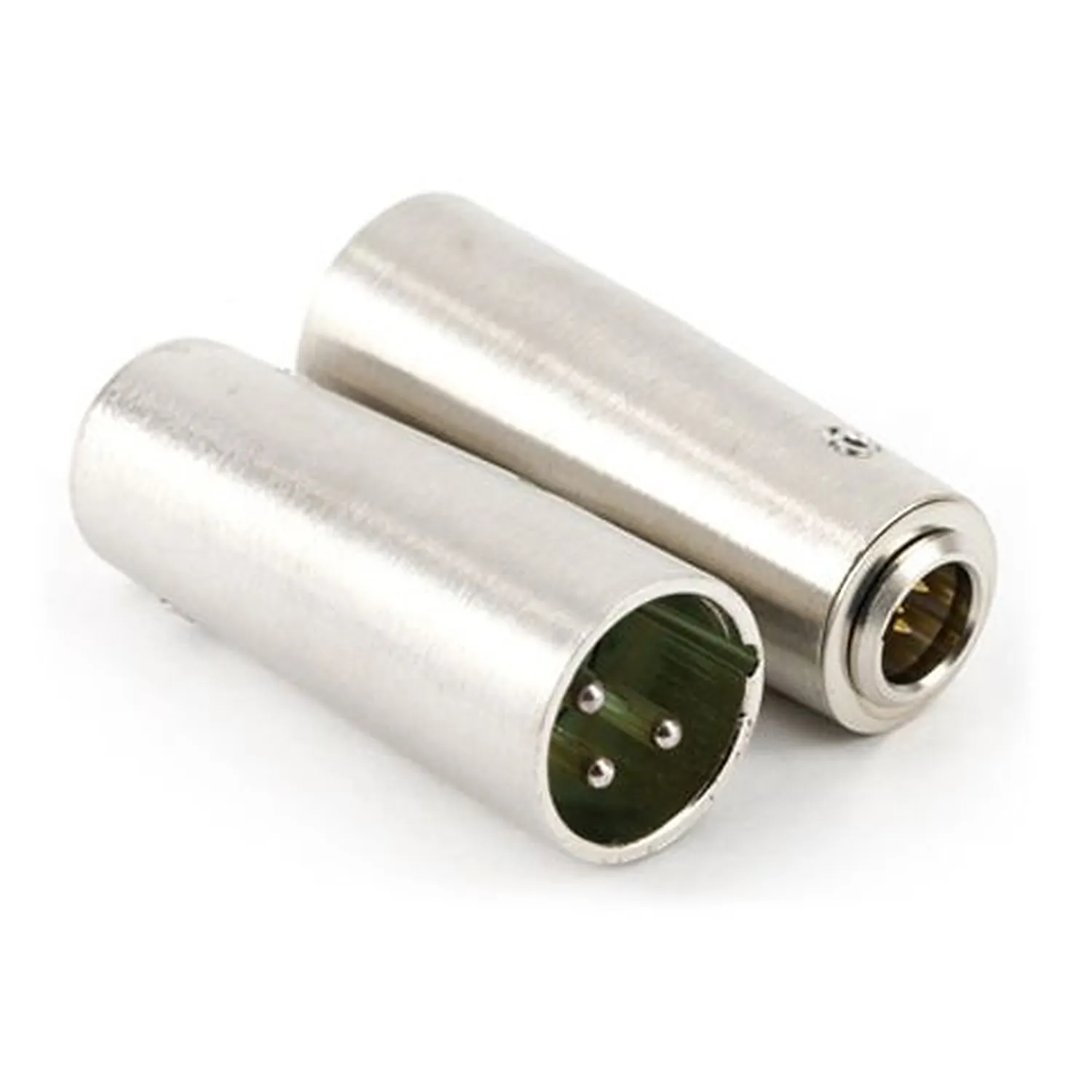

Lectrosonics MCA5X TA5F to XLRM Adapter for Plug-On Transmitters

The Lectrosonics MCA5X connects a lavalier or headset mic with a TA5F plug, as wired for Lectrosonics belt-packs, to a UH or HM plug-on transmitter.

It turns the plug-on’s 4.5 V phantom power into the DC bias Lectrosonics electret mics need, and an internal Zener diode protects the mic from phantom power above 6 V. It suits Digital Hybrid (400 Series), 200 Series, and 100 Series plug-ons such as the UH400a.

Use it only on Lectrosonics UH and HM transmitters, not on the mic input of a mixer or a recorder. The nickel-plated steel housing is 2 in long and 0.75 in across.

Features

• Adapts TA5F lav mics to UH and HM plug-ons
• Converts 4.5 V phantom to mic bias
• Nickel-plated steel housing

About Lectrosonics

Lectrosonics has built professional audio gear in New Mexico since 1971, today in Rio Rancho, and has kept its production in the United States. Its wireless IFB system, introduced in 1998, came into wide use in broadcast and film, and its Digital Hybrid Wireless line followed in 2002. Lectrosonics equipment carries a one-year factory warranty against defects in materials and workmanship, and its own factory service center handles repairs.
