Lectrosonics BAGFRAME Receiver Mounting Frame for Audio Bags
- Holds two or three receivers in an audio bag
- Fits SR, DSR, DSR4, UCR211, UCR411, and DCR822 receivers
- Lightweight aluminum frame you assemble
From $292.00 USD
Lectrosonics BAGFRAME Receiver Mounting Frame for Audio Bags

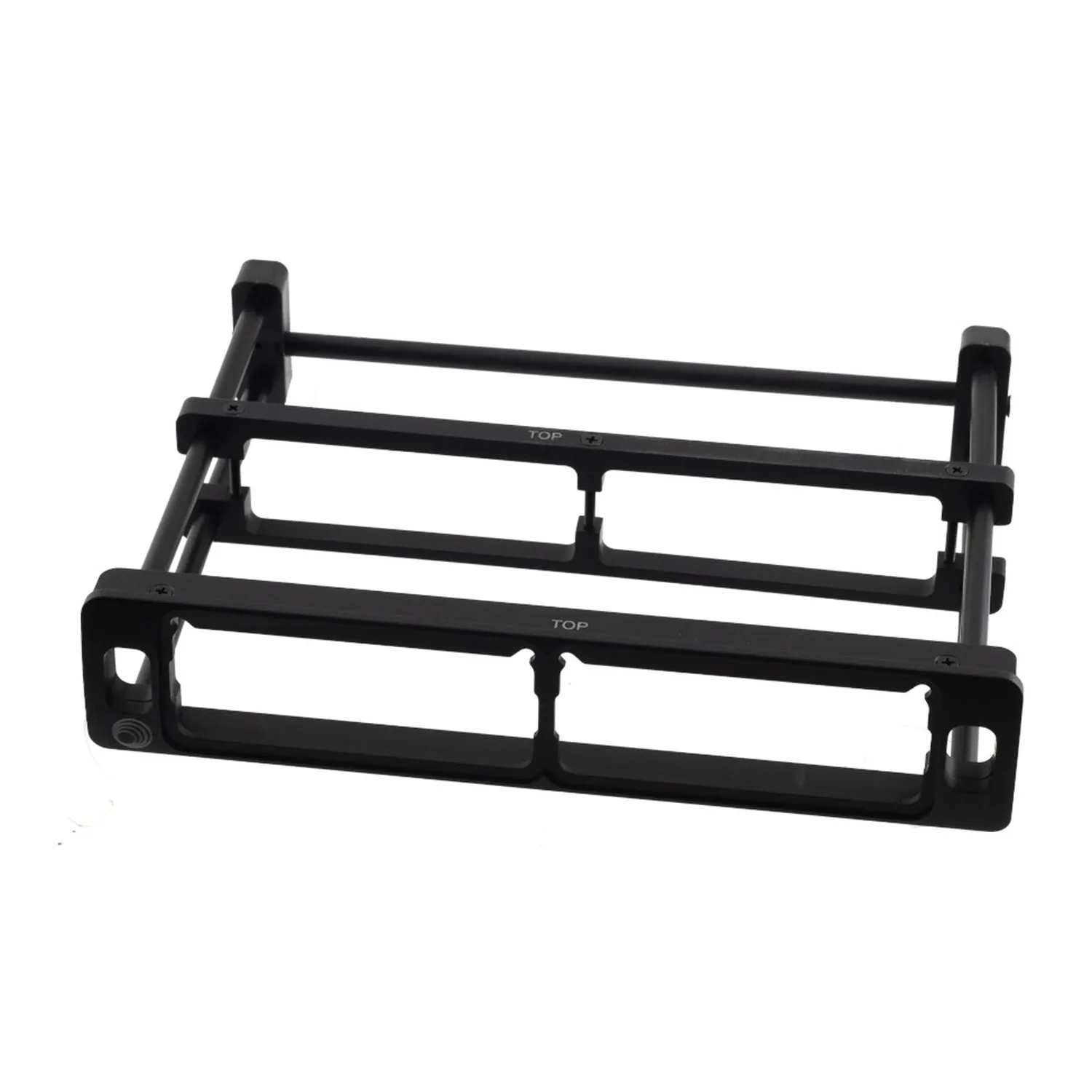

Made for audio bags, the Lectrosonics BAGFRAME is a receiver mounting frame that holds two or three Lectrosonics receivers side by side.
It mounts SR Series, DSR, DSR4, UCR211, UCR411, and DCR822 receivers. Receivers fit with snap-in inserts, and some also need screws and mid-frame mounts. Each receiver needs its own mounting kit or bezel, and the Compatibility tab lists which one.
The frame is aluminum and ships as a kit you assemble, which keeps the box small. It carries no audio, power, or RF connections: each receiver keeps its own outputs and rear panel.
Features
- Holds two or three receivers in an audio bag
- Fits SR, DSR, DSR4, UCR211, UCR411, and DCR822 receivers
- Snap-in inserts, with a mounting kit or bezel per receiver
- Lightweight aluminum frame you assemble
Available Options
| Capacity | Depth (in) | Models | Width (in) |
|---|---|---|---|
| Two Receivers (BAGFRAME2) | Short (6) and Medium (7-1/2) | BAGFRAME2-S and BAGFRAME2-M | 8.375 (213 mm) |
| Three Receivers (BAGFRAME3) | Medium (7-1/2) and Tall (8-3/8) | BAGFRAME3-M and BAGFRAME3-T | 11.875 (302 mm) |
About Lectrosonics
Lectrosonics has built professional audio gear in New Mexico since 1971, today in Rio Rancho, and has kept its production in the United States. Its wireless IFB system, introduced in 1998, came into wide use in broadcast and film, and its Digital Hybrid Wireless line followed in 2002. Lectrosonics equipment carries a one-year factory warranty against defects in materials and workmanship, and its own factory service center handles repairs.
Specifications

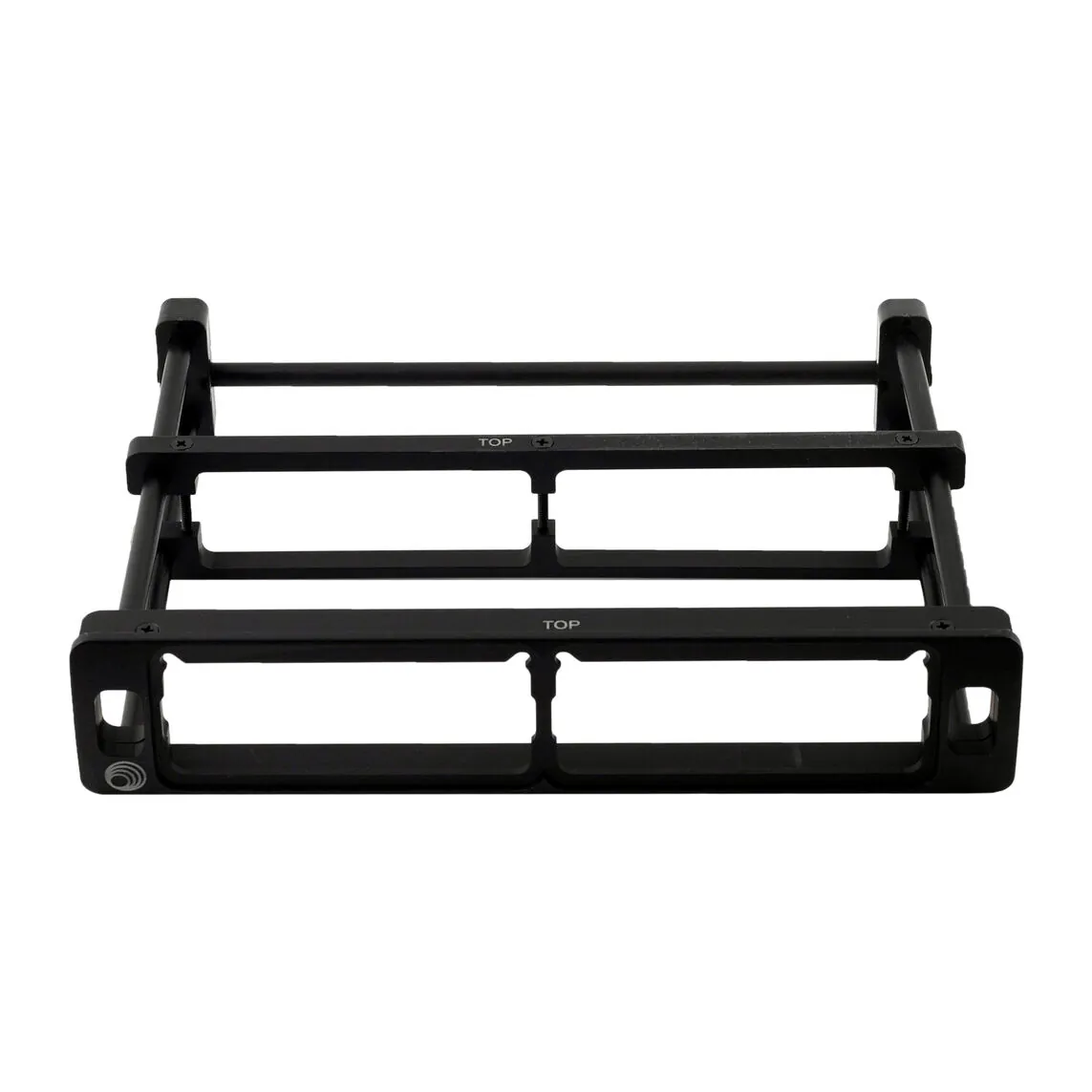

| BAGFRAME2-S | |
|---|---|
| Receivers | Two |
| Depth (Front to Back) | 6 in (Short) |
| Width | 8.375 in (213 mm) |
| Weight | 7.07 oz (200.5 g) |

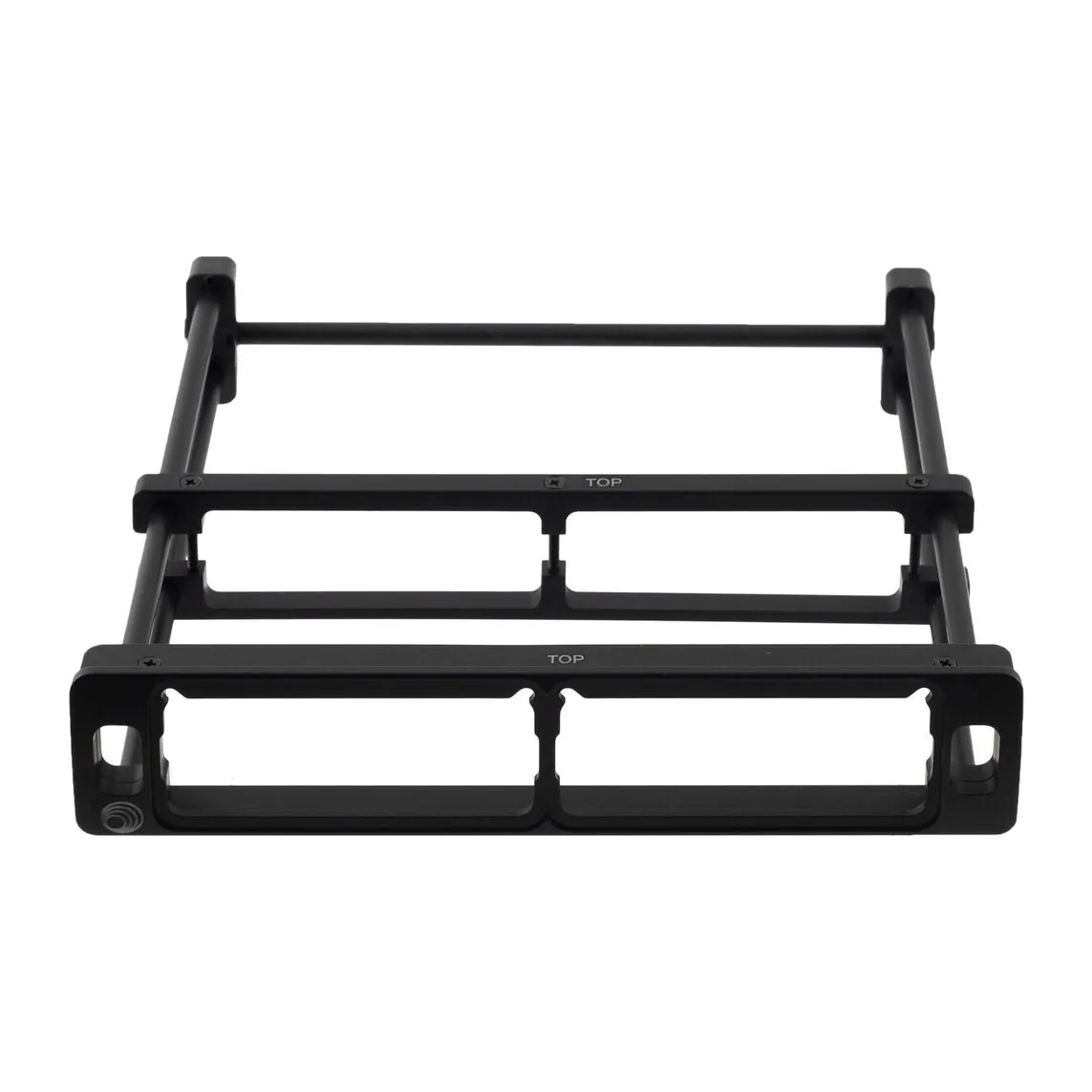

| BAGFRAME2-M | |
| Receivers | Two |
| Depth (Front to Back) | 7-1/2 in (Medium) |
| Width | 8.375 in (213 mm) |
| Weight | 7.78 oz (220.5 g) |

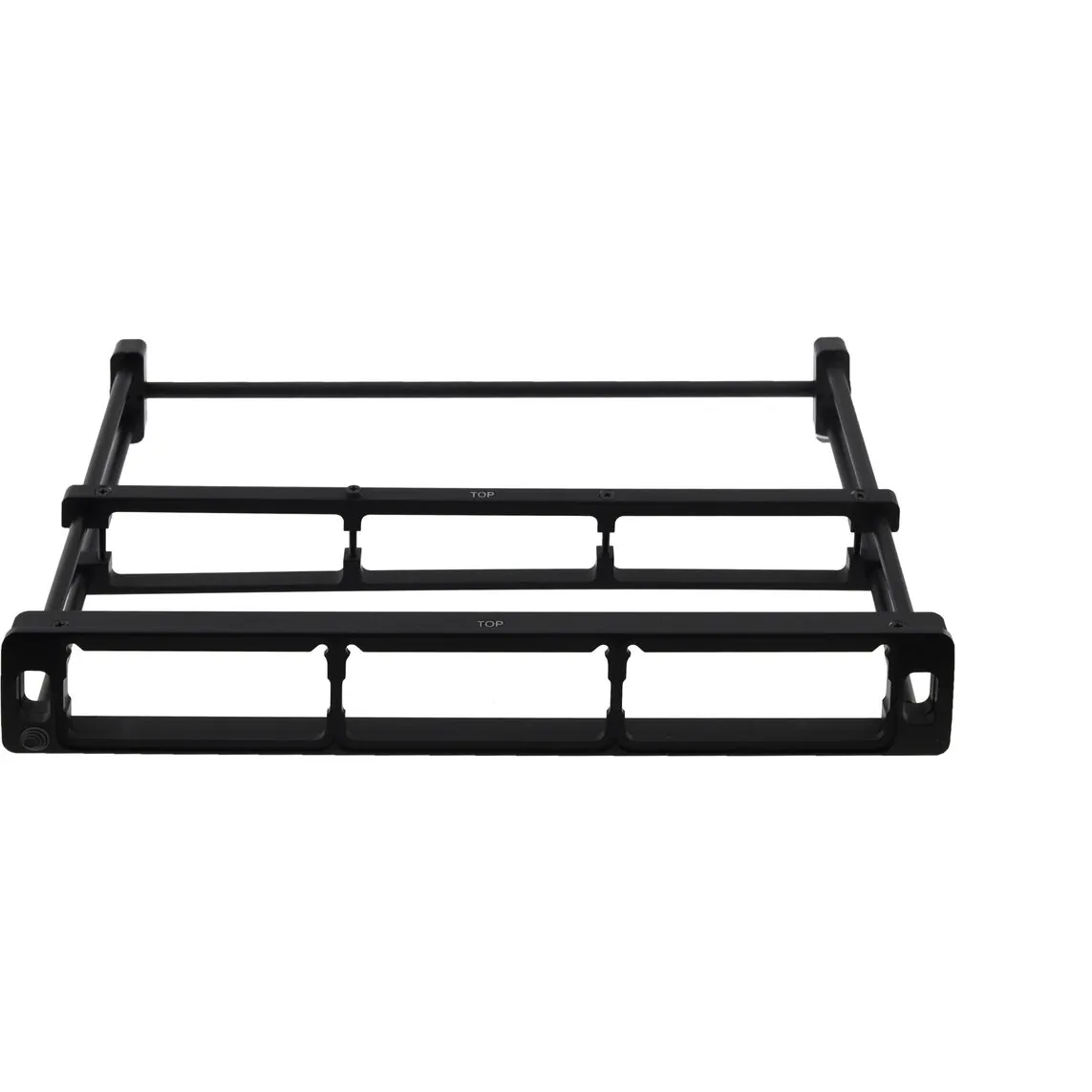

| BAGFRAME3-M | |
| Receivers | Three |
| Depth (Front to Back) | 7-1/2 in (Medium) |
| Width | 11.875 in (302 mm) |
| Weight | 9.89 oz (280 g) |

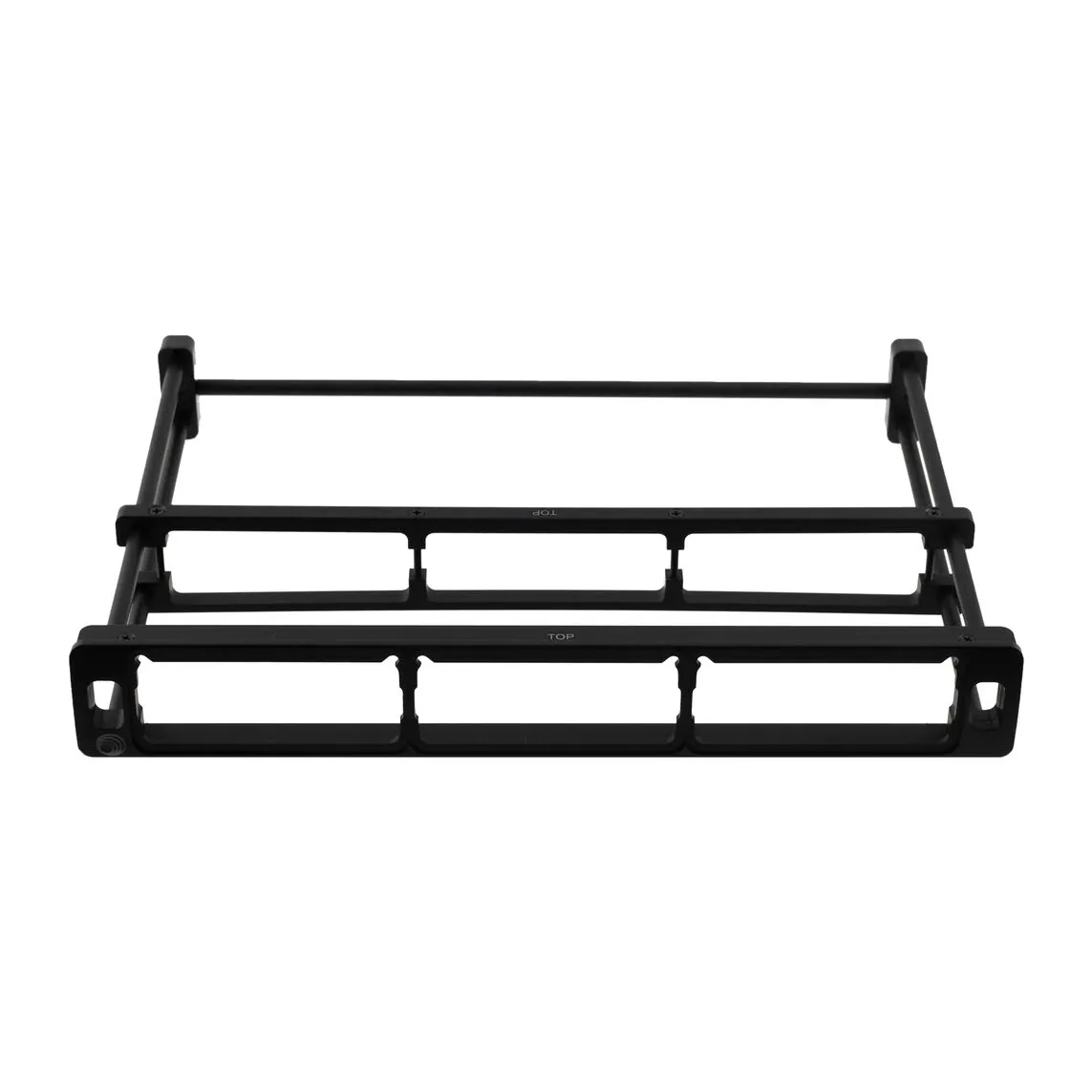

| BAGFRAME3-T | |
| Receivers | Three |
| Depth (Front to Back) | 8-3/8 in (Tall) |
| Width | 11.875 in (302 mm) |
| Weight | 9.89 oz (280 g) |
| All Models | |
| Construction | Aluminum, assembled by the customer |
| Receiver Mounting | Snap-in inserts; a mounting kit or bezel per receiver |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit lectrosonics.com. |
Compatibility
| Receiver | Mounting Kit or Bezel (One per Receiver) |
|---|---|
| SRb and SRc | ZS-BAGFRAME-SR-KIT |
| DCR822 | 36022 Snap-In Bezel |
| DSR and DSR4 | ZS-BAGFRAME-DSR4-DSR-KIT |
| UCR411 and UCR411A | 36025 Snap-In Bezel |
