Lectrosonics ALP620 Log Periodic Directional Antenna

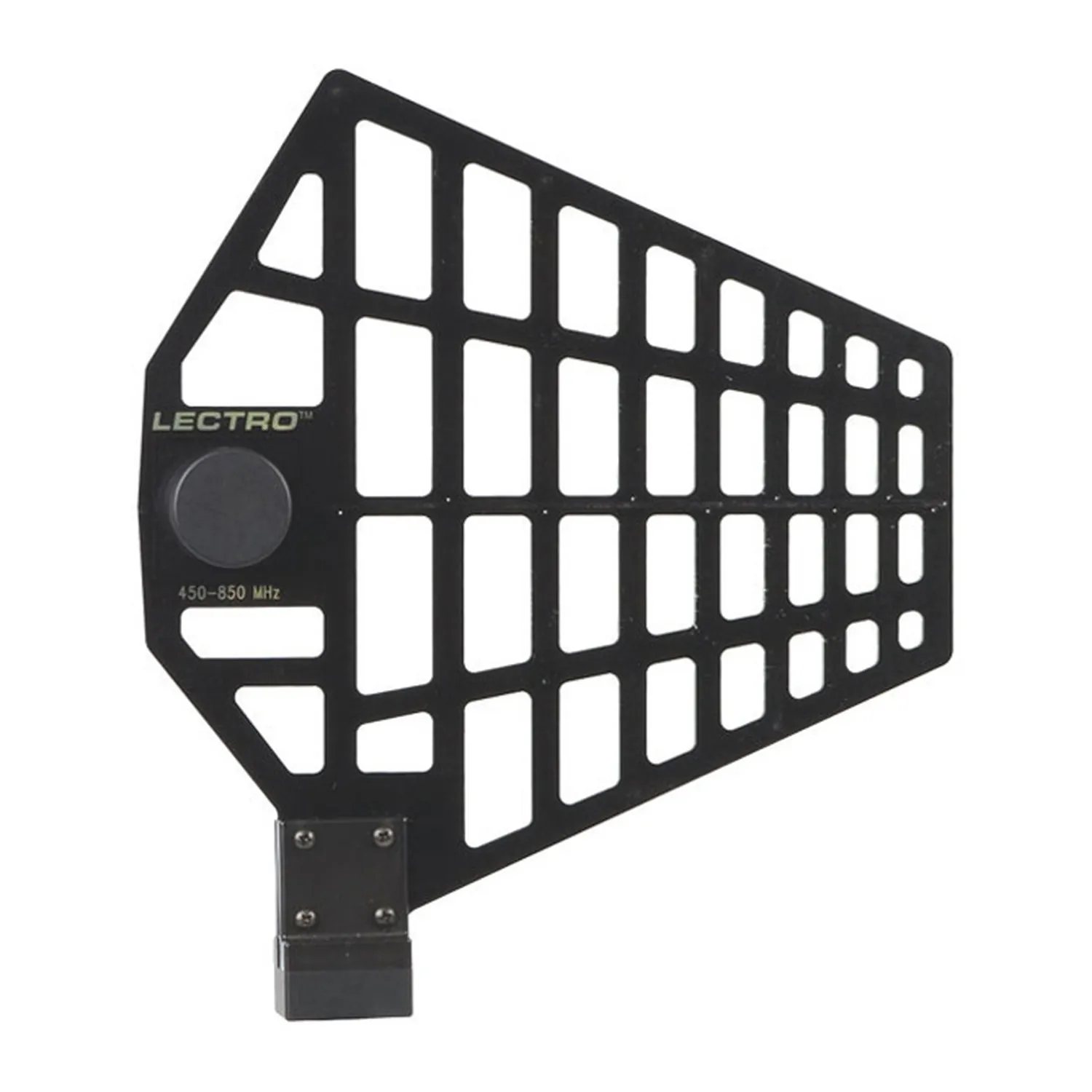

Built for field production, the Lectrosonics ALP620 is a skeletal log periodic antenna whose open frame cuts wind loading outdoors.

Its log periodic dipole array (LPDA) design keeps a directional pattern across a wide bandwidth, with VSWR below 2:1 from 450 to 862 MHz. The wide bandwidth suits multi-channel and frequency-agile wireless systems, where many narrowband gain antennas fall short. It adds 4 dBd of gain over a dipole for longer reach.

The perforated body is 1/8 in FR4 fiberglass circuit board, and a protective cover guards its 50 ohm BNC connector. The mounting block takes 1/4-20 and 3/8-16 tripod threads and 5/8-27 mic stand threads. Four screws let the block move for vertical or horizontal mounting. Mount it vertically, in the same plane as the transmitter antennas, and away from reflective surfaces.

Features

• Skeletal frame for less wind loading
• Directional log periodic dipole array design
• 450 to 862 MHz, VSWR below 2:1
• 4 dBd (7 dBi) pattern gain
• Protective cover over the 50 ohm BNC connector
• Mounting block for tripod and mic stand threads
• Vertical or horizontal mounting
