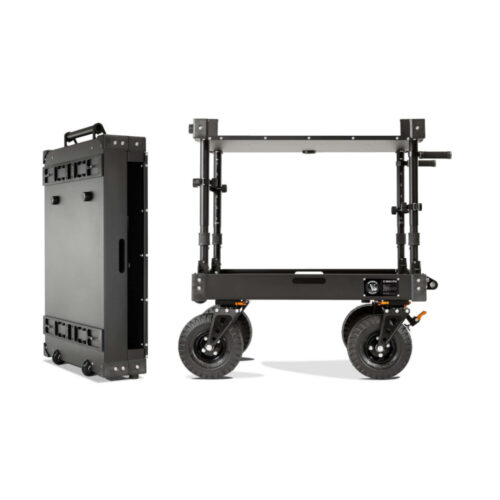

Inovativ Voyager EVO X Workstation Cart, assembled on its wheels beside a second cart folded flat and standing on end.
Inovativ Voyager EVO X Workstation Cart, the Voyager 30 EVO X seen from the front, its two shelves on black posts above large wheels.
Inovativ Voyager EVO X Workstation Cart, the Voyager 42 EVO X seen from the front at an angle.
Inovativ Voyager EVO X Workstation Cart, folded flat and seen from above, with two wheels and a black bag packed inside the frame.
Inovativ Voyager EVO X Workstation Cart, a close view of a threaded rail plate on the side of a shelf, its rows of mounting holes.
Inovativ Voyager EVO X Workstation Cart, a close view of the top shelf's edge, the rail below it, and a post.
Inovativ Voyager EVO X Workstation Cart, the Voyager 30 EVO X assembled and folded, with its dimensions marked.
Inovativ Voyager EVO X Workstation Cart, the Voyager 36 EVO X assembled and folded, with its dimensions marked.
Inovativ Voyager EVO X Workstation Cart, the Voyager 42 EVO X assembled and folded, with its dimensions marked.
Inovativ Voyager EVO X Workstation Cart, the three sizes folded flat and standing on end side by side, with their heights marked.

Inovativ Voyager EVO X Workstation Cart

  • Fully collapsible workstation that packs down into a compact case
  • Top shelf height adjusts in 2-inch steps
  • Aluminum EVO wheels with sealed bearings and foot brakes

From $3,799.00 USD

Brand: Categories: , Trew SKU: INOVOYEVOX

Inovativ Voyager EVO X Workstation Cart

The Inovativ Voyager EVO X is a fully collapsible mobile workstation that sets up without tools and packs down into a compact case, with its wheels stowed inside. It comes in three sizes, compared in the Configurations tab.

Its X-Top shelf has four sides, one of them removable, so you can type on a flat surface. Threaded rail plates in the top shelf take accessories on 1/4″-20 and 3/8″-16 holes. Inovativ’s patented Self-Locking Adjustable Shelving (SLAS) sets the shelf height in 2-inch steps. The cart is built from aluminum, composite materials, and stainless steel hardware, and its top and bottom shelves are hemmed for strength.

The EVO wheels are aluminum, 30% lighter than traditional steel casters, with 100% sealed bearings that keep the elements out. The Voyager 30 EVO X rolls on 8-inch pneumatic wheels, and the 36 and 42 on 10-inch pneumatic wheels. Each set has two swivel wheels with foot brakes and two fixed wheels.

For travel, the cart folds into itself. Molded corners on both shelves interlock, the Pack Latch System locks the case shut, and built-in skate wheels let you pull it along. Accessories made for the Voyager include top and bottom drawers, a camera mount, a mast riser, cable hooks, and a travel case.

Sound carts do not qualify for free shipping, and a lift gate fee applies that varies with the courier. Please contact your local Trew Audio location for specific details.

Features

  • Three sizes: Voyager 30, 36, and 42 EVO X
  • X-Top shelf with a removable side for keyboard work
  • Threaded rail plates with 1/4″-20 and 3/8″-16 holes in the top shelf
  • SLAS top shelf adjusts in 2-inch steps
  • Aluminum EVO wheels with 100% sealed bearings, two with foot brakes
  • Carries 400 lb on the Voyager 30 EVO X and 600 lb on the 36 and 42
  • Tool-free setup and pack-down, with the wheels stowed inside
  • Molded corners interlock and the Pack Latch System locks the packed cart
  • Integrated skate wheels for pulling the packed cart
  • Hemmed top and bottom shelves

Configurations

Size Part Number Payload Capacity Product Weight Packed Dimensions Wheels
Voyager 30 EVO X VEX 0030 400 lb 58 lb 34 × 21 × 8.25 in 8-inch EVO
Voyager 36 EVO X VEX 0036-AV10U 600 lb 76 lb 40 × 25 × 8.25 in 10-inch EVO
Voyager 42 EVO X VEX 0042 600 lb 78 lb 46 × 25 × 8.25 in 10-inch EVO

What's Included

  • Voyager EVO X Workstation with keyboard-friendly X-Top shelf, removable X-Top closeout, and 4-inch-tall bottom shelf
  • 2 × quick grips
  • 2 × accessory crossbars
  • 4 × removable EVO wheels and foot brakes (8-inch on the Voyager 30 EVO X, 10-inch on the Voyager 36 EVO X and Voyager 42 EVO X)
  • 4 × wheel bags

Specifications

Top-Shelf Payload Capacity (Voyager 30 EVO X) 200 lb (90.72 kg)
Top-Shelf Payload Capacity (Voyager 36 EVO X) 200 lb (90.72 kg)
Top-Shelf Payload Capacity (Voyager 42 EVO X) 150 lb (68.04 kg)
Assembled Dimensions, L × W × H (Voyager 30 EVO X) 34 × 21 × 40 – 50 in
86.36 × 53.34 × 101.6 – 127 cm
Assembled Dimensions, L × W × H (Voyager 36 EVO X) 40 × 25 × 41 – 51 in
101.6 × 63.5 × 104.14 – 129.54 cm
Assembled Dimensions, L × W × H (Voyager 42 EVO X) 46 × 25 × 41 – 51 in
116.84 × 63.5 × 104.14 – 129.54 cm
Ground Clearance (Voyager 30 EVO X) 10.5 in (26.67 cm)
Ground Clearance (Voyager 36 EVO X) 11.44 in (29.06 cm)
Ground Clearance (Voyager 42 EVO X) 11.44 in (29.06 cm)
Top Shelf Area, L × W (Voyager 30 EVO X) 28.88 × 18.94 in
73.36 × 48.11 cm
Top Shelf Area, L × W (Voyager 36 EVO X) 34.94 × 23.25 in
88.75 × 59.06 cm
Top Shelf Area, L × W (Voyager 42 EVO X) 41 × 23.25 in
104.14 × 59.06 cm
Bottom Shelf Area, L × W (Voyager 30 EVO X) 25.75 × 18.94 in
65.41 × 48.11 cm
Bottom Shelf Area, L × W (Voyager 36 EVO X) 32 × 23.13 in
81.28 × 58.75 cm
Bottom Shelf Area, L × W (Voyager 42 EVO X) 37.88 × 23.13 in
96.22 × 58.75 cm
Accessory Mounting Threaded rail plates with 1/4″-20 and 3/8″-16 holes
Construction Aluminum, composite materials, and stainless steel hardware
