Hollyland Solidcom H1-10S 10-Person Wireless Intercom

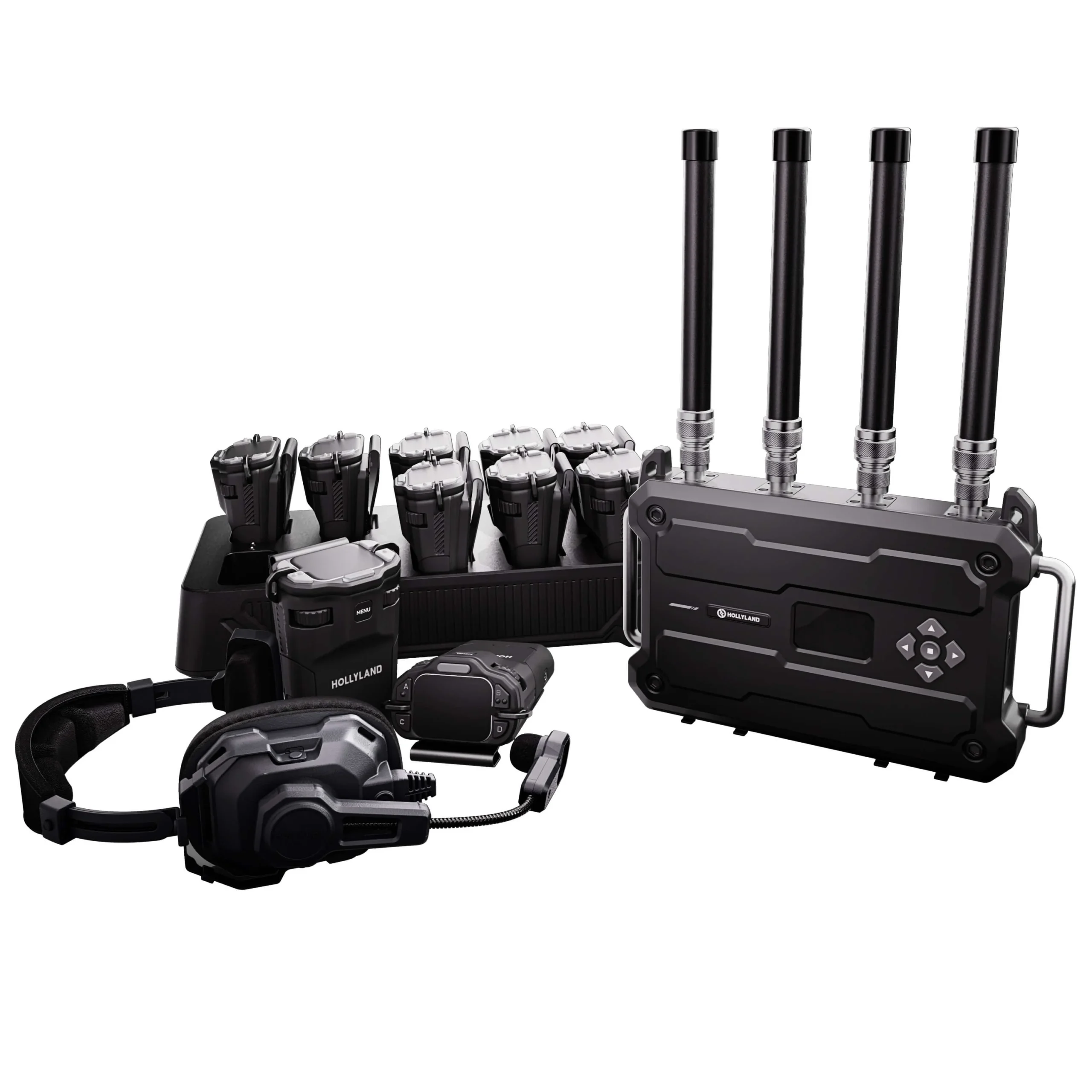

The Hollyland Solidcom H1-10S is a 10-person kit for the Solidcom H1 system, with an ANT01 antenna unit, ten BPK01 beltpacks, and ten single-ear headsets in a hard-shell case.

How It Works

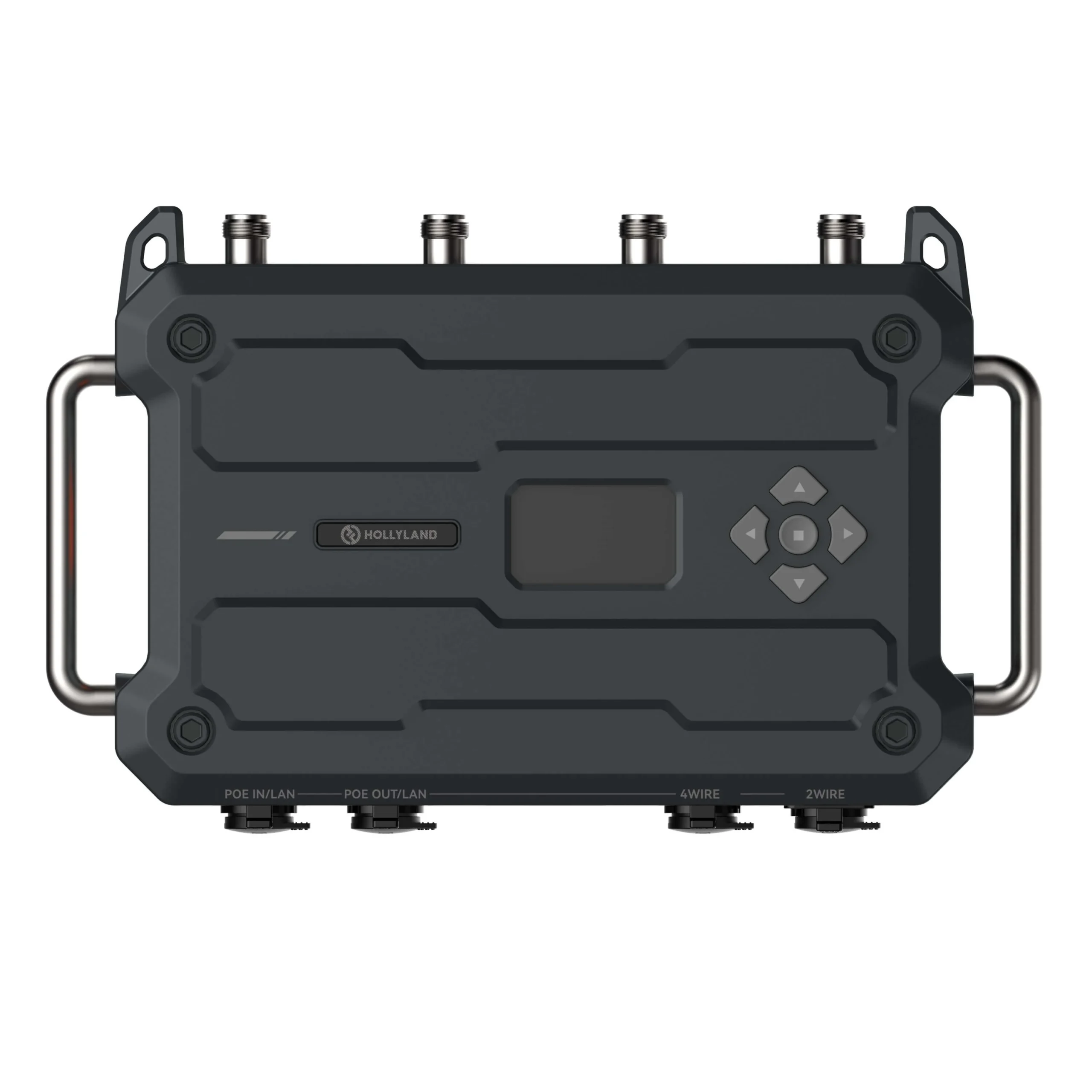

The ANT01 runs the system on its own, with no central station: one unit links up to 20 beltpacks in full duplex and covers up to 500 m (1,640 feet) in radius in open-field conditions. Beltpacks roam between ANT01 units as the crew moves, and up to three units cascade over IP for as many as 30 beltpacks in up to 12 groups.

Adding the Geo Central Station, sold separately, takes the system to 80 beltpacks and 100 groups with no license fees. The ANT01’s 2W/4W interfaces connect more ANT01 systems or third-party intercoms.

Setup and Control

With the charging base connected to the ANT01, the beltpacks pair and take firmware and settings in one step. The system is managed over Wi-Fi or Bluetooth from a browser or the HOLLYVOX app, and cloud access over the internet needs a paid subscription. The ANT01 runs from its PoE power adapter or a V-mount or G-mount battery.

Beltpacks and Headsets

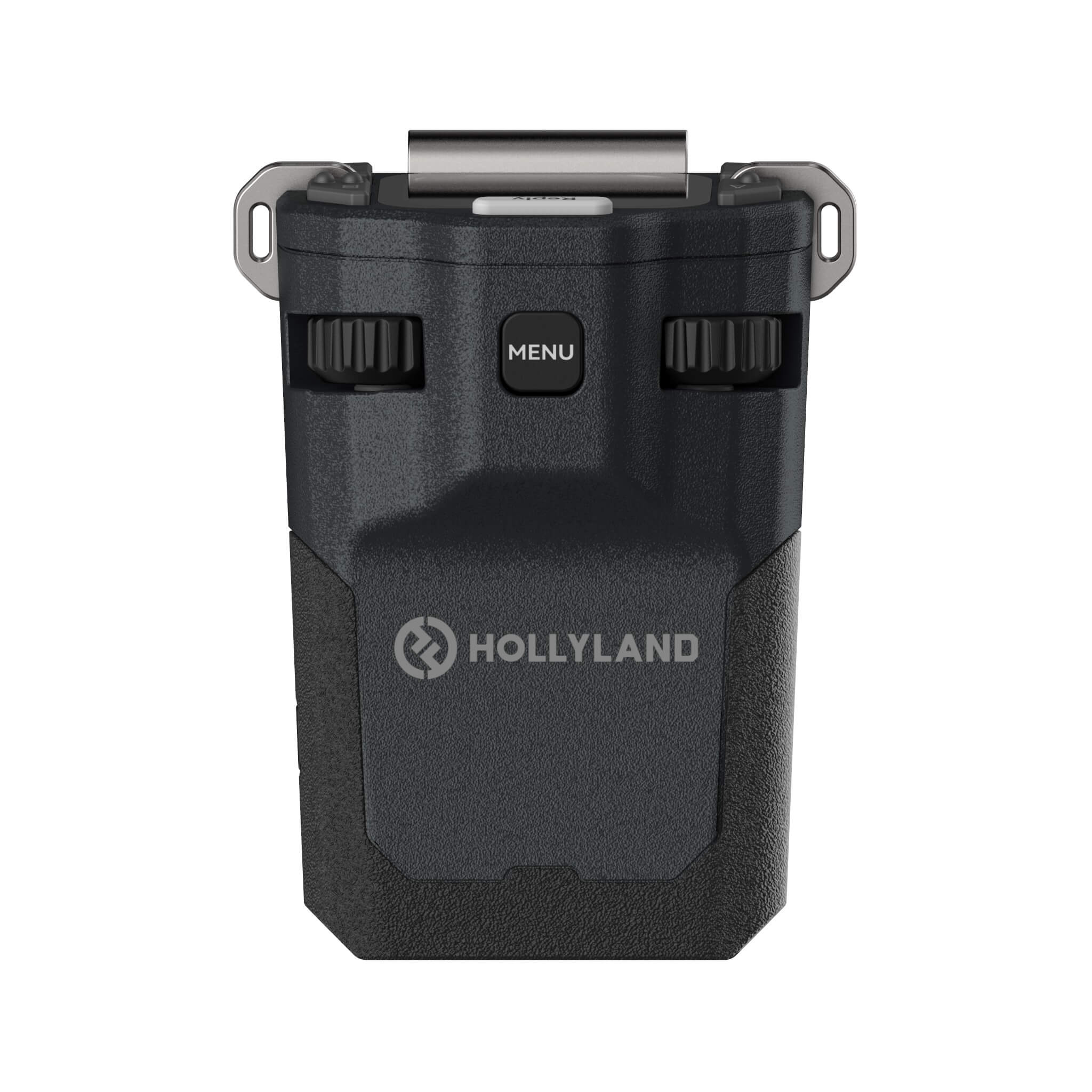

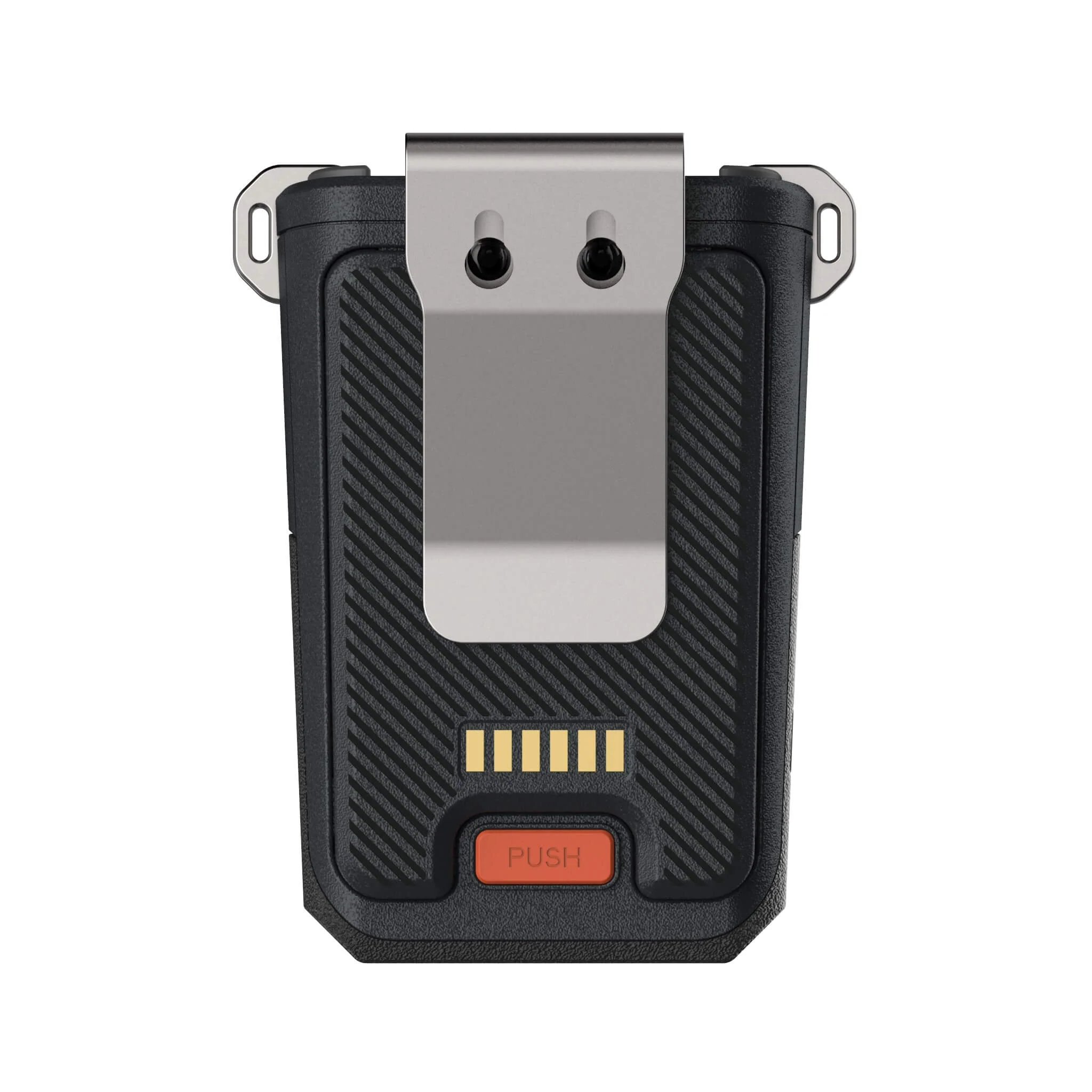

Each BPK01 beltpack weighs 305 g with its battery, runs more than 15 hours on its removable battery, and is rated IP65 against water and dust. Its four buttons can each be set as a talk key or call alert. A built-in Bluetooth module works with true wireless earbuds or Bluetooth over-ear headphones.

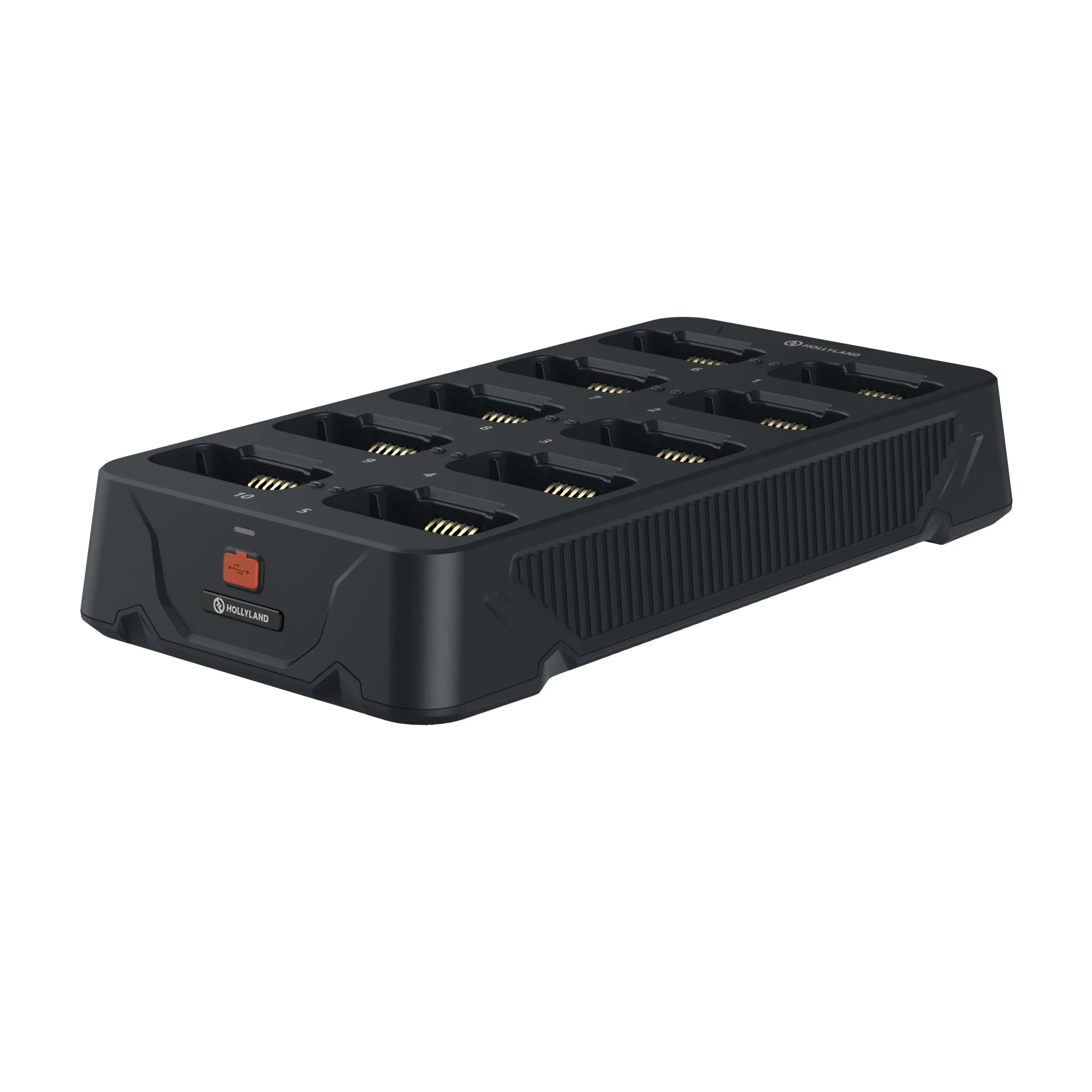

The headsets connect by 10-pin LEMO, and noise cancellation on the beltpack’s headset input cuts surrounding noise by 20 dB. The charging base charges 10 beltpacks or 10 batteries at once.

Features

10-person kit: ANT01, 10 BPK01 beltpacks, 10 single-ear headsets
Up to 500 m (1,640 feet) radius from one ANT01, with roaming
Up to 20 beltpacks per ANT01, or 30 with three units over IP
Up to 80 beltpacks and 100 groups with the Geo Central Station
2W/4W interfaces for other ANT01 systems and third-party intercoms
More than 15 hours per beltpack battery
Four customizable beltpack buttons and Bluetooth audio
IP65 beltpacks and a hard-shell carry case

What's Included

Solidcom ANT01 antenna unit
4 × fiberglass antennas
10 × Solidcom BPK01 beltpacks
10 × Solidcom BPK01 batteries
10 × Solidcom single-ear headsets
10 × 10-pin to 4-pin XLR adapter cables
Solidcom BPK01 battery charging base
10 × tempered glass screen protectors
RJ45 to dual XLR cable
XLR network cable
Solidcom ANT01 PoE power adapter
2 × AC power cables
DC power adapter
USB-A to USB-C cable
Solidcom hard-shell carry case (holds 1 antenna unit and 10 beltpacks)

Specifications

ANT01 Range	500 m line of sight
ANT01 Frequency Band (FCC)	DECT 1920 to 1930 MHz; Bluetooth 2402 to 2480 MHz; Wi-Fi 2412 to 2472 MHz
ANT01 DECT Transmit Power (FCC)	≤ 20 dBm
ANT01 DECT Bandwidth	1.728 MHz
Modulation	DECT GFSK
Receiver Sensitivity	−90 dBm
ANT01 Antenna Gain	4 dB
ANT01 Power Consumption	15.5 W
ANT01 PoE Input Power	≤ 60 W
ANT01 V-Mount or G-Mount Battery Voltage	11 to 30 V
ANT01 Dimensions	302 × 188.56 × 64.6 mm
ANT01 Weight	1987 g
BPK01 Range	500 m line of sight
BPK01 Battery Life	More than 15 hours
BPK01 Dimensions	114.65 × 89.2 × 61.8 mm
BPK01 Weight	305 g with battery
BPK01 Ingress Protection	IP65
BPK01 Headset Input Noise Cancellation	20 dB
BPK01 Signal-to-Noise Ratio	67 dB
BPK01 Output SPL	113 dB SPL maximum
BPK01 Distortion	< 1%
Operating Temperature	−10 to 45 °C
Storage Temperature	−20 to 60 °C
