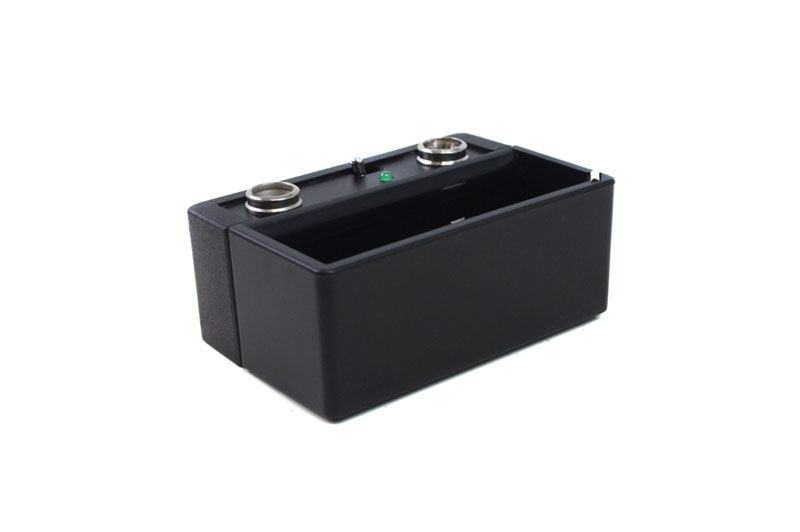

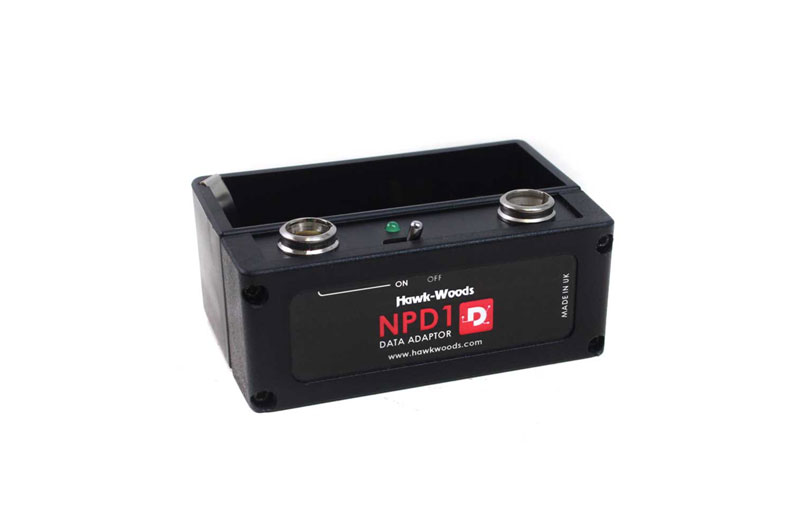

Hawk-Woods NPD1 NP1 Data Power Adapter Shoe with 2 TA4 Outputs

The Hawk-Woods NPD1 fits an NP1 data battery and sends its power and data to the Hawk-Woods NPD-8S distribution box through two chassis-mounted TA4 outputs.

A master switch controls one TA4 output, which carries data pins, and turns off the whole NPD-8S, display included. That output can also send data straight to Sound Devices mixers such as the 833, 888, and Scorpio. The other TA4 output is an auxiliary output the switch does not control, so it still draws power from the battery. An LED lights when the switched power is on.

Feeding the NPD-8S through TA4 rather than Hirose connectors lets it draw more power, so each of its outputs can be used without the low current limit of a Hirose connection. The Hawk-Woods LA-8 and LA-8A cables, 45 cm and 75 cm long, connect the NPD1 to the NPD-8S.

Features

• Two chassis-mounted TA4 outputs
• Master switch on the data output turns off the whole NPD-8S, display included
• Unswitched auxiliary TA4 output
• Data pins for the NPD-8S or Sound Devices 833, 888, and Scorpio mixers
• LED shows when the switched power is on
• Weighs 60 g (2.1 oz)
