DPA 4560 CORE Binaural Headset Microphone
- Binaural headset with two 4060 CORE mics
- Matched pair within ±1.5 dB
- Lightweight headset, hardly visible
$1,230.00 USD
DPA 4560 CORE Binaural Headset Microphone

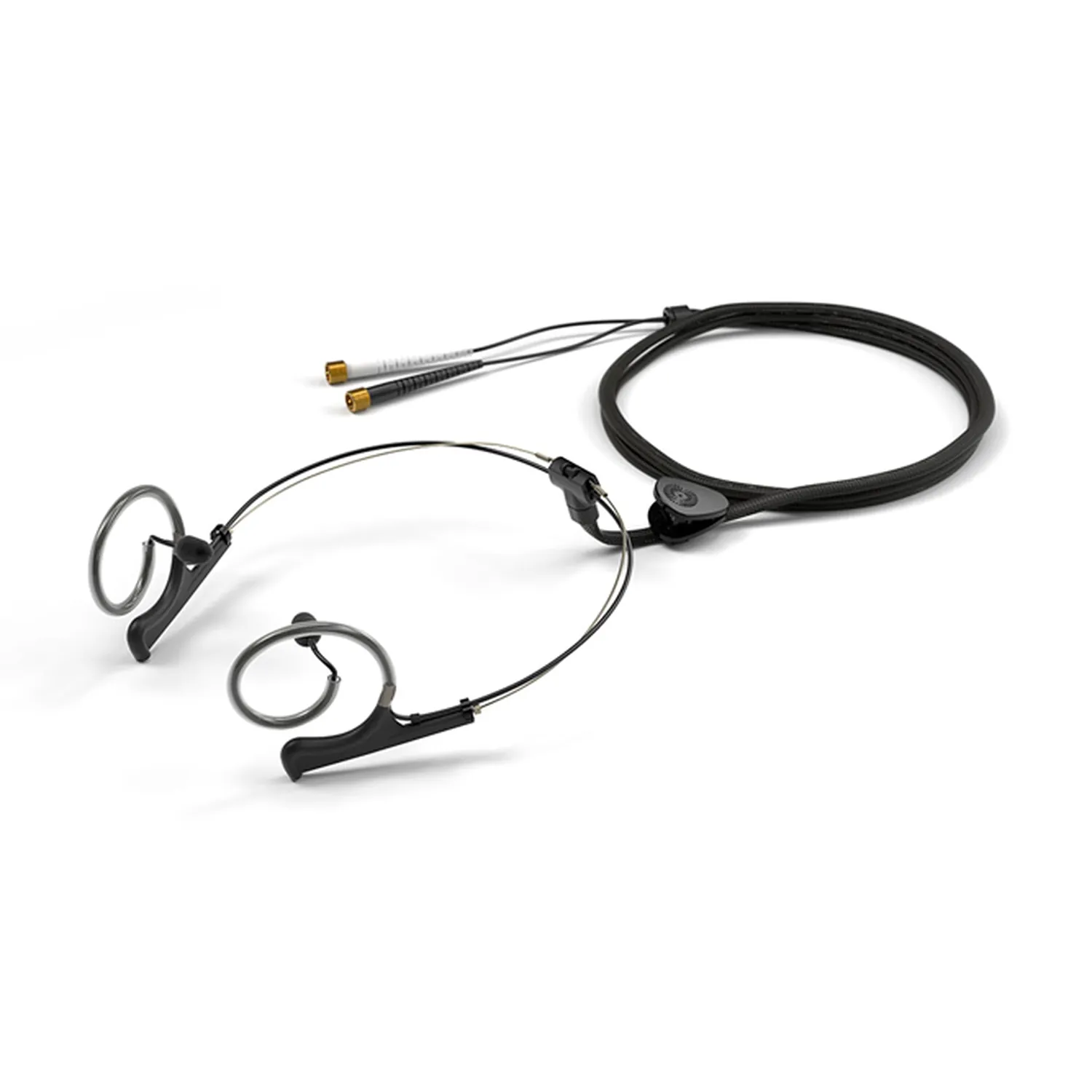

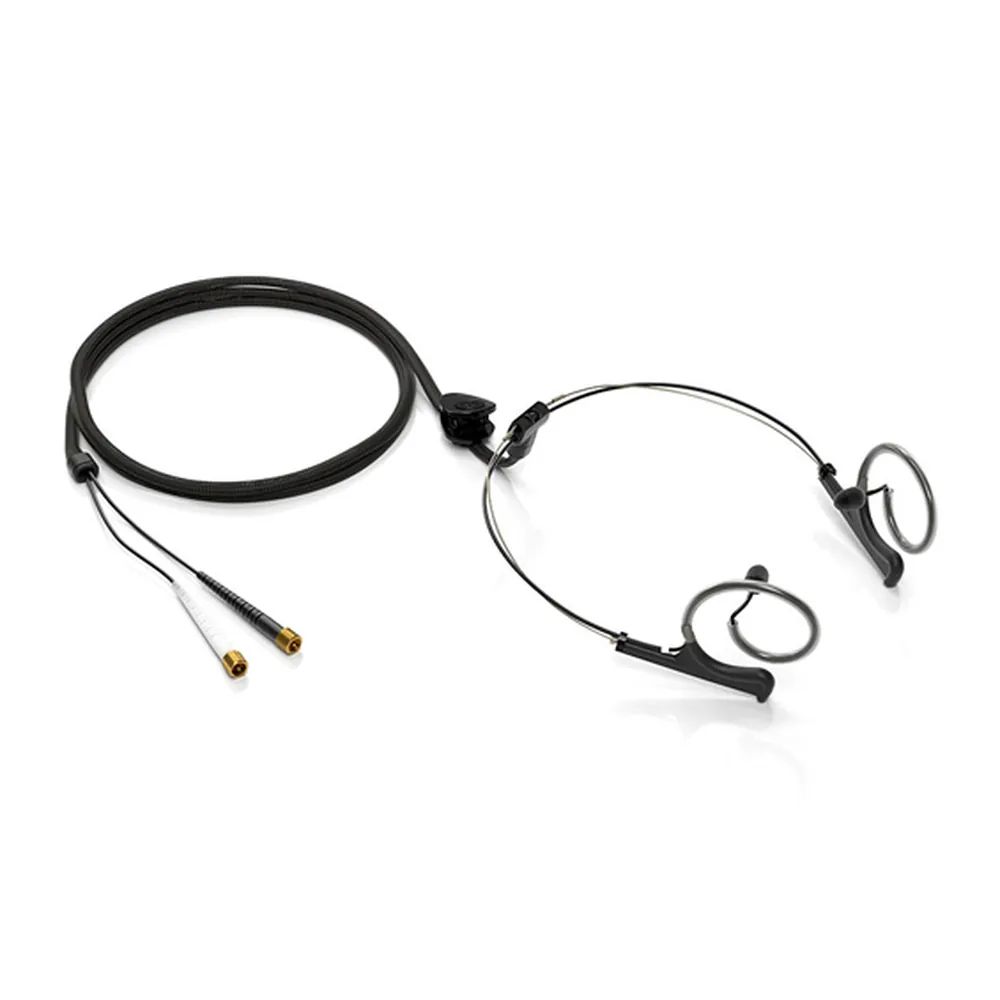

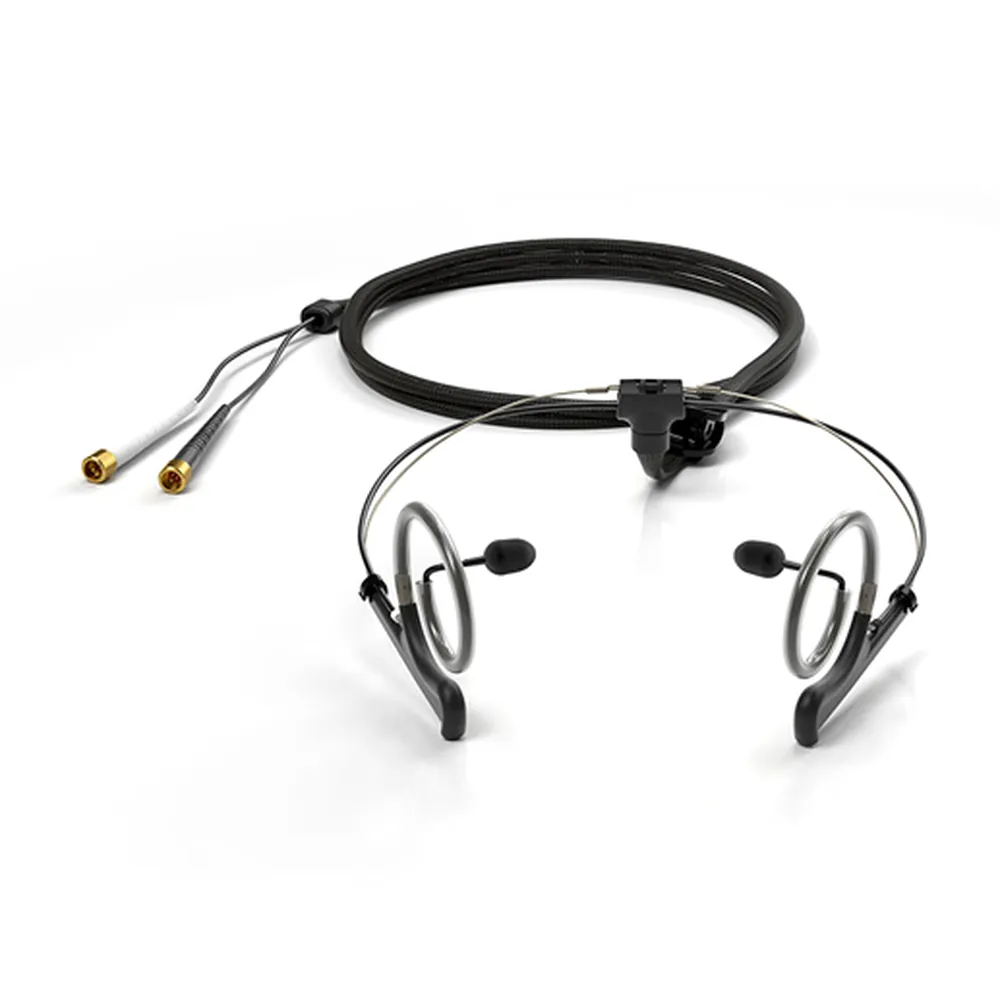

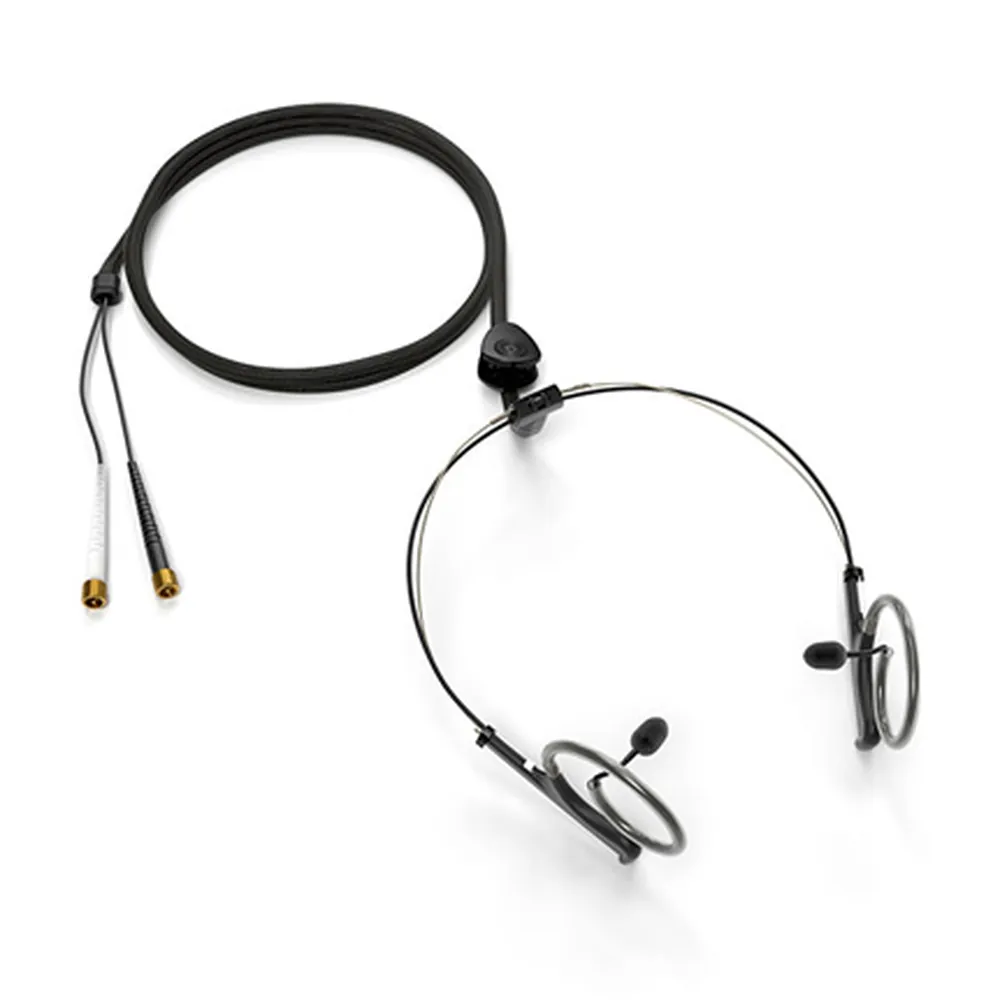

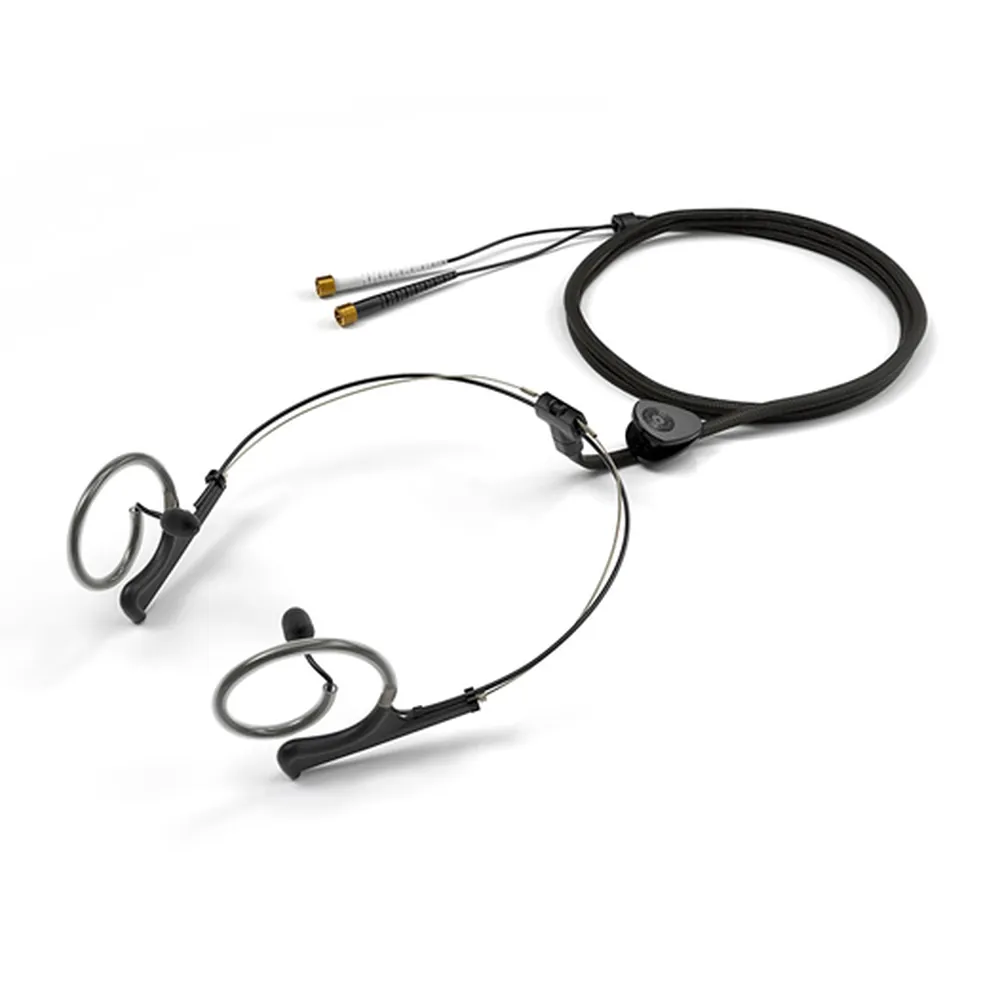

The DPA 4560 CORE is a binaural headset microphone: a stereo pair of 4060 CORE miniature omni mics on two ear hooks, for recording sound as the wearer hears it.
The two 4060s are hand-picked as a pair, matched in sensitivity within ±1.5 dB. The lightweight, flexible headset fits any ear size and head shape, mounts securely, and is hardly visible. Foam windscreens on the mics hold them in place in the ear and damp some wind noise.
Binaural Recording
Binaural recording places two omnidirectional mics close together, where a listener’s ears would be, so playback puts the listener in the recordist’s position, in 3D. Standard stereo uses cardioid mics spaced further apart. Film recordists use binaural recordings for atmospheres, and podcasts and online media use them for immersive sound.
The Microphones
The 4060’s accurate omni pattern needs no aiming. The mics handle up to 134 dB SPL before clipping and suit remote or quiet sources where a good balance of signal and noise matters. Their MicroDot connector fits most professional wireless systems through DPA’s adapters.
Features
- Stereo pair of 4060 CORE omni mics
- Matched within ±1.5 dB
- Lightweight, flexible headset
- Inconspicuous mic placement at the ears
- Foam windscreens included
- MicroDot connector
What's Included
- 4560 CORE binaural headset with two 4060 CORE microphones
- Foam windscreens
Specifications
| Acoustic | |
|---|---|
| Directional Pattern | Omnidirectional |
| Principle of Operation | Pressure |
| Cartridge Type | Pre-polarized condenser |
| Frequency Response | 20 Hz to 20 kHz |
| Sensitivity (±3 dB at 1 kHz) | 20 mV/Pa (−34 dB re 1 V/Pa) |
| Equivalent Noise Level (A-weighted) | 23 dB(A) typical (26 dB(A) max) |
| Max. SPL | 134 dB SPL peak |
| Pair Matching | Sensitivity within ±1.5 dB |
| Electrical | |
| Rated Output Impedance | 30 to 40 Ω |
| Power Supply | Wireless systems: 5 to 10 V through a DPA adapter |
| Current Consumption | 1.5 mA typical (microphone) |
| Physical | |
| Connector | MicroDot |
| Microphone Diameter | 5.4 mm (0.21 in) |
| Color | Black |
| Temperature Range | −40°C to 45°C (−40°F to 113°F) |
| Relative Humidity | Up to 90% |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit www.dpamicrophones.com. |
