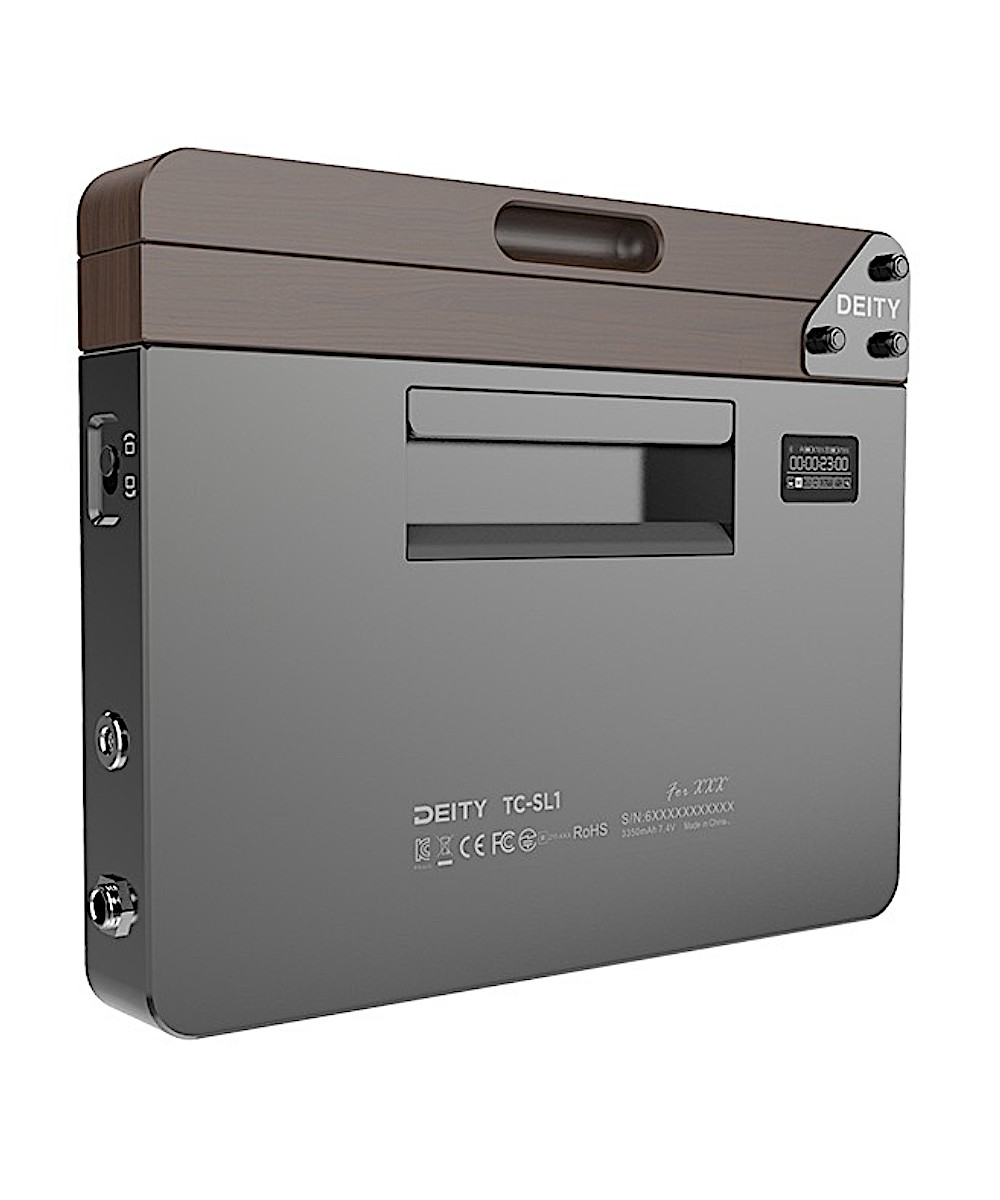

Deity TC-SL1 Timecode Slate, TC-SL1 slate rear.
Deity TC-SL1 Timecode Slate, TC-SL1 battery bays from below.

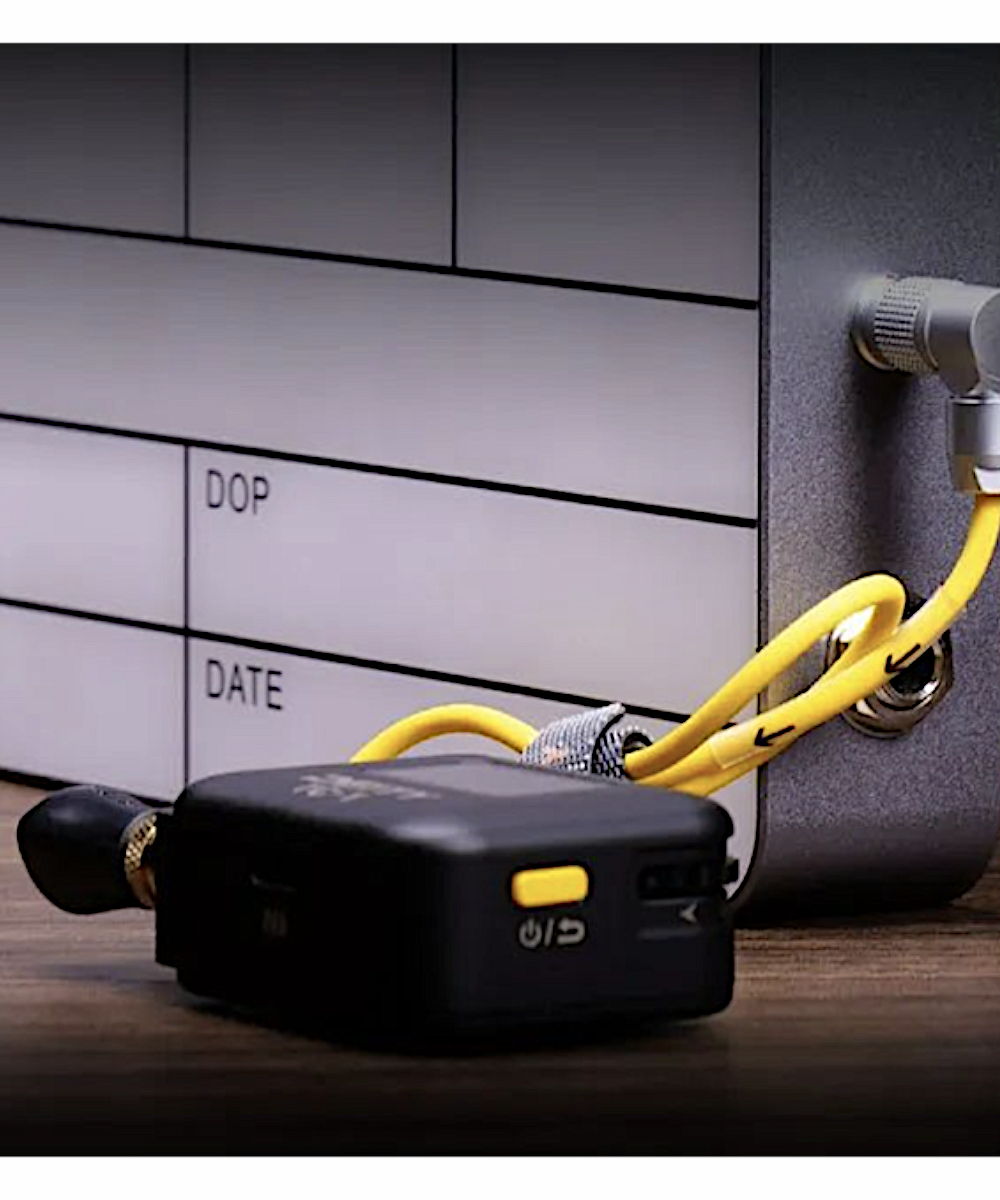

Deity TC-SL1 Timecode Slate, TC-SL1 battery and timecode cable on set.
Deity TC-SL1 Timecode Slate, TC-SL1 slate in use on set.

Deity TC-SL1 Timecode Slate

  • Timecode slate with a bright dot-matrix display
  • Bluetooth sync from up to 250 ft
  • Dual NP-F550 bay for up to 100 hours

$999.00 USD

Availability: In Stock

Brand: Categories: , Tags: , Trew SKU: DEI.TCSL1 MPN: DTT0286D81

Deity TC-SL1 Timecode Slate

The Deity TC-SL1, a timecode slate with a bright dot-matrix display, syncs over Bluetooth from up to 250 ft away through the free Sidus Audio app.

The slate also syncs from Deity TC-1 timecode boxes. Its 5-pin input and output and 1/4 in TRS output work with existing timecode cables.

A switch flips the display for tail slating, and the backlight is dimmable. Two NP-F550 batteries in a dual bay give up to 100 hours of use, and the slate charges over USB-C.

The clapper sticks are made from sustainably farmed walnut from Tennessee.

Features

  • Bright dot-matrix timecode display
  • Remote control from the Sidus Audio app
  • 5-pin input and output and 1/4 in TRS output
  • Supports all SMPTE formats
  • Dual NP-F550 battery bay, up to 100 hours
  • Dimmable backlight
  • Flippable display for tail slating
  • USB-C charging

What's Included

  • TC-SL1 timecode slate
  • 2 x Deity NP-F550 7.4 V 3350 mAh batteries
  • USB-C to USB cable
  • 3.5 mm to 5-pin timecode cable
  • Dry erase marker
  • Carrying case

Specifications

TC-SL1
Timecode SMPTE
Front Screen LED dot matrix
Rear Screen 1 in OLED
Wireless Type 2.4 GHz RF sync pulse, Bluetooth 5.1 LE
Wireless Range Up to 30 ft (2.4 GHz RF)
Up to 250 ft (Bluetooth 5.1 LE)
RF Wireless Channels 8
Timecode Accuracy ±0.5 ppm
Drift Less than 1 frame in 48 hours
Frame Rates 23.98, 24, 25, 29.97, 29.97DF, 30
Timecode Ports 5-pin input and output
1/4 in TRS output
Battery Life Up to 100 hours
Battery Type NP-F550 (2)
Battery Capacity 6700 mAh
Charging Port USB-C
Charging Time Under 3 hours (15 V, 2 A charger)
Dimensions 9.1 × 7.3 × 1.6 in
Weight 2.5 lb
