Clear-Com FSE-TCVR-50-IP FreeSpeak Edge Transceiver

The Clear-Com FSE-TCVR-50-IP, an active IP antenna for the FreeSpeak Edge wireless system, links up to ten FSE-BP50 beltpacks to the intercom over an AES67 network.

It carries duplex communication from an Eclipse HX matrix through an E-IPA-HX interface card, and it also works with the FreeSpeak Edge Base and the Arcadia Central Station. With a 64-port E-IPA-HX card, one Eclipse HX system runs up to 64 transceivers and 64 beltpacks.

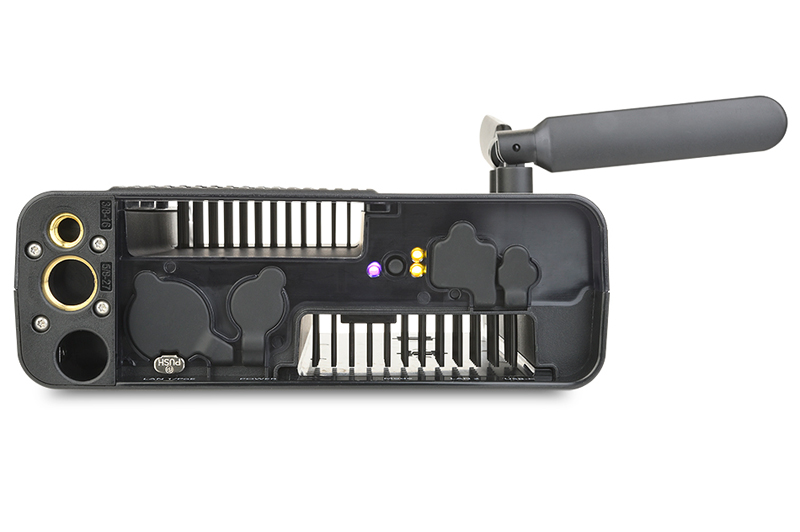

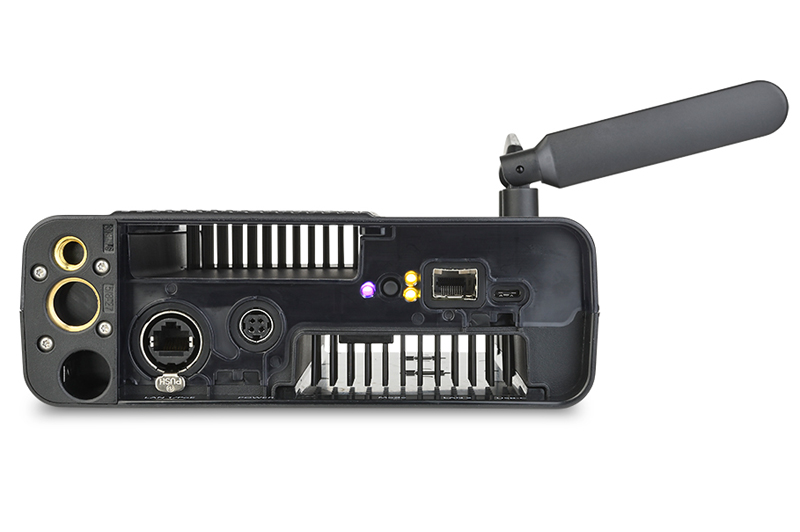

Each transceiver connects over copper through an etherCON RJ45 port or over fiber through a high-speed SFP cage, so it can go anywhere the AES67 network reaches. Power comes from a PoE switch at up to 330 ft (100 m), or locally from the supplied power supply, and up to three locally powered transceivers can be daisy-chained.

Dual redundant radios serve each beltpack and transceiver, with separate radios for RF and radar scanning, and AES256 shared key encryption protects the link. A standalone mode is there for site surveys and demos.

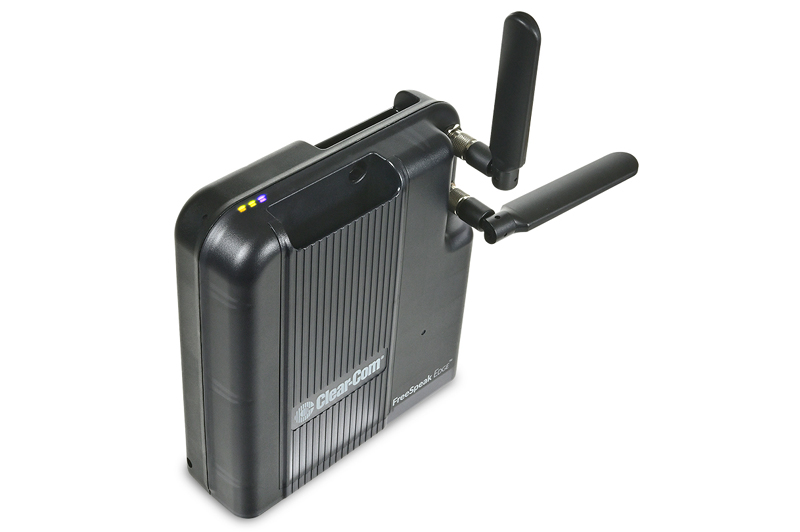

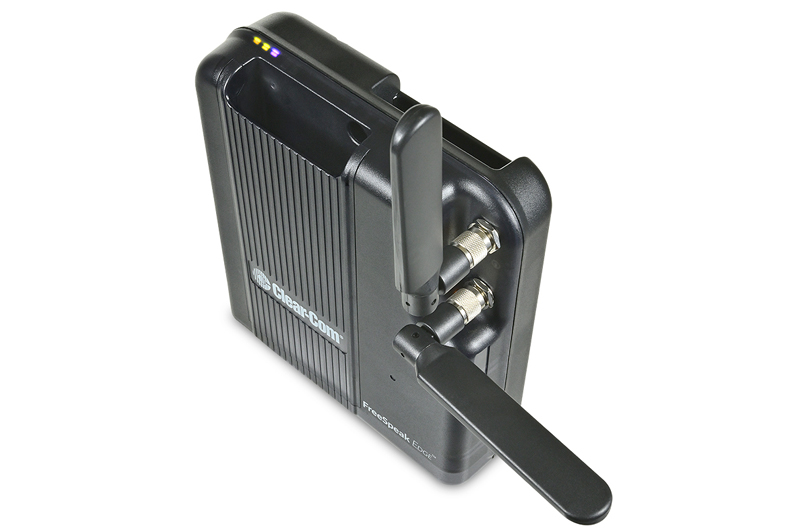

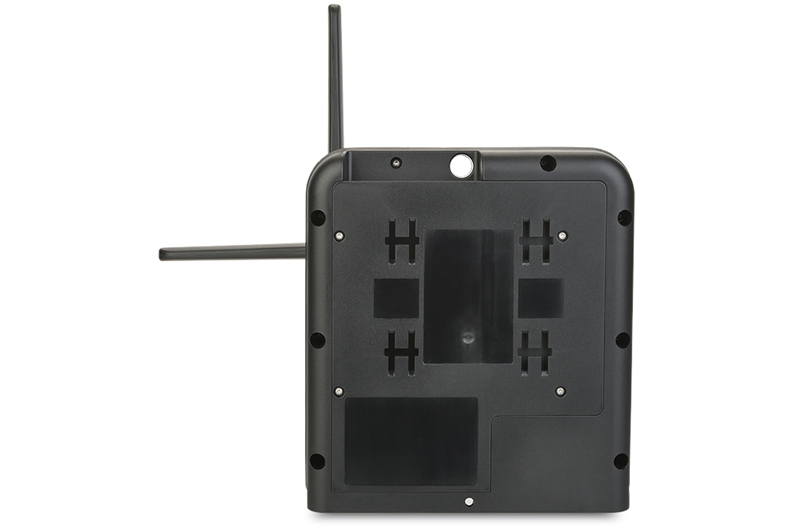

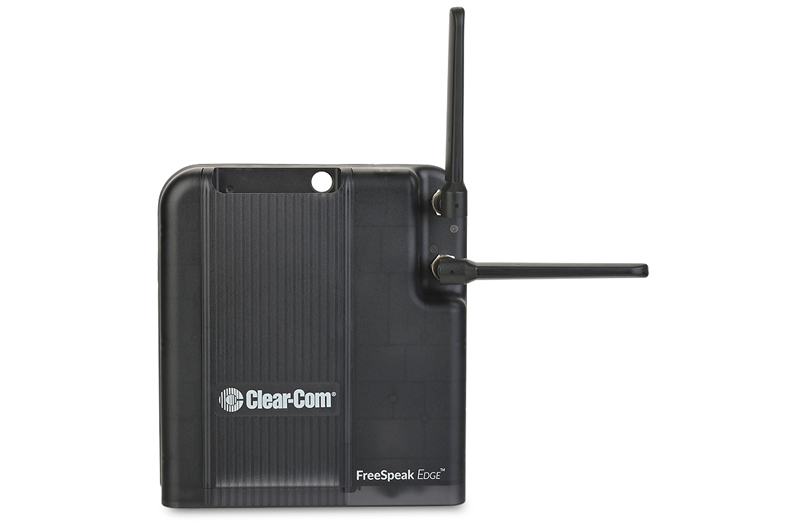

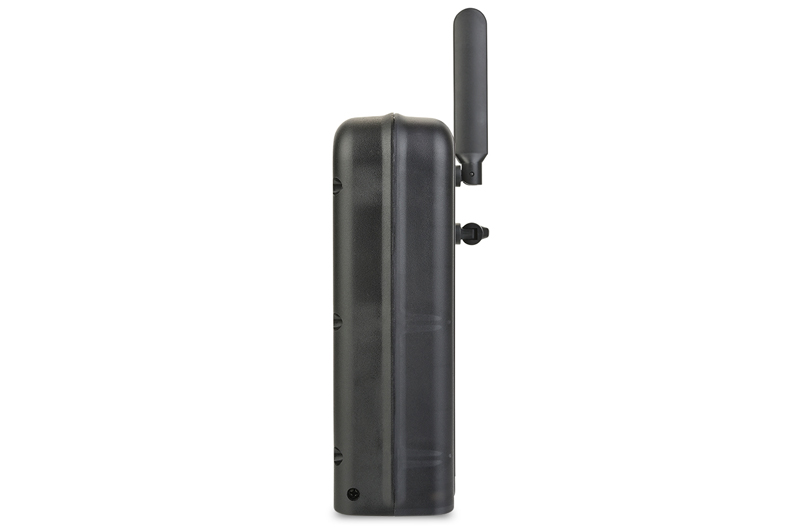

The IP53 housing has LED status indicators on the top and bottom and external omnidirectional antennas. Its bracket fits a wall, a mic stand with metric or imperial threads, or a tripod spigot.

Features

• Active IP antenna for FreeSpeak Edge 5 GHz beltpacks
• Up to ten FSE-BP50 beltpacks per transceiver
• Works with Eclipse HX through E-IPA-HX cards, FreeSpeak Edge Base, and Arcadia
• etherCON RJ45 and SFP fiber connections over an AES67 network
• PoE up to 330 ft, or local power with daisy-chaining of up to three
• Dual redundant radios and separate RF and radar scanning radios
• AES256 shared key encryption
• Standalone mode for site surveys and demos
• IP53 rated, with wall, mic stand, and tripod spigot mounting
